1098 1098 Slipper Clutch Fitting

Discussion in '848 / 1098 / 1198' started by Sikorsky From Hell, Jan 12, 2017.

  1. Sikorsky From Hell United Kingdom

    Joined:
    Dec 17, 2015
    Messages:
    39
    Likes Received:
    18
    Trophy Points:
    98
    Location:
    Hell
    Ride:
    1098
    Hi,

    I am going to fit a new slipper clutch to my 1098. I have read that it can be a bit tricky getting the adjustment right.
    has anyone fitted a slipper clutch? If so, was it straightforward or difficult getting it set up correctly?

    Thanks.

    SFH.

  2. Robarano

    Robarano Elite Member
    Subscriber

    Joined:
    Apr 19, 2012
    Messages:
    7,073
    Likes Received:
    1,956
    Trophy Points:
    423
    Location:
    Newcastle,UK
    Ride:
    Ducati Desmosedici RR
    Ducati 1098R
    Ducati Streetfighter S
    Vespa GTS300
    Very easy. The setting up is all done with the clutch plate stack height. 37mm rings a bell, but someone will be along to tell you the exact measurement.

    Make sure to grease the ramps and ball bearings. You'll need a large torque wrench for the centre nut.

  3. RickyX United Kingdom

    RickyX Elite Member
    Subscriber

    Joined:
    Apr 19, 2012
    Messages:
    2,724
    Likes Received:
    708
    Trophy Points:
    333
    Location:
    South Coast
    Ride:
    916SPS,
    749R Supersport,
    M1100S
    ...and a clutch holding tool.

    • Agree Agree x 1
  4. Sikorsky From Hell United Kingdom

    Joined:
    Dec 17, 2015
    Messages:
    39
    Likes Received:
    18
    Trophy Points:
    98
    Location:
    Hell
    Ride:
    1098
    Thanks. That sounds reasonably straightforward. I'm assuming the new clutch will come with the correct measurements.

  5. Sikorsky From Hell United Kingdom

    Joined:
    Dec 17, 2015
    Messages:
    39
    Likes Received:
    18
    Trophy Points:
    98
    Location:
    Hell
    Ride:
    1098
    Thanks.
    I have got hold of an Oberon clutch tool.

  6. Robarano

    Robarano Elite Member
    Subscriber

    Joined:
    Apr 19, 2012
    Messages:
    7,073
    Likes Received:
    1,956
    Trophy Points:
    423
    Location:
    Newcastle,UK
    Ride:
    Ducati Desmosedici RR
    Ducati 1098R
    Ducati Streetfighter S
    Vespa GTS300
    Never assume. :)

    A very important thing to remember with a slipper is that the clutch plates fit in a different order to the original clutch. You MUST fot a friction plate into the clutch 1st, not a steel plate. My old 1098S came with a slipper that had a steel fitted 1st. When dowshifting, the steel would slip behind the clutch drum and all engine braking was lost. Very scary when it 1st happened. It was fitted by a main dealer too. :Bucktooth:

    #6 Robarano, Jan 12, 2017
    Last edited: Jan 12, 2017
  7. Robarano

    Robarano Elite Member
    Subscriber

    Joined:
    Apr 19, 2012
    Messages:
    7,073
    Likes Received:
    1,956
    Trophy Points:
    423
    Location:
    Newcastle,UK
    Ride:
    Ducati Desmosedici RR
    Ducati 1098R
    Ducati Streetfighter S
    Vespa GTS300

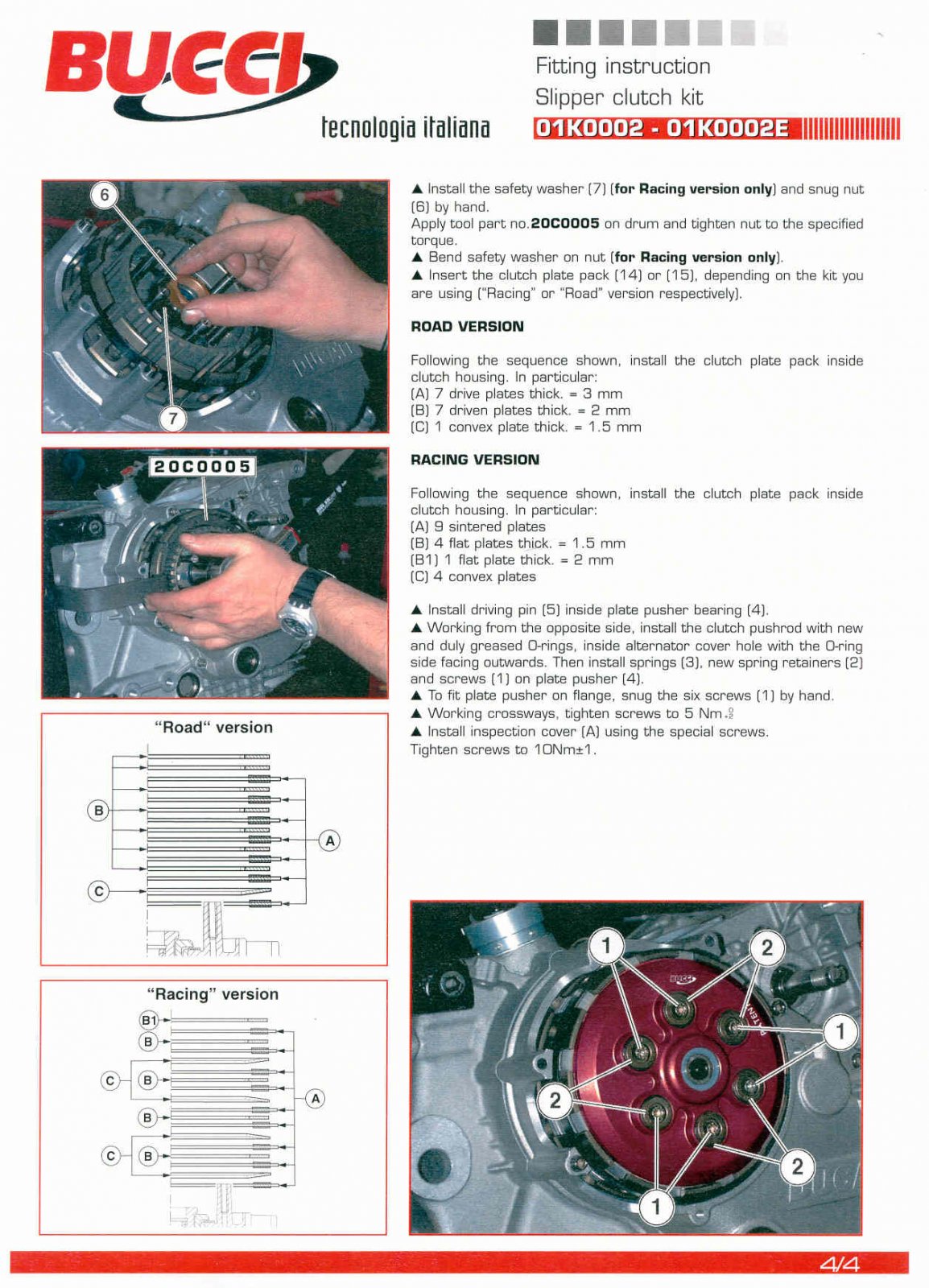

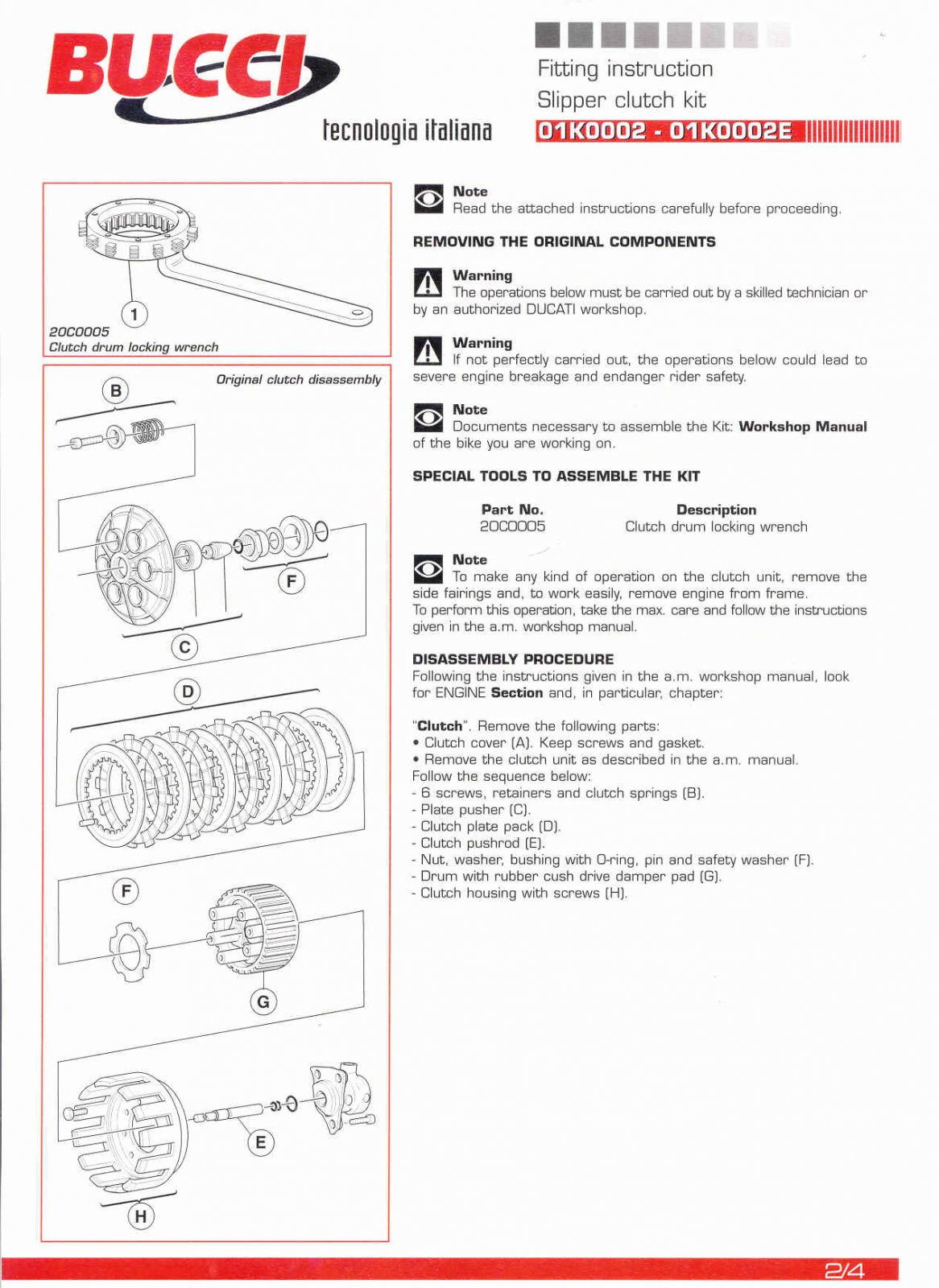

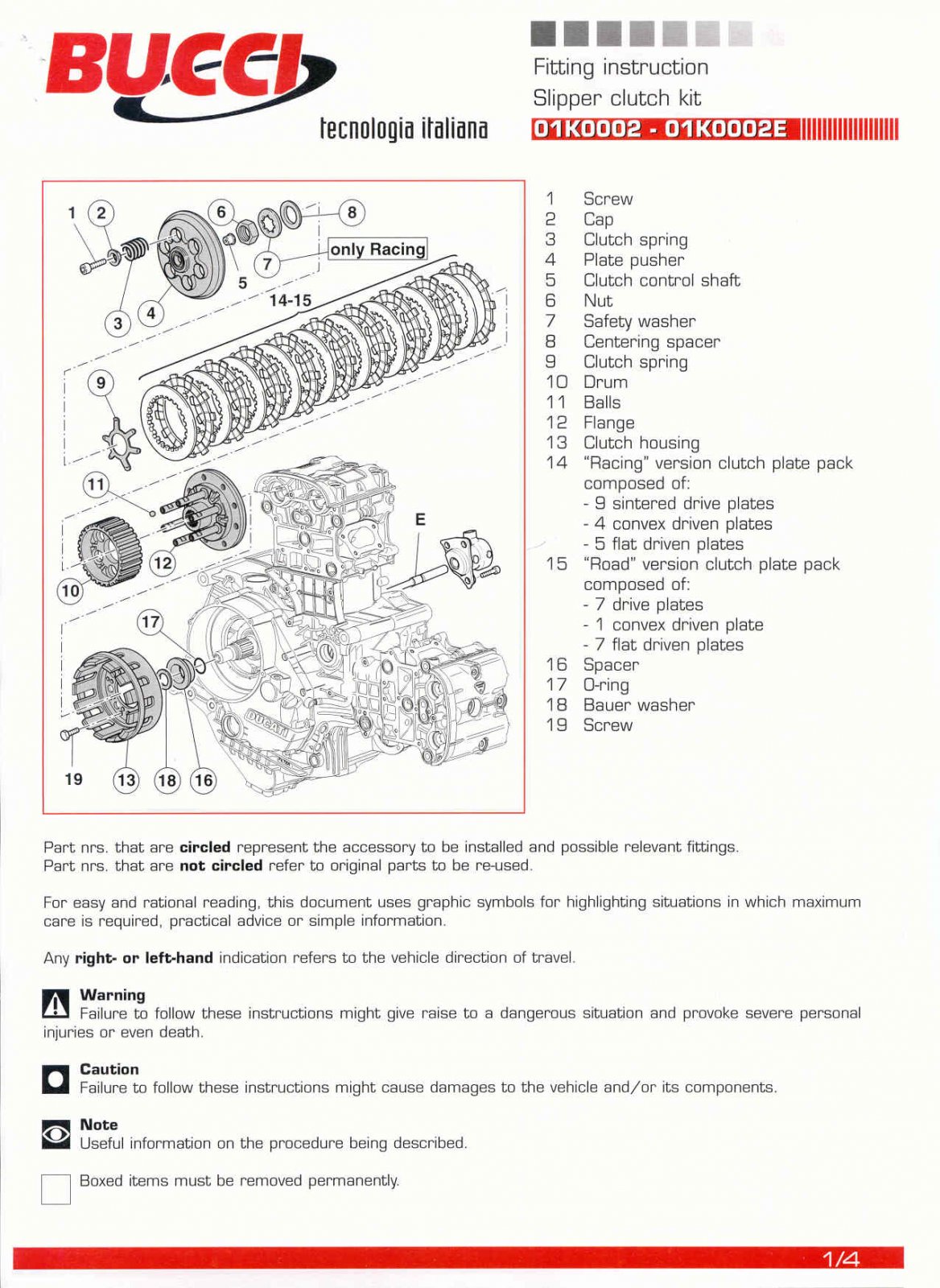

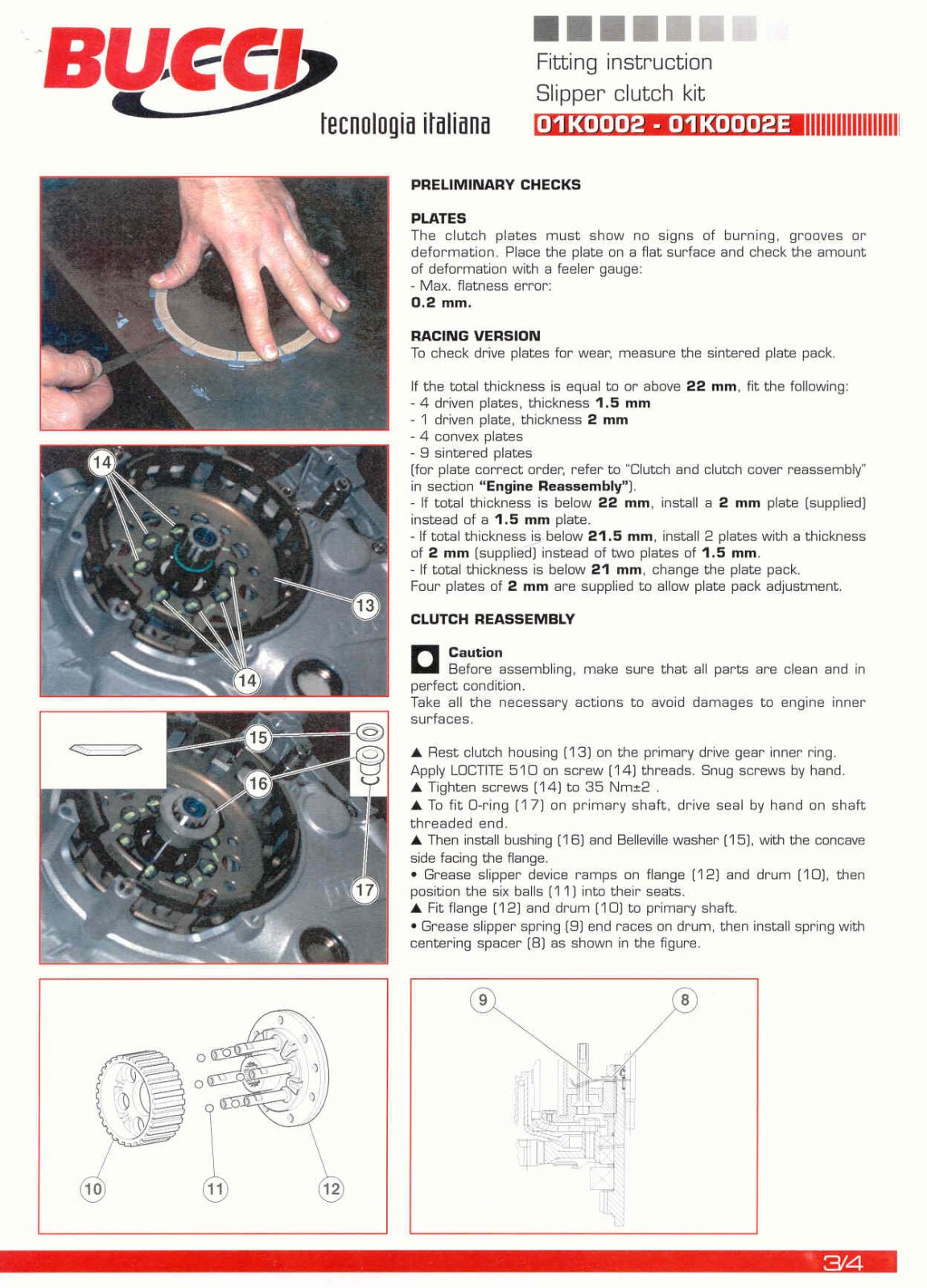

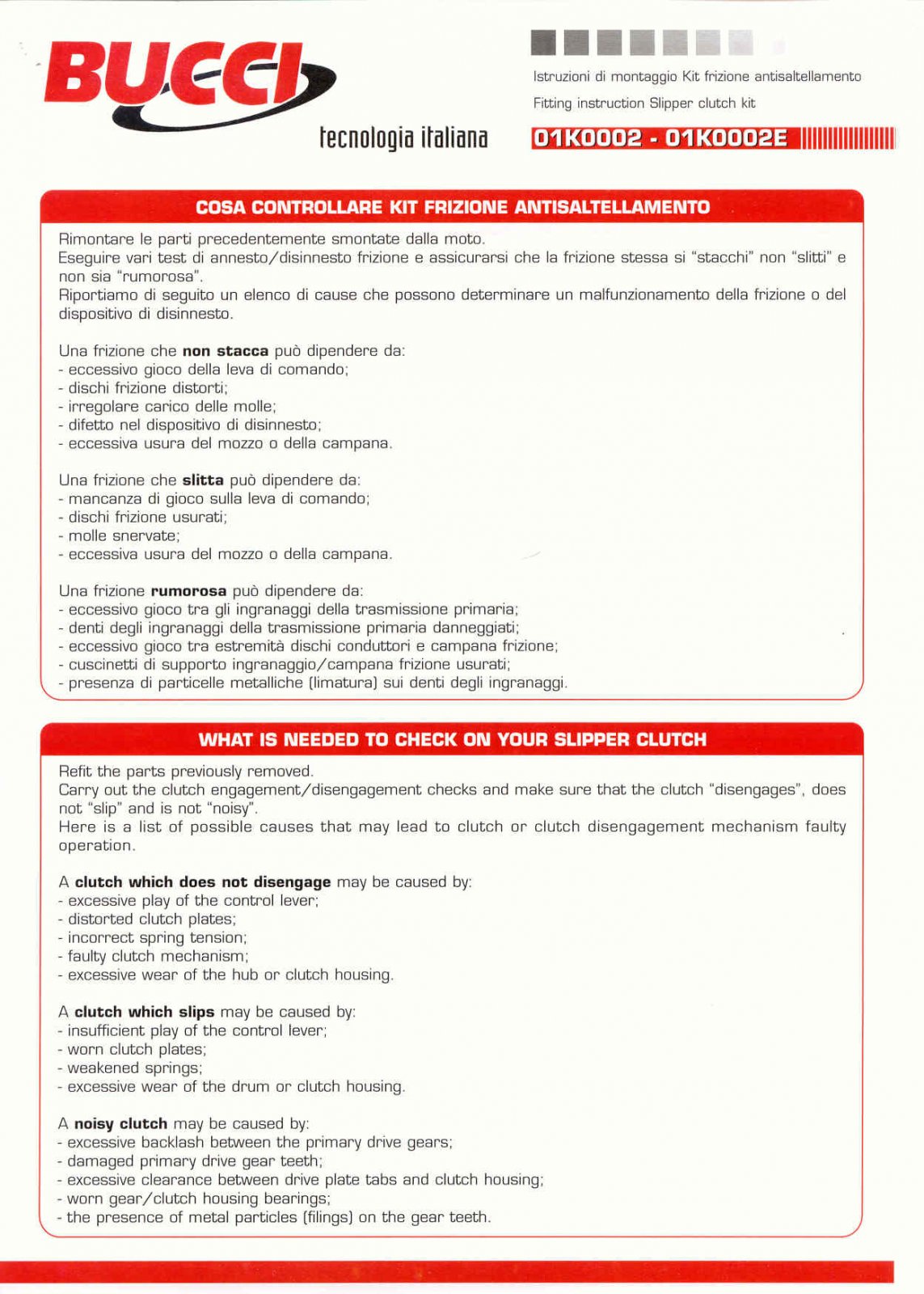

    BUCCI slipper clutch fit 1.jpg BUCCI slipper clutch fit 2.jpg BUCCI slipper clutch fit 3.jpg BUCCI slipper clutch fit 4.jpg BUCCI slipper clutch fit 5.jpg

    • Like Like x 1
  8. Sikorsky From Hell United Kingdom

    Joined:
    Dec 17, 2015
    Messages:
    39
    Likes Received:
    18
    Trophy Points:
    98
    Location:
    Hell
    Ride:
    1098
Loading...
