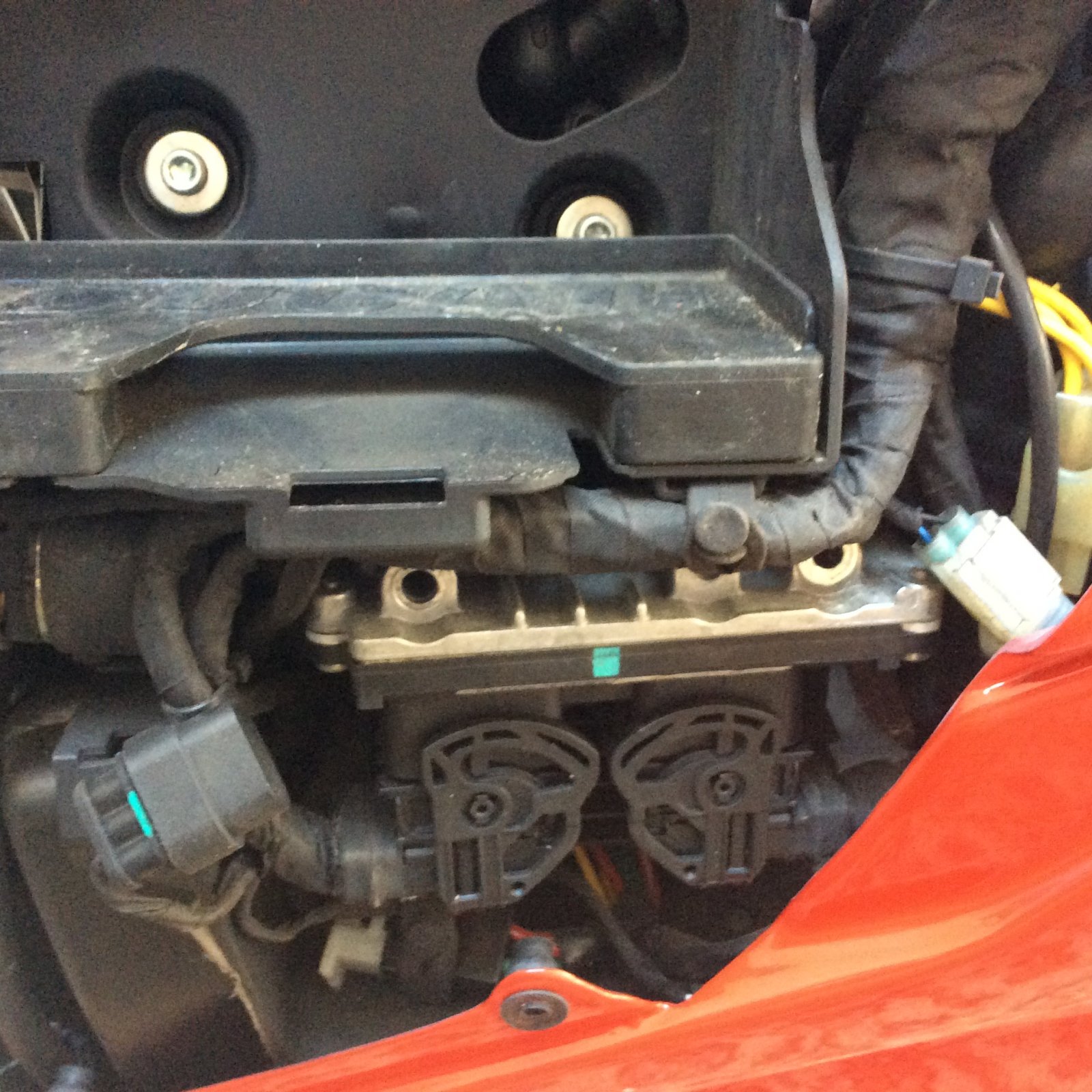

Ah - this is the same as my hyper....see those 2 circled bits as you twist those round they push the plugs back off the ecu...
left one clockwise right one anti clockwise....they can be a bit sticky though...kinda jiggle the plug as youre twisting the clircly things...
plugs aint quite the same as mine but the theory is the same - actually saying that they look more like my rsv4's connectors...
Yeah... I think from memory when you're putting them back on they finally click when in place so they have to click first then they move... Sent from my SM-G935F using Tapatalk
On the top of each connector is a button. Push down on that and you will be able to rotate the cam part of the connector to remove them. Do not force them. The cam mechanism pulls the connector onto the ECU.
Go to a vehicle dismantlers, you need a Fiat Punto 1.2 8v and the engine wiring loom. This will give you 2 connectors with cams. Alternatively look eBay.
