Ie Hugger Bolts

Discussion in 'Supersport (1974-2007)' started by richgilb, Dec 22, 2016.

  1. If anyone has an ie with the OEM hugger on would you be so good as to let me see a pic of the bolts that are on it, please?

    #1 richgilb, Dec 22, 2016
  2. take it you want piccy of standard bolts ?

    #2 johnboy, Dec 22, 2016
  3. yes please.

    #3 richgilb, Dec 22, 2016
  4. ahh dont have the original bolts on mine
    so not sure mine would help

    #4 johnboy, Dec 22, 2016

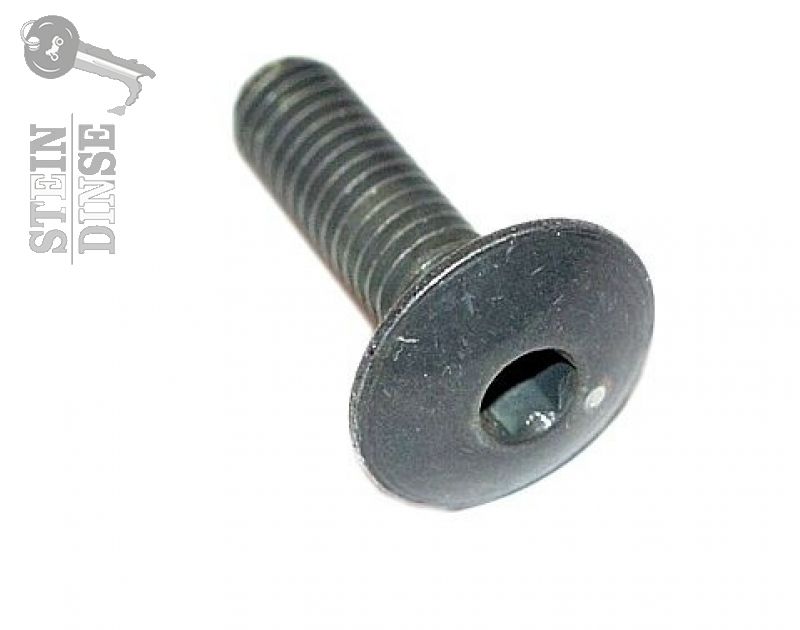

  5. this is what stein dinse show for standard bolt

    #5 johnboy, Dec 22, 2016
  6. pics anyway

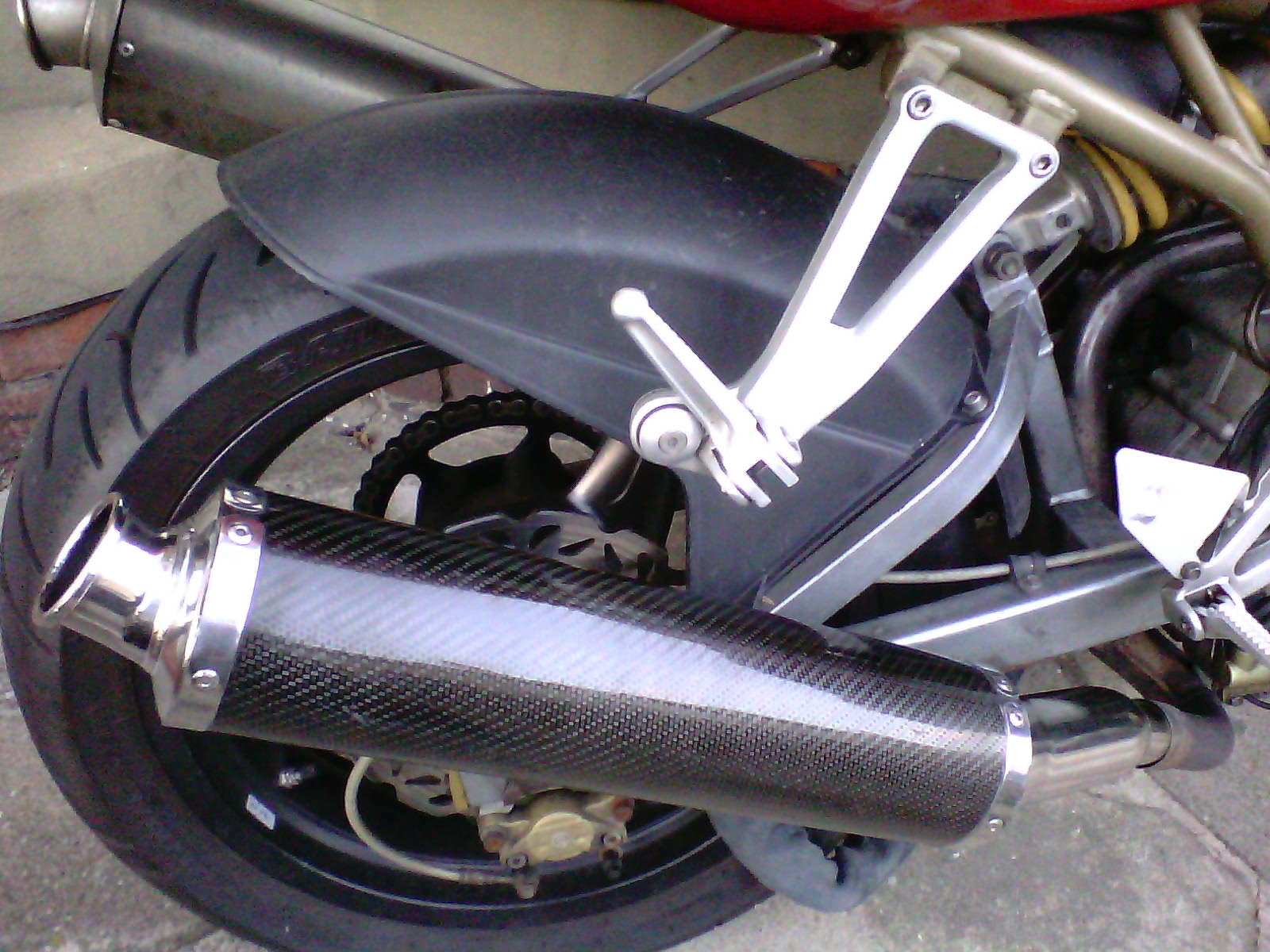

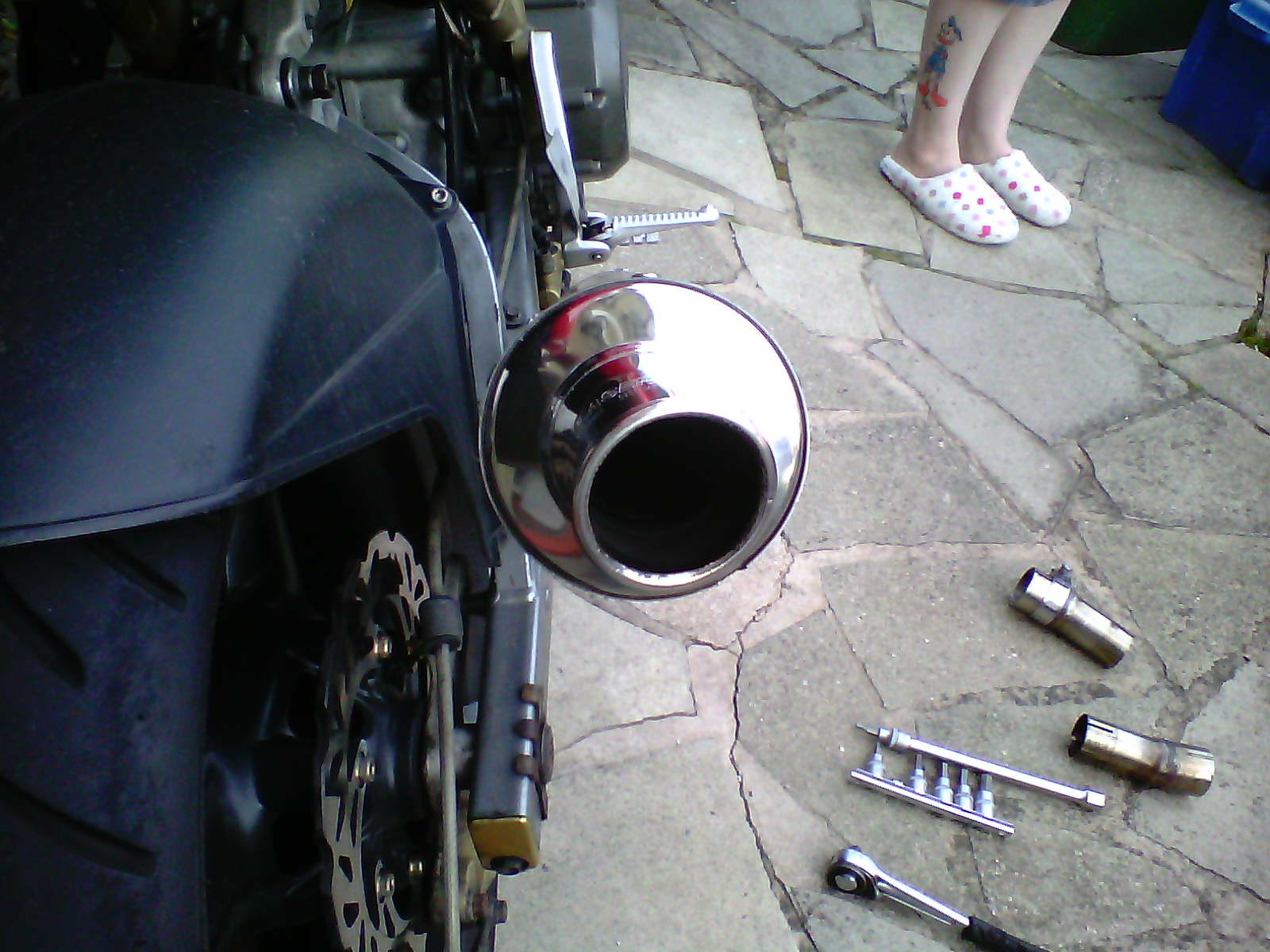

    IMG00053.jpg IMG00041.jpg

    #6 johnboy, Dec 22, 2016
  7. thanks both, what's the measurement on that oem bolt? was it in the catalogue?

    #7 richgilb, Dec 22, 2016
  8. description on stein dinse states 20 mm long
    I know they are 6 mm thread not sure if the standard bolts have a shoulder on them
    would guess diameter of head at around 12-14 mm
    I am going to replace the cap head bolts for some domed ones that a I have when I get it back on the road

    #8 johnboy, Dec 23, 2016
  9. Bolt looks the same as the carby one. Might have one lying around

    #9 Desmoquattro, Dec 23, 2016
