1098 1098r - Help Required!

Discussion in '848 / 1098 / 1198' started by ditchvisitor, May 18, 2020.

Page 1 of 2
  1. I’m working through bits I need to put the 1098R back to standard and I’ve come across some bits I need and are obsolete and no longer available from Ducati, they are the spacers for the tail unit that go between it and the rear subframe.

    They screw in here:
    [​IMG]
    the part number is 71314181a but I’ve googled and looked on eBay and had no luck, does anyone have a tail unit that isn’t fitted and would be able to give me dimensions etc so I could get something made up please? Or better still have any spare!!
    Thanks in advance
    Mike

    #1 ditchvisitor, May 18, 2020
    Last edited: May 18, 2020
  2. [​IMG]
    Part number 32

    #2 ditchvisitor, May 18, 2020
  3. Would anyone be able to help? Will be slightly unstuck with rebuilding it without these!!

    #3 ditchvisitor, Jun 3, 2020
  4. AMS Ducati Dallas have them if you are happy to import.

    #4 Brouny851, Jun 3, 2020
    • Like Like x 1
  5. 100% happy to import them! Thanks for the heads up! Appreciate it.

    #5 ditchvisitor, Jun 3, 2020
    • Like Like x 2
  6. Thank you soooo much! Have ordered two of them! Really appreciate the heads up.

    #6 ditchvisitor, Jun 3, 2020
    • Like Like x 4
  7. Back to square one, they didn’t have them in stock and tried to order them from Italy..... bugger!!

    #7 ditchvisitor, Jun 6, 2020
  8. I’m not totally sure if my seat unit is still fully assembled but I’ll try and get in to the loft and check this morning. Andy

    #8 Android853sp, Jun 6, 2020
    • Like Like x 2
  9. @Jamie Clare can more then likely create some for you, maybe you should start a thread once more with examples and photo’s of what you do Jamie?

    #9 fight the streets fmd, Jun 6, 2020
  10. If you can get one to copy, I can make them.

    #10 deleteduser211220, Jun 6, 2020
    • Like Like x 1
  11. let me know what you need and we can look at it

    #11 Jamie Clare, Jun 6, 2020
  12. Thanks guys, the problem I’m struggling with is getting one to copy, currently I have absolutely no idea on dimensions etc!

    #12 ditchvisitor, Jun 6, 2020

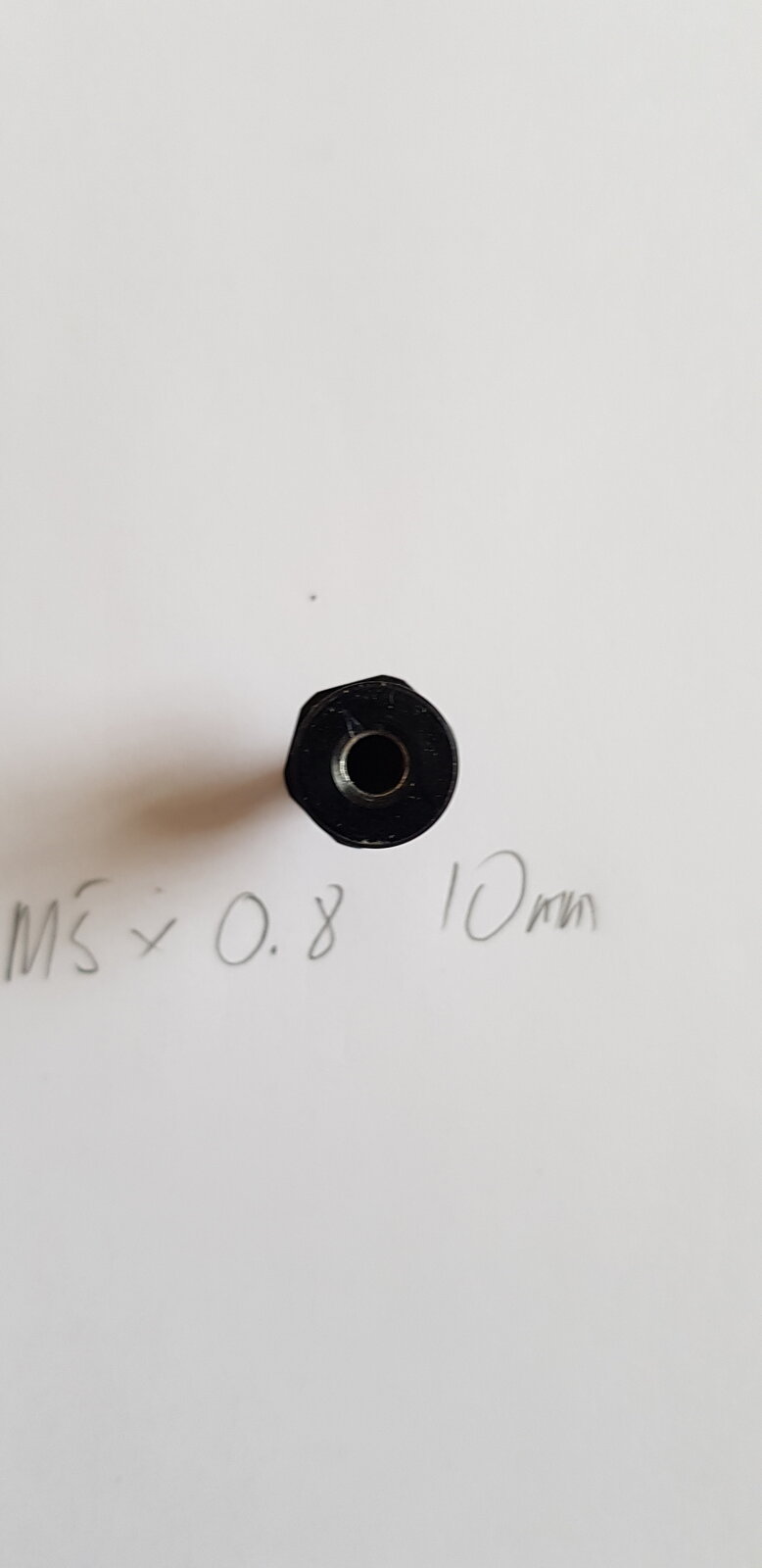

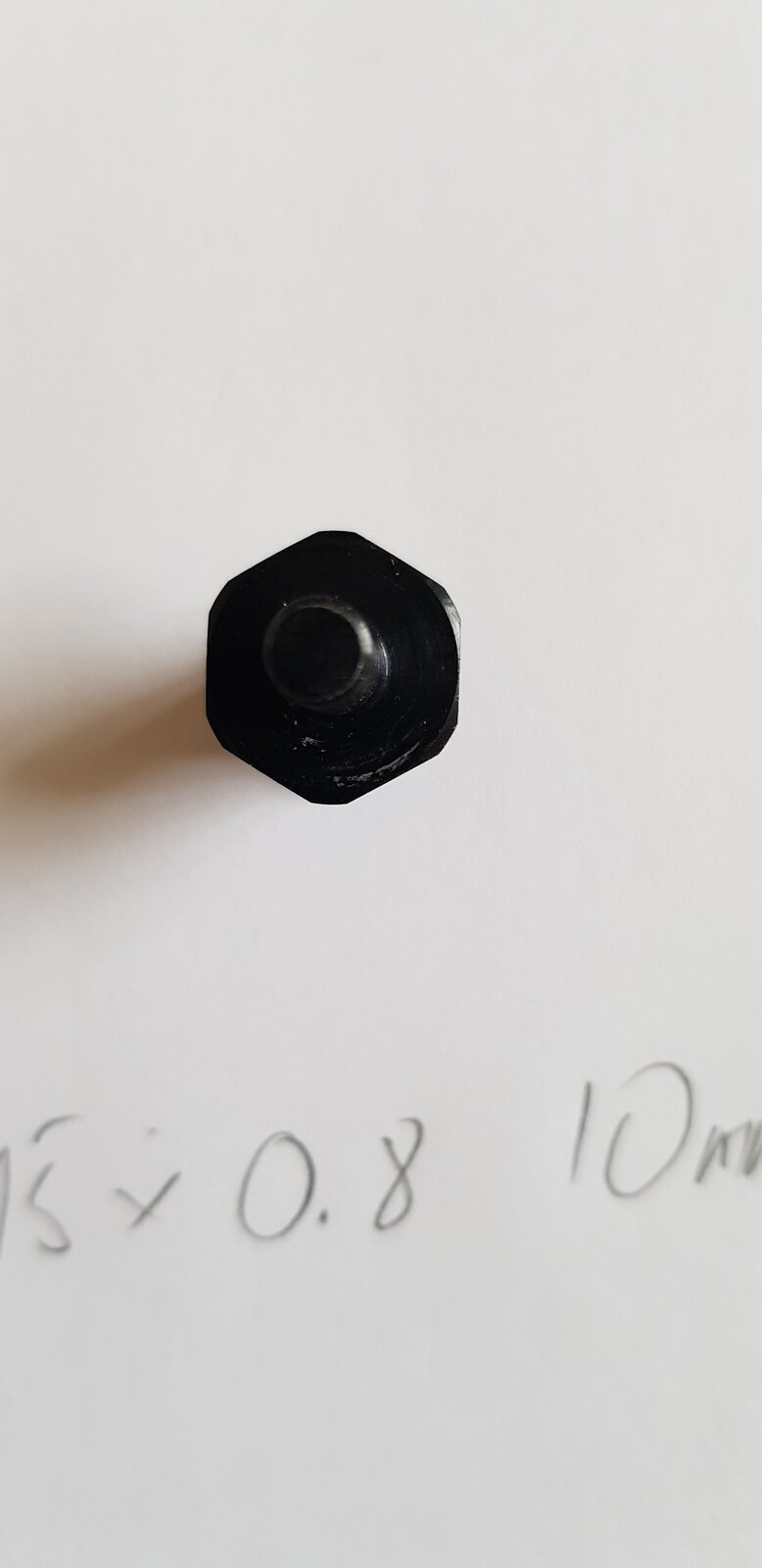

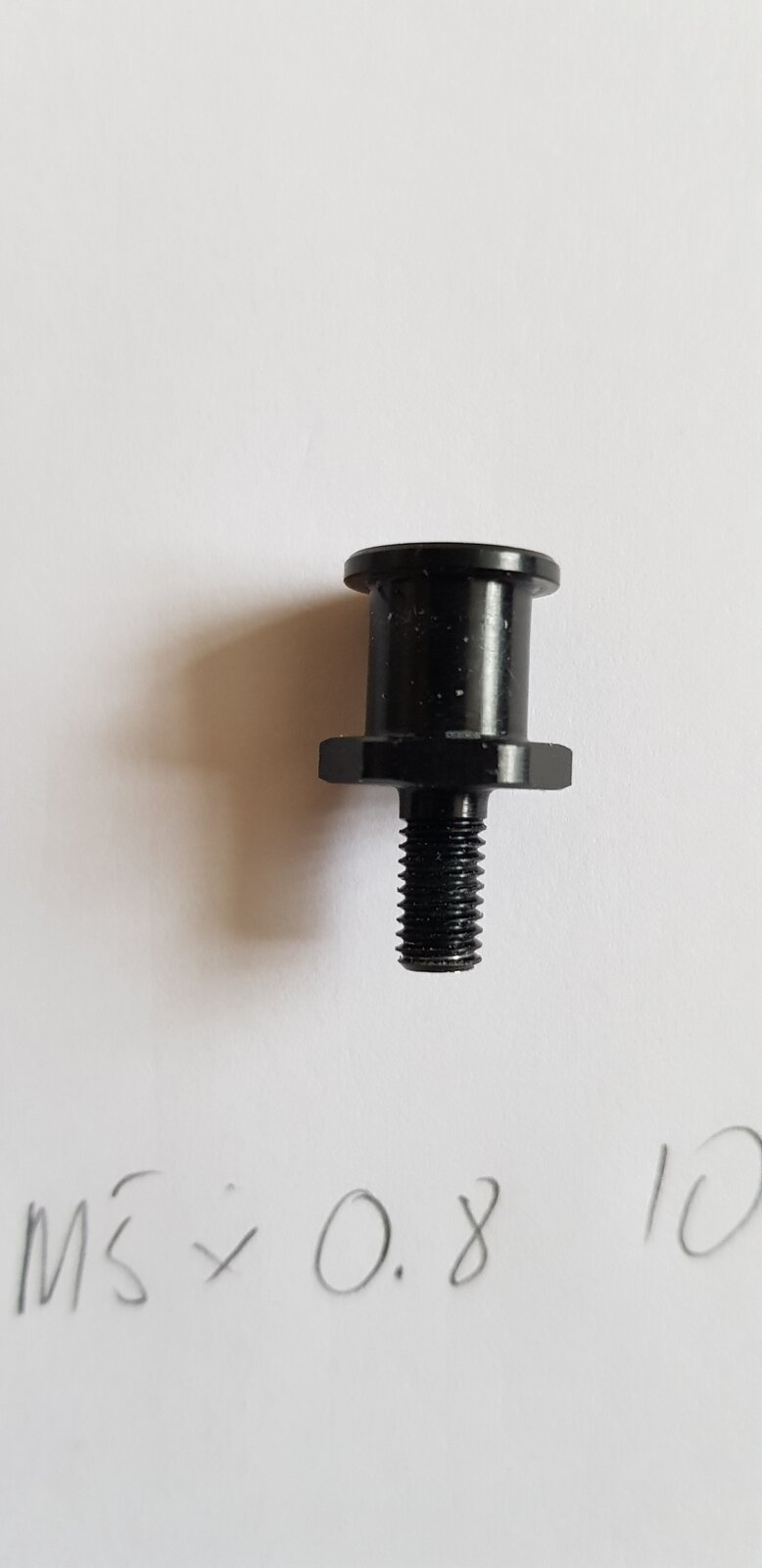

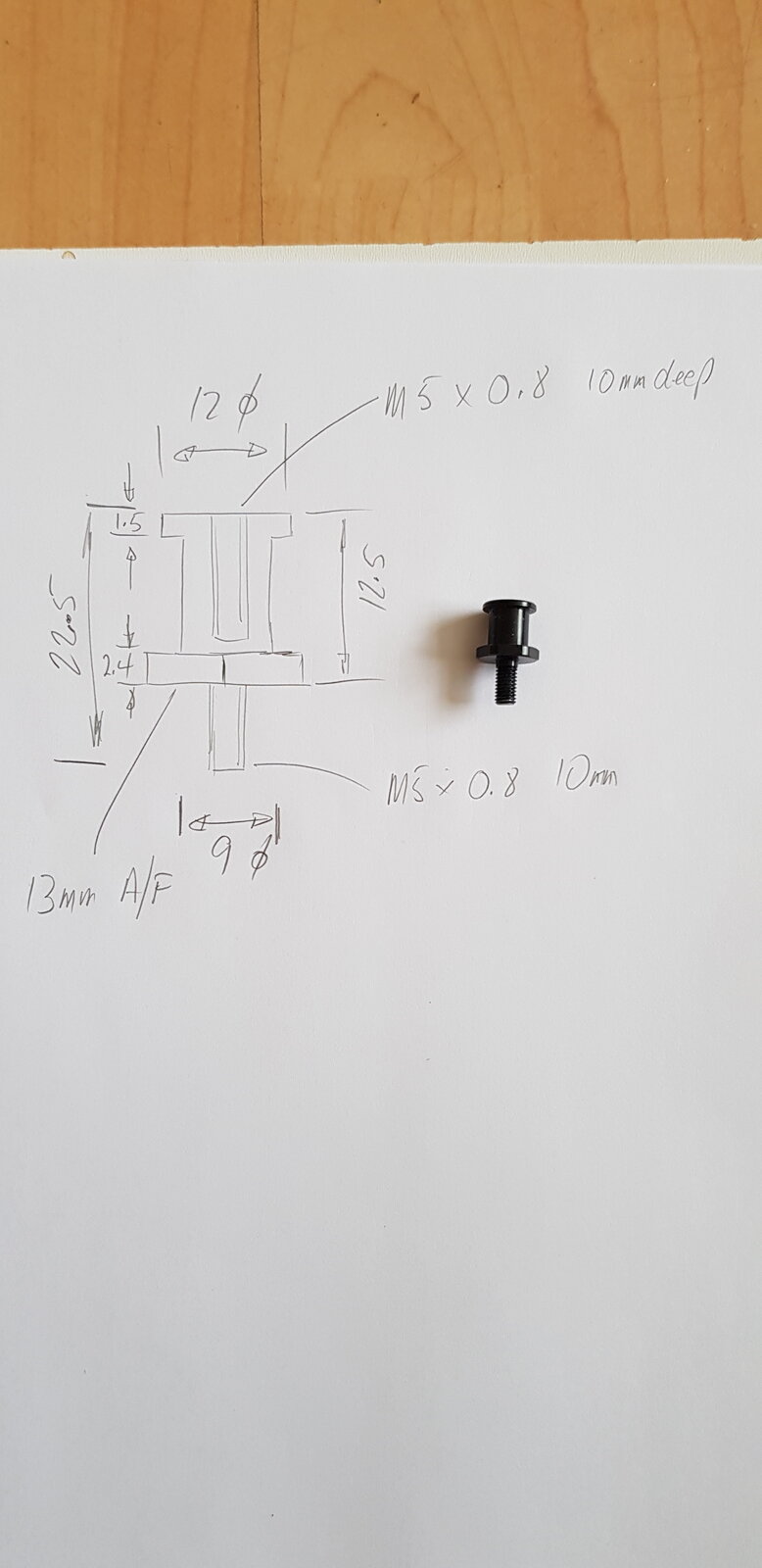

  13. @ditchvisitor you do now. Not my best work of art but I hope it helps. Andy 20200606_095156.jpg 20200606_095202.jpg 20200606_095208.jpg 20200606_095220.jpg

    #13 Android853sp, Jun 6, 2020
    • Like Like x 1
    • Thanks Thanks x 1
  14. T
    Thanks Andy appreciate it.

    #14 ditchvisitor, Jun 6, 2020
  15. easy job

    drop me a pm

    #15 Jamie Clare, Jun 6, 2020
  16. #16 ditchvisitor, Jun 6, 2020
  17. Done
    Done!

    #17 ditchvisitor, Jun 6, 2020
  18. Appreciate the help from everyone!

    #18 ditchvisitor, Jun 6, 2020
  19. This might be the best bike forum ever :)

    #19 Symon Moore, Jun 6, 2020
    • Like Like x 1
  20. Yup! It’s bloody awesome, I’ve gone from tearing my hair out that I won’t be able to put it back together, to having pictures and someone making me a part in about an hour!! Marvellous!

    #20 ditchvisitor, Jun 6, 2020
    • Like Like x 1
