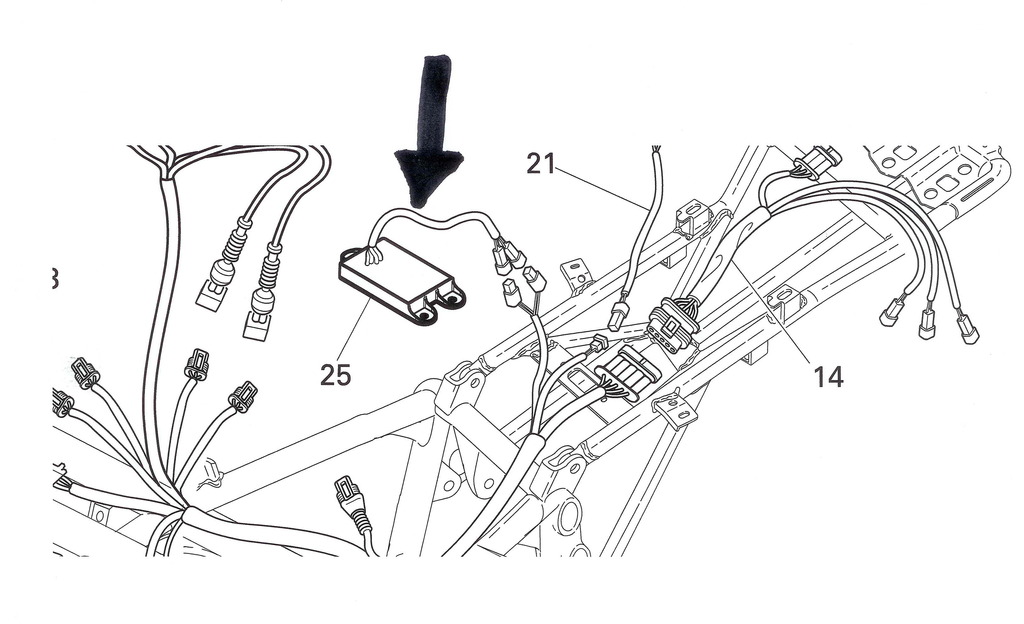

Need a bit of help with pin out on 1098R DTC (1198 is different so no good) a massive help would be a photo There are two plugs that go to the DTC one is three way the other eight way (may not have 8 wires in it)what i need to know is the loom side plugs orientation (which is pin 1) Std wiring diag does not give the detail i need I don't have a std DTC unit to offer up only a butchered loom with the plugs missing
I have a standard 1098R DTC unit removed from the bike as I have a Nemesis system fitted. I can give you any pictures you want of that unit and plugs if that helps. I can't help with the loom side as the Nemesis system is plugged in and the seat unit is in place. Let me know if you need anything.
Me too... Just goes to illustrate how maintenance unfriendly the seat unit is on a 1098! Now...if it was a 9*6....
