Discussion in 'Multistrada' started by 6274rico, Jan 31, 2023.

  1. Hi all, I was wondering what tool or app do yu use when tensioning the cam belts.
    Seen a few ways on YouTube but was looking for the concensus on what performed the best.
    Cheers steve

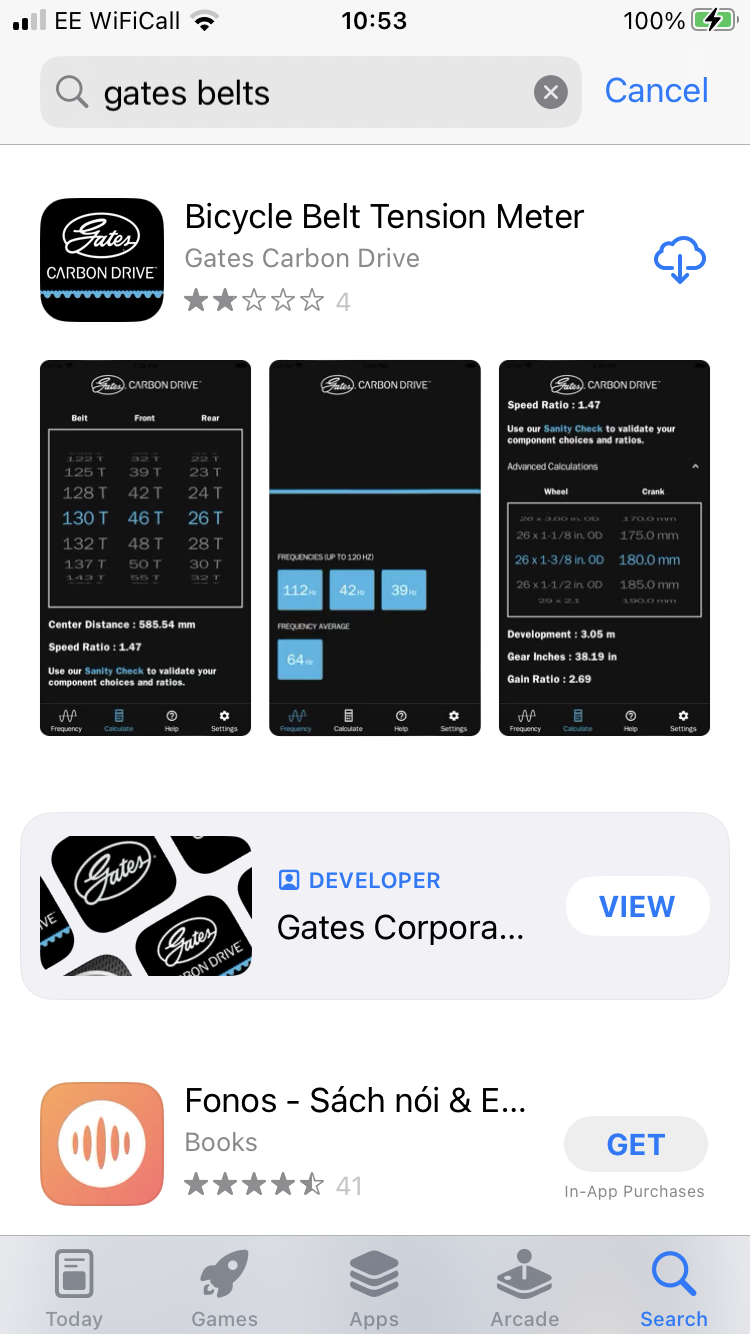

  2. Gates, the belt manufacturers, have a free app you can download


    • Like Like x 1
  3. I much preferred the method on the older bikes with a 5mm and 6mm Allen Key, but for my newer bikes I've tried lots of Apps on my phone, including the Gates one, but couldn't get any to give me a repeatable result.

    I now use the one that is part of JPDiag on my laptop with a small separate Microphone and find I get very repeatable results.

    • Agree Agree x 2
  4. I agree, for the 2 valvers: 5mm and 6mm Allen Key

    For the 4 valvers; Spectoid App

  5. I was also told by several different sources that I should not use the older 5/6mm Allen Key method on the 1000DS motors in my 1000SS and M1000.
    They are of course 2-valve.

    • Like Like x 1
  6. I used the gates app on my old 1000DS for 3 sets of belts, never an issue. I also tried the allen key method which many people have used for years, I just preferred the Hz method as it seemed more accurate, also use the Gates app on my 1200, it does need to be in a quiet environment when used.

  7. I just couldn't get the Gates app to work, apparently they updated it? Tried loads of different ones, and found that even with a weak "twang" the Spectoid App would record something. (I did read that the fluorescent lamps can affect the input)
