1199 1199 Bar End Removal

Discussion in 'Panigale' started by Ivor, Aug 10, 2023.

  1. I need to fit a brake guard to my 1199 but it has bar ends fitted. Anyone know what type and size the sunk 'nut' is to get them off? Looks like Torx and bigger than 12mm which is the largest I currently have
    Ta

    #1 Ivor, Aug 10, 2023

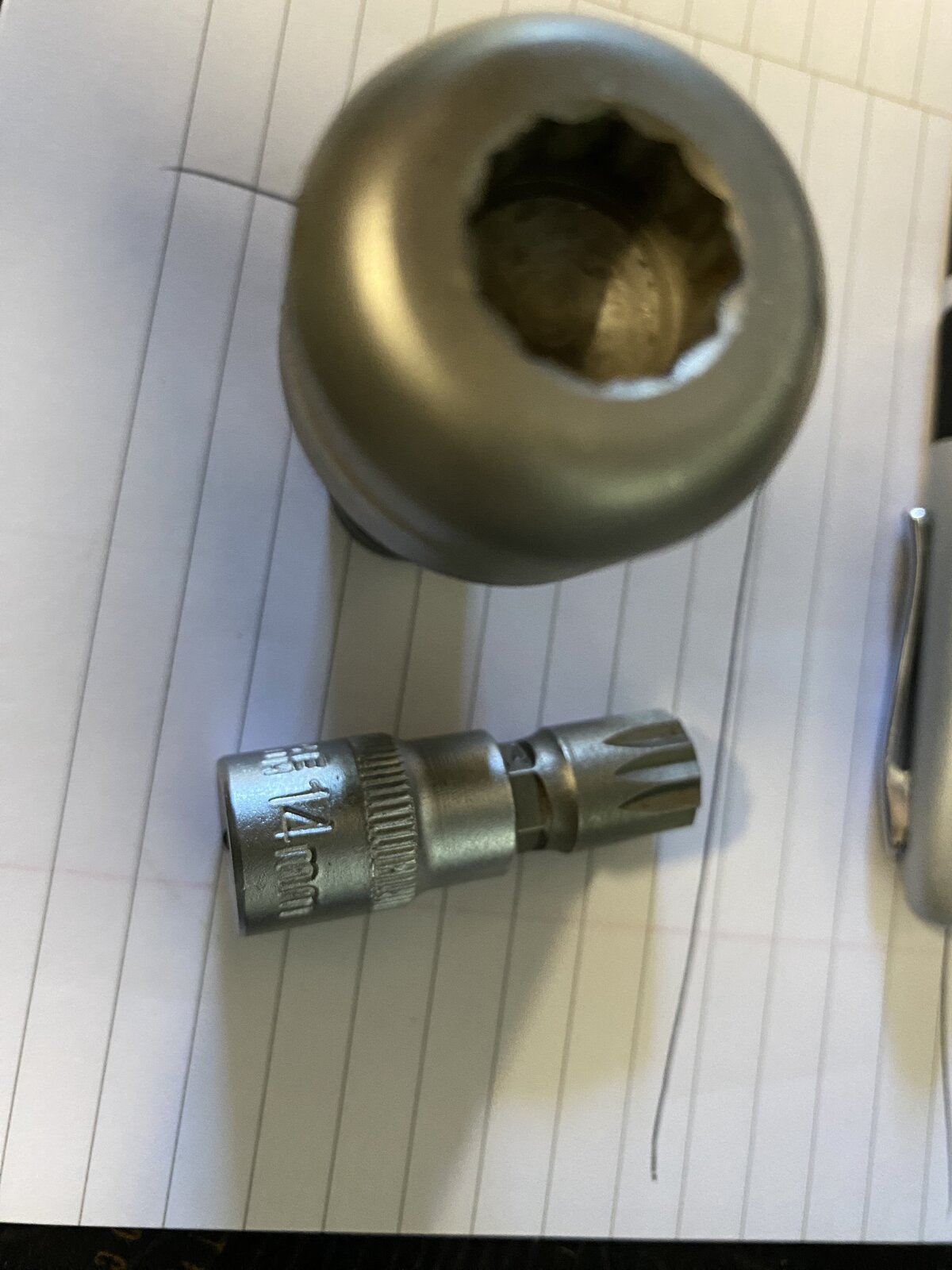

  2. If I remember rightly, think they are the same as my 959 - they are a 12point 14mm tool. If you use a torx it rounds off (I tried that)

    if you anywhere near Kings Lynn welcome to borrow mine for the 3seconds of use required!

    MicrosoftTeams-image (37).jpg

    #2 Wasey, Aug 10, 2023
    • Useful Useful x 1
  3. Ah thank you, perfect! I thought they looked like torxs but weren't.
    I'm in Fishguard, as far as you can get from kings Lynn I suspect, but your offer is very much appreciated

    #3 Ivor, Aug 10, 2023

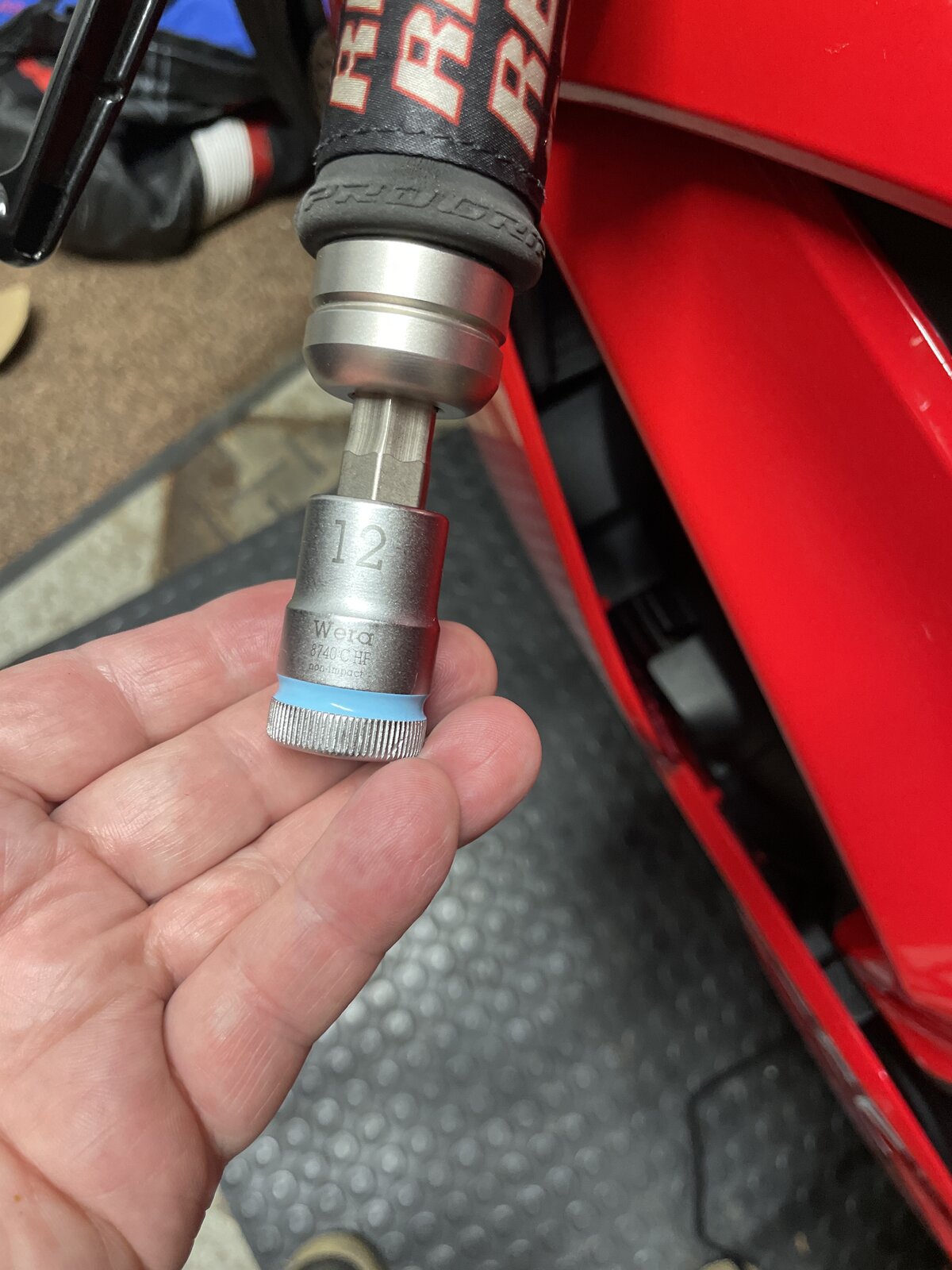

  4. image.jpg

    Standard 12 Allen does the job fine.

    #4 Expat Jack, Aug 10, 2023
    • Agree Agree x 1
    • Useful Useful x 1
  5. I also use a 12mm Allen key on mine.

    #5 Zeus, Aug 10, 2023
    • Like Like x 1
  6. Thanks both, I'll give that a go

    #6 Ivor, Aug 11, 2023
  7. Ok, so I have a 12mm Allen key that fits, how do the ends come off? Gently tried unscrewing but does not budge, either side ..

    #7 Ivor, Aug 11, 2023
  8. Try unscrewing harder, they can be tight :)

    #8 Expat Jack, Aug 11, 2023
  9. Put an extension on the Allen key, off now, thank you!

    #9 Ivor, Aug 11, 2023
    • Like Like x 1
  10. I hit mine with a lump hammer it does the trick.

    #10 garyhoos1, Aug 15, 2023
  11. My usual last resort, couldn't find the mallet so used an extension bar

    #11 Ivor, Aug 15, 2023
    • Like Like x 1

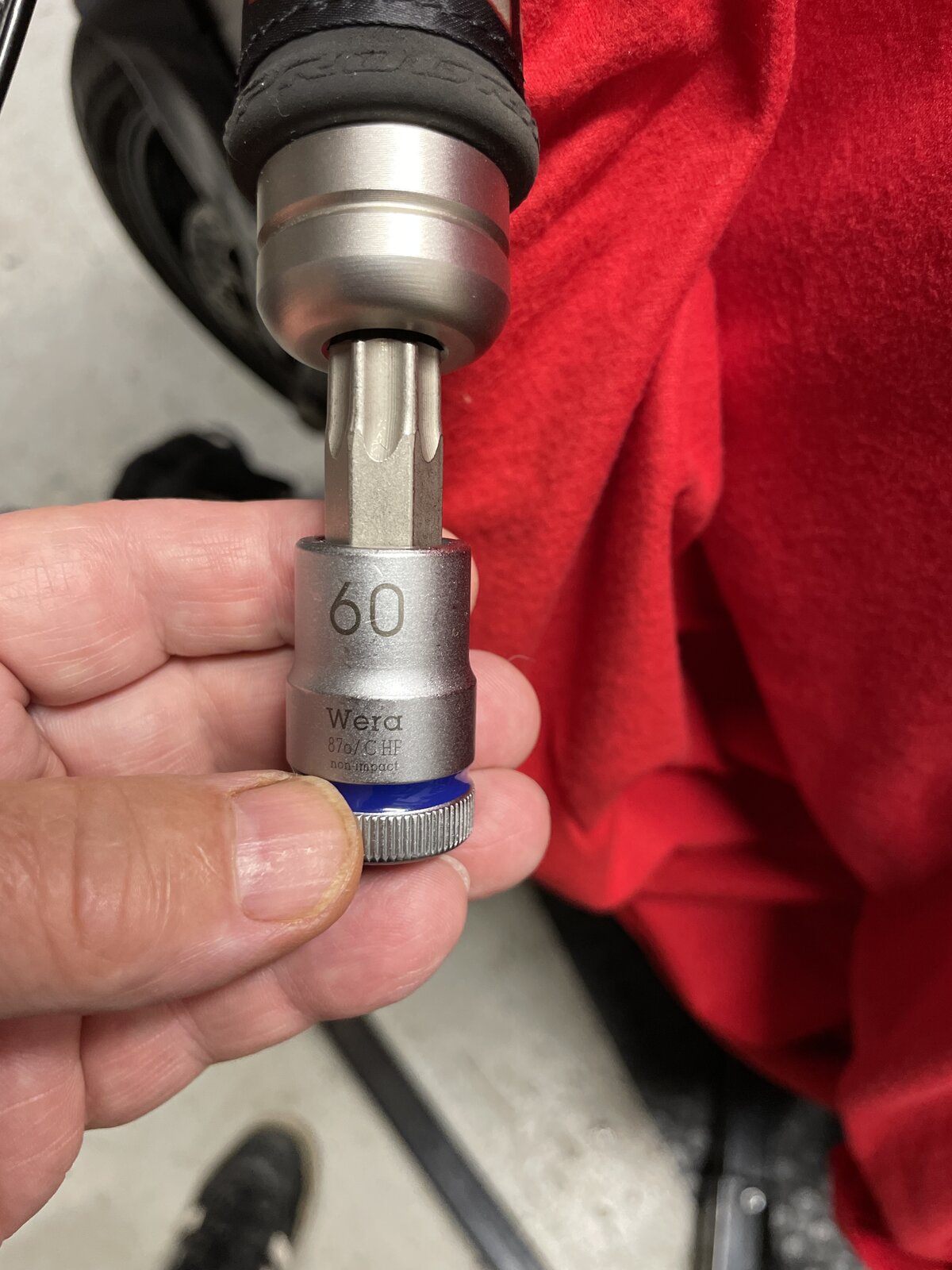

  12. when I did my bar ends I bought a XZN Torx set, which fully engages with this spline fitting well.

    #12 Nathanhu, Aug 16, 2023
    • Useful Useful x 2
  13. Correct. But much more limited use on Ducati (I only purchased my torx set when I got a BMW. Every bolt on them is Torx).

    #13 Expat Jack, Aug 16, 2023
  14. The 12mm Allen worked perfectly on mine, I don't have a full torx set

    #14 Ivor, Aug 16, 2023
    • Agree Agree x 1
