Does anyone have the dimensions for the standard carb/manifold inlet rubbers ie OD, ID, length etc. Just trying to source new from an alternative to Ducati. Cheers
Thanks Dan but...Looking for something slightly cheaper than the £53.00 quoted there including delivery!! Was hoping to find a UK supplier like Allens but he needs dimensions to check, hence the question. Cheers though.
Will measure up best I can but it's not just od I'd and length. There are various steps and shoulders. Cheers Gaz

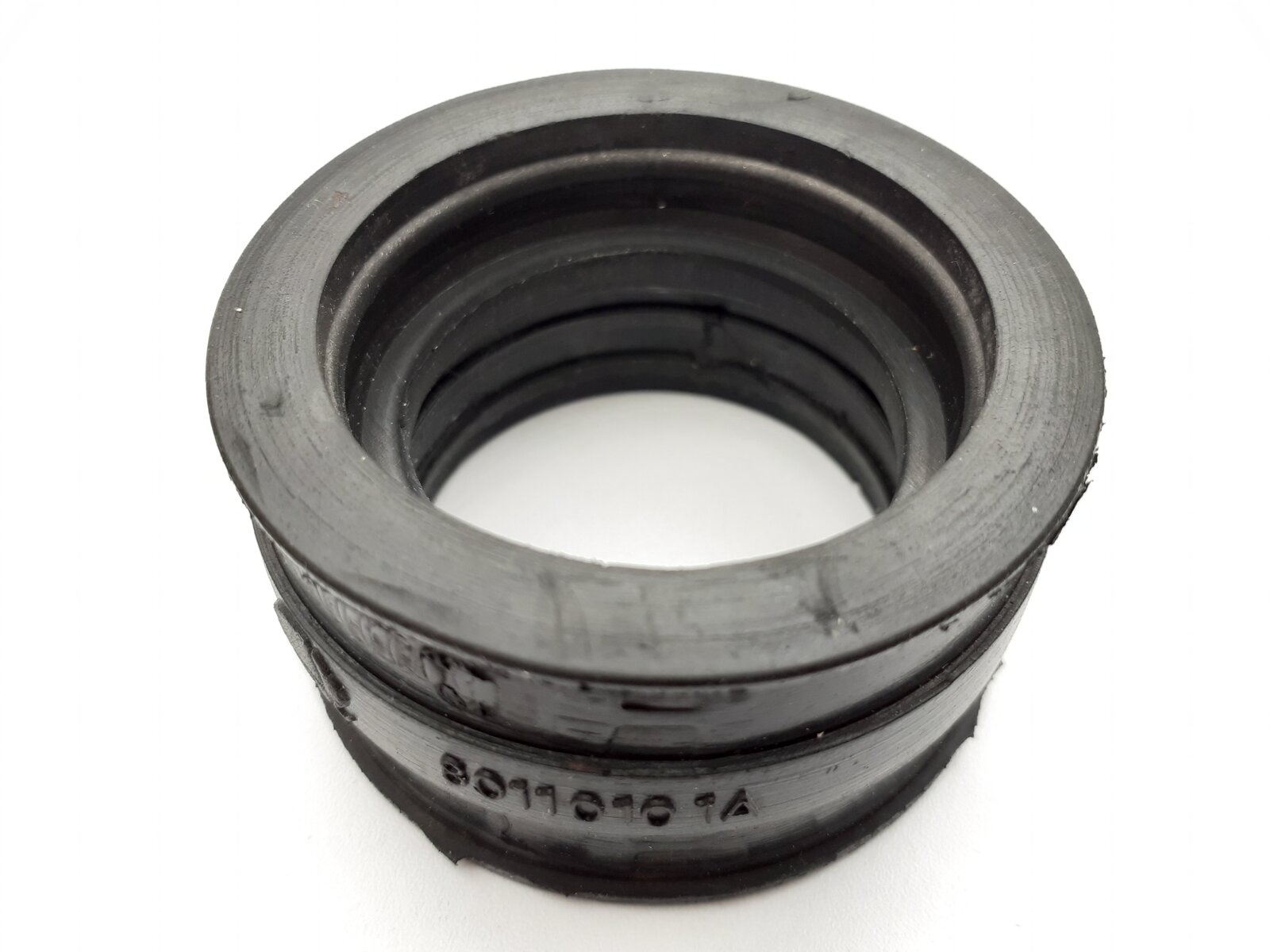

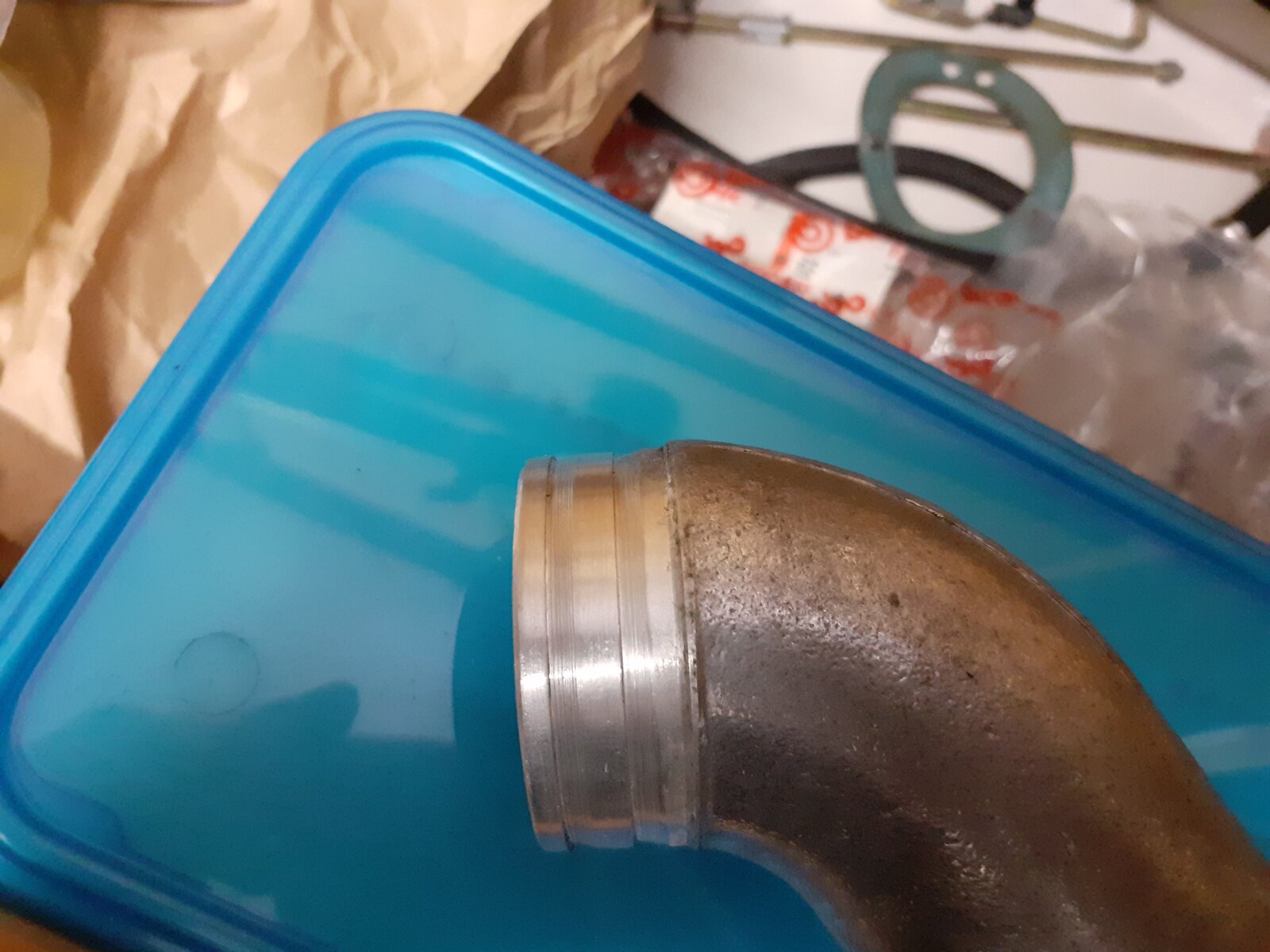

Sorry just seen new post. The sleeve is not symmetrical. There is a definatr round profile on one side and 2 lower flat triangular profiles on the other to go into intake manifold (I think). Cheers Gaz.

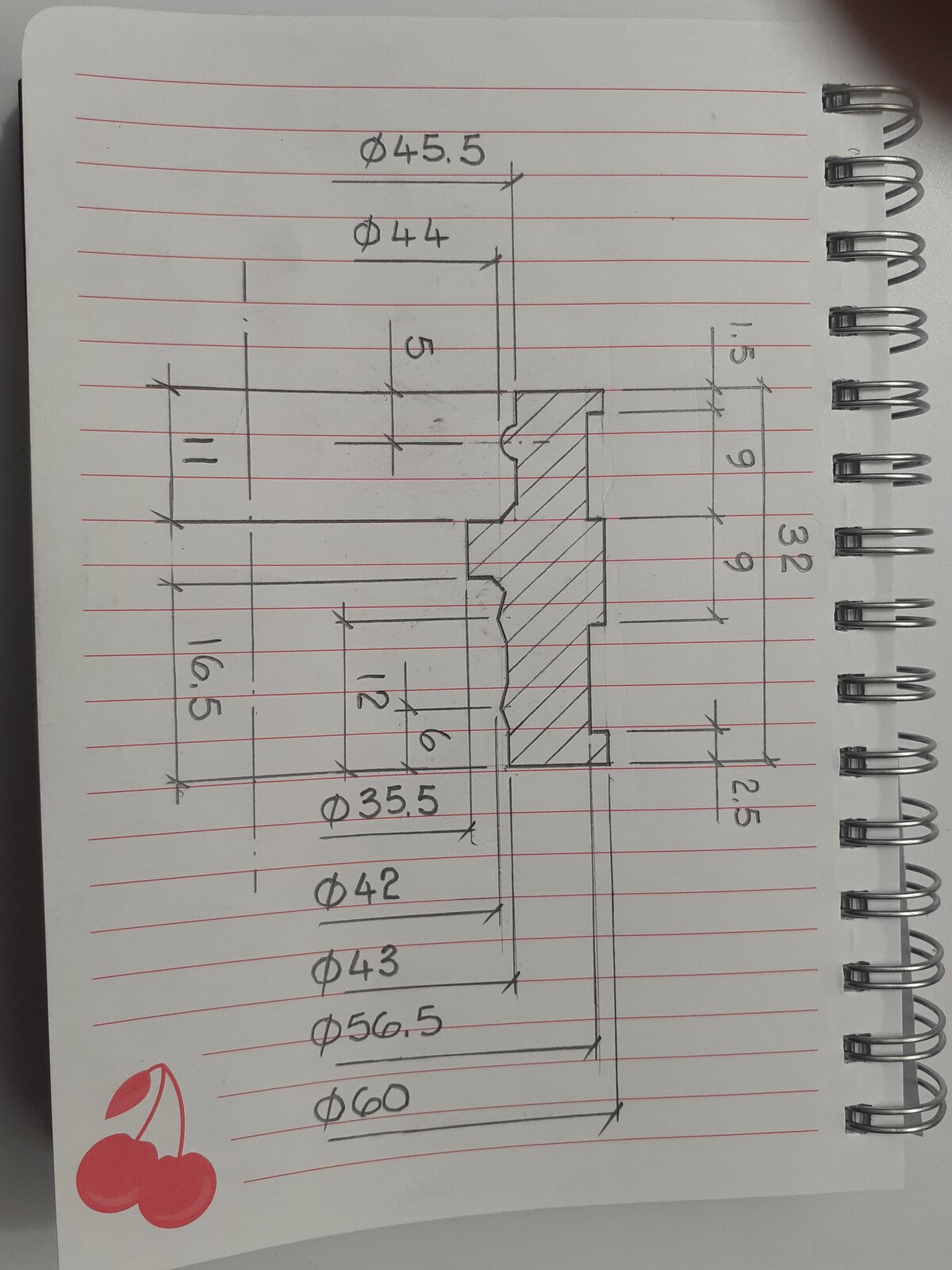

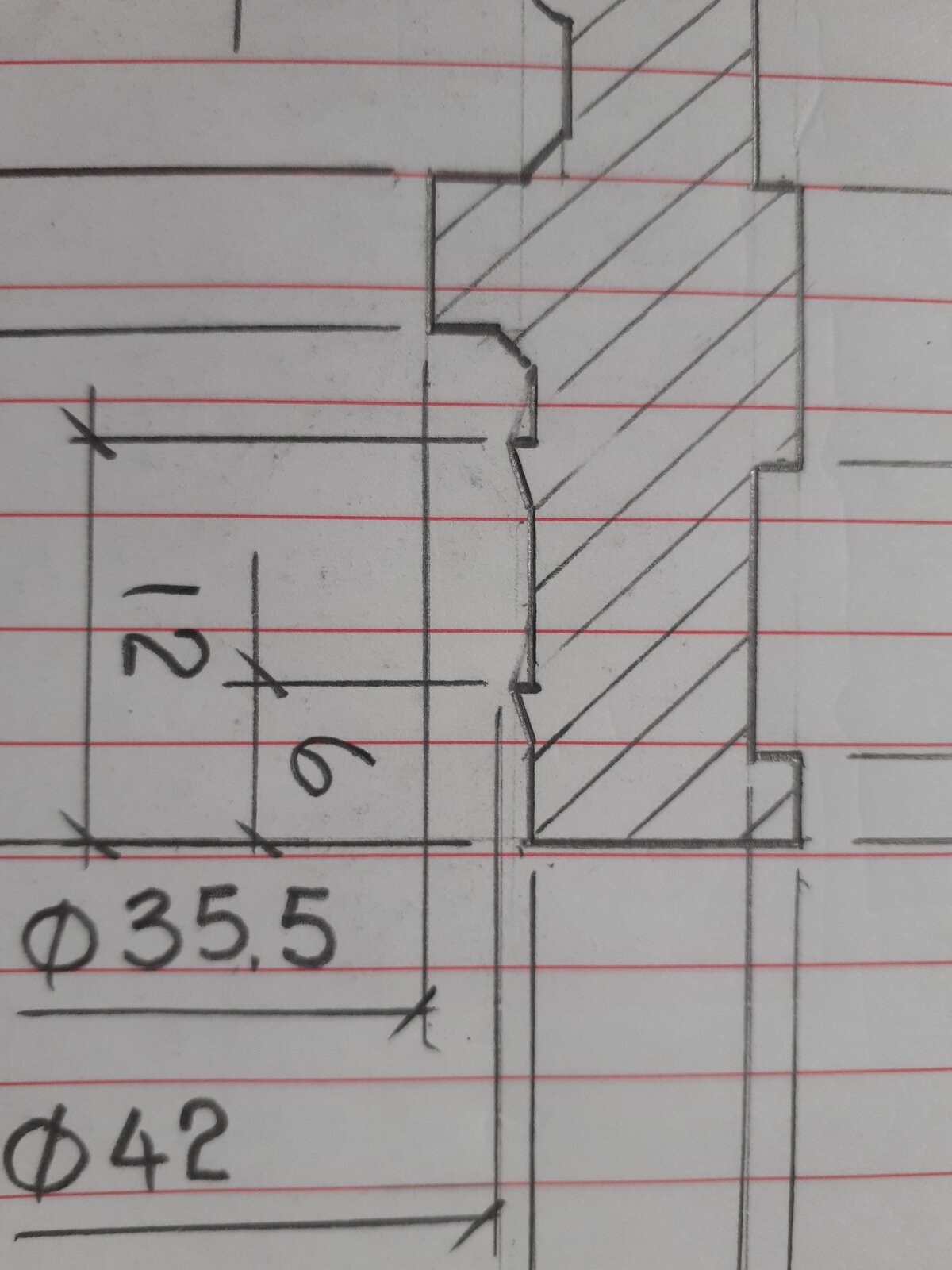

Sorry, must have been the light, the 2 profiles are more of an internal barb tail. I have revised the sketch. Cheers Gaz
Thanks for the update, i don't remember them myself, that throws a spanner in the works for a generic part I would say as more chance of an air leak!! Think i may have to stump up the full cost and go OEM, many thanks again for checking for me though
Probably but to be honest they are probably no better than mine which i think may have air leaks hence the need for something newer!
Have a search for rejuvenating rubber parts. Things include heating in hot water, soak in isopropyl/wintergreen oil, spray with silicon spray soak in break fluid and red rubber grease. Have not tried any but any but might be worth a go. There was also a video with quite a complex formula but it looked a bit expensive for ingredients. Cheers Gaz
I've got a used pair you can have if you want, if you would cover postage? I bought a new (expensive!) pair trying to trace a carb issue. It wasn't the rubbers..so even thought they are used they are fine. Just let me know Cheers Grant
Hi Grant, that would be awesome chap, please PM me your details to cover the cost etc and i will ping it across with my details. Cheers Gary
