2 Into 1 Zorst For 620 Monster

Discussion in 'Technical Help' started by chizel, Aug 5, 2018.

  1. Morninf my peoples.
    I'd like to put a 2 into 1 on the lil monster. For a few reasons, looks, sound and a lil weight saving..
    The standard cans are huge as are the rear set brackets and want rid of both.
    Anyone done this or know of anyone that might sell such a thing.
    Please do not post comments on my threads unless related. .
    To the thread, not to me obviously. ..
    Unless it's funny...

    • Funny Funny x 2
  2. I had a link pipe made and used one of the high level termis I had for my 620, which meant I also had a spare ;) I could never fond one that bolts straight on: IIRC the 620 SS has a different header routing so cant be used with cut/welding.

    Cant remember the place that did mine, was Nottingham way and only cost about £170 (2012 tho).

    Pic to show result to follow...

  3. thumb_IMG_6991_1024.jpg

    • Like Like x 4
  4. That's kinda what im looking for .. was offering up a 748 can and pipe and it looked pretty good...
    Won't fit obviously but I like that idea...

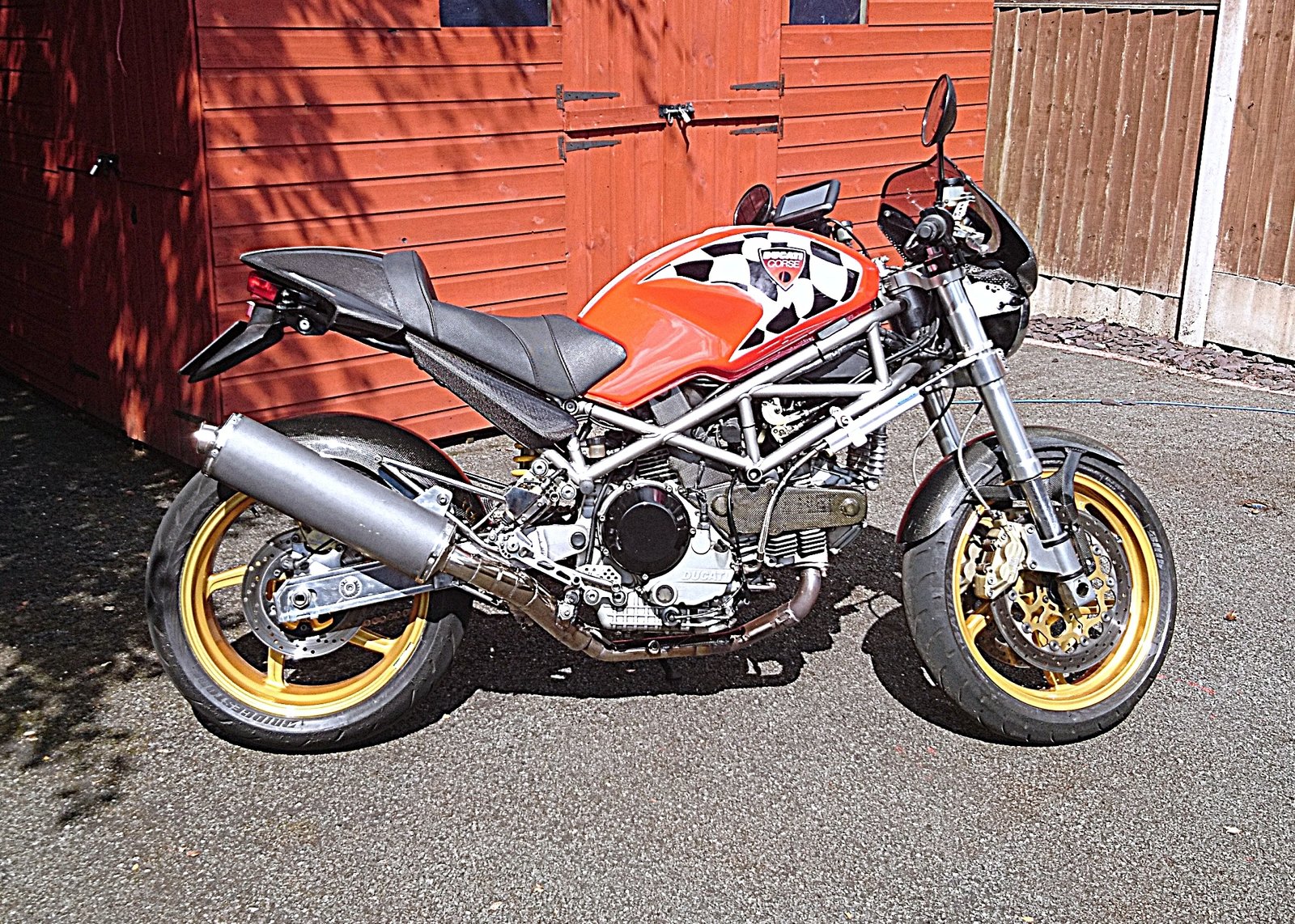

  5. I have a 2 into 1, sounds quite good to my ears via the Silmoto end can.

    Bike 1.JPG

    • Like Like x 2
  6. well....you say that...you could bring pipe up under the seat and have single can out there. Looks better on a 620 (pipe clears frame better) but can be done on 620 monster

  7. That a 620?

  8. Nah its a 900ie.

  9. think system is different, when I was looking I couldn't find anything hence had one built. Its only the link pipe really.

    Looks nice btw, although can is a bit 1990's supermono rocket launcher ;)

  10. Yeah the can is a bit long... I have an original Ducati OEM cut down & half finished but it will need a link pipe to get the angle right. I will get there!

    • Like Like x 1

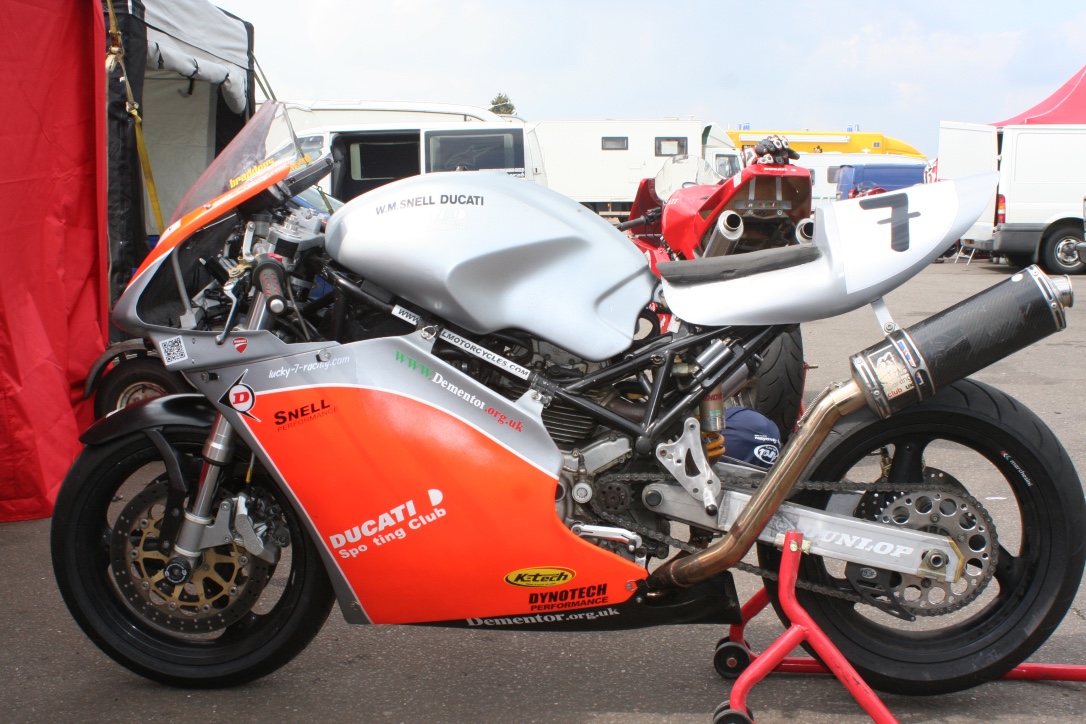

  11. Btw my old 620 had:
    ST4 alli swingarm
    ST2 fully adjustable forks (rebuilt by @PGP )
    916 Showa shock (rebuilt by @PGP )
    PC 111 and custom map with 63hp (think torque about 58lbft can’t remember) and was result of @PGP build of motor (class limit 65 and mine was easily one of the best staying inside the rules ;) )
    998 fairing (I still have the fitting kit actually, if anyone ever wants to do the same)
    Clip ons, make huge difference and iirc I had to change lockstops position but cables etc were all ok
    P4 calipers with full race pads. One disc was enough but after a mate nearly died when his overheated and locked on, I went with twin and accepted the c6kgs of weight (as an aside, on my 600 I had twin disc and at Cadwell mine did seize on and caused me to crash and be knocked unconscious when battling for a win on last lap)
    19x18 radial mc
    Can’t remember the seat unit, think it was a Honda

    Quick enough for 55’s around brands with 110kg rider and road tyres (real road tyres, not supercorsa type rubber)

    Boy I miss racing that thing sometimes

    • Like Like x 1
  12. Was it a place at Hucknall (North Notts) they have made a couple of custom exhausts for me?

  13. JCT? Was initials (not MHP lol)

  14. JAC at Hucknall?

    • Like Like x 1
  15. Yes, that sounds right.

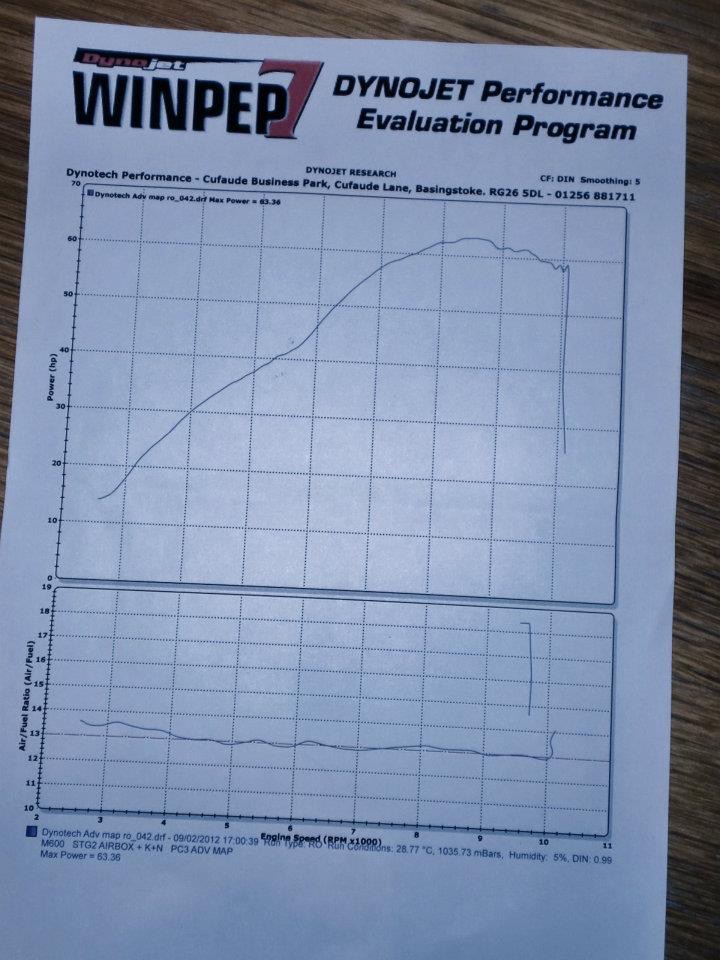

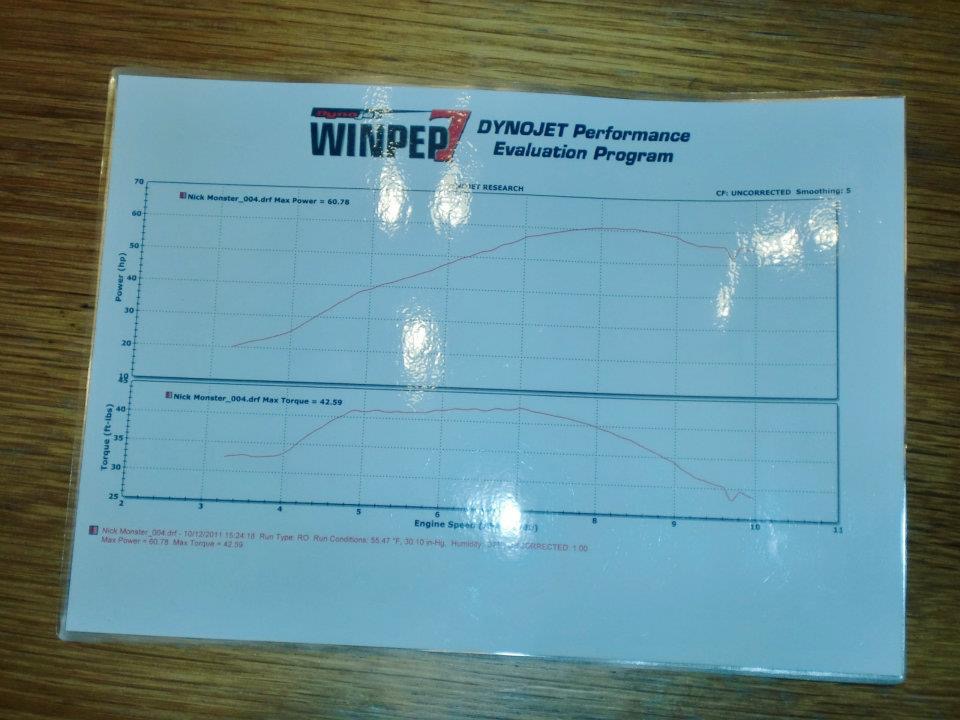

  16. I had them try it with different filters (removing the box) and it made perforce worse, so high lift filter, modded box to get it to fit, made best power :upyeah:

    664F2E01-E712-478D-869A-8B8B612F7889.jpeg 1887C6E9-A77F-4347-9B2C-5421DF83B756.jpeg 32A7BC17-0124-4895-ABAB-AD45D9A54B9D.jpeg
