1200 Pikes Peak 2010-2012 Keyless Access Distance

Discussion in 'Multistrada' started by Vlad1200, Aug 31, 2022.

  1. Can't even imagine what is that. Sometimes it's ok, sometimes active key should near dashboard to activate bike by pressing trigger. Results are random so I'm confused. Cr2032 - new, Yuasa - 1Y old. Connector of antenna checked and it's ok.
    Any bright ideas are welcome.

  2. I once dismantled the right hand switch on my MTS because it “wouldn’t start”, only to find I’d left the key 10metres away! But I presume you’re finding it erratic when it’s near the sensor?

    • Like Like x 1
  3. One of the relays controls the remote key system. Replace it with a new relay. Simple job to fit.
    If the contacts inside are poor, which they will be after 10 years use, response becomes patchy.
    Buy a genuine one, not a cheap knock off from eBay.

    • Useful Useful x 1
  4. Relay part numbers:

    54140151A
    or
    5414010A

    • Like Like x 2
    • Useful Useful x 1
  5. That's could be interesting. Thanks.
    Ordered some genuine when tried to fix no running light issue and replaced middle and closest. One left :)

  6. If one relay is on the way out, the others will be not far behind. Better to replace the lot.

  7. Done.

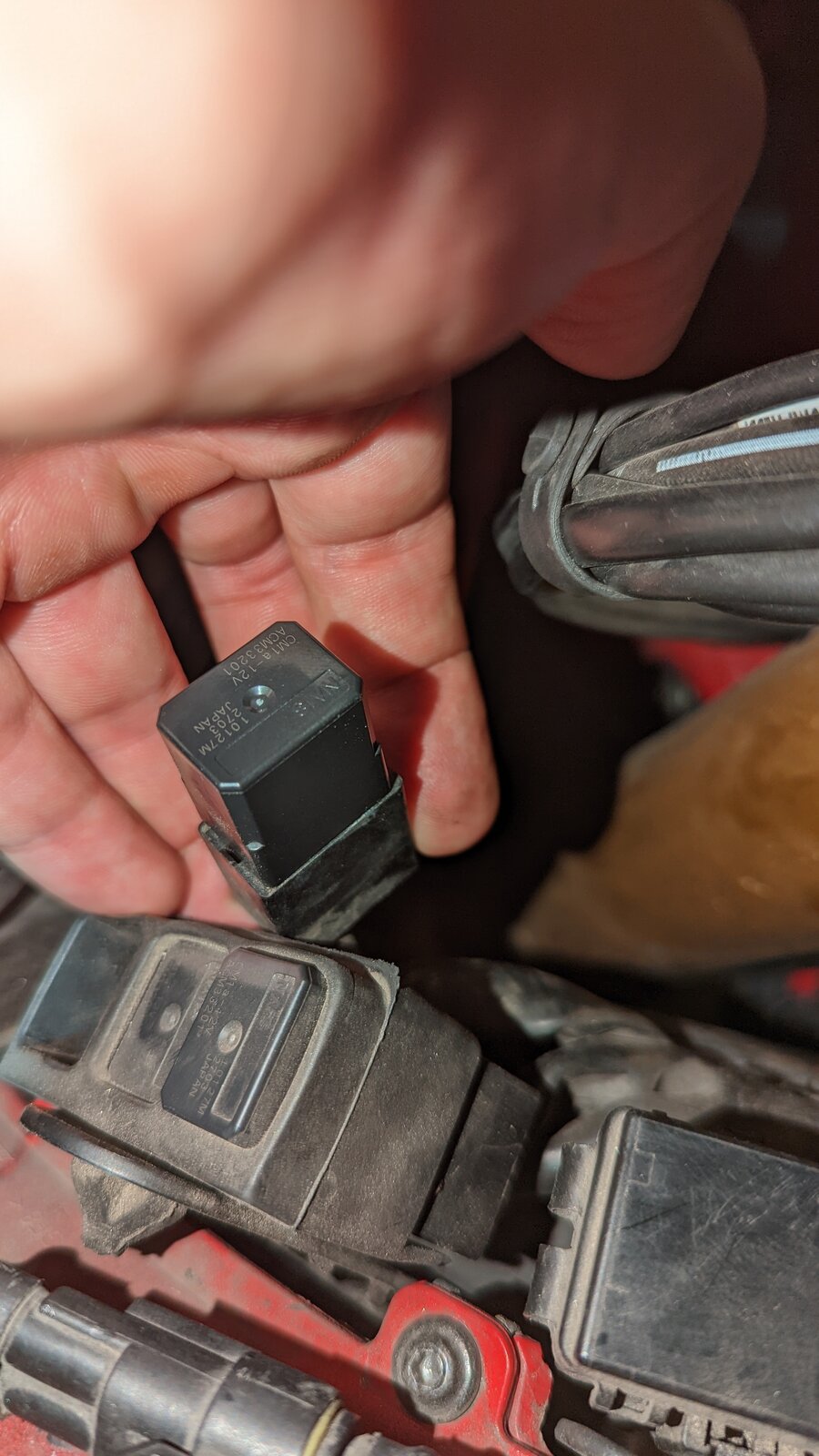

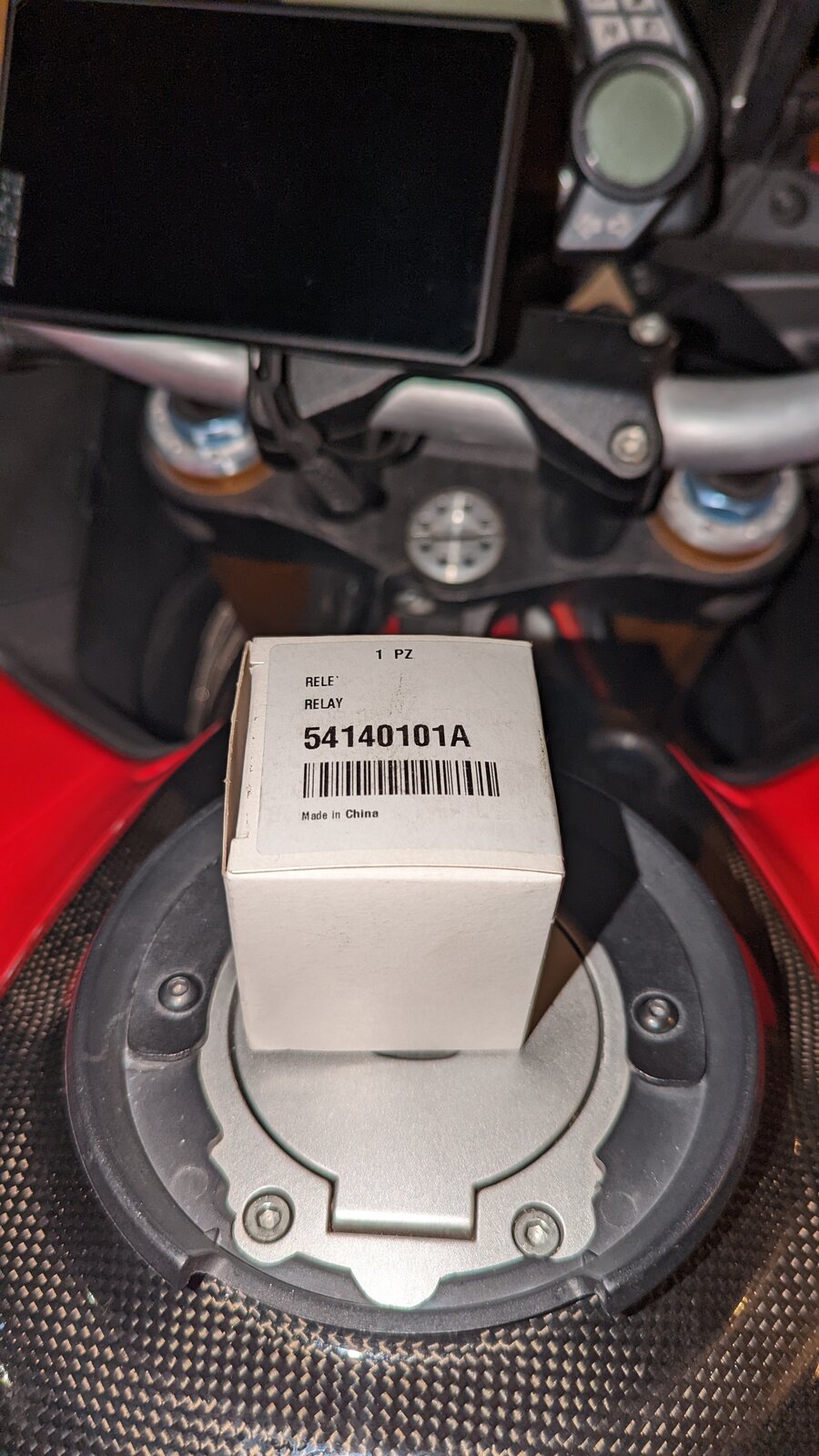

    PXL_20220831_154206476.jpg PXL_20220831_155056680.jpg
    It's alive!!!

    • Like Like x 1
  8. So how well does the remote key system work now?

    • Like Like x 1
  9. Seems like now it's fine

    Lost connection with key suddenly:(

    #9 Vlad1200, Sep 1, 2022
    Last edited: Sep 1, 2022
    • Like Like x 1
  10. Where is this relay to replace it please

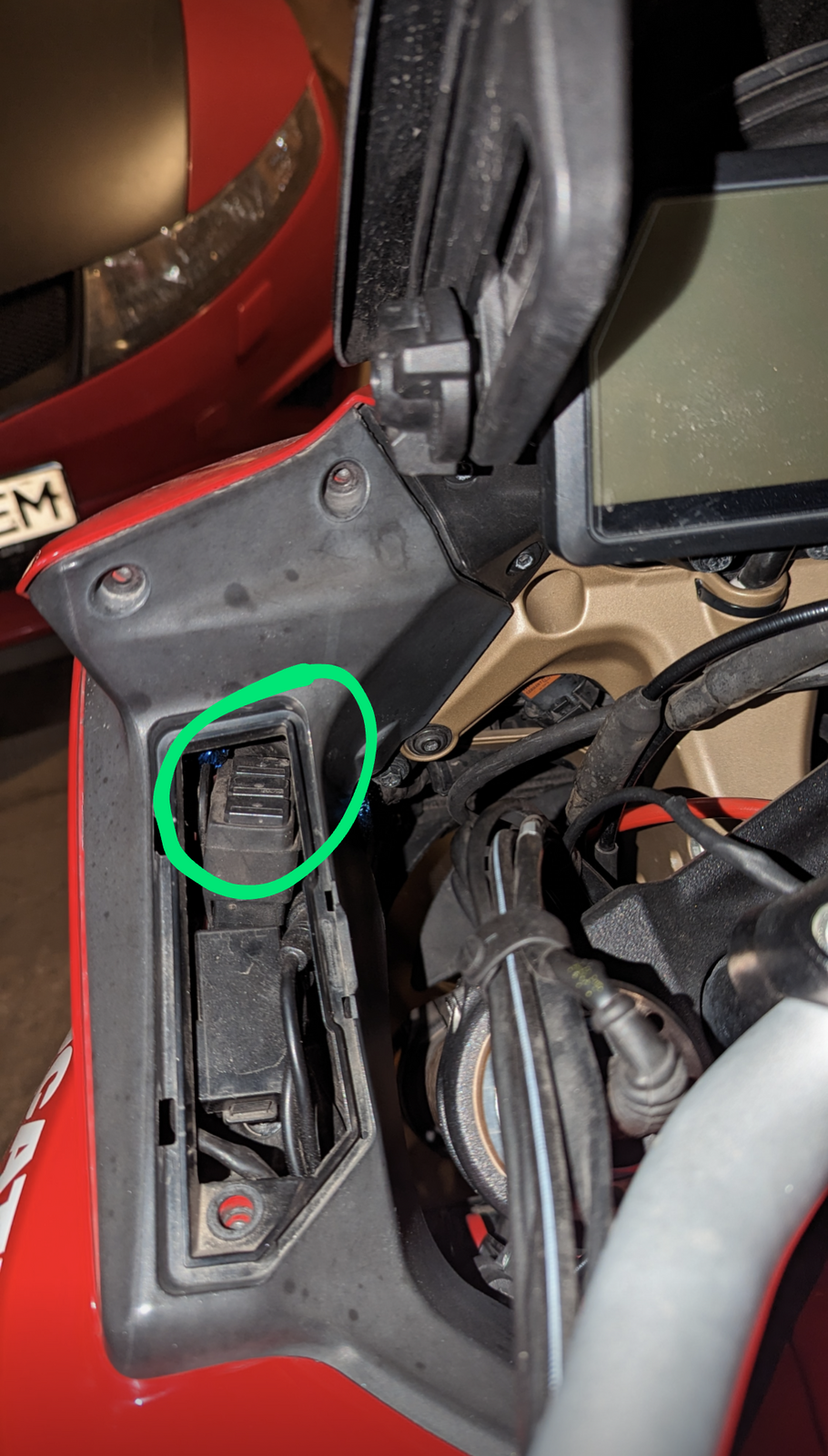

  11. Screenshot_20230824-070728.png

  12. On DVT Multistradas, under the seat near the battery.
    On pre-DVT 2010-2014 Multi twins, in the front left side fairing under the small black lid.
