848 / 1098 Wheels

Front wheels are the same but fairly sure the rear is different, 1098/1198 having a larger axle.



@Dukedesmo is correct, the 1098 has a large diameter rear axle whereas the 848 is the same as the 998/996/916/748. Andy



It will be the hole in the centre, 1098 is larger but I don't know by how much?



Probably not, other than a part no.



Thinking about it, it maybe that a 1098/1198 wheel is 6" wide rather than 5.5" but but I don't know if that's the case?

If you look at a 1098 hub on the sprocket side there are 6 bolts/cush drives vs. the 5 on an 848 (916/748/996/998 etc.) and I think the locating pins into the wheel are also further apart.

A quick look in workshop manuals suggest that 848 rear spindle is a 38mm thread and 1098 is 48mm, so a 10mm difference but I can't vouch for that.



Yes, it would. Andy



Would think it probably is, see if you can get an internal measurement of the spindle hole to confirm.

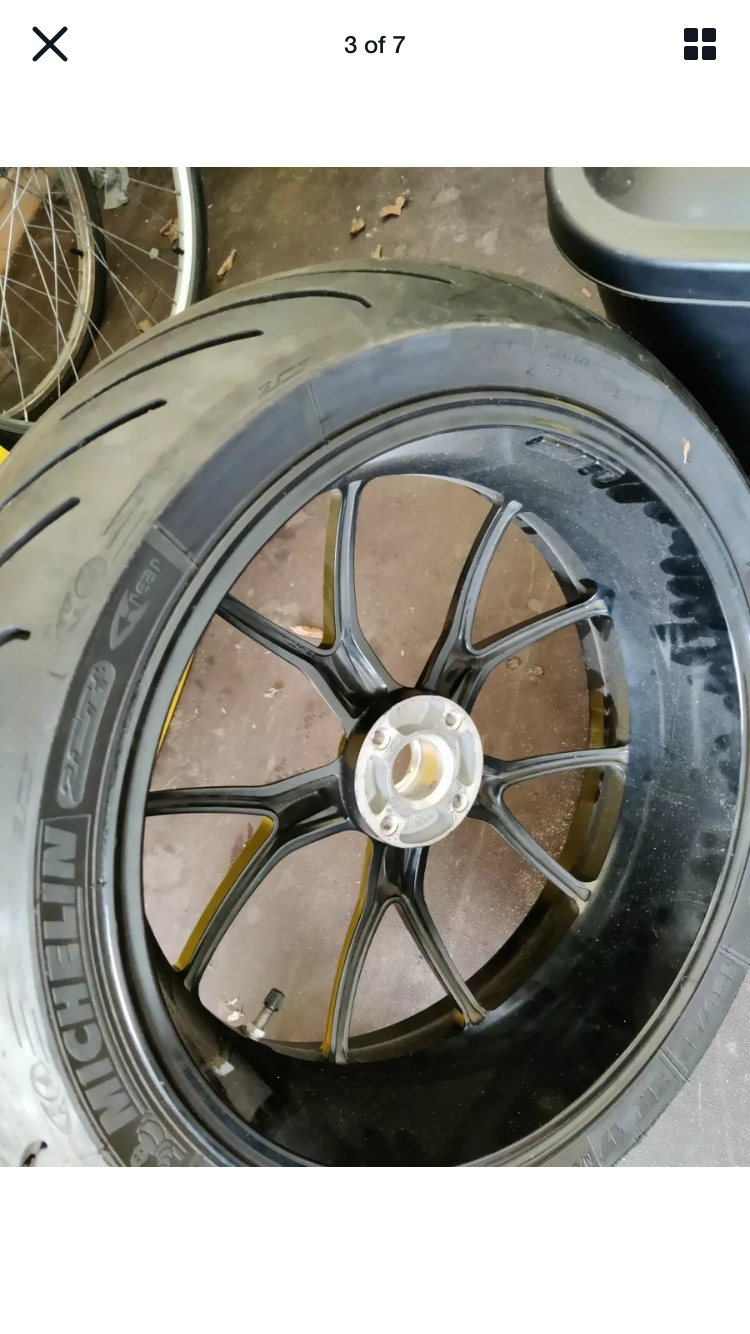

If you post the picture of the wheel maybe that will help confirm if 848 or 1*98?



Definitely 848 not 1098. Andy



Also the same as my monster 796 . So 1100 also and the hyper's .



Looks like 848 to me.
