Hi to all , I am trying to get the color meaning of the 26 wire attach to the dash .... Can somebody help me ...
PIN Wire Func 1 Gr/Bk Lights relay 2 W/P F/L Turn 3 W/Bk R/L Turn 4 W/V F/R Turn 5 W/G R/R Turn 6 O/Bk Antenna 7 O/W Antenna 8 Bn/Bk EXBV Motor 9 W/G Turn Switch 10 W/Bk Turn Switch 11 Y/B High Beam 12 P/Y Fuel Tank 13 O/Bk ECU Body 7 14 G/R EXBV Motor 15 Bn/R Finish Line Sensor 16 Gr Mode Switch 17 Gr/R Air Temp Sensor 18 Y EXBV Motor 19 G/Bk ECU Body 20 (CAN +) 20 Bk/Y Earth -ve 21 R/Y +12v 22 R/Y +12v 23 R/Bk ECU Body 17 24 O EXBV Motor 25 Bk/W Air Temp Sensor 26 Gr/G ECU Body 20 (CAN -)

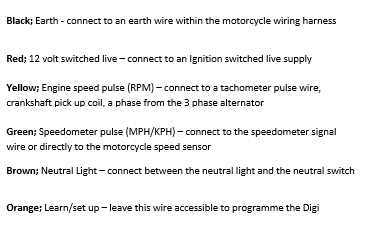

Hi Chrisw , I want to install an Gear indicator from data log , I need to pick up some signal and I was wondering if I can find them around the dash area ... Please see attach document ! Thank you for your help !!!
hey, you do realise its compulsory to put pics up? bikes or bird (most aint fussy round here.. especially @Exige )
The problem with the ECU is that everything is waterproof and I want it to stay that way .... I guess will do my own wiring because the gear indicator comes with 1 feet of cable ! lol
