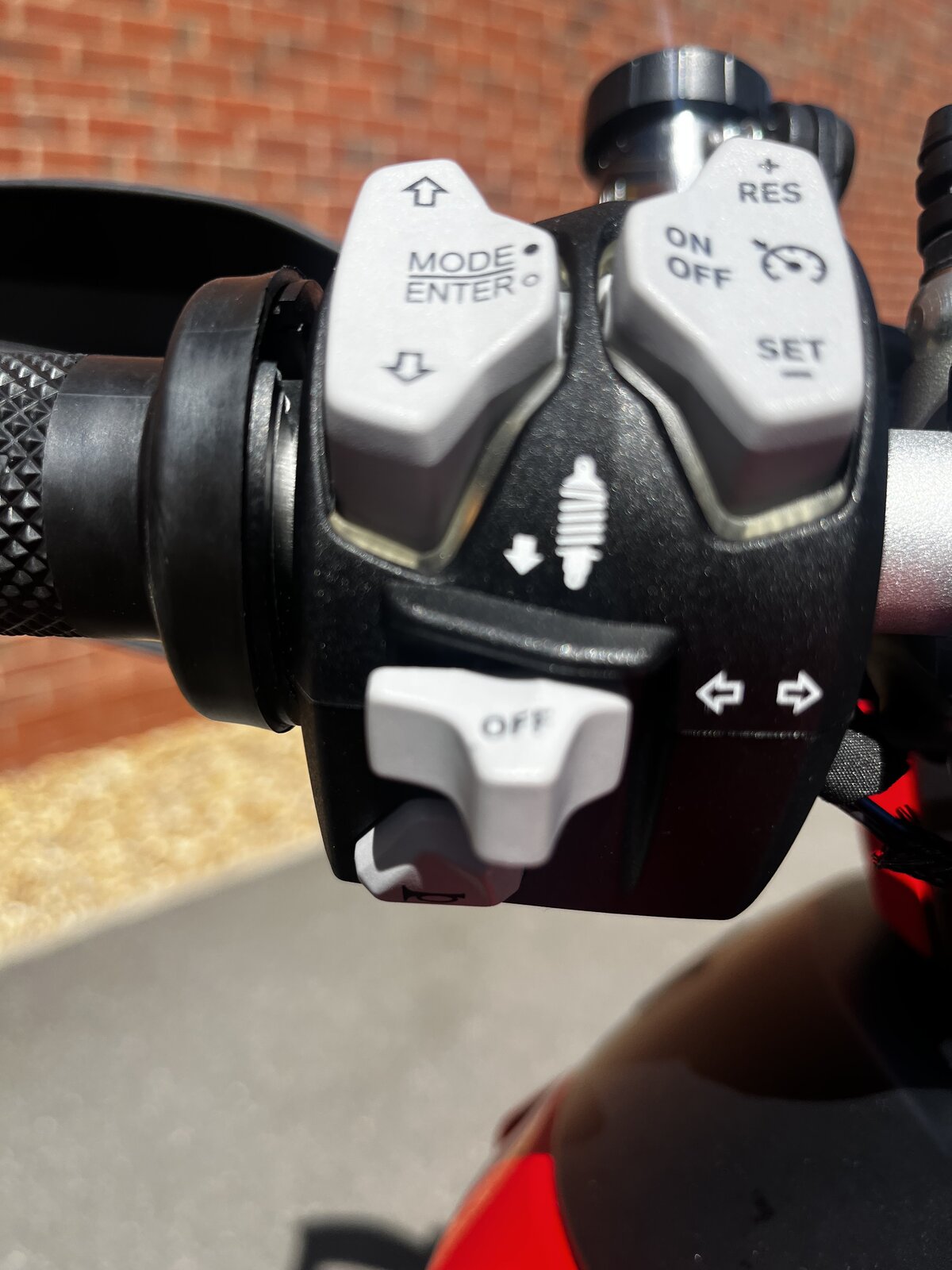

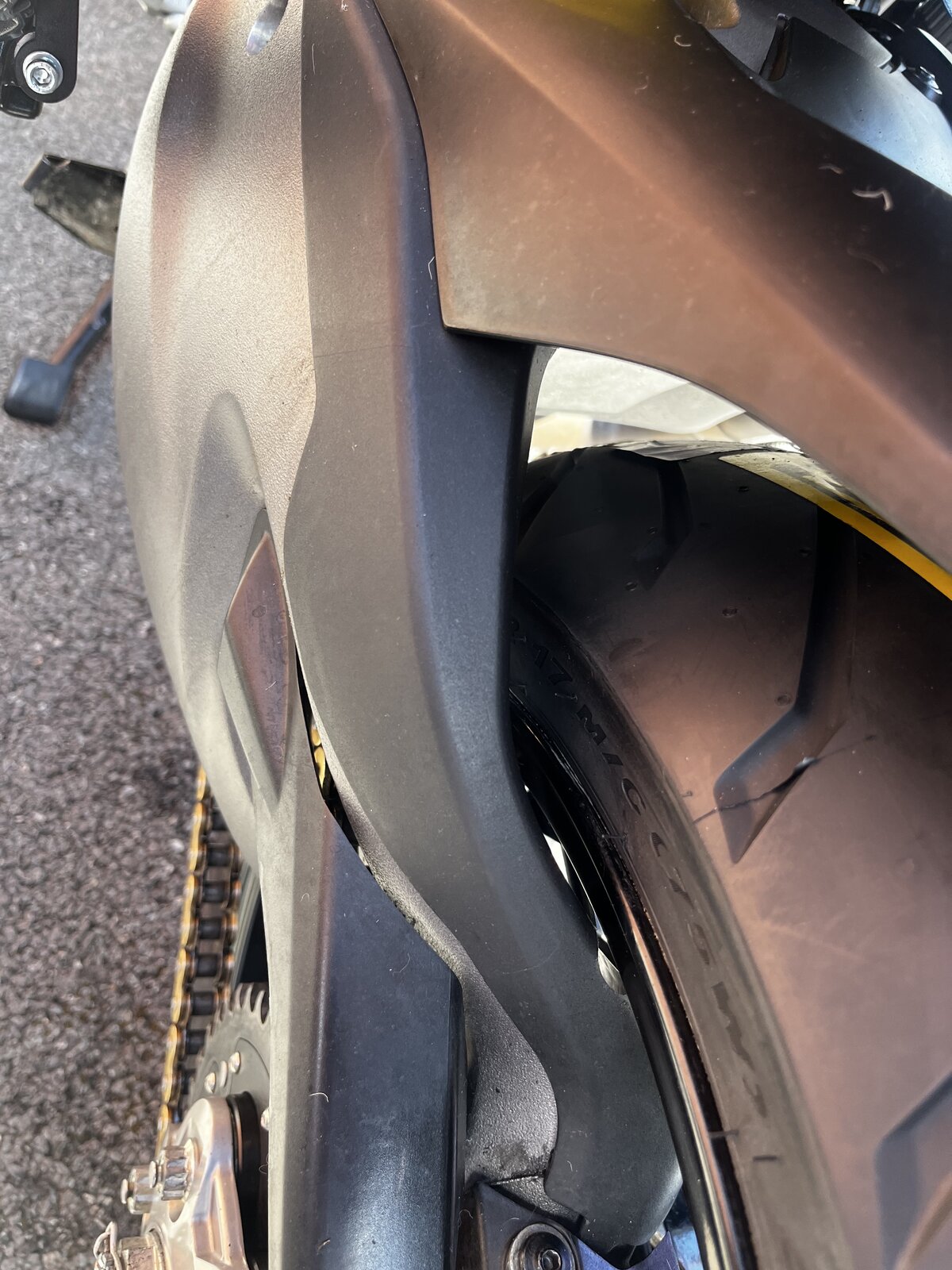

I’m trying to find this part on the swingarm that runs along the top of it towards the rear but I can’t find it anywhere in the parts catalogue. Anyone with any idea please? Plus what does the suspension symbol signify on the left hand switchgear?

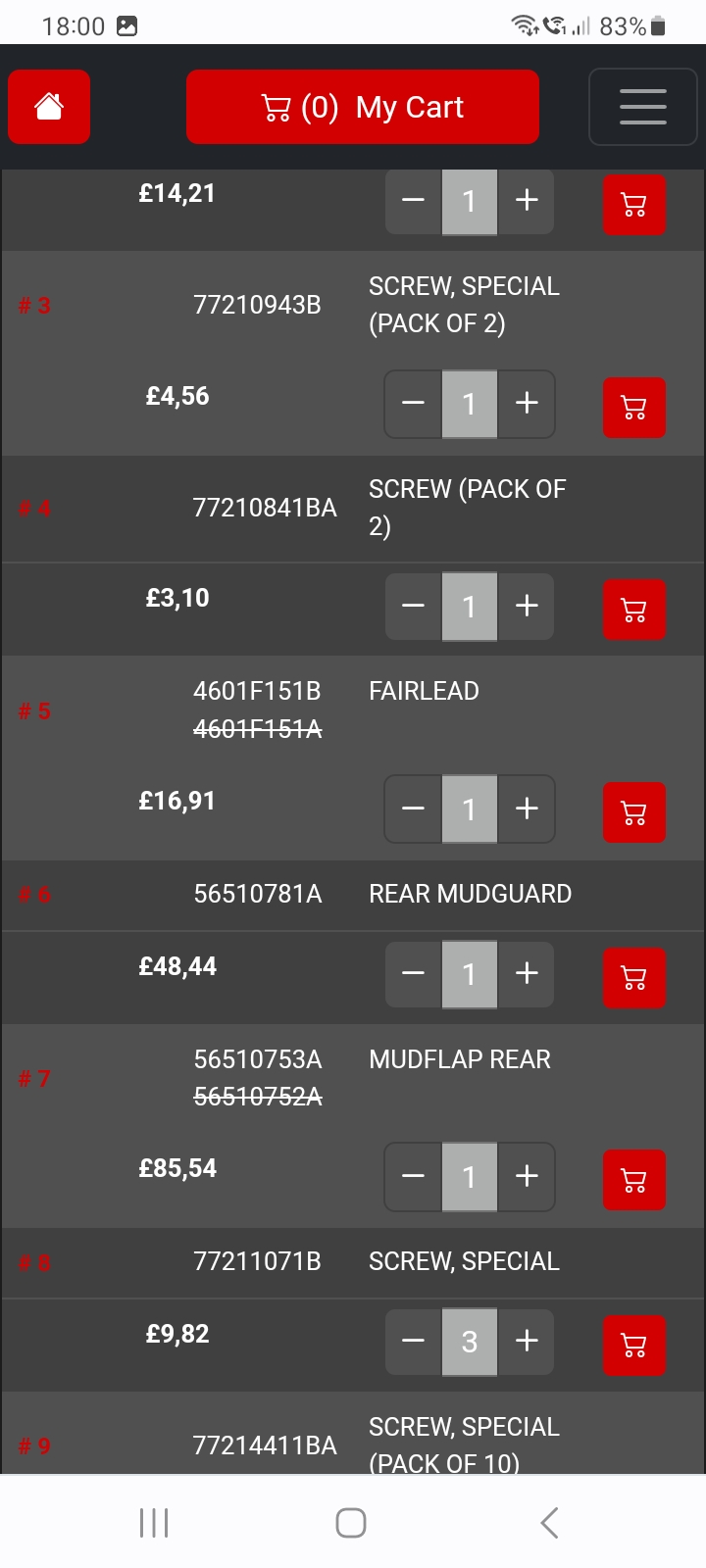

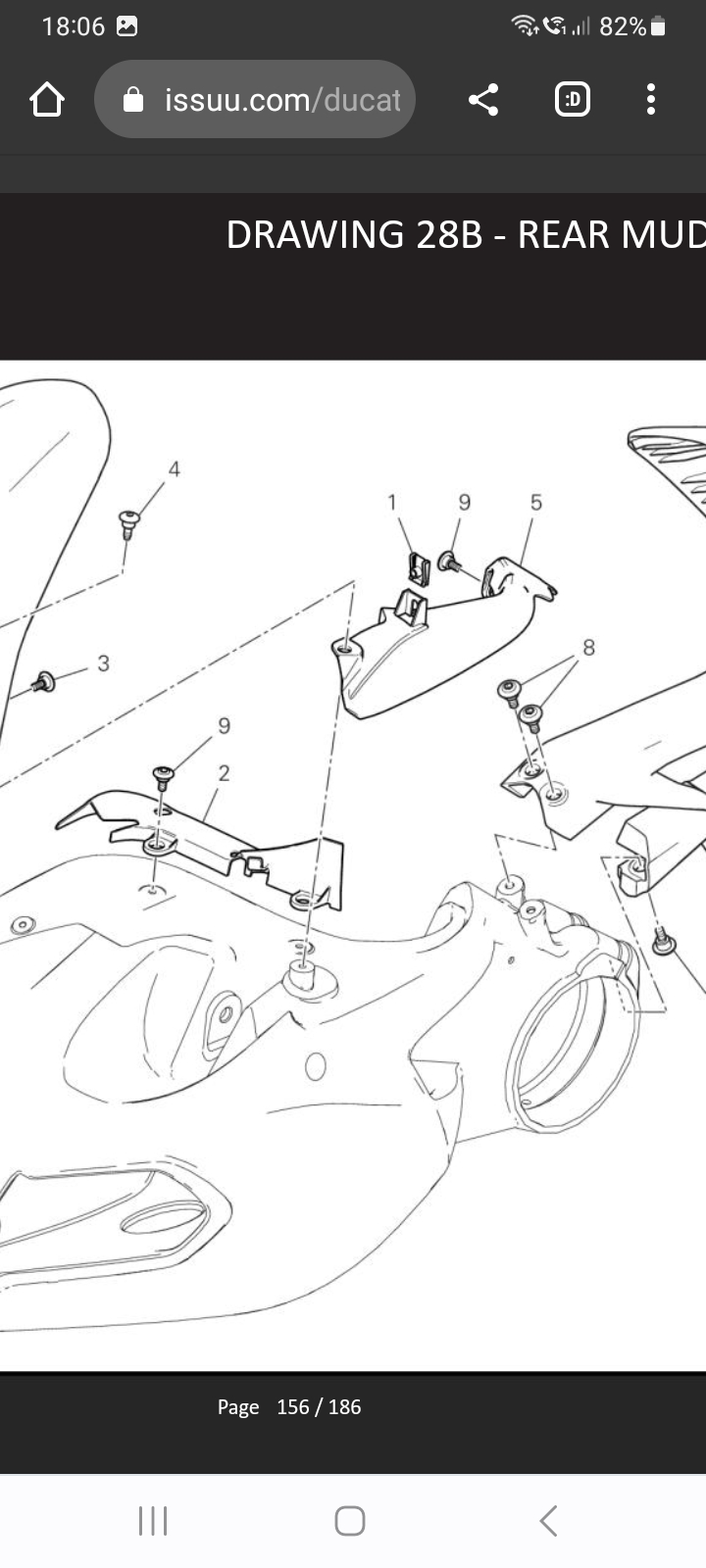

Looks like you need item 5: Re the suspension symbol, if you press and hold the the arrow on the lh toggle switch for a couple of seconds, you can scroll through and set (using the "enter" button) the relevant load settings. Hope that helps.
Page 154, chain guard https://downloads.ctfassets.net/oif...43e78f/SPC_-_Multistrada_1260_-_EN_-_MY19.pdf Andy
