Airbox

Discussion in 'Supersport (1974-2007)' started by ck_uk, Mar 7, 2023.

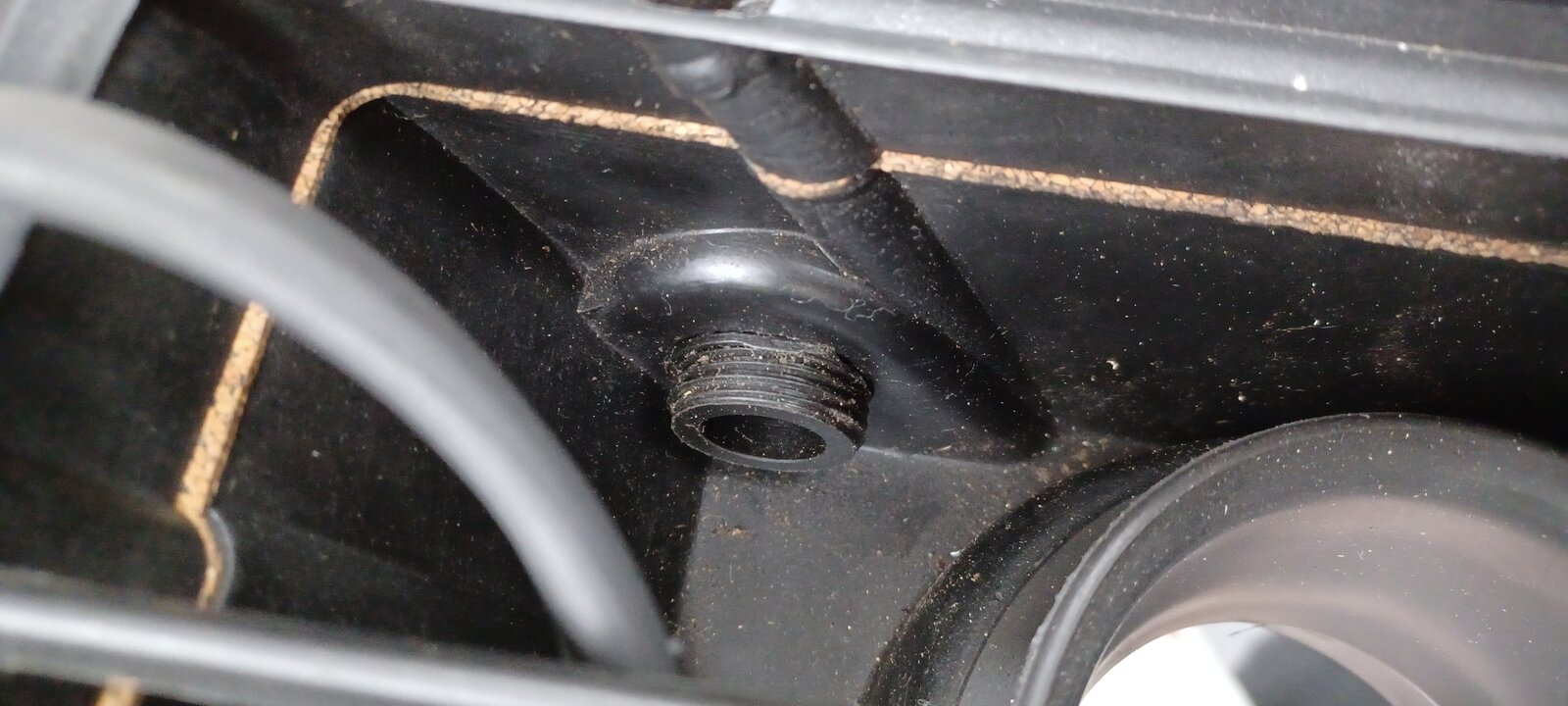

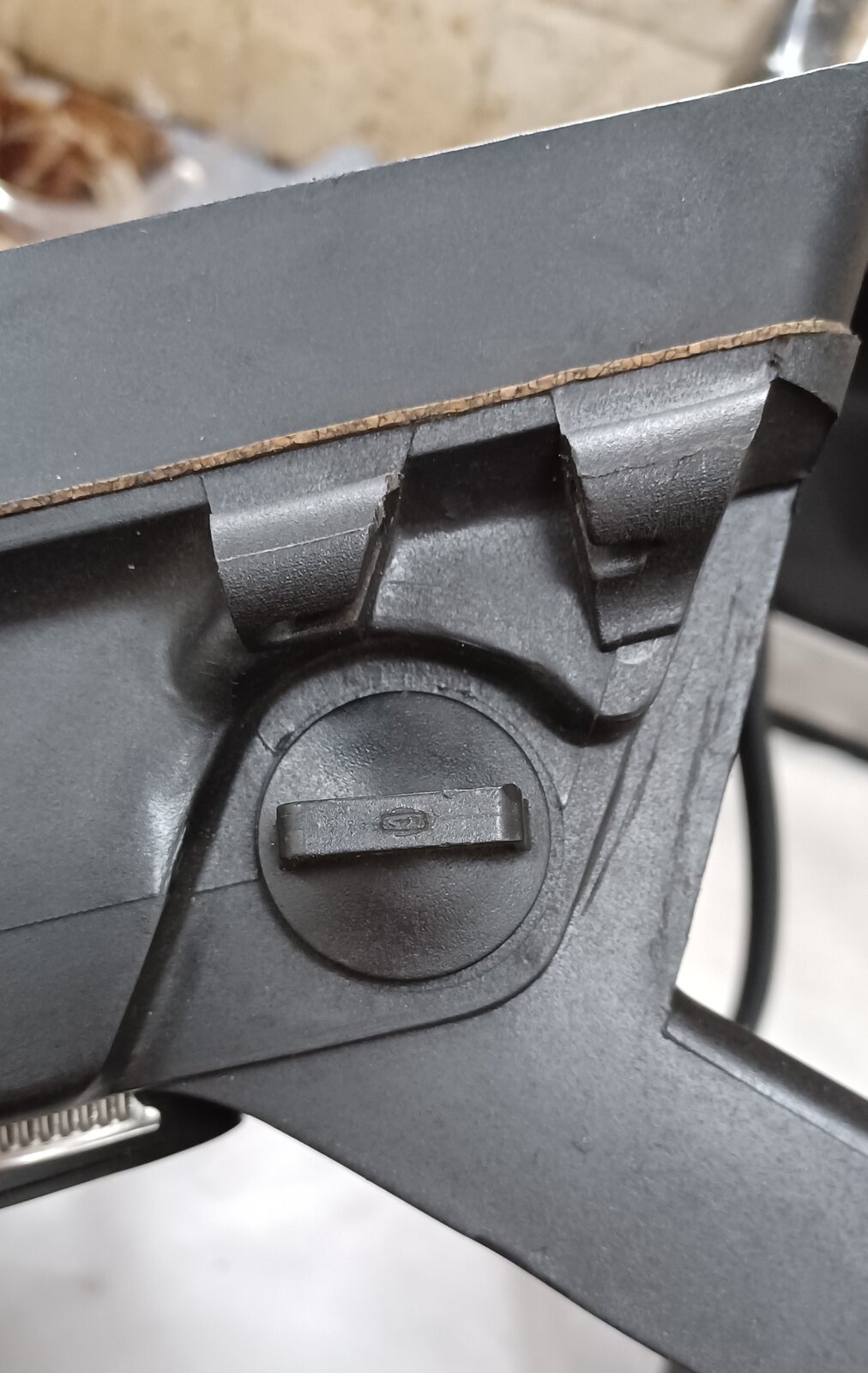

  1. Quick question: what is this for, on the side of the air filter box?

    20230303_125327.jpg 20230303_125341.jpg

  2. That doesn't look standard to me.

    It looks like that's where the standard hose from the crankcase breather would connect to the Airbox, but a previous owner has removed the standard system and fitted a filter or catch tank to the breather instead.
    The plug is something they had that just happens to fit the hole, possibly an Oil filler cap.

    #2 Nasher, Mar 7, 2023
    Last edited: Mar 7, 2023
  3. Not a great image, but you can see the pipe behind the airbox here:


    • Thanks Thanks x 1
