Ally Swingarm On Ducati

Discussion in 'Ducati General Discussion' started by Skidmark66, Oct 29, 2016.

  1. I have an idea kicking around in my head and I want to fit an ally swingarm to a 748 916 frame. Has anyone done this before and was it a success. I have welding and machining shop at my disposal so can modify parts. Any help would be appreciated.
    Mark.

    #1 Skidmark66, Oct 29, 2016
  2. What os the std arm? Isn't it an alloy one anyway ? (can't remember..)

    #2 bradders, Oct 29, 2016
  3. Sorry should have said I want it to be a twin shock

    #3 Skidmark66, Oct 29, 2016
  4. Realise I will have to weld up the rear subframe but that shouldn't be a biggy

    #4 Skidmark66, Oct 29, 2016
  5. What you are trying to build is called an ST4s. Not too sure on the subtle differences between a straight 996 and the 996 powered ST4s but it's got to be close. My ST4s was quick and handled, once I'd got the ride height right. Andy

    #5 Android853sp, Oct 29, 2016
  6. No im not its nothing like it. Its an idea I have had for a while now and im pretty sure I can make it work just the swingarm im stuggling with.

    #6 Skidmark66, Oct 29, 2016
  7. Fair enough but you might like to look at the ST sub frame, just might give you some ideas. Andy

    #7 Android853sp, Oct 29, 2016
  8. Maybe a monster alli swingers could be used as a model too, as we used to put the ST ones in our race monsters

    #8 bradders, Oct 29, 2016
  9. 916 swing arm will fit a 999 with some fing about so you could go the other way I expect.

    #9 Cream_Revenge, Oct 29, 2016
    • Funny Funny x 1
  10. Yes I have and it may well play a part in what im trying to achive.

    #10 Skidmark66, Oct 29, 2016
  11. I believe that Ducati Corse tried one in a 916 back in the late 90's. there were some pics of Foggy trying it out.

    #11 RickyX, Oct 29, 2016

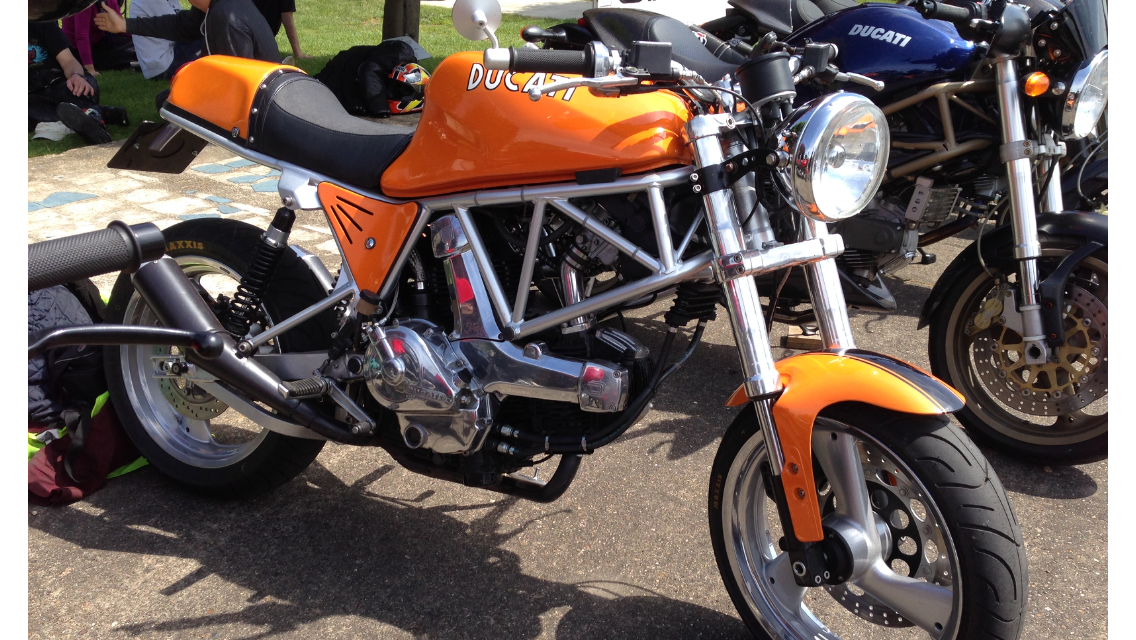

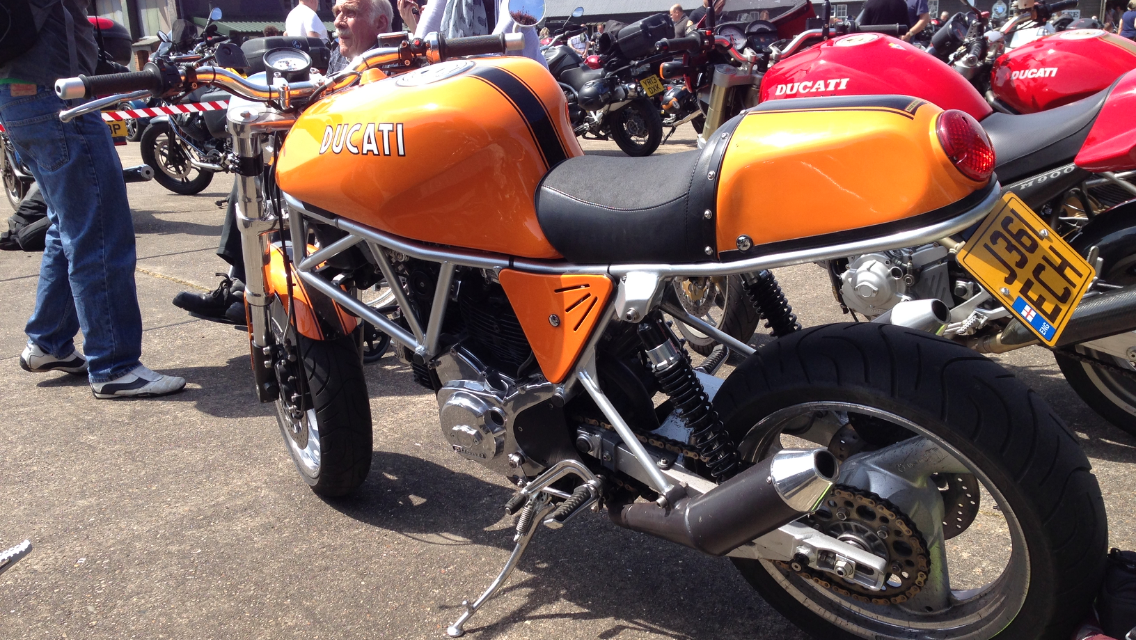

  12. IMG_0159.PNG IMG_0158.PNG Heres a SS converted to twin shock. Tidy job. It looks like he's flipped a standard SS arm so the original shock support on the arm becomes an under arm brace.

    #12 900streetfighter, Oct 30, 2016
  13. i expect that you know welding Ally is not q so simple as welding steel..

    #13 2 easy, Oct 30, 2016
  14. Yep got it covered.

    #14 Skidmark66, Oct 30, 2016
  15. I would go for fitting an early grey 749/999 swingarm. They will bolt to the 916 engine, if that's what you are going to use. Along with fitting between the 916 frame.

    You could then look at welding mounting tabs onto the 999 swinger.

    Mind you, if you have the skills, you will probably be best off with trying and seeing what works out best.

    If you are making a swinger from scratch, then you can use the 999 swinger for dimensions around the engine/frame/wheel offset and spar width for the wheels.

    #15 ducati dad, Oct 31, 2016
