Barn Find

Discussion in 'Technical Help' started by scotte, Jul 31, 2019.

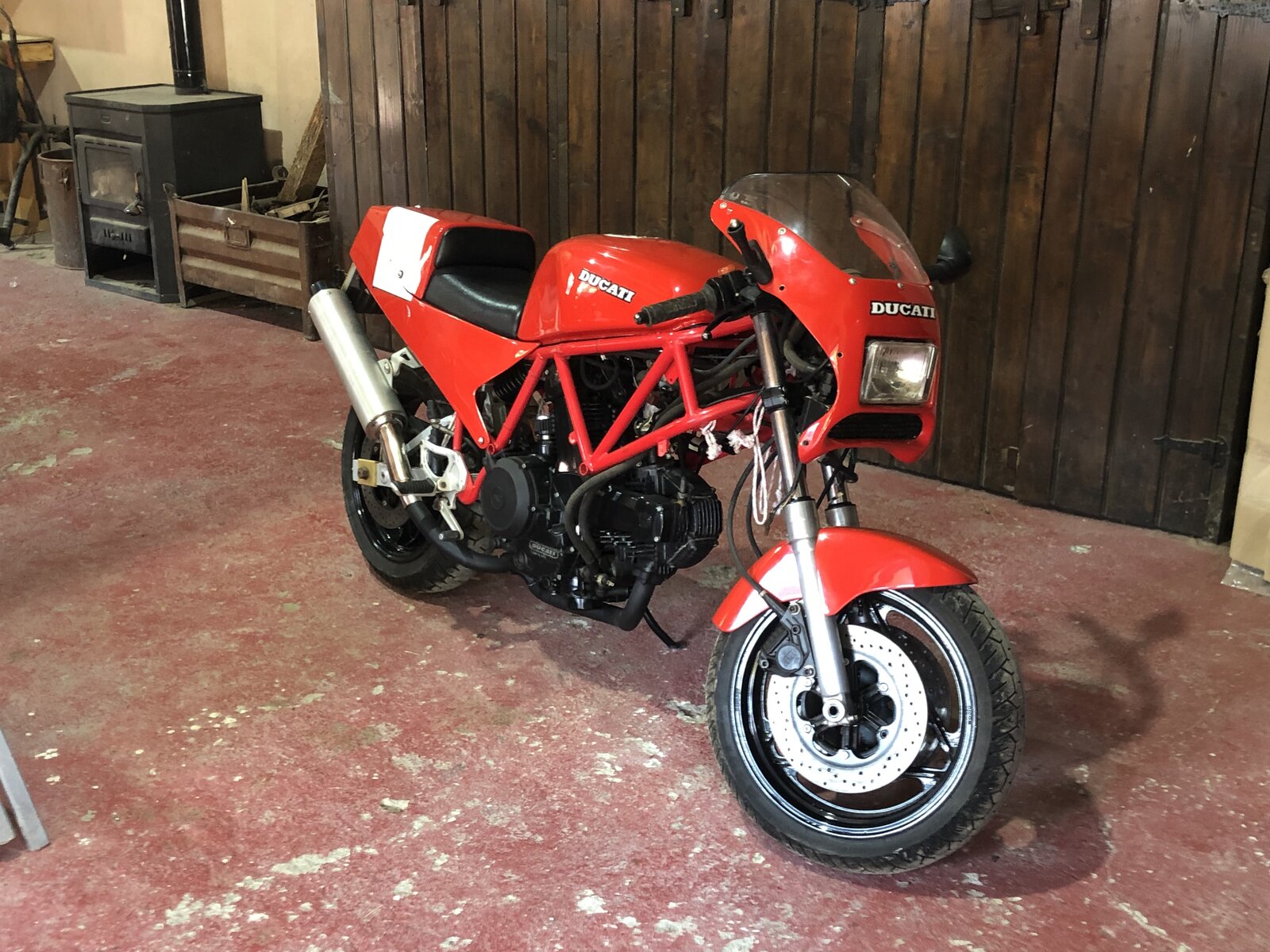

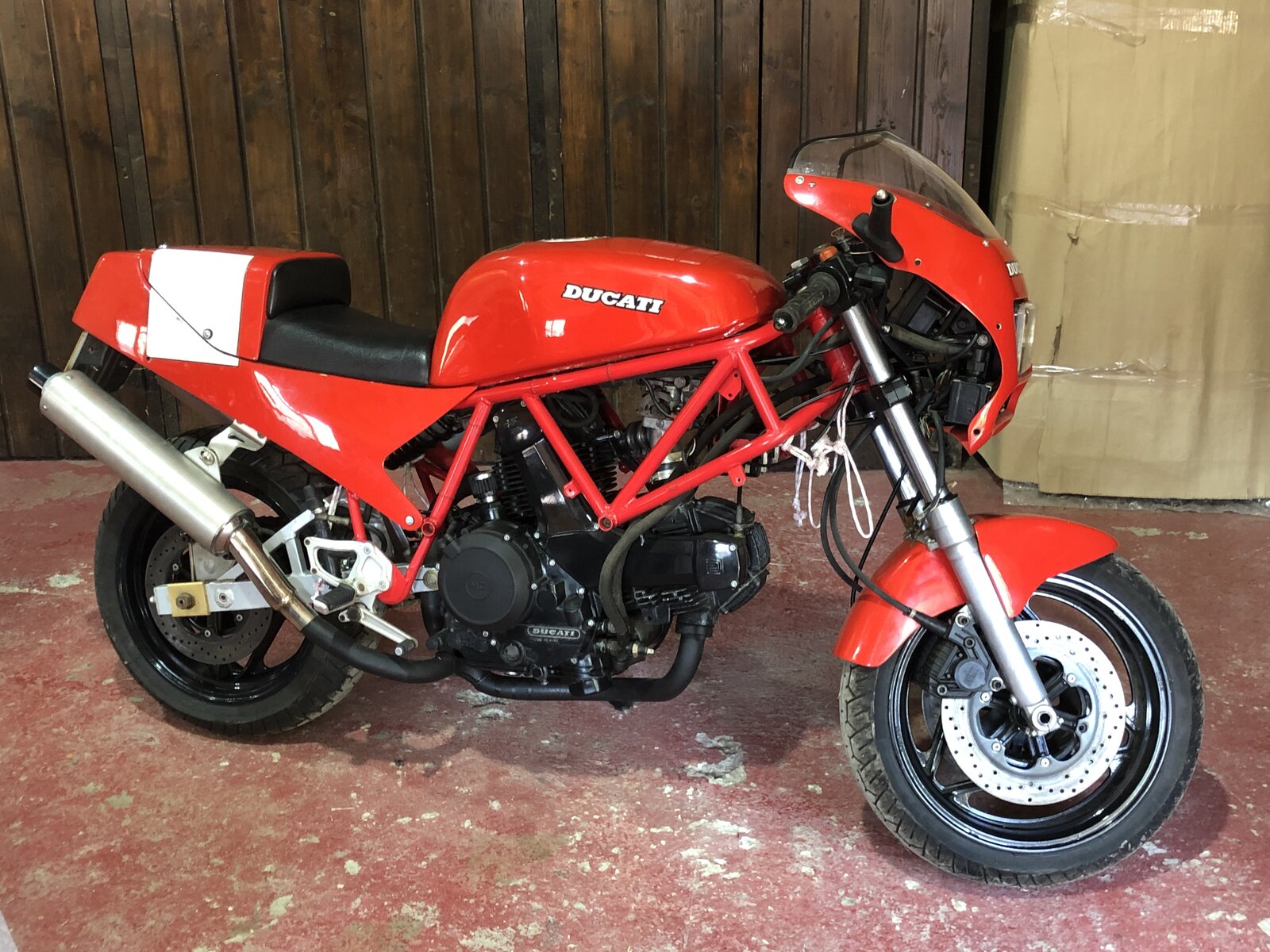

  1. hi all, i've just picked up a barn find 1989 750 sport in good nick, can anyone direct me to a good wiring diagram, need some help lol. appreciate any help, merci

    #1 scotte, Jul 31, 2019
  2. Where's our pic's then:thinkingface:

    #2 XH558, Jul 31, 2019
    • Agree Agree x 2
  3. im tring to uploaed

    #3 scotte, Jul 31, 2019
    • Like Like x 1
  4. Full fAirings are with ms too



    #4 scotte, Jul 31, 2019
    • Like Like x 3
  5. #5 XH558, Jul 31, 2019
    • Funny Funny x 3
    • Like Like x 1
  6. In those pics it looks like its cosmetically very good!

    #6 Jez900ie, Jul 31, 2019
    • Agree Agree x 1
  7. Very new tech, you’ll get into it

    #7 scotte, Jul 31, 2019
    • Like Like x 1
    • Funny Funny x 1
  8. It’s a pretty good but only one coil is sparking so need to find a wiring diagram

    #8 scotte, Jul 31, 2019
  9. ...and great to see old tech metal dustbins,one for DB:upyeah:

    #9 XH558, Jul 31, 2019
    • Like Like x 1
  10. Got to love bos cans from early 90’s

    #10 scotte, Jul 31, 2019
    • Agree Agree x 1
  11. Lots technical info : Manuals, wiring diagrams and more available on ducatipaso.org There is a forum section specifically for the 750 Sport and 89/90 900SS.
    Wiring diagram attached.


    Attached Files:

    #11 Derek, Jul 31, 2019
    • Like Like x 1
  12. Thanks derek, I’ll have a look see and find what I need

    #12 scotte, Jul 31, 2019
