Belly Pan

Discussion in 'Supersport (2016 onwards)' started by Swiss T, Aug 29, 2019.

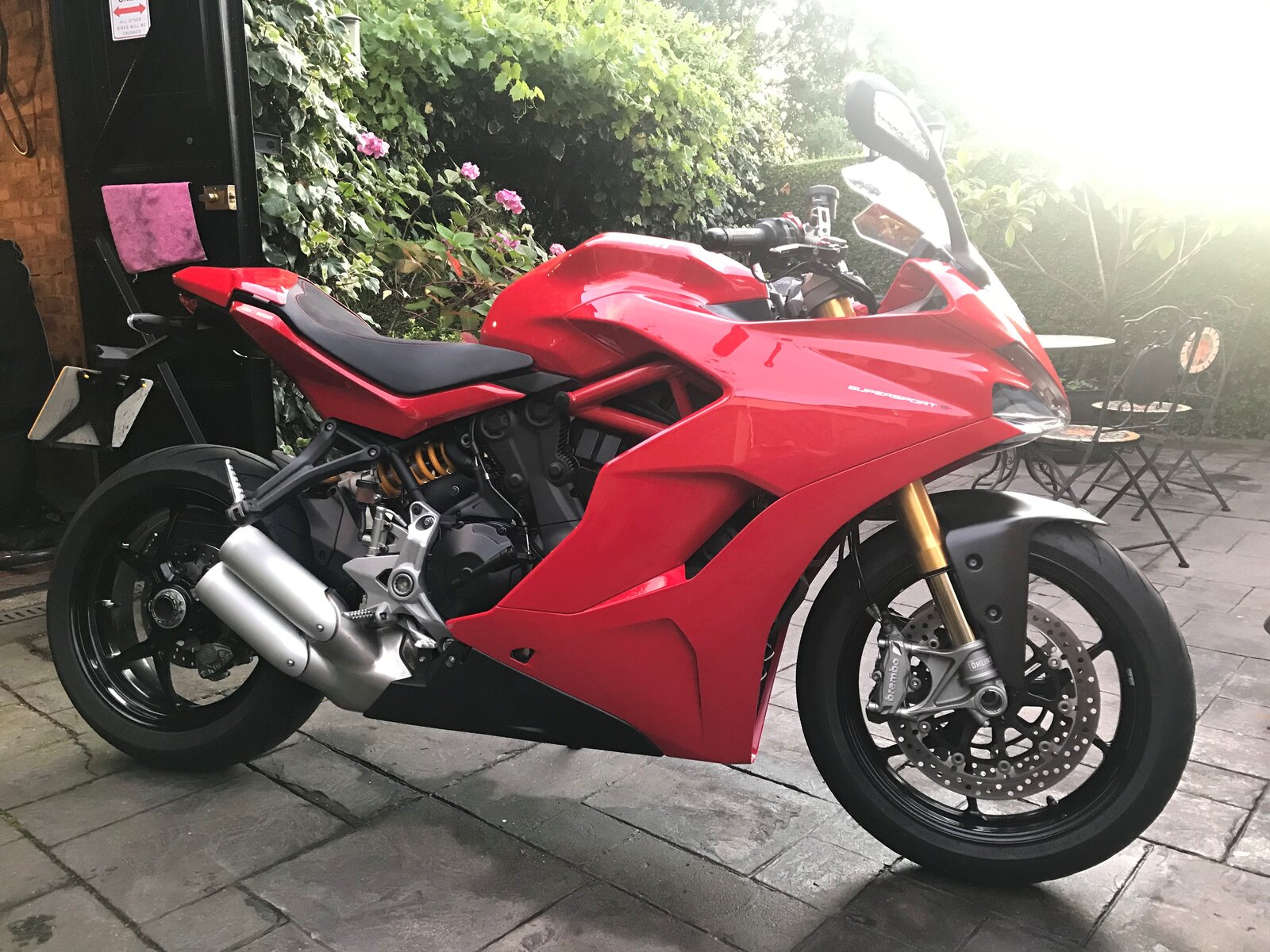

  1. Fitted a belly pan; it just looked a bit unfinished. I may paint it red at some point.

    :cool:


    #1 Swiss T, Aug 29, 2019
    • Like Like x 4
  2. That looks great! Where did you get it from?

    #2 luken, Aug 29, 2019
  3. #3 Swiss T, Aug 29, 2019
  4. #4 iang27, Aug 30, 2019
    • Like Like x 2
  5. Yes, I saw that too. If I didn't have the CF mudguard already I may have chosen that one also.

    I think it looks better in red but was concerned about the heat down there & thought the CF would stand up better then the fibreglass.

    #5 Swiss T, Aug 30, 2019
  6. I like that, it actually looks better in black IMO!

    #6 antonye, Aug 30, 2019
    • Agree Agree x 3
  7. I’d agree, and would be tempted to leave as is if it was on mine as it looks pretty smart in black.

    #7 Masklin, Aug 30, 2019
  8. 14A2F7E4-D4F8-480C-B925-F8E51CF99915.jpeg I wanted it left black as it would blend in with the lower part of my side fairings.

    #8 iang27, Aug 30, 2019
    • Like Like x 3

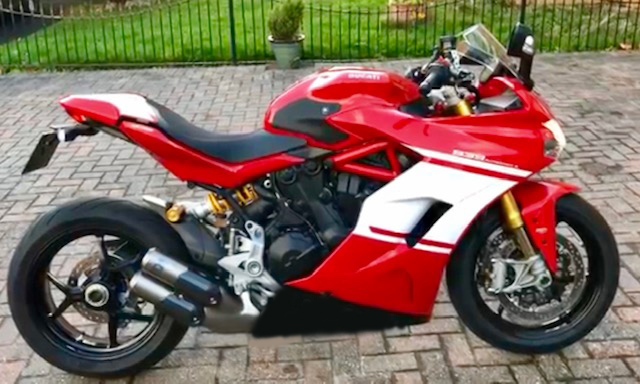

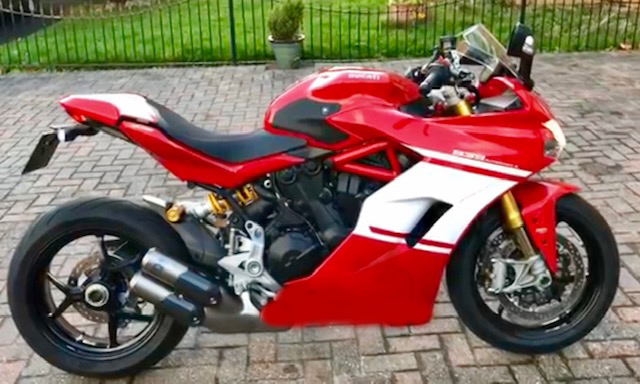

  9. D1578F87-3FDB-45C4-A631-F6F05540BD36.jpeg 4607430A-576F-4F4A-99A1-6BF91C45D0FD.jpeg I was messaging with Artur at Itali Shop about his bellypan and he sent me a couple of mock ups on my bike.
    He preferred red but the lower part of my fairing is black so I was going to go with the black.

    #9 iang27, Sep 1, 2019

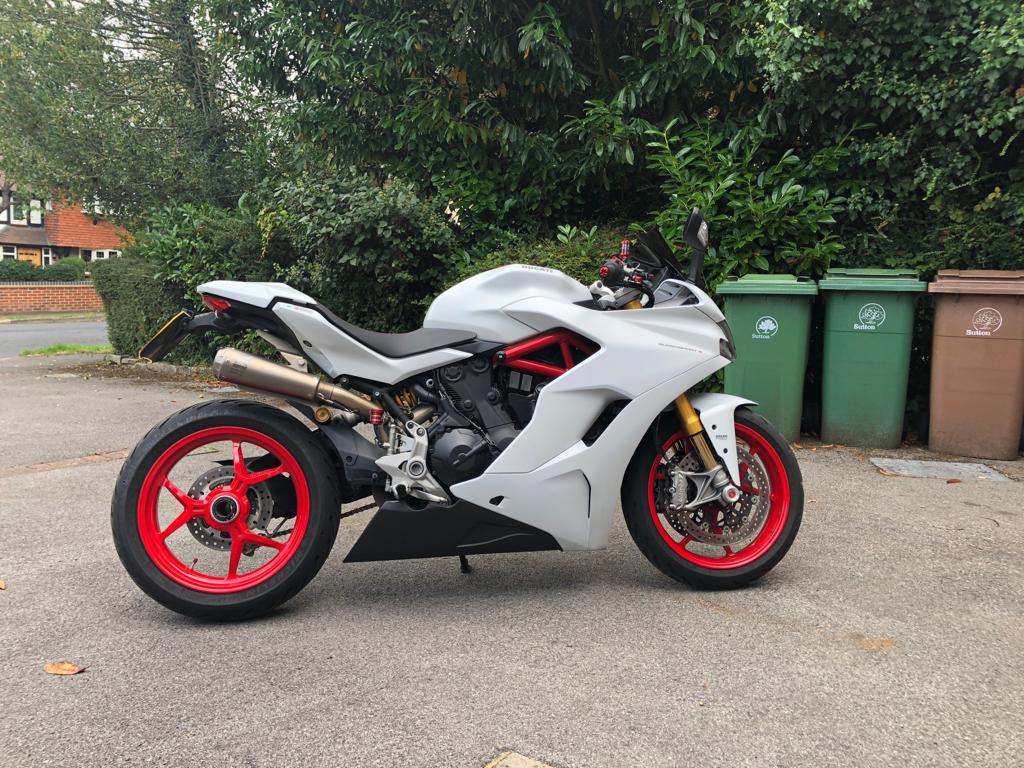

  10. In case you have the akra you also have this option from Full Six

    duc belly pan.jpg

    #10 Ravenscry, Sep 23, 2019
    • Like Like x 3
  11. Hi Guys

    Would anyone know if the illmberger belly pan Will fit ok with a termi exhaust fitted and Is it shaped on the right side for the stock system ?


    #11 Simon B, Apr 23, 2020
    • Like Like x 1
  12. Hi Simon.
    I don't have the Termi; only the stock system. On mine, the Ilmberger looks to be shaped to closely follow the shape of the stock system; it has an even gap between the belly pan & the exhaust all around.
    It's probably worth asking Ilmberger direct.

    https://www.ilmberger-carbon.de/web.aspx?PageID=12

    #12 Swiss T, Apr 24, 2020
    • Like Like x 1
    • Useful Useful x 1

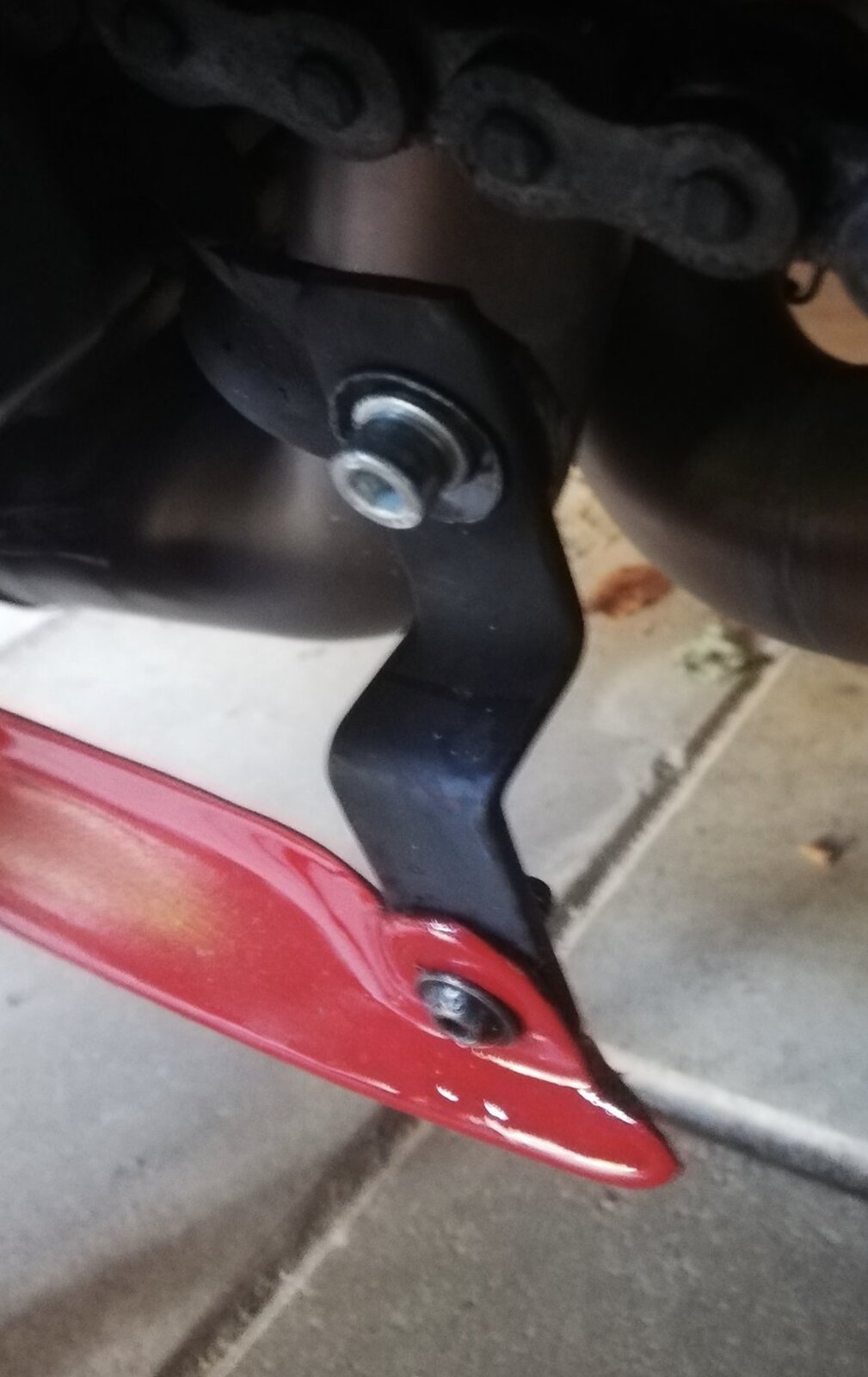

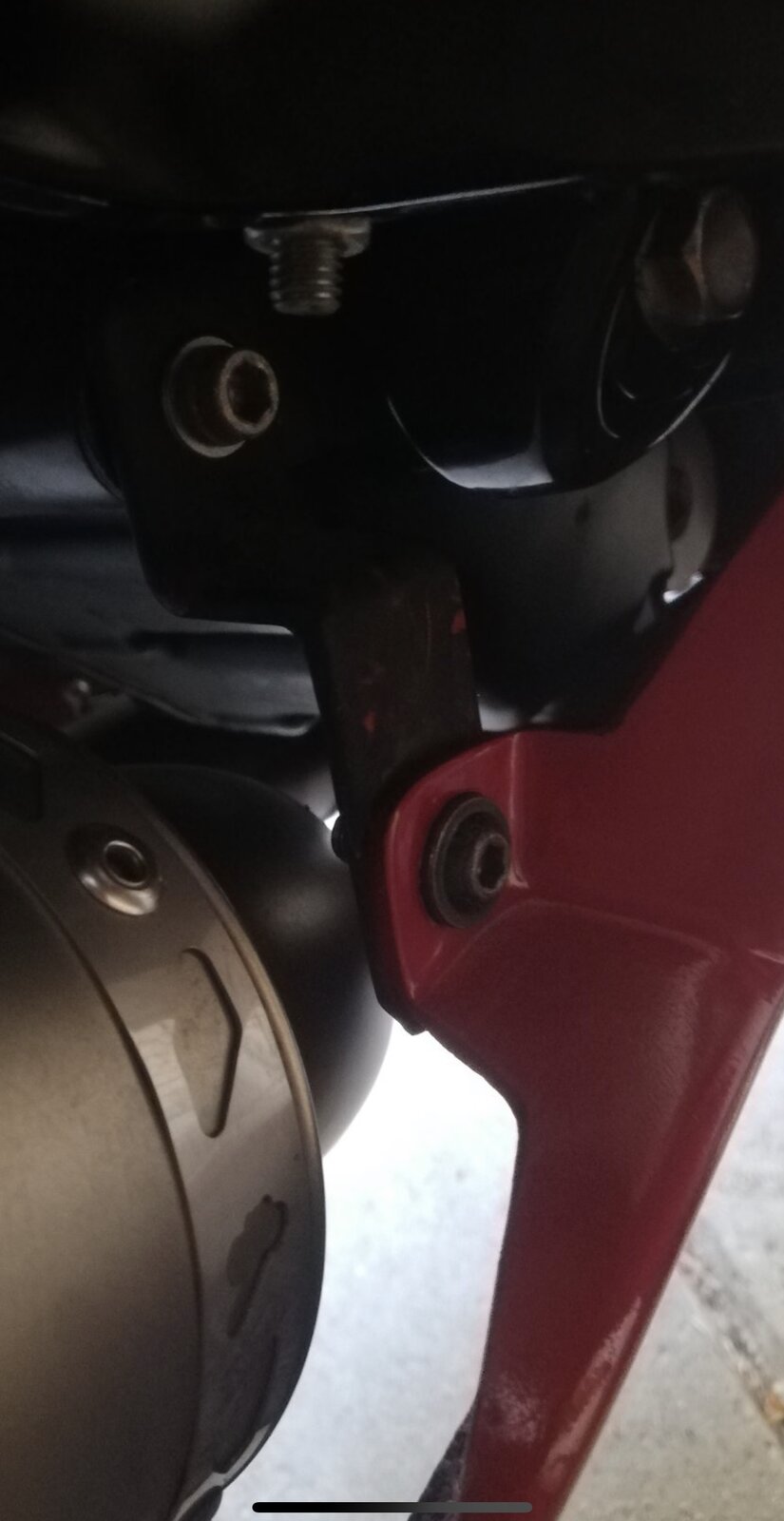

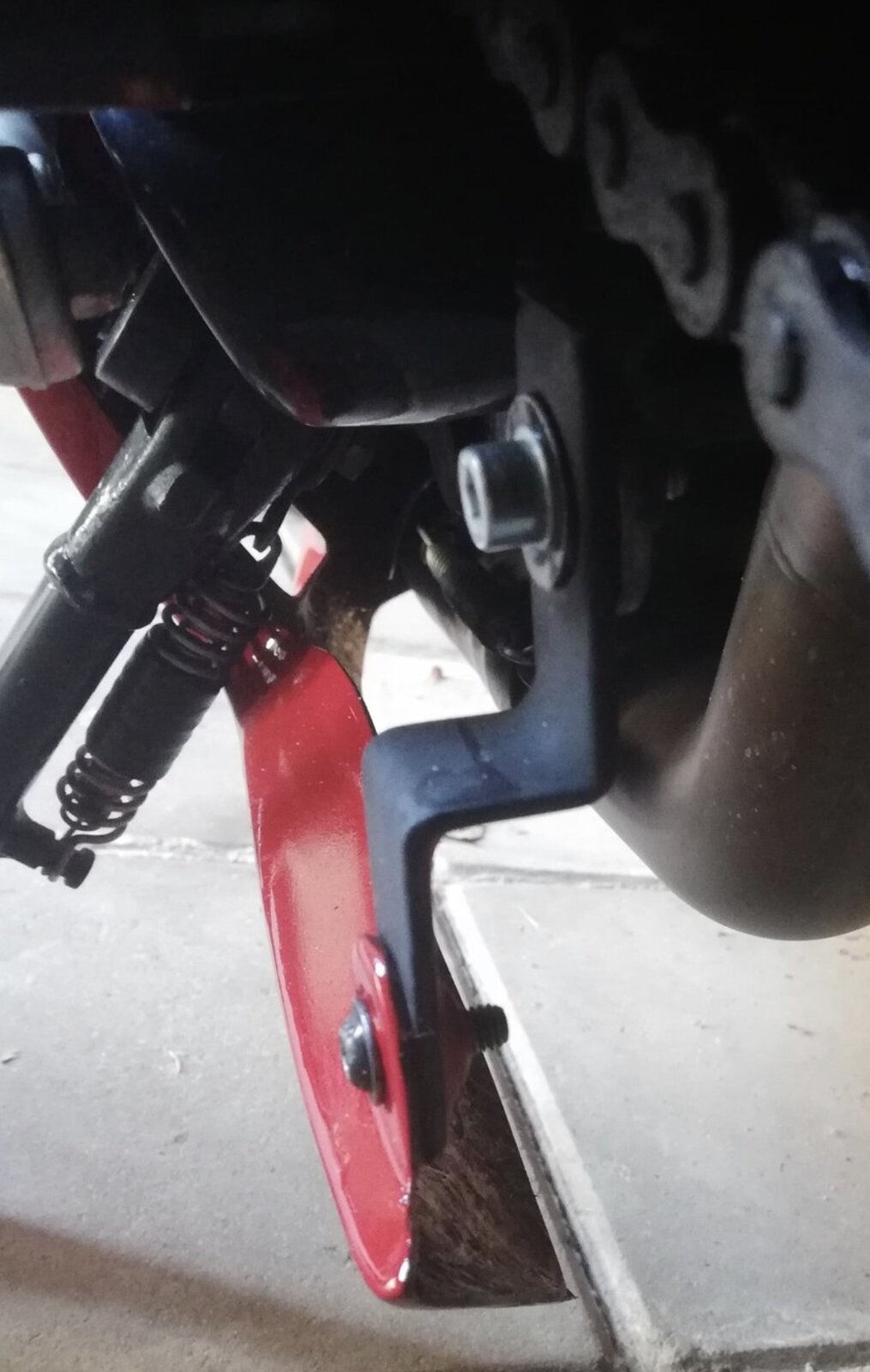

  13. I have found out that the Italo-Shop bellypan does fit with the Termi but you have to make two rear brackets.


    95827F5E-C8AD-46AE-AE5A-3604B087C15A.jpeg 25B7D932-ADC1-4D1C-83AF-15F62798ED2B.jpeg 0E9C6747-BCF5-49BD-B4E0-CC3A57B2A8A9.jpeg CE312789-D582-4392-9C57-62648E2E2AA0.jpeg AF3291C9-3ED0-452A-9F42-7A2411B98867.jpeg

    #13 iang27, Aug 14, 2020
    • Like Like x 1

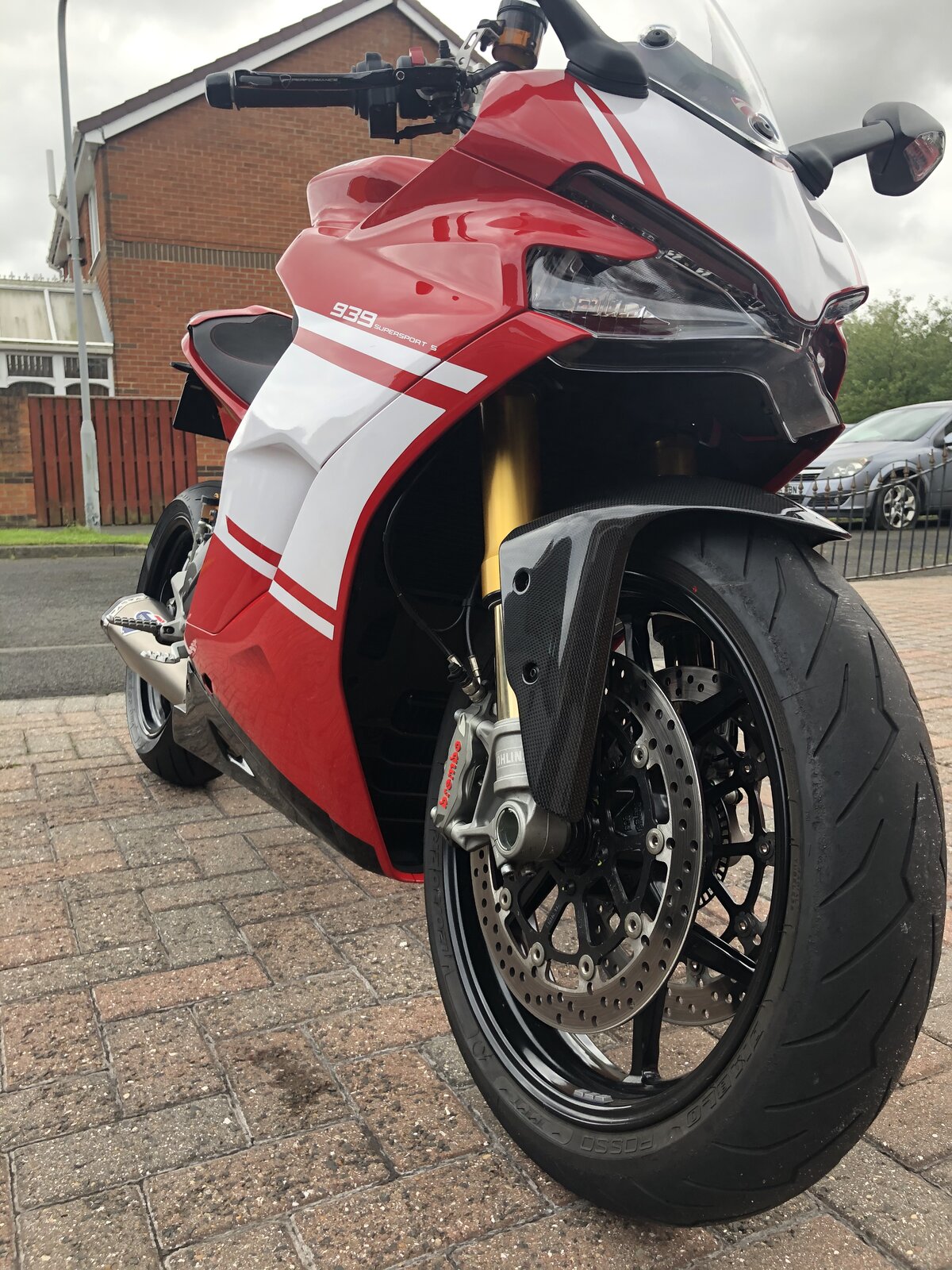

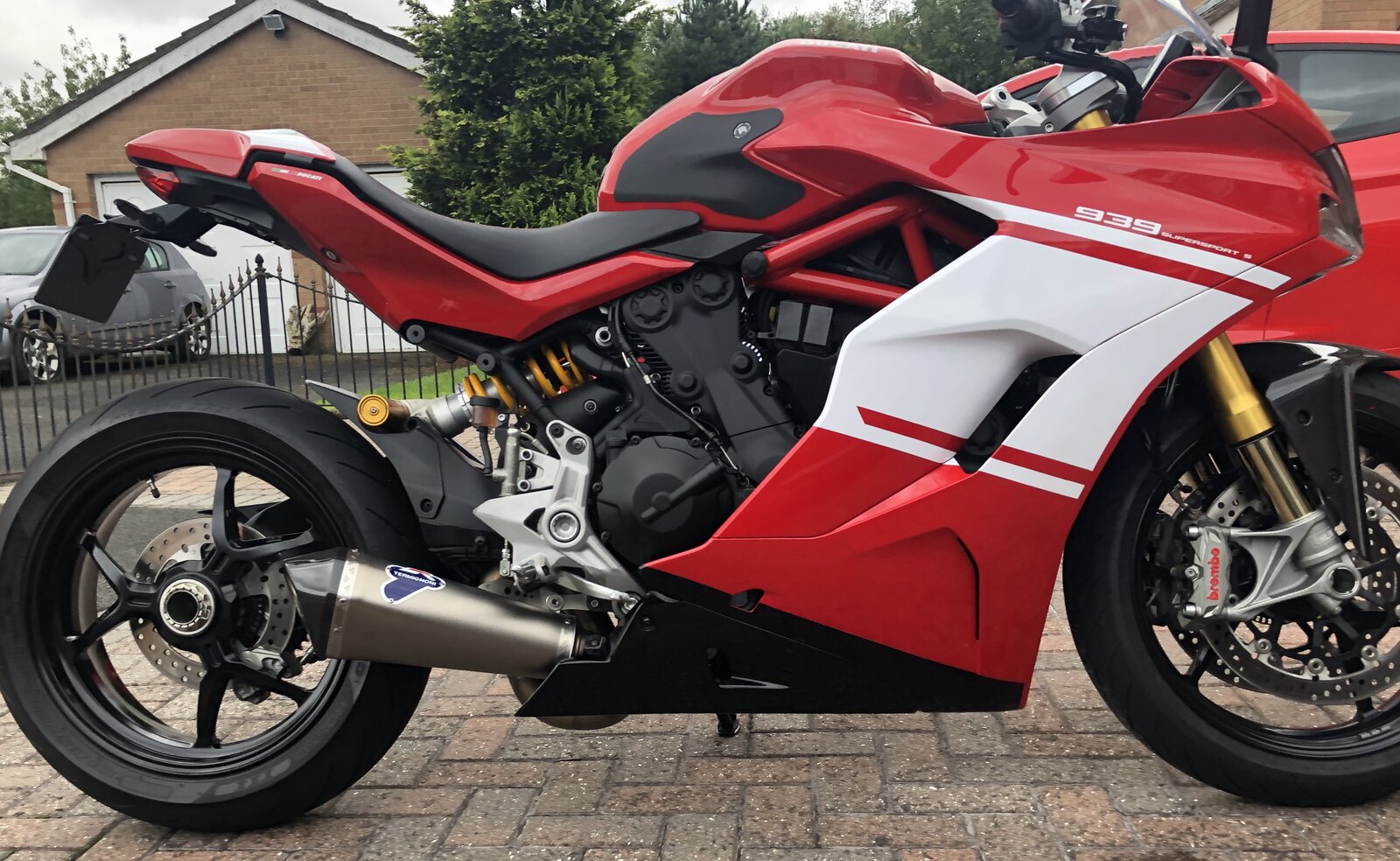

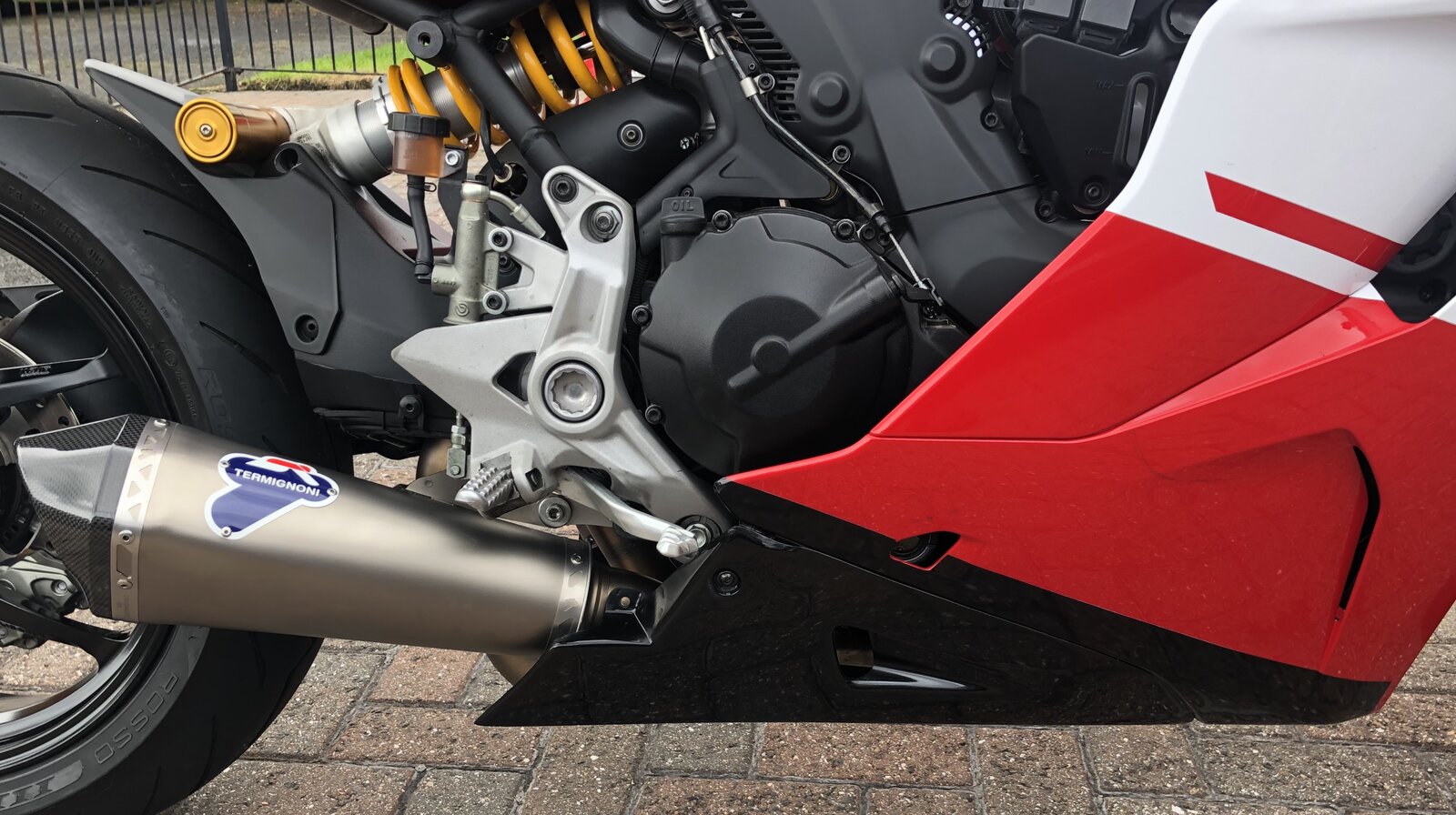

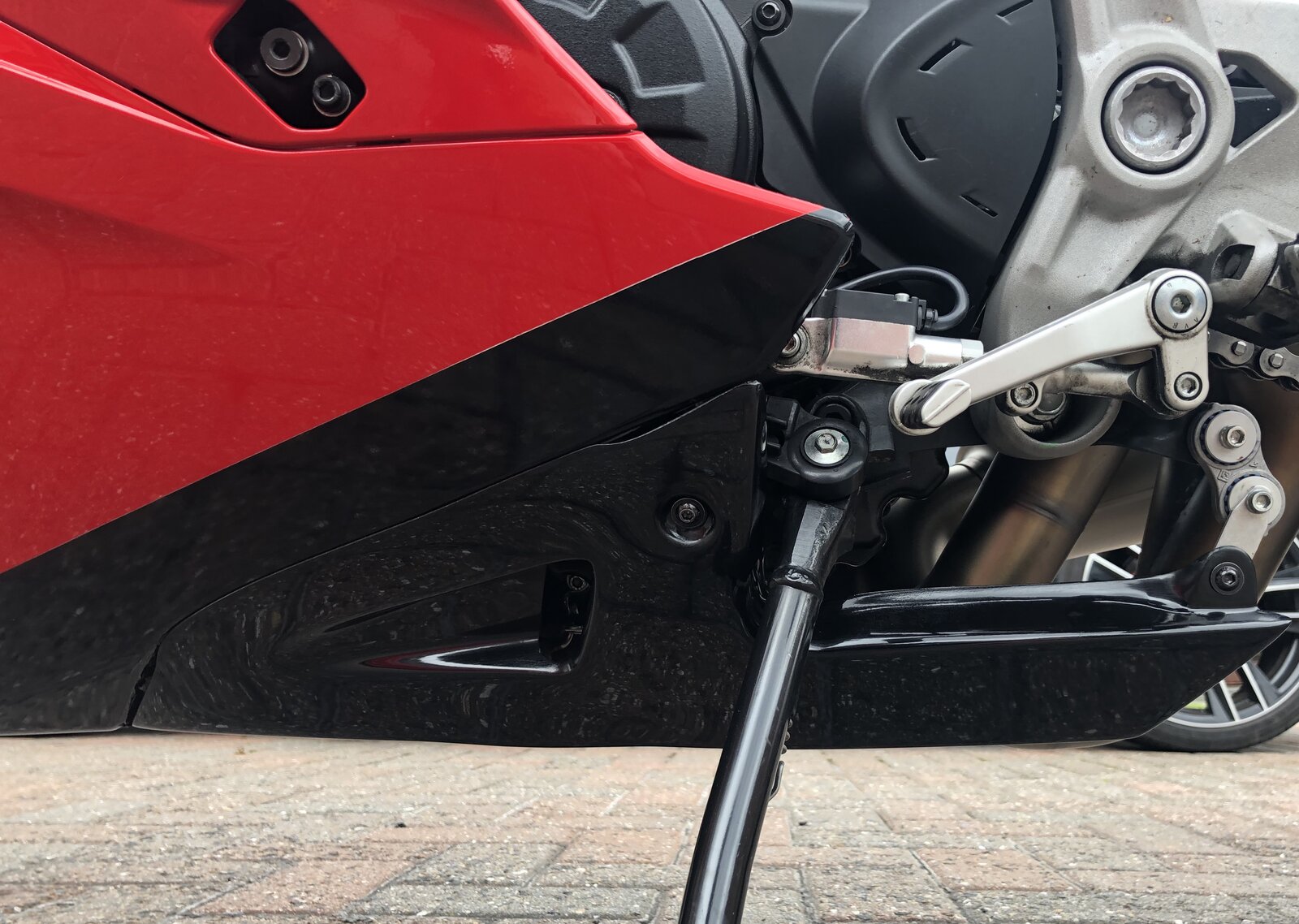

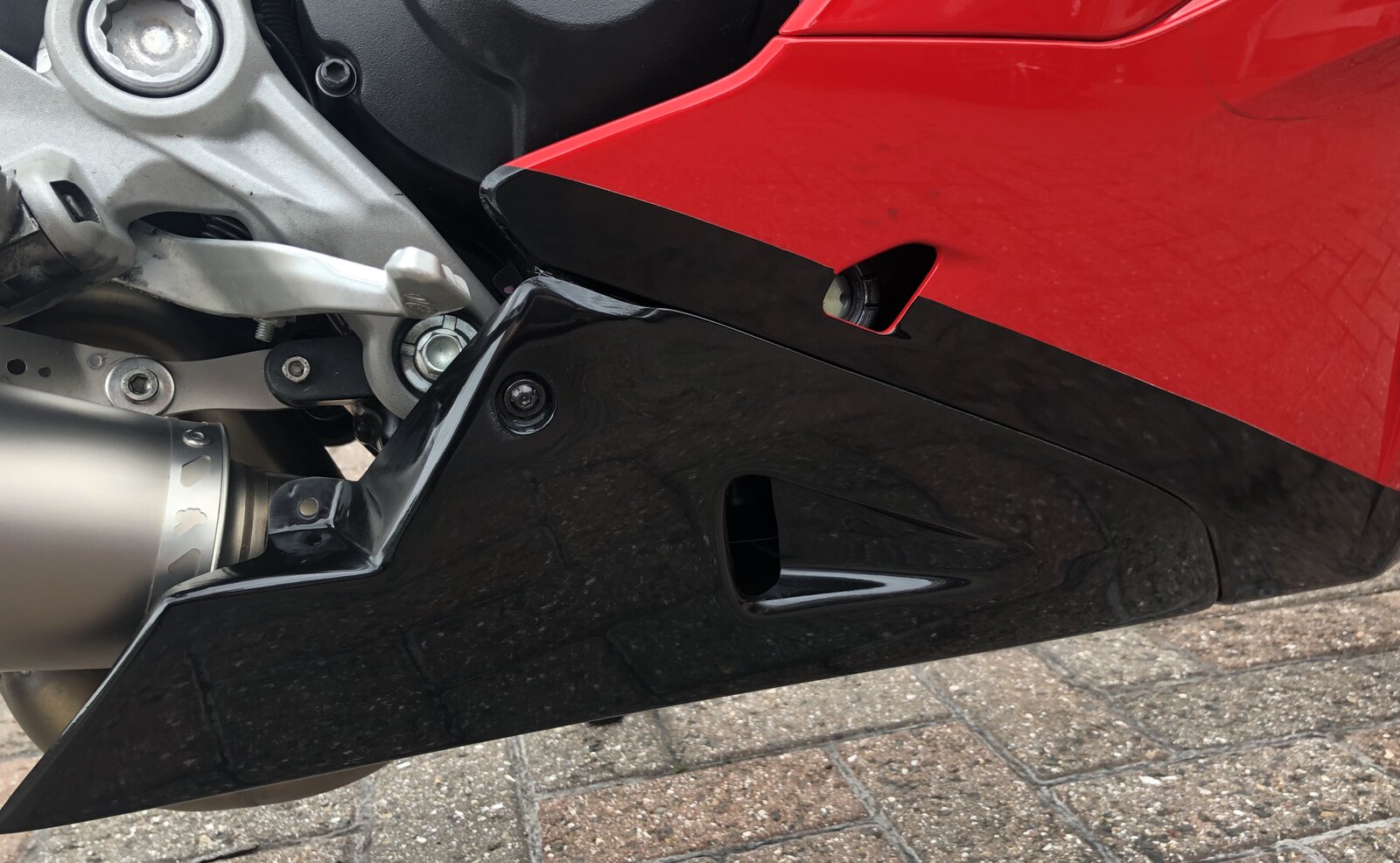

  14. Fitted mine last night and you can use the original hanger on the left side although a black bracket would look better.
    Need to make a bracket for the exhaust side but it’s quite solid without it.
    I didn’t even paint it, just flatted it with scotchbrite pads then used cutting compound , t cut then polis.
    It’s not perfect but with being low down looks good.


    67E59377-5753-41D3-B910-9B24FC01B4FF.jpeg 0E6280A3-7A78-446B-9C30-B20DC5B35506.jpeg A2658C71-A3EB-4525-9AF3-F07EE0DFFC2E.jpeg 66F9965C-76BA-47FA-A929-1A0128879B90.jpeg 01B97957-89D9-4778-9067-10F649D74742.jpeg

    #14 iang27, Aug 26, 2020
    • Like Like x 2
  15.
    #15 Axl-41, Aug 29, 2020
  16. Drain pipe didn’t affect fitting, I left things as they were originally.

    #16 iang27, Aug 29, 2020
  17. Cool, makes things easier.
    Decals look great on against the red, nicely done

    #17 Axl-41, Aug 30, 2020
  18. Guys, I ordered this belly-pan from Artur at the Italo-shop and its utterly crap. The corner has arrived broken off and with chips down the side. And in general the mould clearly wasn't clean when they made the piece because there are lumps out of the fibreglass all over the place. Do not recommend. Going to be hours of work to fix it and I'm not sure I can fix the chip from the corner. I did order the unpainted one but I expected it to arrive in such a condition that it could be painted.

    #18 danieljg, Apr 15, 2021
  19. Mine was from the same place and it’s ok, would be perfect if painted but I was happy enough just polishing it as it’s low down.

    #19 iang27, Apr 16, 2021
