Belt Tension (again?)

Discussion in 'Supersport (1974-2007)' started by Bison, Mar 30, 2022.

Bison Thread Starter New Member

Joined:

Feb 3, 2019

Messages:

55

Likes Received:

12

Trophy Points:

148

Location:

Scotland

Ride:

Ducati 746. Morini 3 1/2. Gilera Saturno Bialbero. Moto Guzzi Le Mans 3

Hi Folks,
I have the gates app on my phone. What I can't find is where to "pluck" the timing belt to take the reading?. !997 600ss. Exact fit belts, 99HZ.
Cheers,
Alan.

#1 Bison, Mar 30, 2022
Jon Wright Well-Known Member
Subscriber

Joined:

Jul 24, 2015

Messages:

977

Likes Received:

503

Trophy Points:

363

Location:

Yorkshire

Ride:

1994 888 Strada
1993 900ss
Longest run when the related cylinder is on tdc on the compression stroke.

#2 Jon Wright, Mar 30, 2022
Like x 1

Agree x 1
Boggy Member
Subscriber

Joined:

Nov 19, 2016

Messages:

197

Likes Received:

103

Trophy Points:

233

Location:

Westbury Wiltshire

Ride:

2016 MTS DVT

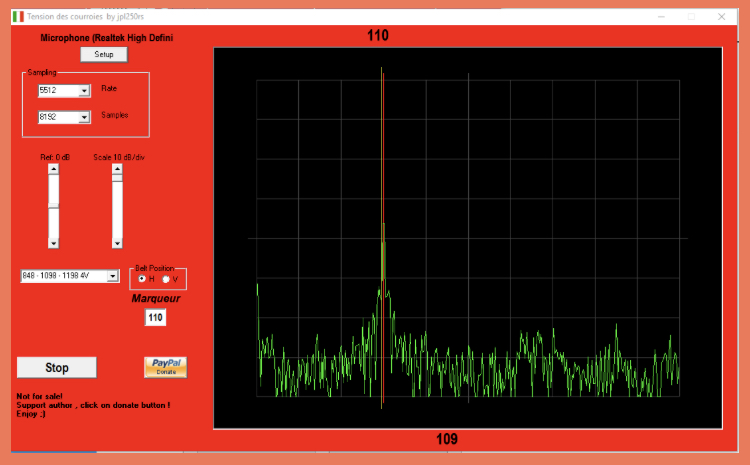

The Gates Carbon Drive app isn't bad but I prefer the belt tension feature of JPDiag using a USB microphone. Seems to provide more consistent results.

#3 Boggy, Mar 30, 2022
Agree x 1
Bison Thread Starter New Member

Joined:

Feb 3, 2019

Messages:

55

Likes Received:

12

Trophy Points:

148

Location:

Scotland

Ride:

Ducati 746. Morini 3 1/2. Gilera Saturno Bialbero. Moto Guzzi Le Mans 3
Thanks folks.

#4 Bison, Mar 30, 2022
Like x 1
