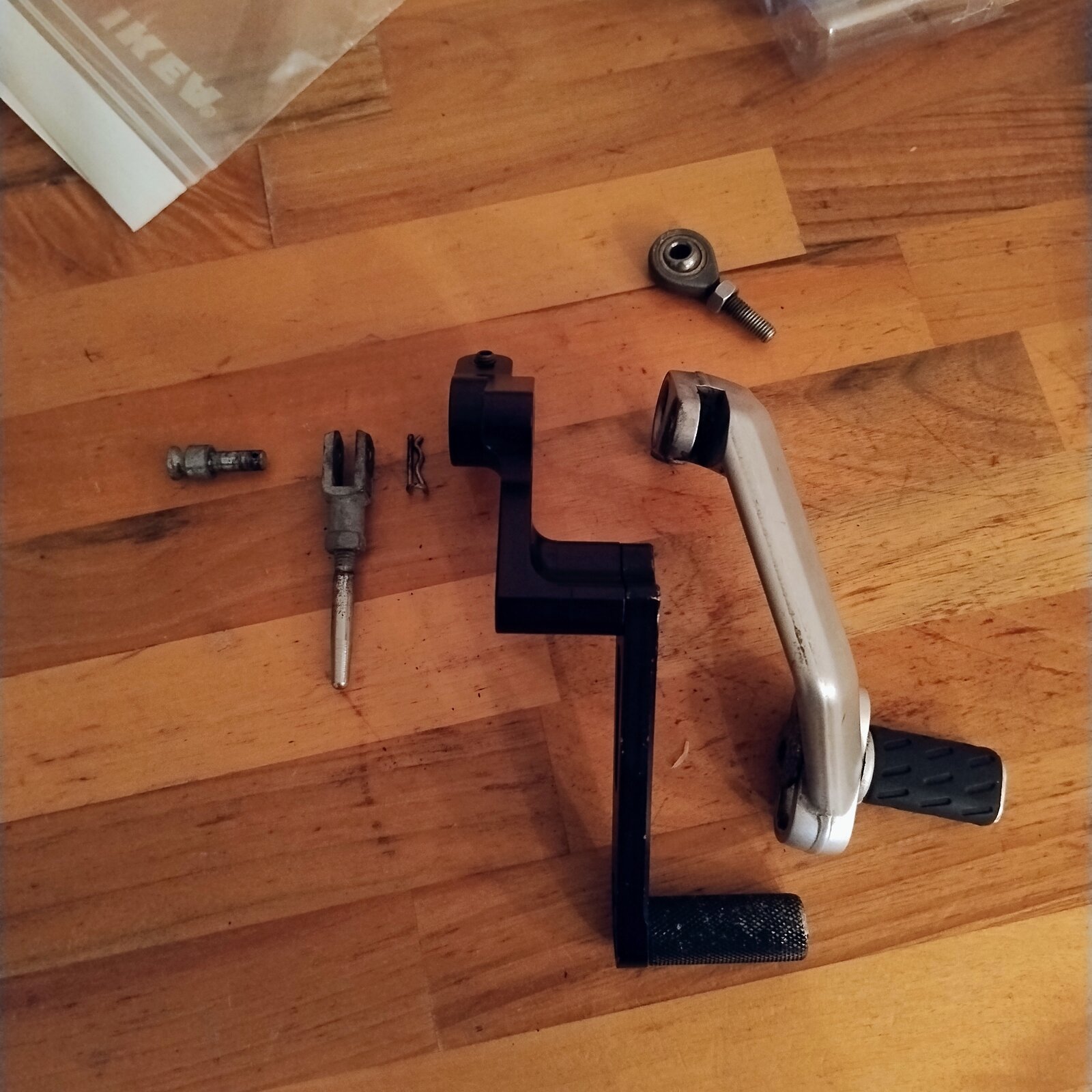

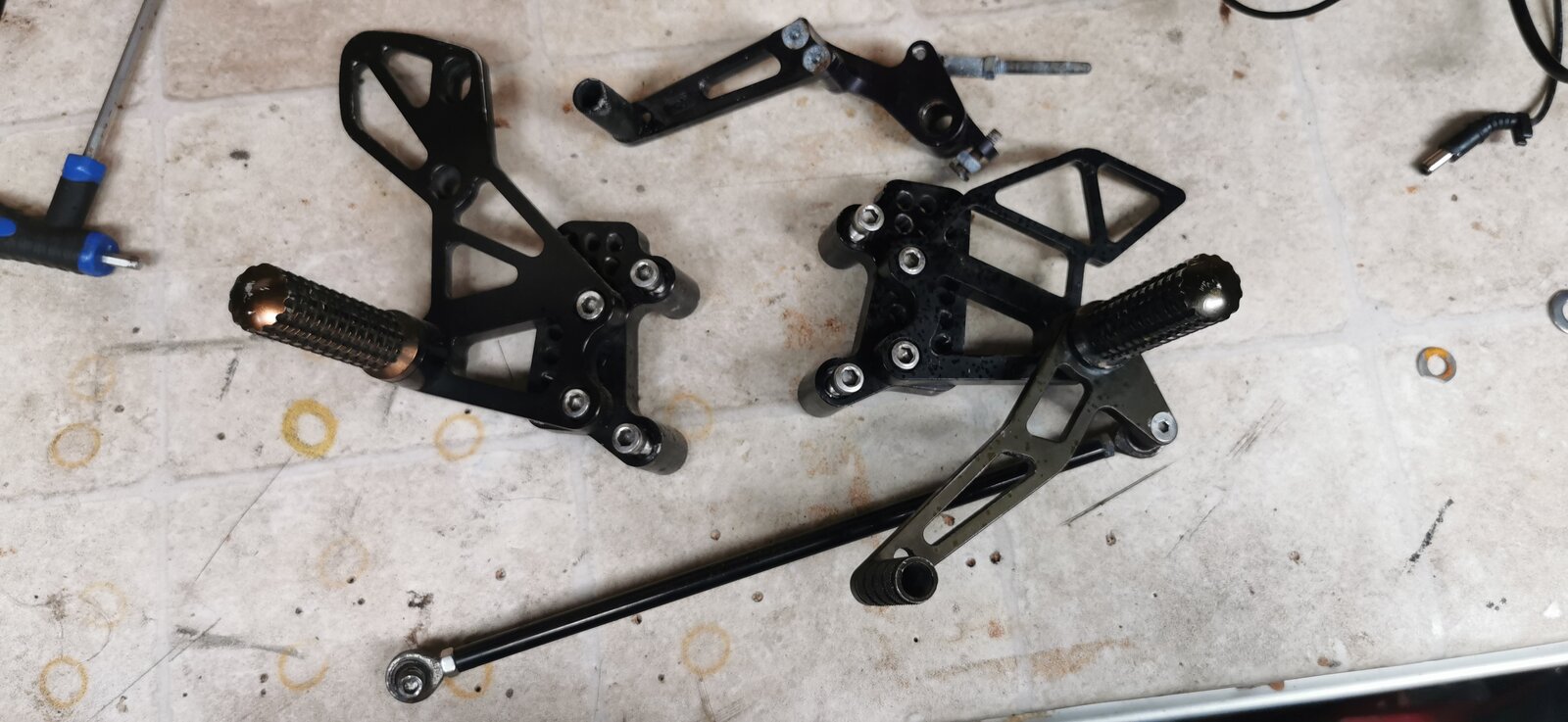

Trying to fit some Woodcraft CFM rearsets and need an alternative to the standard pronged rod/pin that attaches at the end of the rod/pin to the brake pedal Similar if not identical to the one in the attached pic

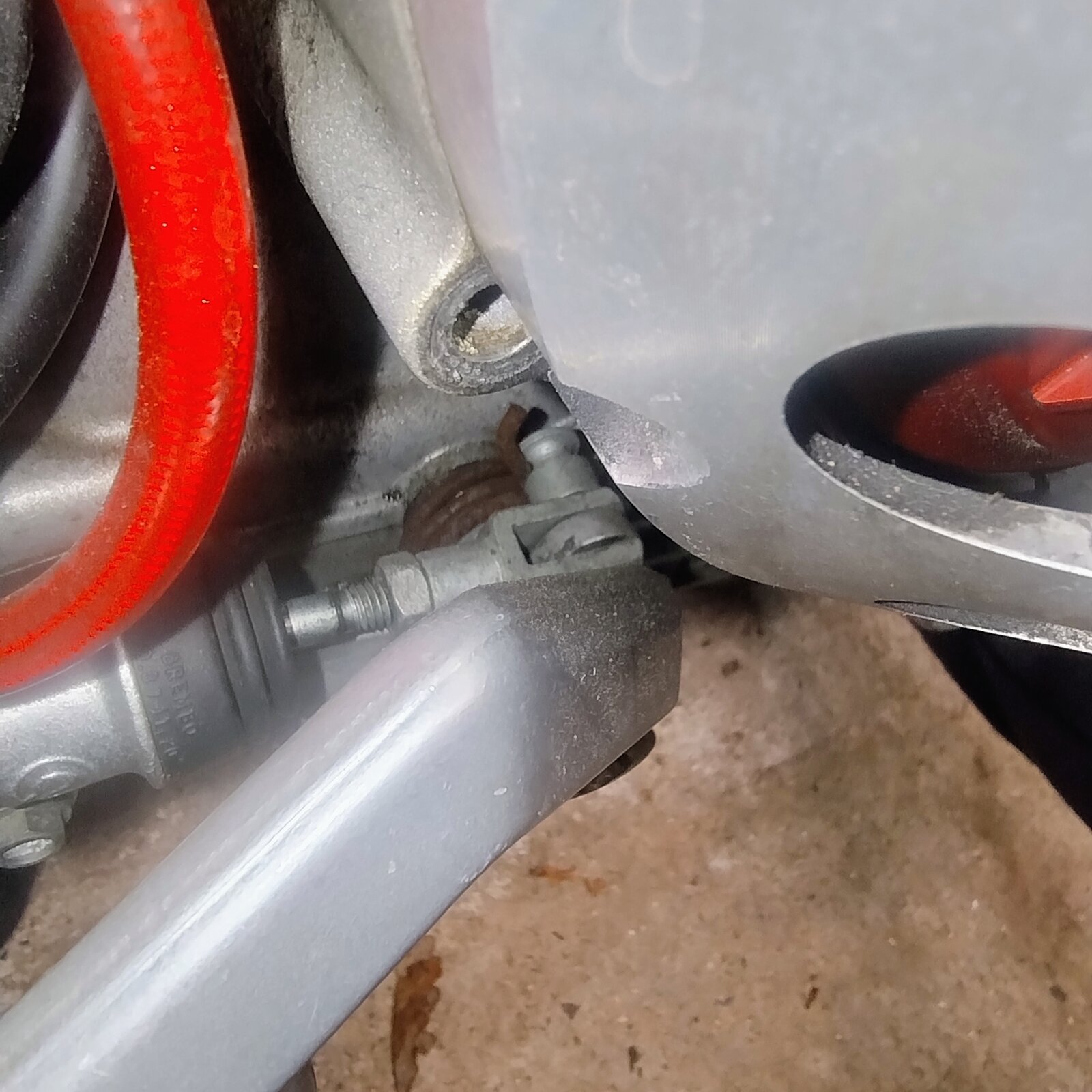

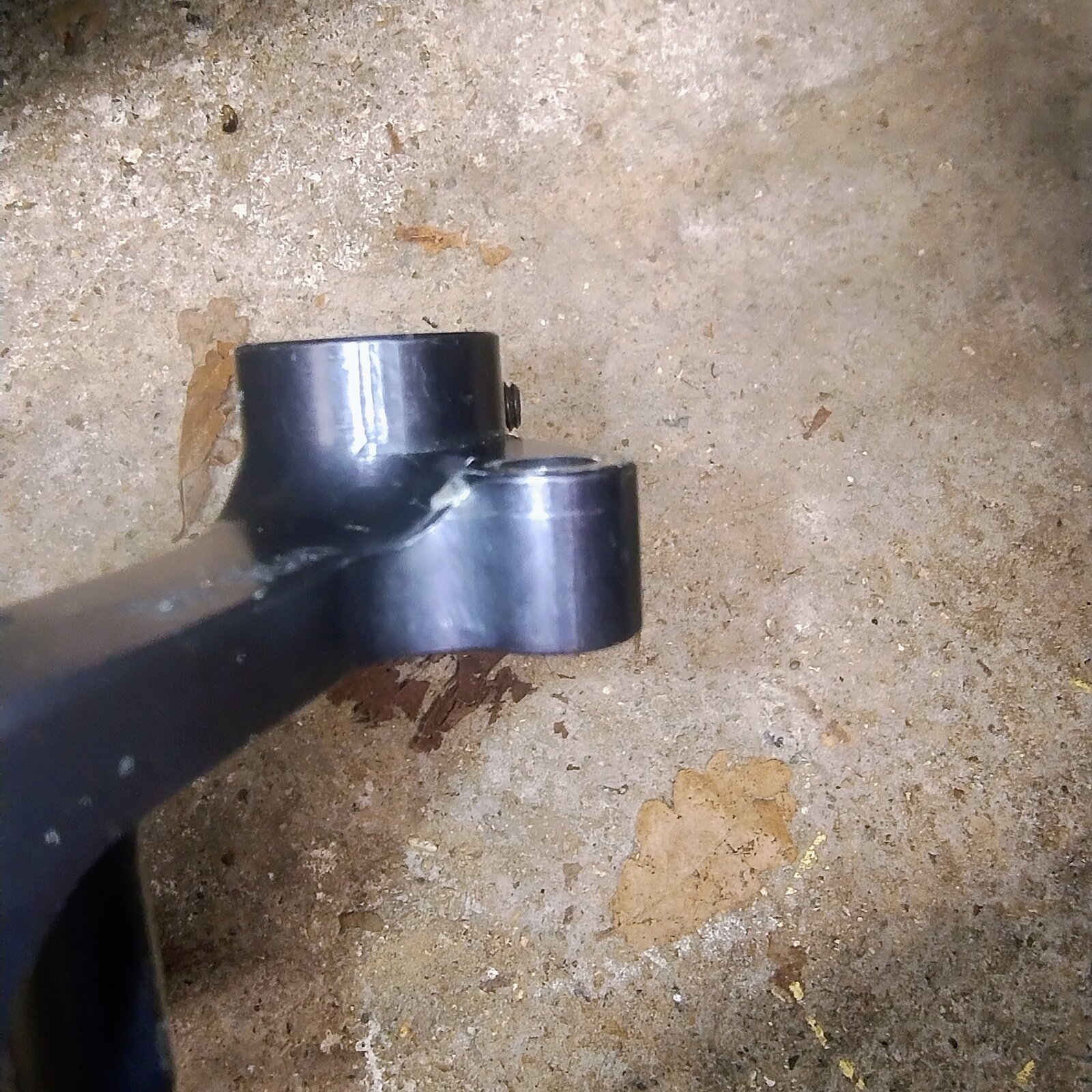

nope. thats now sorted as that was for the gear change pedal rod my other issue relates to the rear brake master cylinder push rod as above the brake pedal does not accept a conventional clevis. instead, it needs a thingy as per what is attached to said pedal on post #1 above i bought the rearsets from a chap on here and did ping him but no joy hence asking the DF massive
I can't make out what it is that you're looking for from that picture. Anyway. Can really make anything without a drawing.
As a complete guess, is this what you're looking for? https://www.ebay.co.uk/itm/28341443...amhx4rcrvk&var=&widget_ver=artemis&media=COPY
Do you actually use the rear brake? Why not just leave the stock brake lever on? Do you mean the pin that pushes into the master cylinder??
yep i can certainly leave the standard one on but i want the sexy one on the pin is fine its the widget that attaches the pin to the pedal that is not a standard clevis design which would have allowed a direct retrofit
now that would be a little bit annoying if the only thing i needed was yet another rose joint....im gonna investigate.

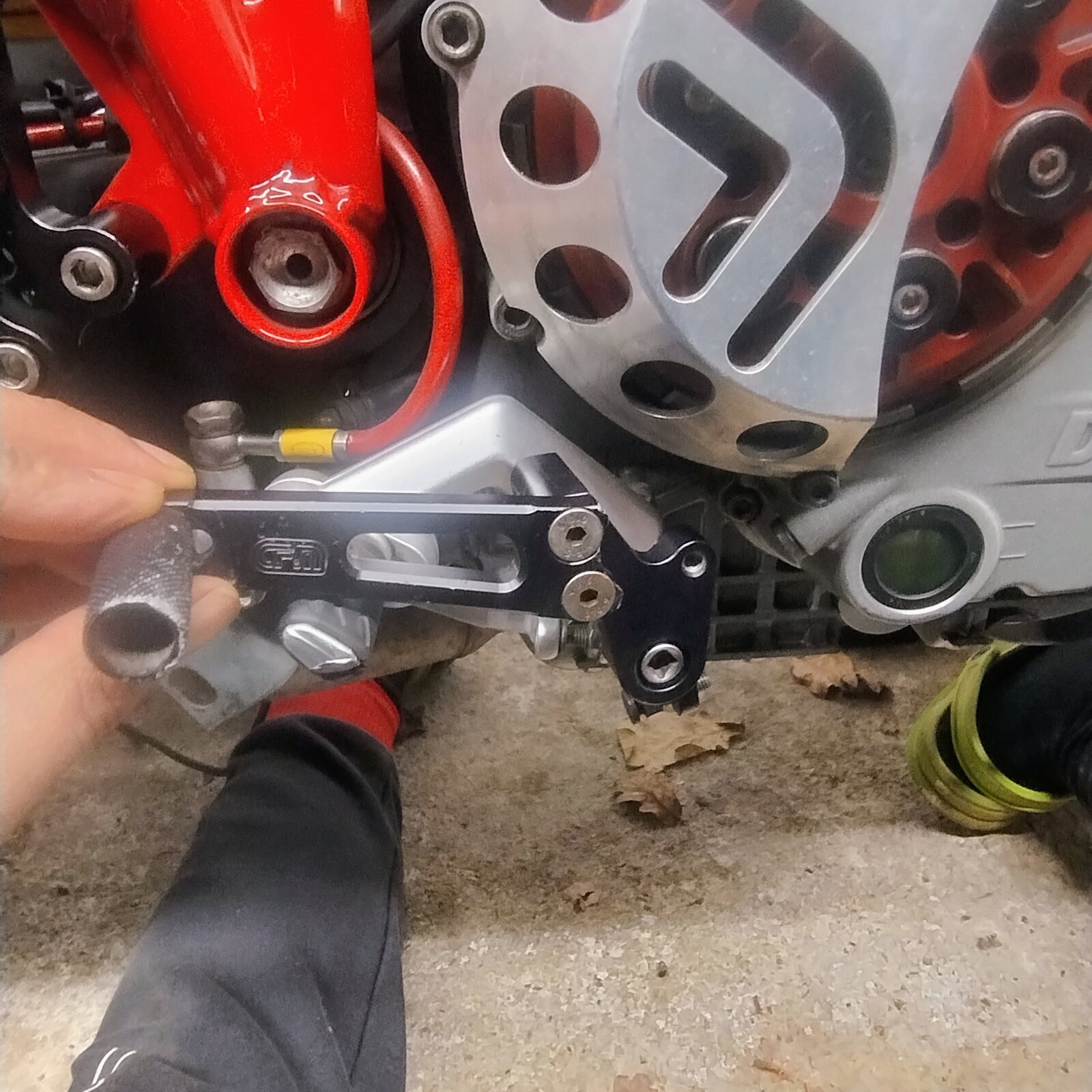

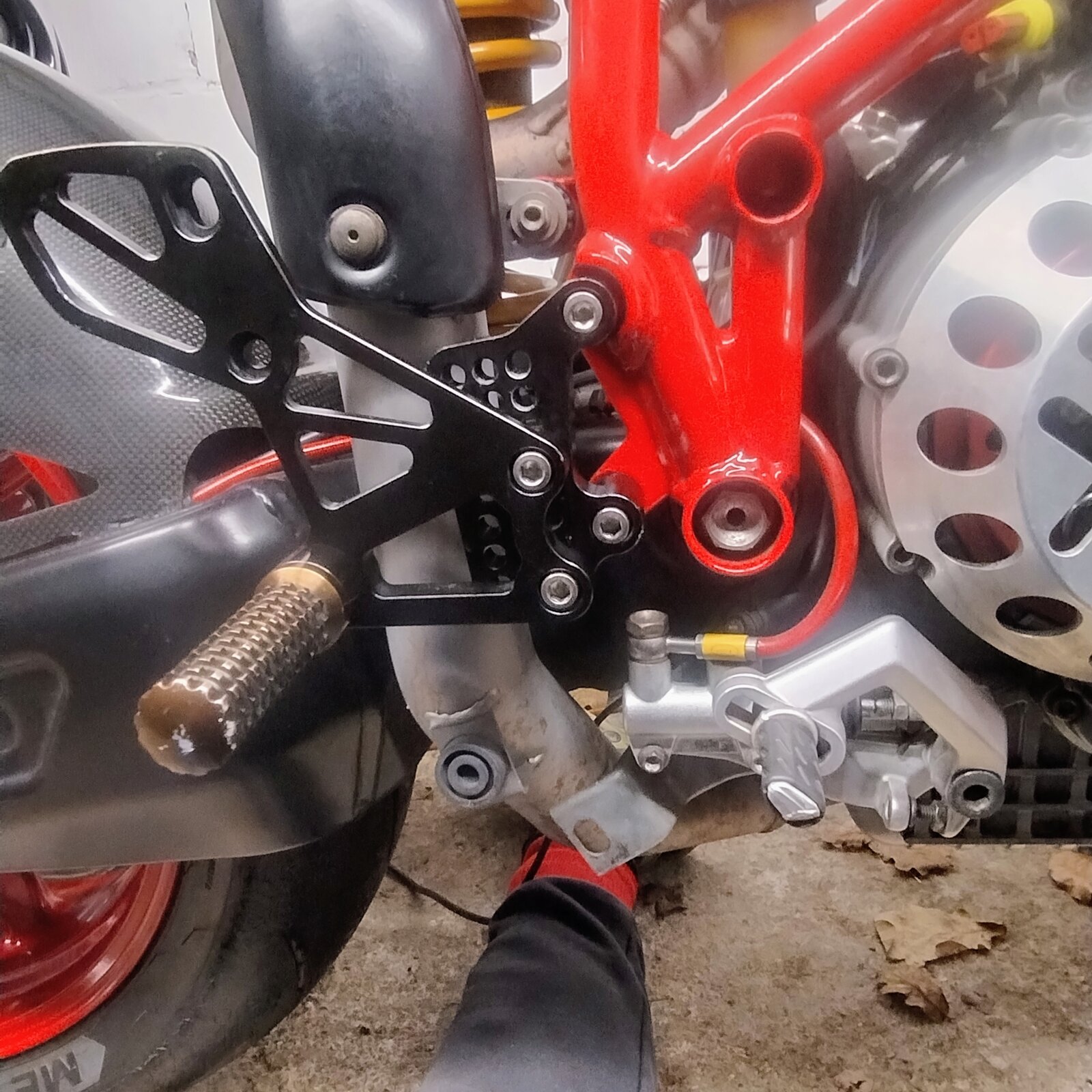

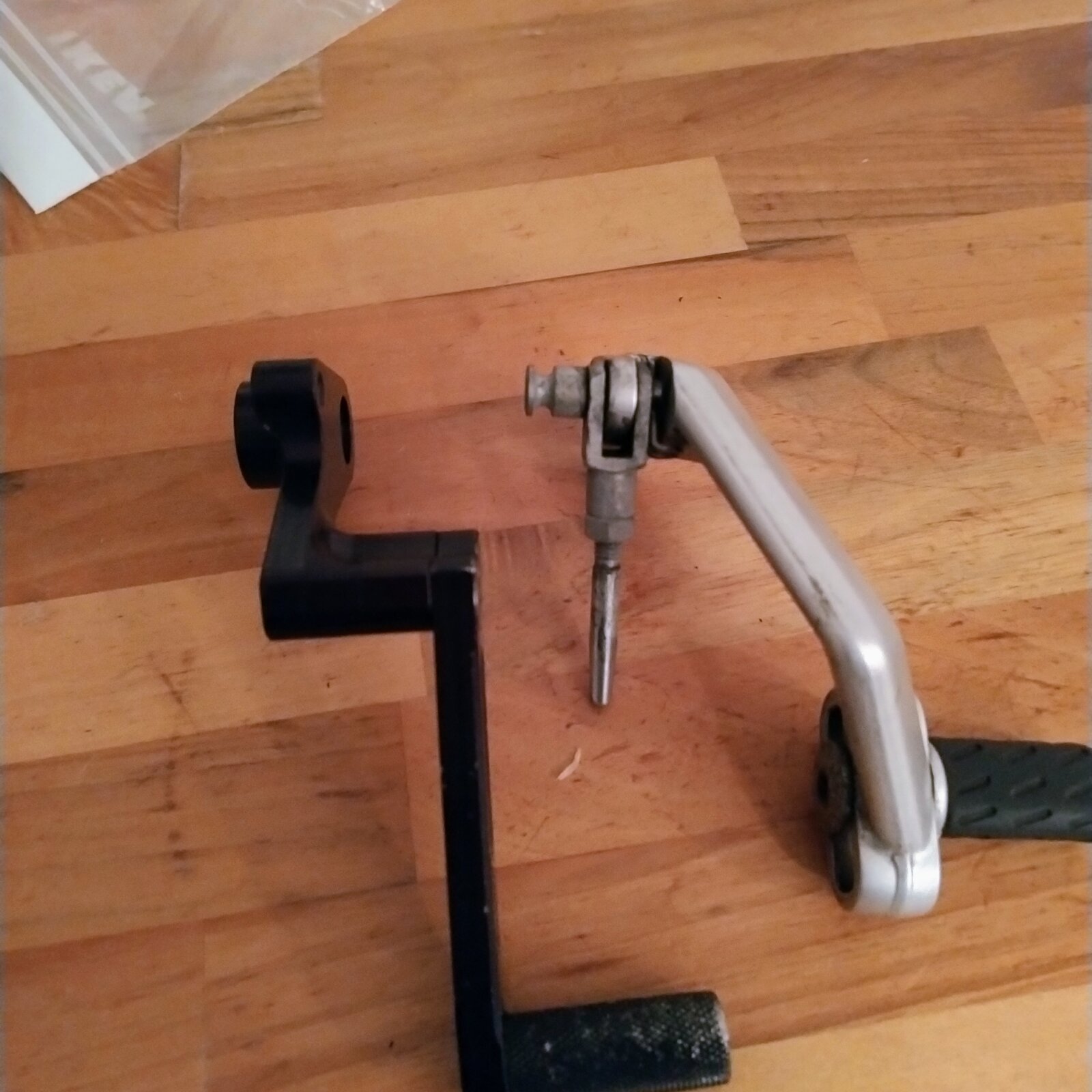

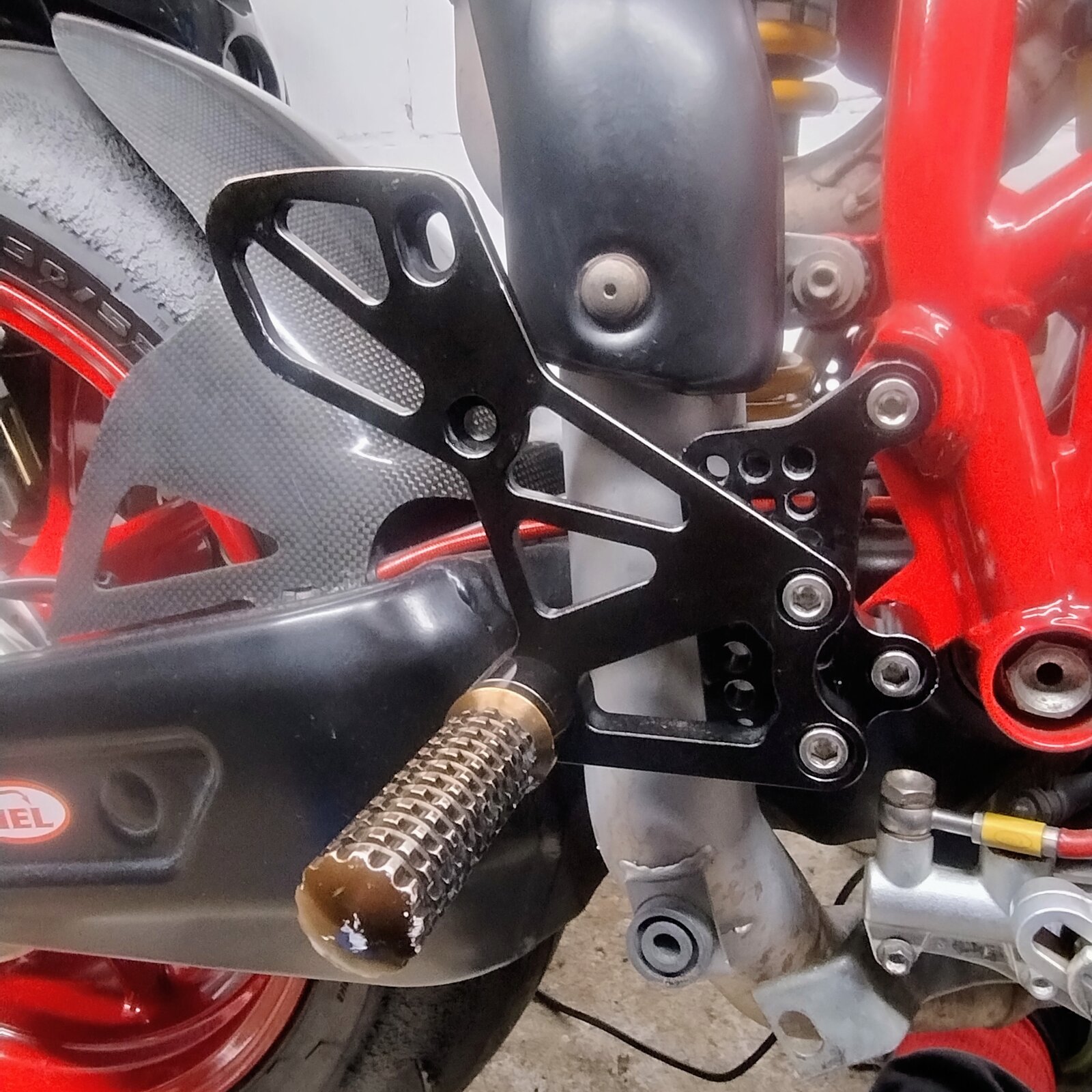

So i removed the standard pedal hoping that the widget that attaches to the pedal and the return spring would be a bolt but it's not and is held onto the pedal with a cotter pin I've contacted woodcraft and the guy i bought them from who used them on his 999 I'm getting annoyed
I'm still no nearer understanding what part it is that you are looking for. Is it a clevis joint or not? I suggested you need a clevis, you said not, now all I see is photo's of clevis joints.
Let me check my box of 999 track debris, msg me to remind me, I had after market levers on my track 999 and have put OEM stuff back on...
