Can Anyone Make One Of These?

Discussion in 'Technical Help' started by funkatronic, Sep 11, 2018.

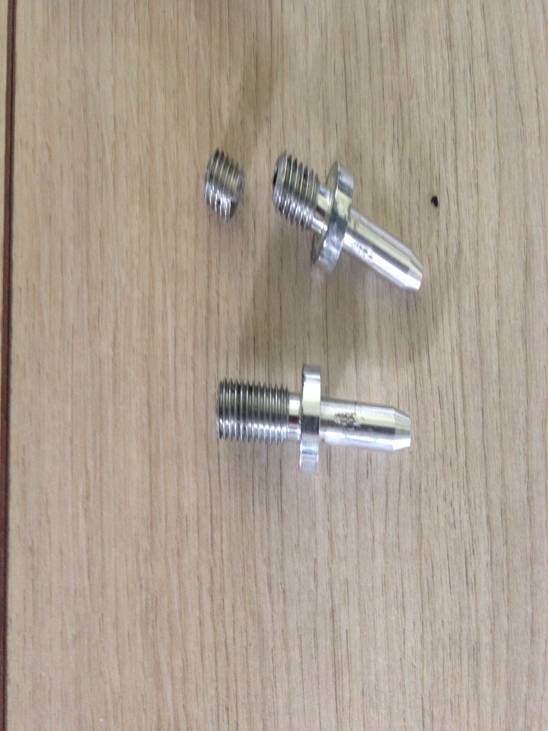

  1. I have been trying to get a replacement one of these special screws a set of monster clip ons from Rizoma for ever but none seems to want to know.

    Anyone know anyone with access to a lathe make one if i send the dimensions?
    NB: in addition to what you see in the pic the threaded end is also drilled and tapped to accept a bolt

    thanks


    #1 funkatronic, Sep 11, 2018
  2. If you dont get any joy on this forum have a look at some of the model engineering forums. There are a load of retired toolmakers etc with fantastic skills that will do tiny jobs that nobody else wants to. Its not easy to tap into the right person but it is possible with patience.

    #2 Desmoboy, Sep 11, 2018
    • Useful Useful x 2
    • Like Like x 1
  3. I can but cant get to a lathe for a couple of weeks

    #3 deleteduser211220, Sep 11, 2018
    • Like Like x 1
  4. What is it. How important is the accuracy of the angle and dimensions. What threads are neaded?

    #4 OMG, Sep 11, 2018
    • Like Like x 1
  5. Ali,
    If you don't mind waiting, you can post the good one to me to copy, if you want, or pm me the drawing.

    #5 deleteduser211220, Sep 12, 2018
    • Like Like x 1
  6. Thanks for the replies gents

    yes please FE that would be amazing

    will send you a PM

    #6 funkatronic, Sep 12, 2018

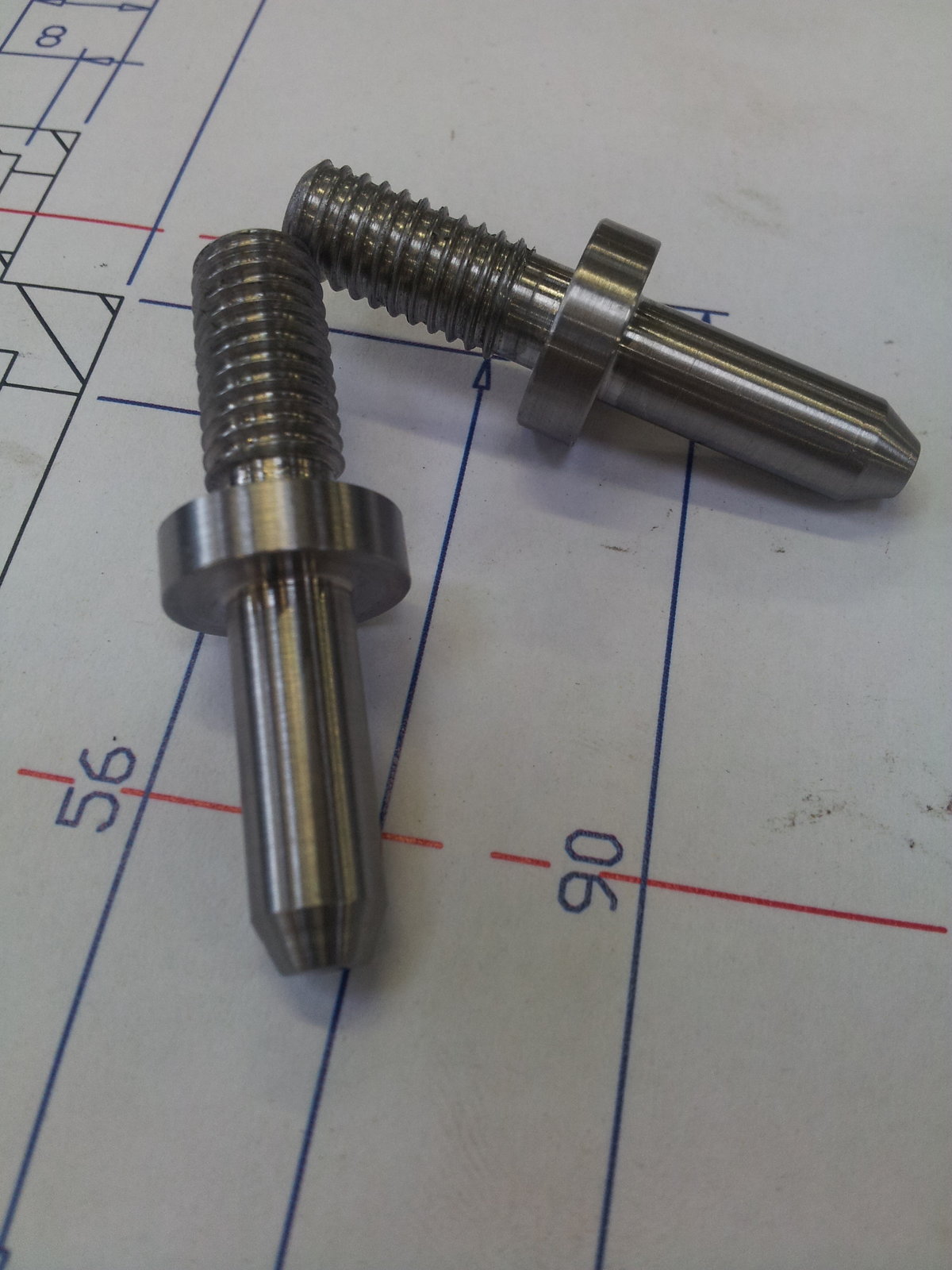

  7. 20181004_113300.jpg

    #7 deleteduser211220, Oct 4, 2018
    • Like Like x 6
    • Love You Love You x 1
