checking chain tension (monster evo 2011)?

Discussion in 'Monster' started by chucklepie, Oct 22, 2013.

  1. Hello,

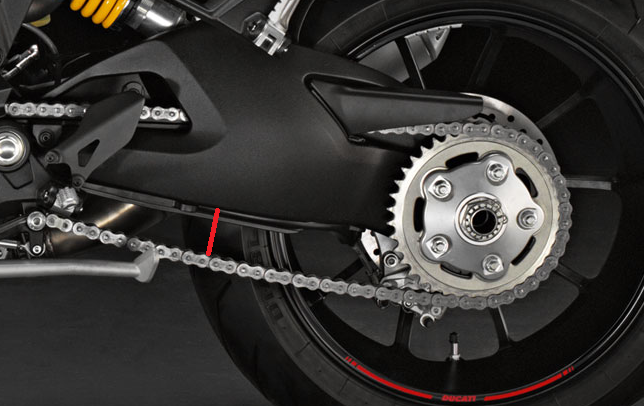

    Bit confused on checking the chain tension. The book says to pull then release the chain at the tightest centre point (so I assume this is just to release any tension) then measure the gap between the swing arm and chain. I assume this is as the red line in the picture.


    It says this should be about 61mm. When I do this on mine the chain hardly moves at all and the gap is about 30mm. I asked a garage and he said the chain was fine.

    Am I doing something wrong? and why do you measure it this way, all other bikes I've had you measure the amount of slack/movement of the chain.
