Clutch Basket Torque Setting

Discussion in 'Supersport (1974-2007)' started by gurth, Apr 6, 2025 at 6:00 PM.

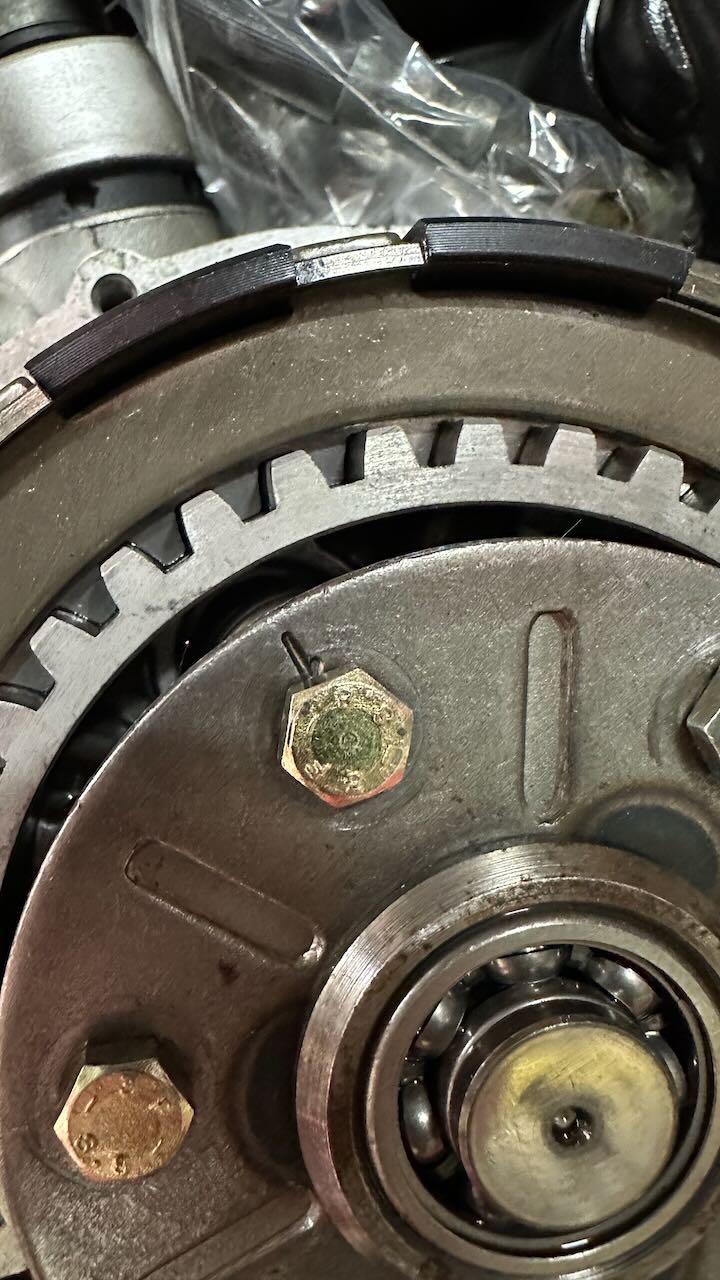

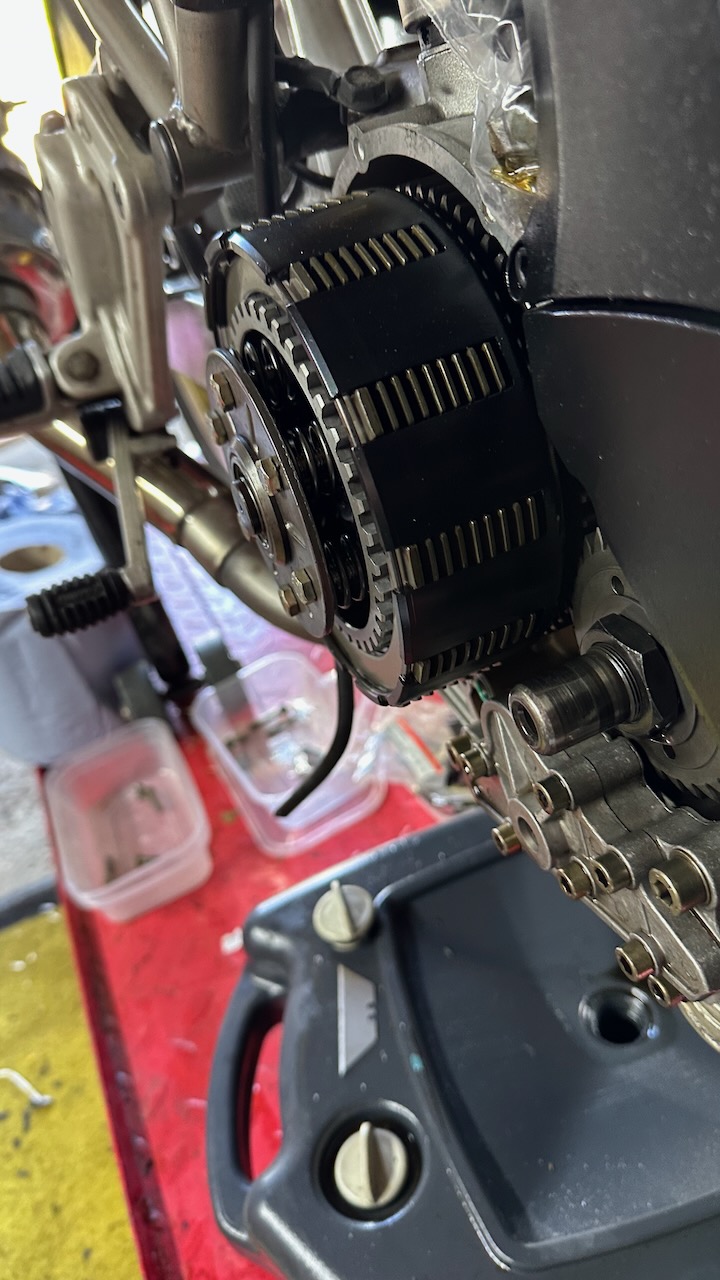

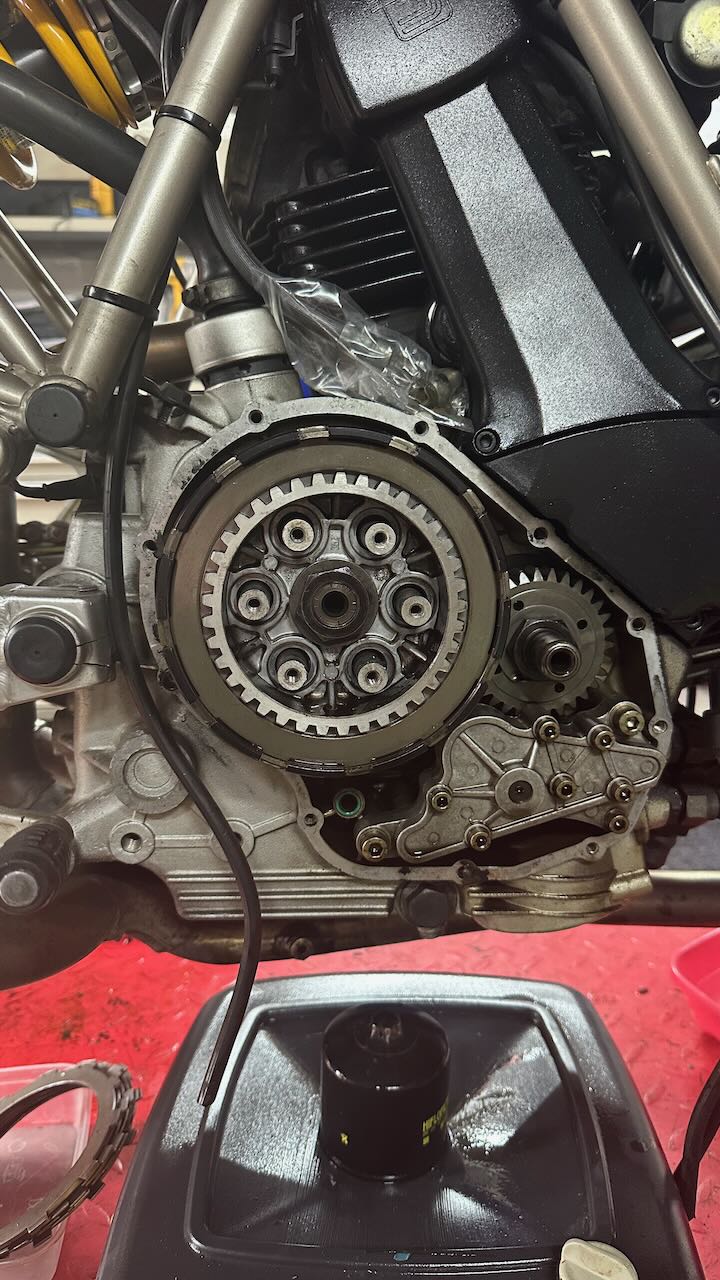

  1. I snapped three bolts, thinking I was torquing them up.

    I'm super annoyed with myself. What is the torque setting for these? I had my wrench set at 32Nm.

    [​IMG]
    [​IMG]
    [​IMG]

    • WTF WTF x 1

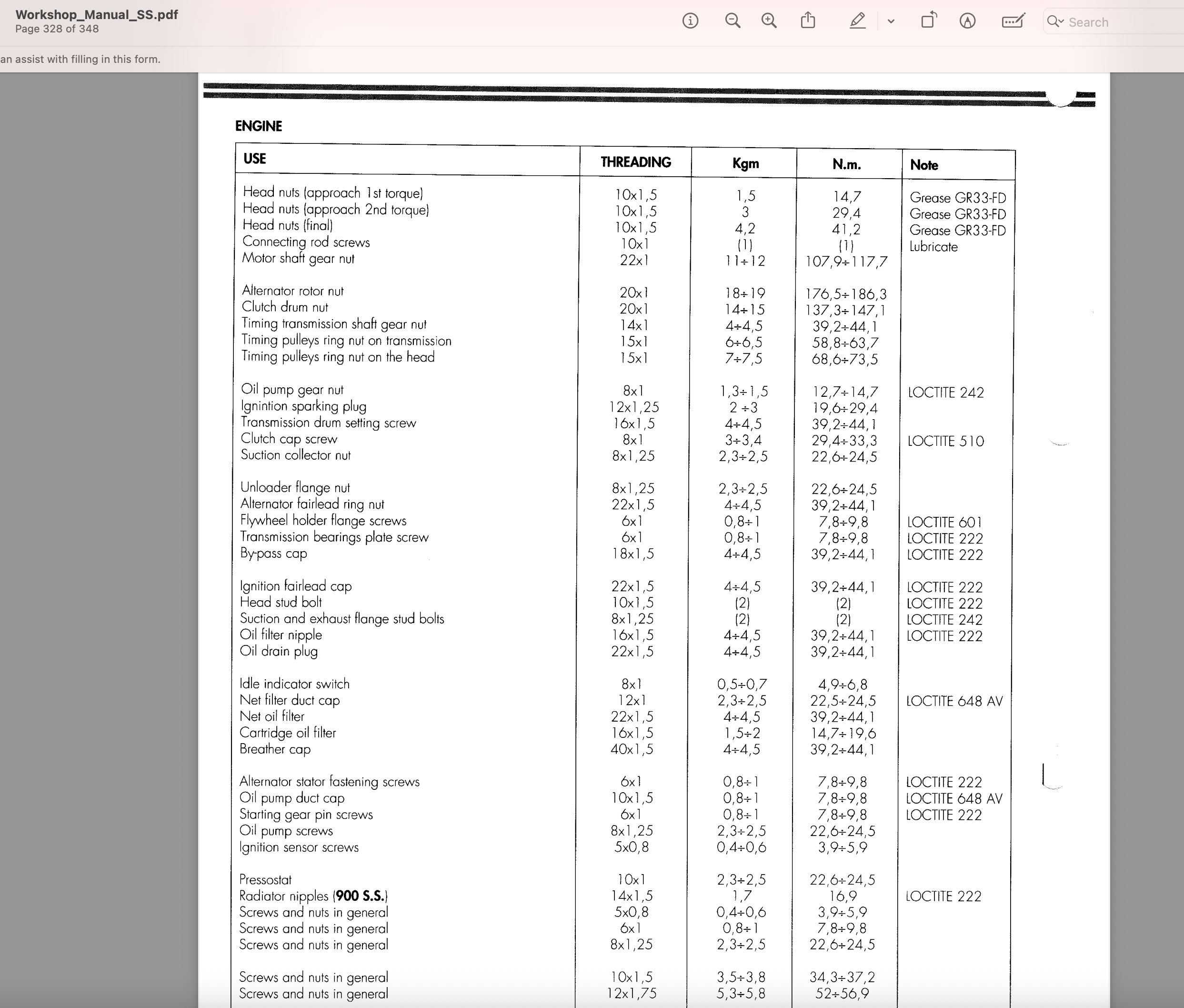

  2. I think I got the wrong torque setting out of the Haynes manual.

  3. I have no experience with wet clutches however the equivalent fasteners on a dry clutch would be just ‘nipped up’.
    The basket attachment fasteners would be around 35Nm.

    • Agree Agree x 1
  4. On a KTM its 7ftlbs. Hand tight effectively.

    • Like Like x 1
  5. Yes, that sounds like the bolts for the basket itself, I remember thats 34ish. The spring bolts on the dry clutch are only 7 or 8 nm, these will likely be similar.

  6. They look like M6? Probably no more than 10 nm.

    • Like Like x 1
    • Funny Funny x 1
  7. I think you did, gurth. Didn’t you think it was a tad high after the first one snapped?

    • Agree Agree x 1
  8. I thought it was the torque wench clicking. It’s only after I finished and stood back did a head drop off.

  9. Eeeek… o_O

    • Agree Agree x 1
  10. What an embarrassing and costly mistake.
