996 Dyno Figures

Discussion in '748 / 916 / 996 / 998' started by dmc12, Jun 7, 2022.

  1. I was wondering if anyone knows what kind of dyno figures a 916/996 puts out, and whether a full 50mm termi system makes any difference?

    How significant is the bump to the 996S or SPS engine? Do they benefit any more from a full system and tune?

    Thanks!

    #1 dmc12, Jun 7, 2022
  2. 110=115 for a 996 +/- and 125-130 for an S/ SPS +/-
    only my experience and others may have found more etc
    my 996s responded well to a power commander and with the 50mm system made 128 at the back wheel.

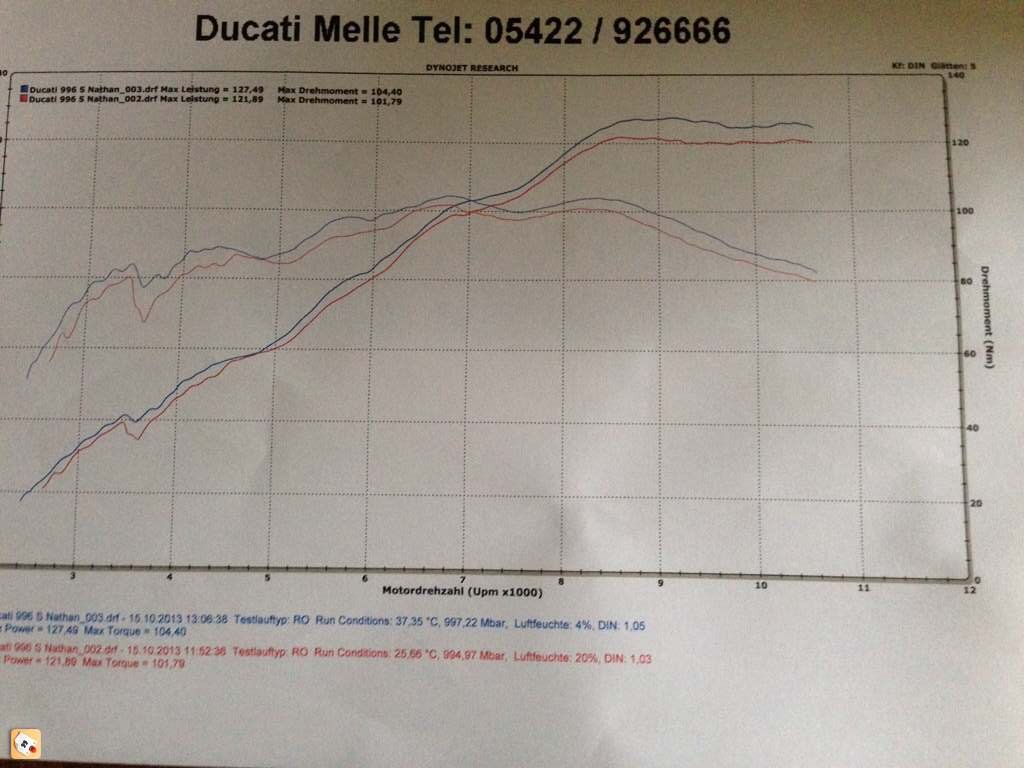

    Edit to include a copy of an old Dyno printout

    996s dyno chart.jpg

    #2 Nathanhu, Jun 8, 2022
    Last edited: Jun 8, 2022
    • Like Like x 2
    • Agree Agree x 1
  3. Top info - thank you. 128 is cracking - sweet!

    #3 dmc12, Jun 8, 2022
  4. my sps made 134.8

    #4 cookster, Jun 8, 2022
    • Like Like x 3
  5. nice :upyeah:

    #5 Nathanhu, Jun 8, 2022
    • Like Like x 2
  6. 916Bip with 50mm made 114. Been montied by Snells.

    #6 bootsam, Jun 8, 2022
    • Like Like x 1
  7. #7 DucRider, Jun 8, 2022
    • Like Like x 1
  8. Sounds about right to me.

    916 should make around 105, mine made 118 after CJS worked his magic.

    #8 Dukedesmo, Jun 8, 2022
    • Like Like x 1
  9. My 996 SPS hit about 150 after some engine work, but on advice from ducati Wolverhampton I reduced the compression as they suspected the squish had been reduced too much. Was still very torquey after though, have the graphs somewhere

    #9 Ivor, Jun 10, 2022
    • Like Like x 2
  10. I think ( but I'd need to check to be sure) cjs did the work on my 996, see post above re squish levels

    #10 Ivor, Jun 10, 2022
  11. Take it to Setons dyno and you’ll be good for 300bhp at the front wheel :upyeah:

    #11 Advikaz, Jun 10, 2022
    • Funny Funny x 6
