I have an 09 1098 showing error code immobiliser 37.5 Anybody know what that particular one is. Had to leave it at work cos my spare key and code card is at home 50 miles away so couldn't do anything to try and sort it. The aerial is still in place. Cheers Higgy
Error messages Codes COIL 10.1 Horizontal cylinder coil error COIL 10.2 Horizontal cylinder coil error COIL 11.1 Vertical cylinder coil error COIL 11.2 Vertical cylinder coil error INJE 12.1 Horizontal cylinder injector error INJE 12.2 Horizontal cylinder injector error INJE 13.1 Vertical cylinder injector error INJE 13.2 Vertical cylinder injector error PUMP 16.0 Fuel pump relay error FAN 18.1 Fan relay error FAN 18.2 Fan relay error STRT 19.1 Starter contactor error STRT 19.2 Starter contactor error STEP. 21.1 Stepper motor error STEP. 21.2 Stepper motor error STEP. 21.3 Stepper motor error LAMB. 22.1 Lambda heater error LAMB. 22.2 Lambda heater error EXVL 23.1 Exhaust valve motor error EXVL 23.2 Exhaust valve motor error EXVL 23.3 Exhaust valve motor error EXVL 23.4 Exhaust valve motor error EXVL 23.5 Exhaust valve motor error TPS 1.1 Throttle position sensor error TPS 1.2 Throttle position sensor error PRESS 2.1 Pressure sensor error PRESS 2.2 Pressure sensor error T.WAT 3.1 Engine coolant temperature sensor error T.WAT 3.2 Engine coolant temperature sensor error AIR 4.1 Air temperature sensor error AIR 4.2 Air temperature sensor error BATT 5.1 Battery voltage error BATT 5.2 Battery voltage error LAMB 6.1 Lambda sensor error TILT 6.2 Lambda 2 sensor error DTC 8.0 Traction control unit error (the error can only occur if the bike has been fitted with the traction control kit available from Ducati performance) ECU 30.0 Engine ECU error PK.UP 34.0 Pick-up sensor error SPEE. 36.0 Speed sensor error IMMO 37.0 Immobilizer error IMMO 37.1 Immobilizer error IMMO 37.3 Immobilizer error IMMO 37.4 Immobilizer error IMMO 37.5 Immobilizer error CAN 38.0 CAN line error
I believe 37.5 is to do with the transponder or ariel. Is the ariel loose under a carbon key guard? Are you parked near a mobile mast? Sometimes hidden in petrol station signs.
Thanks for the replies. i have a standard plastic guard and the transponder is still in place. I have a Blackberry in a case which has a magnet in it and I may have put the key and the case together The reason I think this may be a problem is i have put car park tickets in my top pocket with my phone and it has wiped them. i realise the key isn't a magnetic strip but it may have affected it.
Hmmmm, After you've tried the other key, if you don't have any luck PM Chrisw on here, he's a wizard with all things key and immo related.

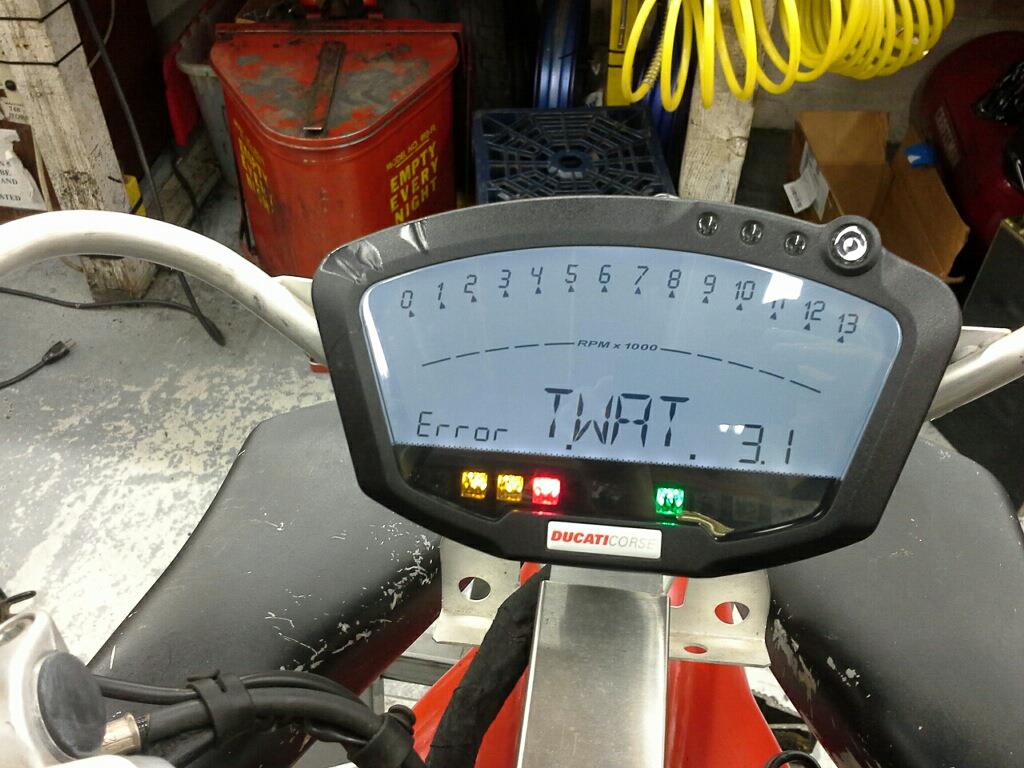

There have been instances of water getting under the antenna shroud and blocking the signal. I'm still waiting for someone to post that they have had one of the two the 'TWAT' error codes (T.WAT 31. and T.WAT 3.2)
I've seen a couple of failed antenae lately. Its a moulded plastic ring encasing the coil that reads/energises the chip in the key.Water has gotten in thru the moulding line and corroded the coil. It's an easy spot as you can the the green copper oxide around the flash line of the plastic.
Went to work this morning before I did anything put the normal key in NO FAULT!! started ok. 4 O'clock time to go home sun is shining and its warm get to the Humber bridge and it absolutely buckets down. Had to stop for fuel so used the pay at pump and left the engine running used the spare key to open the tank. rode the 30 miles home through driving rain. Got out of my sodden things and then tried the bike again back to the fault. I have found that if i lift the shroud up with the antenna still attached the fault goes. Looks like the antenna is faulty. Anybody know how much a new antenna is?
Thank you for the help and response. With a bit of luck something I have not had with the bikes lately it will just be the aerial and it will be sorted
What a nightmare... Bike won't start... error code is show error pump 16.0... According to the list of codes in this thread, its showing Fuel pump Relay Error... Will this be the case 100% or could it be a low battery..... where will I find the relay to check it? Any more ideas of what else could be causing this issue...
mine has just finally given up the ghost it would still work if it was looped round the key but as soon as i put it in the key protector and bolted everything up it wouldnt work
