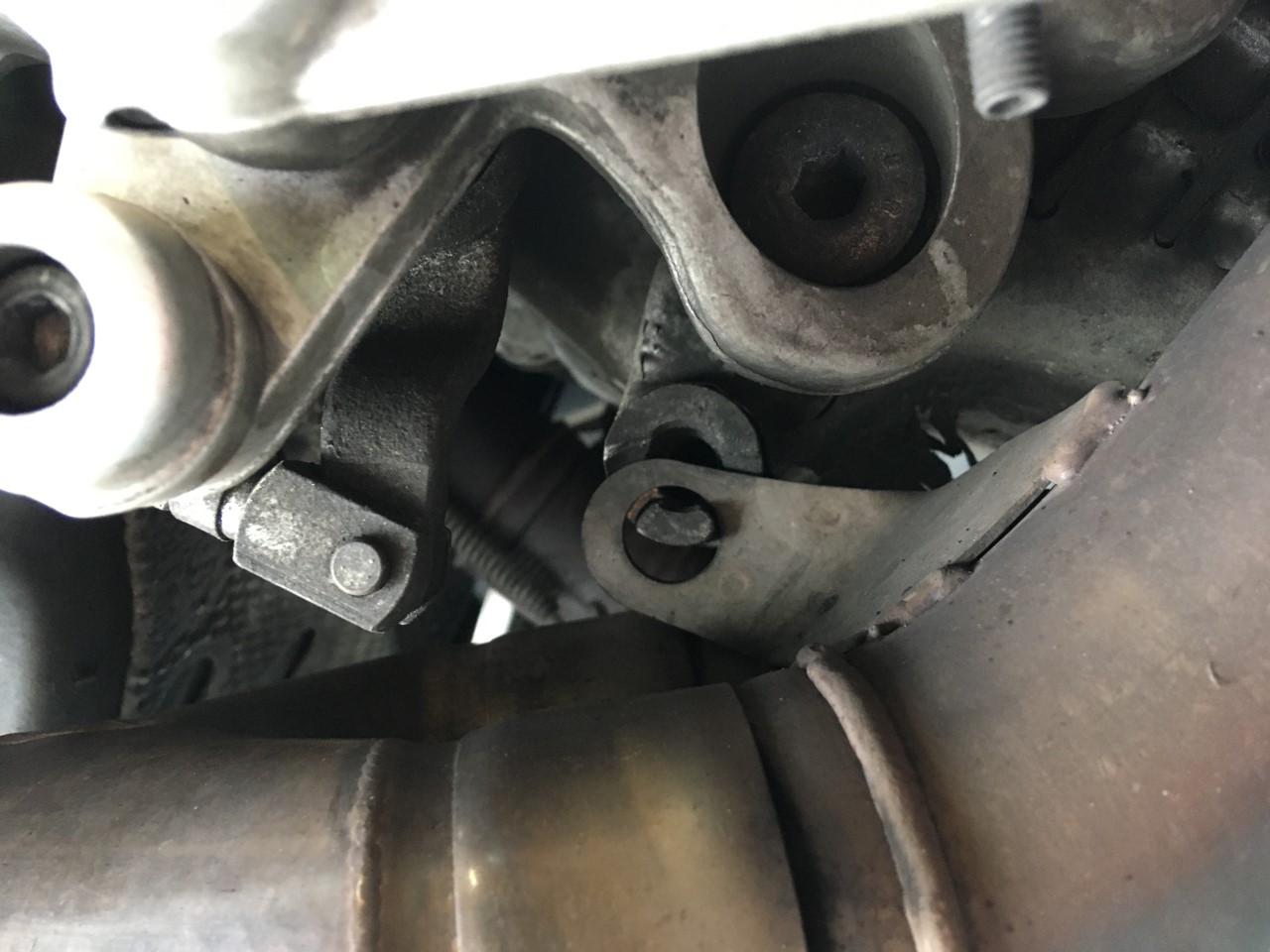

Afternoon all, Whilst having a sniff round the finer details of my 1000DS, I saw that the exhaust has got this rather dodgy looking sort of holder.........not much holding it but there appears to be a cut out...is this normal?
It looks like that and it may be correct, but there is a small bit of metal ground out to make it sit there..........is yours the same Siddo?
Usually there is anti vibration bobbin looks like a grommet with a washer on either side and the bolt goes through and into the engine
No, I have the 1200. Something looks to be missing though and I think Kato could be right. However, the hole behind the pipe looks to be split.
2 x 2 - 80A0.62649 2 x 3 - 764.1.024.1A 4 x 22 - 713.1.082.1A 1 x 25 - 779.1.247.1A 1 x 26 - 829.1.275.1A 1 x 27 - 734306N01 Hope that clears it up or you

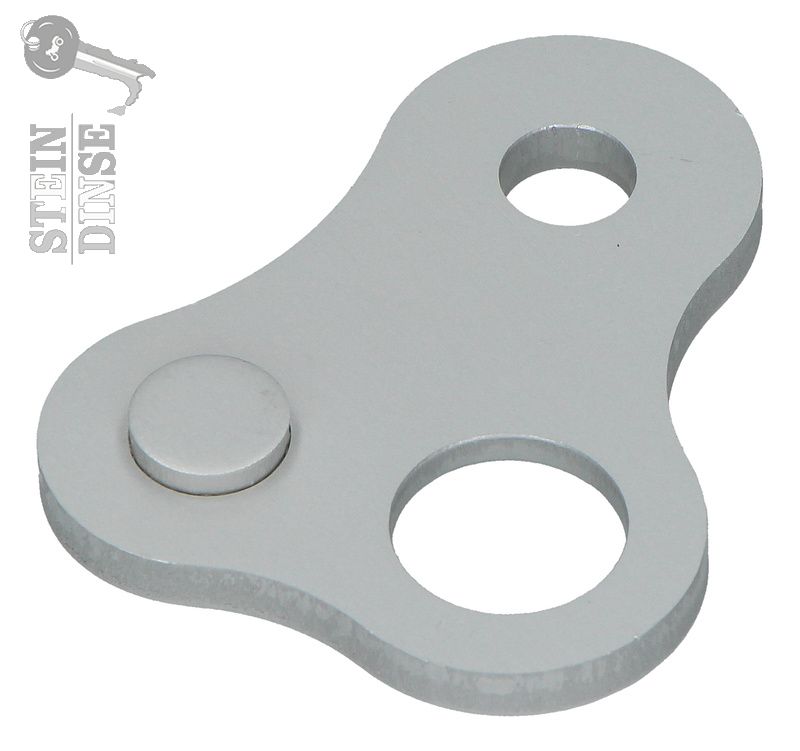

only just seen this.. I suspect someone has decided to remove centrestand and couldn't be bothered to obtain plate and washers/fixings/mount. If this is for a 2003 1000DS then the hole in the crankcase you see is not the location to mount the exhaust to, plus you'd need a very long bolt anyway. The correct (sidestand only) plate has a half-punched depression in it, so making a platform on reverse side, which locates in the crankcase hole in your pic, as below. Plate Part Number:- 83012952A
