Garmin Zumo 210 / 220

Discussion in 'Multistrada' started by vau, Jan 25, 2014.

  1. Hello,
    at first - excuse my terrible english. I hope you could understand what i mean.

    A lot of Multistrada Drivers have the problem : Were could i fix the Navi ?
    Here are two solutions for the Garmin 210 /220:
    1st soultion. left side of the handle bar :

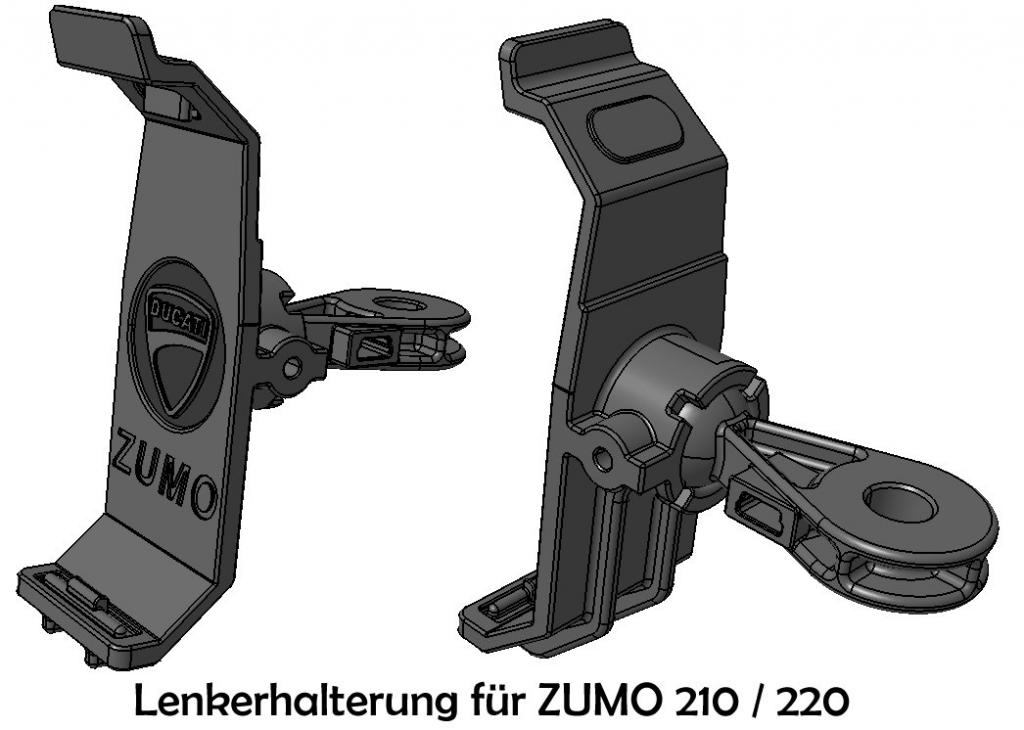

    Halterung Zumo Ducati_2.jpg

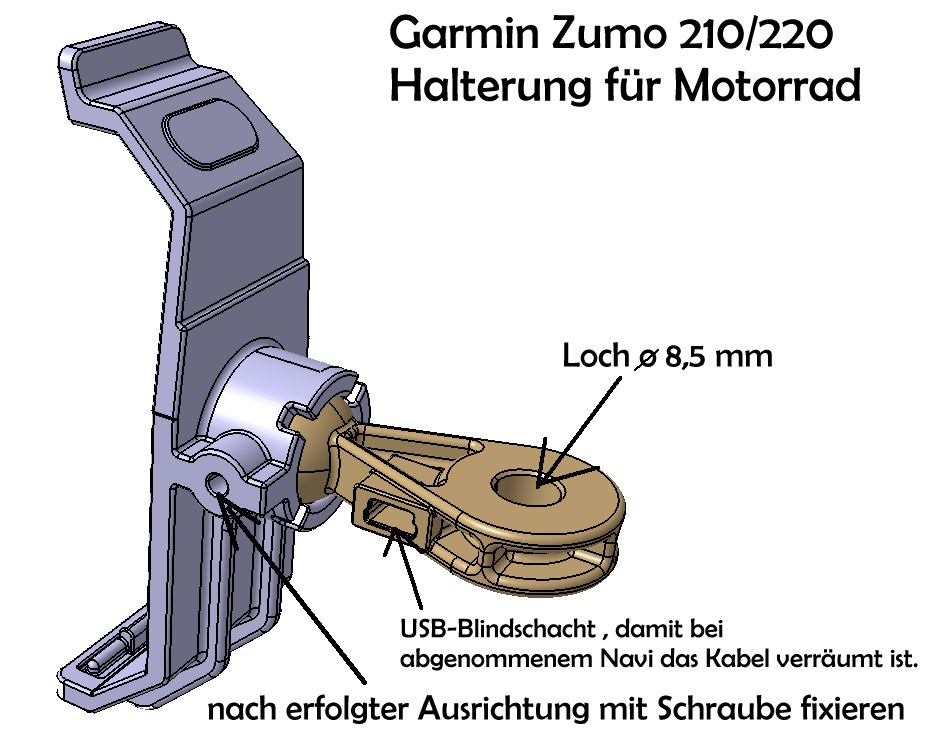

    Halterung Zumo.jpg

    Lenkerhalterung für Garmin Zumo 210 / 220
    Aufnahme für Navi Zumo 210 - Ducati by Varadero on Shapeways
    Louis - Motorcycle & Leisure - Europe's number 1 for motorcycle clothing, helmets and accessories.

    2nd solution, in the middle of the handle bar :

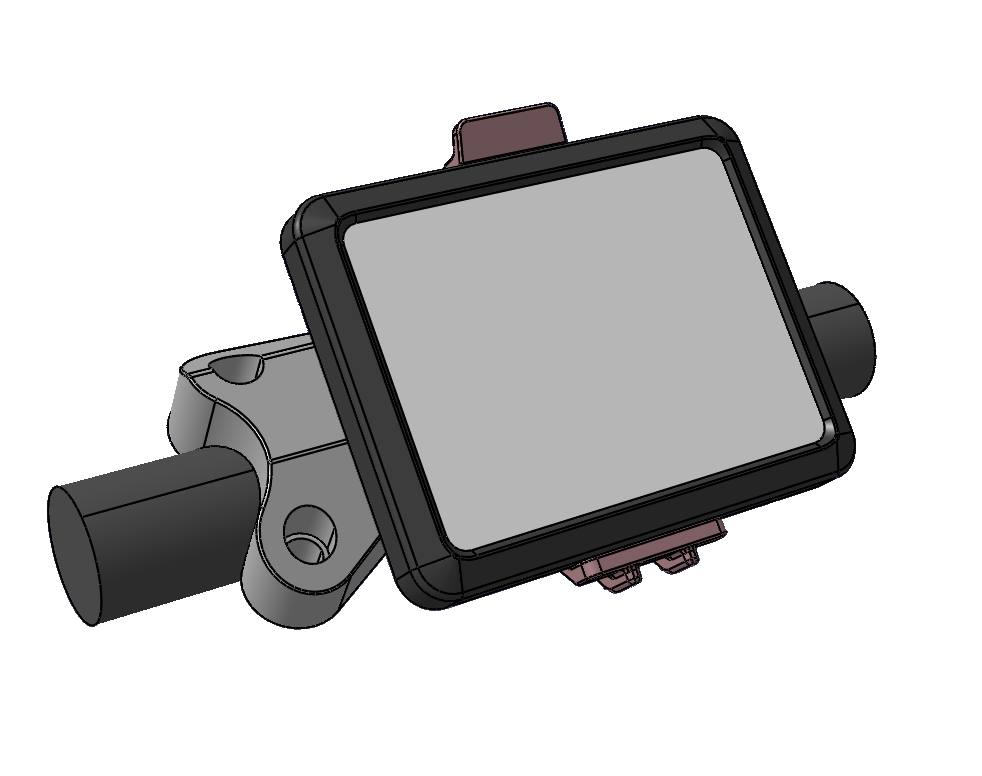

    Halterung Zumo 210 Lenkerbruecke_4.jpg

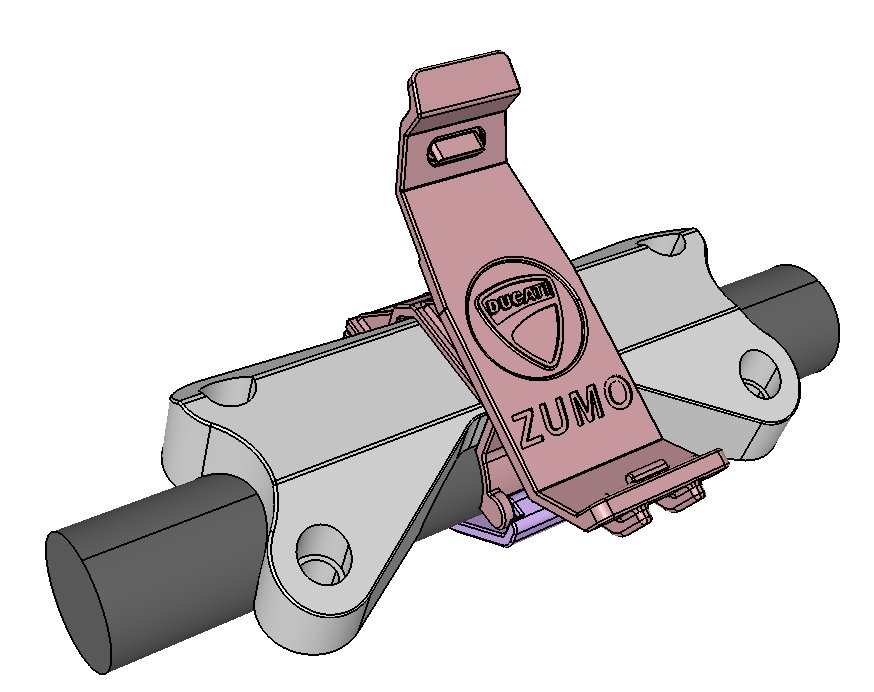

    Halterung Zumo 210 Lenkerbruecke.jpg

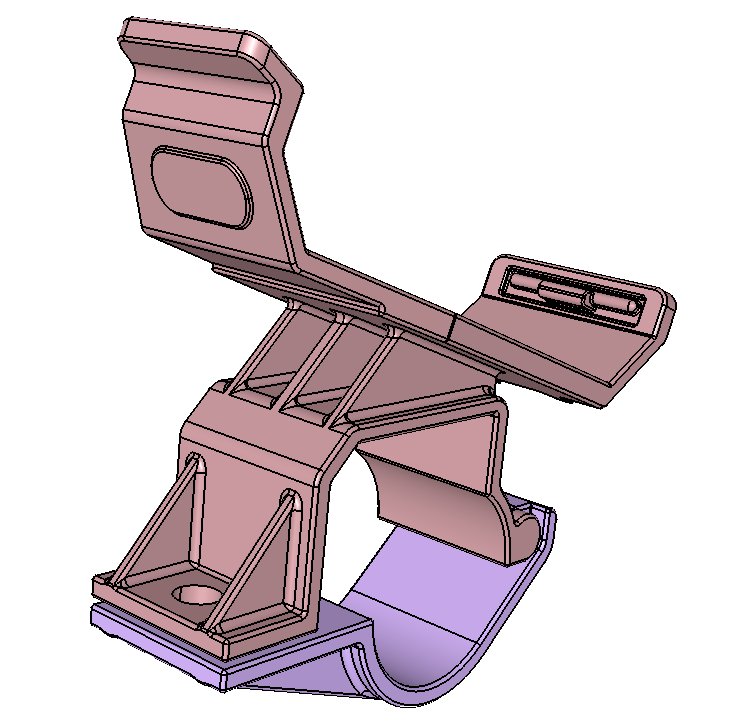

    Halterung Zumo 210 Lenkerbruecke_3.jpg

    ZUMO 210 Halter Multistrada Lenkerbruecke by Varadero on Shapeways

    Solutions with the same Concepts for the Zumo 340 / 350 / 390 are still under Construction.

    Reiner

    Halterung Zumo 210 Lenkerbruecke_4.jpg

    Halterung Zumo 210 Lenkerbruecke.jpg

    Halterung Zumo Ducati_2.jpg

    Halterung Zumo.jpg

    Halterung Zumo 210 Lenkerbruecke_3.jpg

  2. I will be interested in the Zumo 350-390 option when that is available.

  3. BikePenR is a manufacturer and supplier of mounting brackets for GPS / satnav systems on motorcycles, got a mount from them last year, brilliant = BikePenR

  4. you might want to use the locking mount bracket through, the clip-on mount is only suitable for in car usage imho

  5. I use the clip on mount since 1 Year and i have no problem since 11.000 KM,
    even under bad conditions of the street. I screwed it on the left side of the handlebar.
    It needs very little space and does not look as ugly as the big brackets.

  6. I have the Navihalter mount on my 1200S Sport. It works great and puts the satnav in a very easy line of site.

    however, I like the way that the centre mount works on this one Vau, would it fit a BMW G650 XCountry ?
    When will the Zumo 350 LM option be available?

  7. @DaveF:
    it´s still under construction ( look to the pictures after the text )
    The 3D- data is ready to be 90 percent, but I'm still waiting for a Zumo 390 to make different measurements. (I only have a Zumo 210 at home)
    Then I need to create a prototype to check the function. The bracket shown at the pictures only fits on the center of the handlebar of the Multistrada. But I will create also a universal version for mounting on the handlebar right or left . This is then also available without Ducati logo. I think I still need to March.

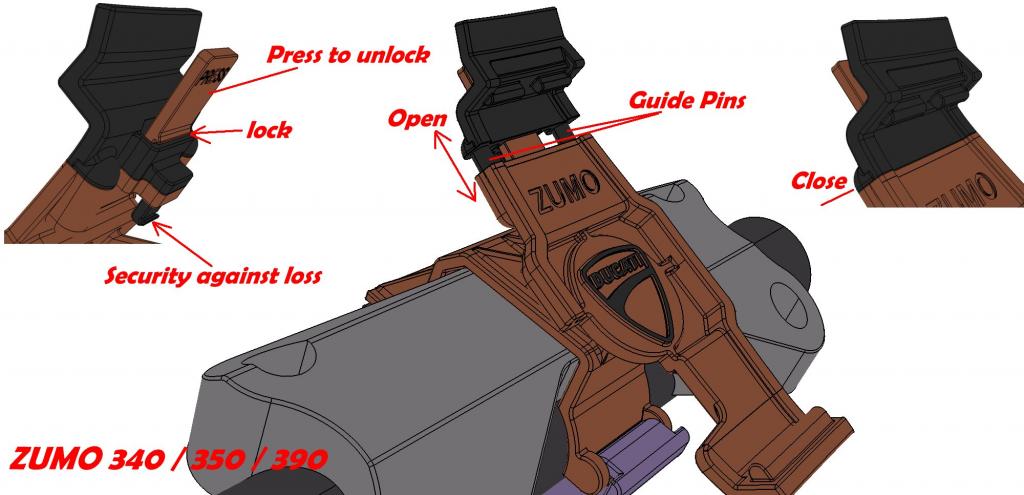

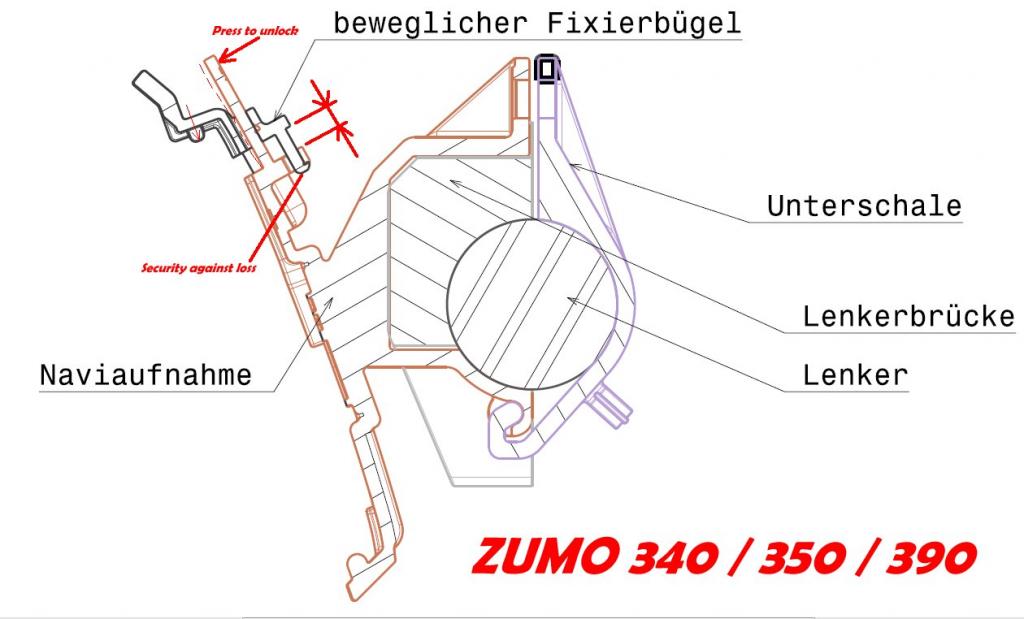

    Zumo_Lenkerbruecke_neu_1.jpg Zumo_Lenkerbruecke_neu_Schnitt.jpg



    #8 vau, Jan 26, 2014
    Last edited: Jan 26, 2014
  8. nope intended at OP, i have had the 220 drop out of the clip mount with a light knock when i have used in the car, would not trust it on the bike
