1200 DVT Gps Power Feed Lead Plug Type Thingy Wotsit.

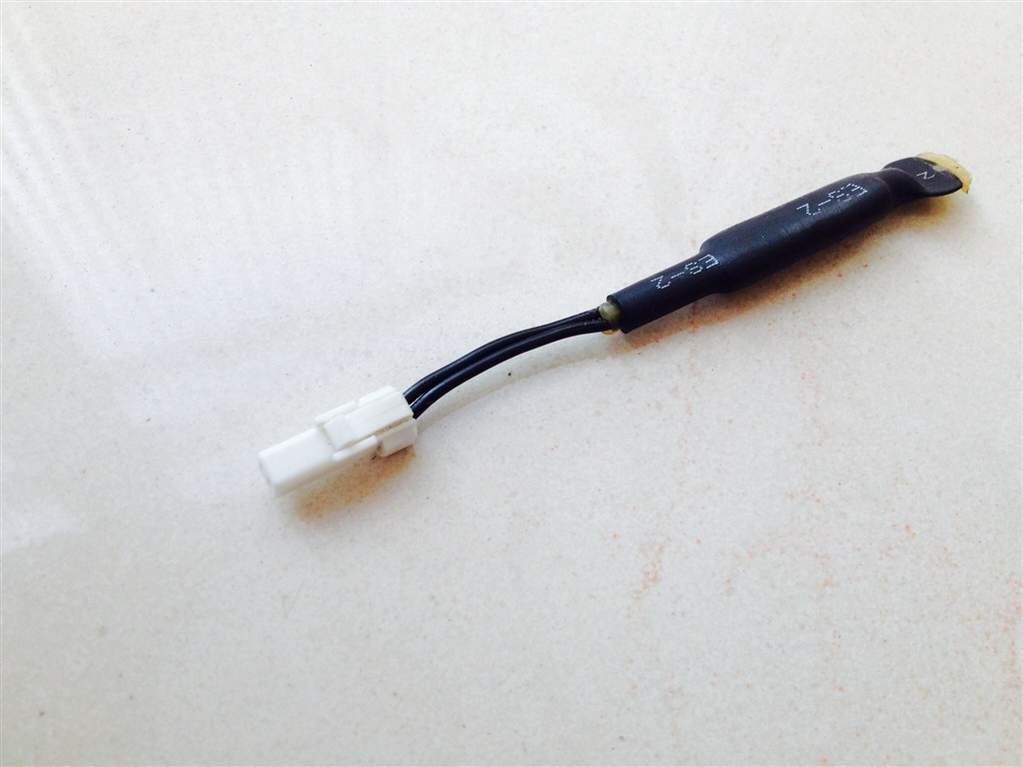

Hi Greg, not sure if this helps but your picture shows the connector which u connect to the unit. The bike end is located at the front under the left hand air conveyor on the DVT. It should be there mate, have a look at the thread below.

http://ducatiforum.co.uk/threads/satnav-advice.33486/page-8#post-710767



Sorry, just realised, do you need the connector in the picture? i would go back to your dealer and ask for one as it was missing



Ahh, I see. the dealers are pretty good and probably have a few spare in the toolkits. If they cant then these guys have them albeit a tad expensive

Ducati and MV Augusta Wiring Loom Connectors and Adaptor Leads



When I traded my multi I kept the plug as I used it in the new one. Guess I am not the only one who does that.



No need for the connector, cut the wires on the bike end and fit your own connector or wire directly.

Mine came with no connector so I just wired direct after cutting. I just popped into maplins and purchased my own connectors.


Sent from my iPhone using Tapatalk



if you can wait,i get home on Friday i might have one, when i bought my 848 it had the Garmin wiring harness and cradle but no GPS
so i bought a new Nuvo 600 took out the GPS itself and shut the box, when i get home i will dig it out and see
if there is one you are more than welcome to have it... got to find it first though!!



I soldered and heat shrinked my sat nav connection :sunglasses:



Ditto, with my own connector. I always use these ones for everything I do on the bikes from lighting to satnav and other accessories.



Sent from my iPhone using Tapatalk



Aren't the male and female round the wrong way there or have I been doing it wrong? :flushed:



That's a good point. Good ol' Maplin. Full of knowledgable, spotty 40 year old virgins and teenagers. Probably too busy thinking about that cracking locomotive they saw at the weekend, and got muddled up.


Sent from my iPhone using Tapatalk



I've just found my connector (as in the first picture) do I peel away it the flattened end or try and uncover the wires at the plug end?

Ta

Nick



Hi Nick,

Yes mate, that's what I did.



Thanks Jim



Bit of a thread resurrection but with the Ducati two way connector, which side is + and which -?



IIRC you can see on the other end thats connected to the bike. Think I may have trial & error mine before I fitted permanently



OK, might try it with a chocolate block connector first to see which is which.

Cheers
