916 Headlight Electrical Connector Bracket

Discussion in '748 / 916 / 996 / 998' started by roadkill, Aug 3, 2024.

  1. Good evening all,

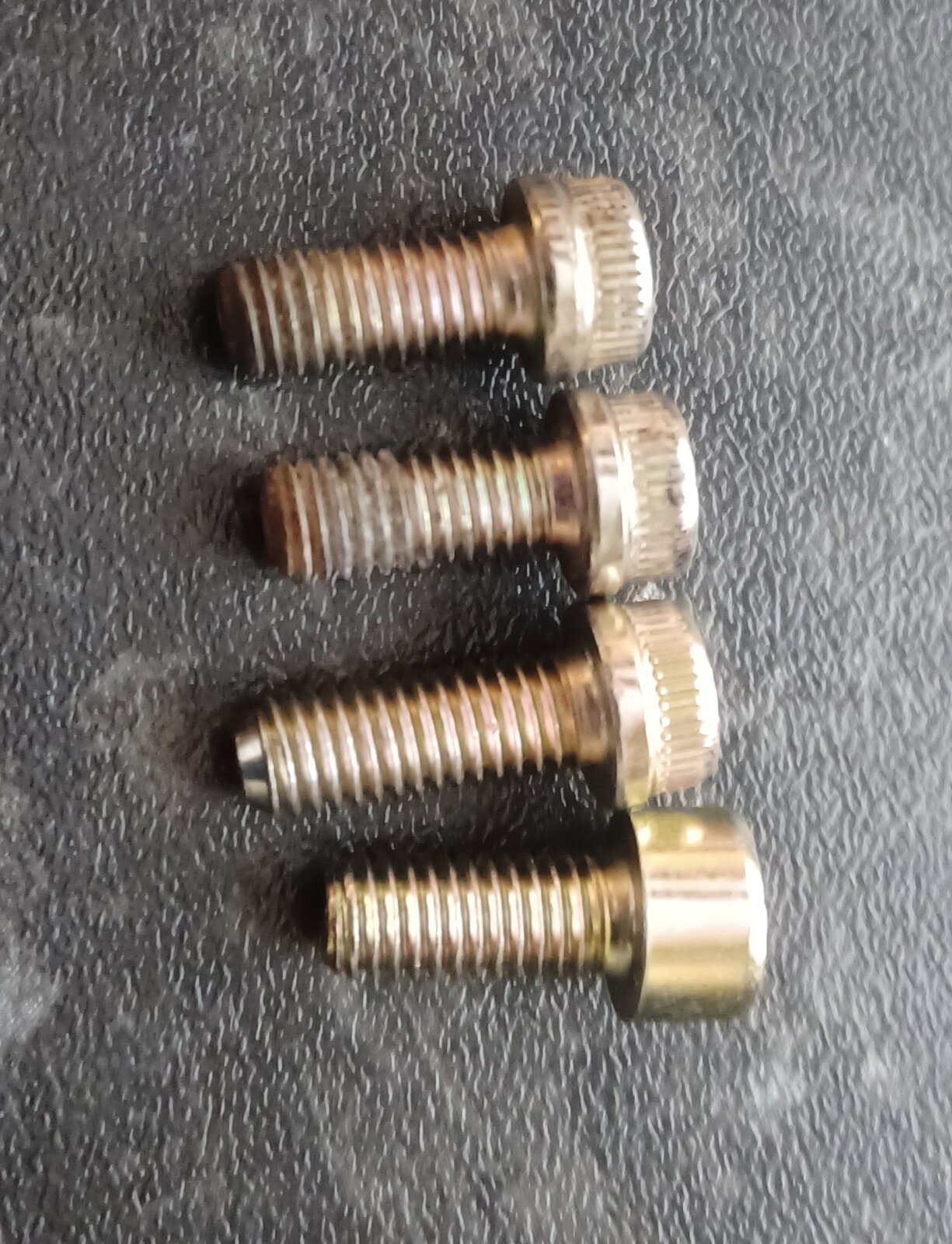

    Would anyone happen to have a diagram of the electrical connector bracket that sits behind the headlight? I have taken mine apart and it has a few different bolts, my guess is that they are not correct and should all match.. so ideally I would like to check and change if wrong..

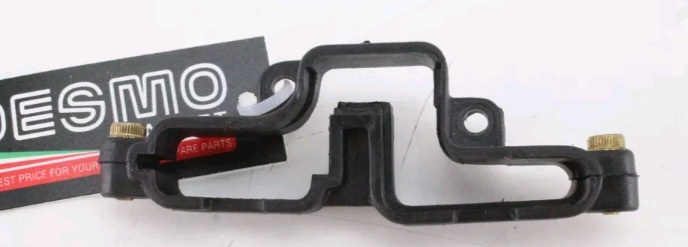

    20240803_181738.jpg Screenshot_20240803_181836_eBay.jpg

  2. I don't recognise that at all from my 748 and 916 - where does it fit?

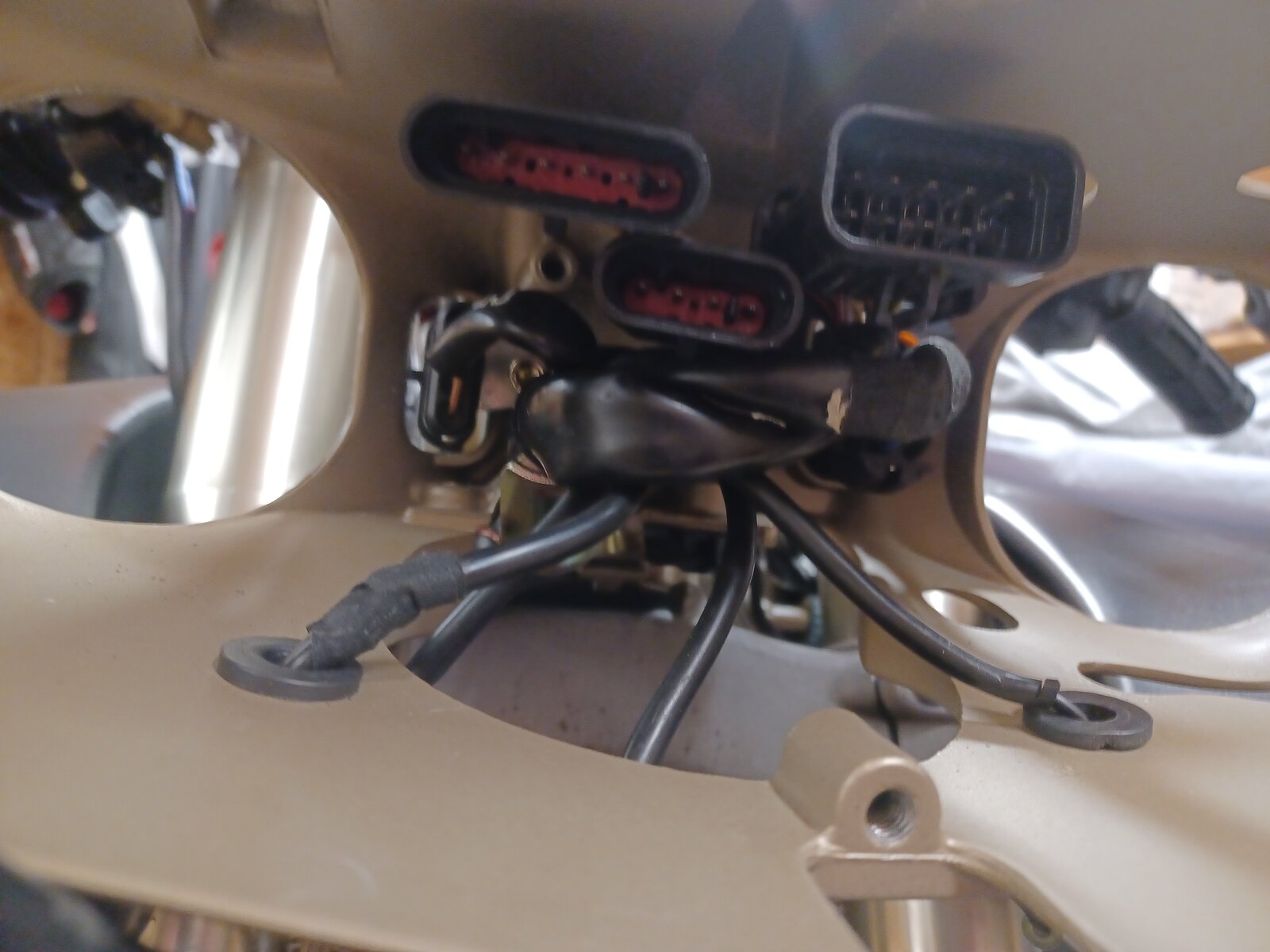

  3. Behind the headlight, it basically fits round these three connectors and bolts to the headstock


    • Thanks Thanks x 1
