1200 Enduro Is This Gap Correct?

Discussion in 'Multistrada' started by tim jones, Jun 9, 2018.

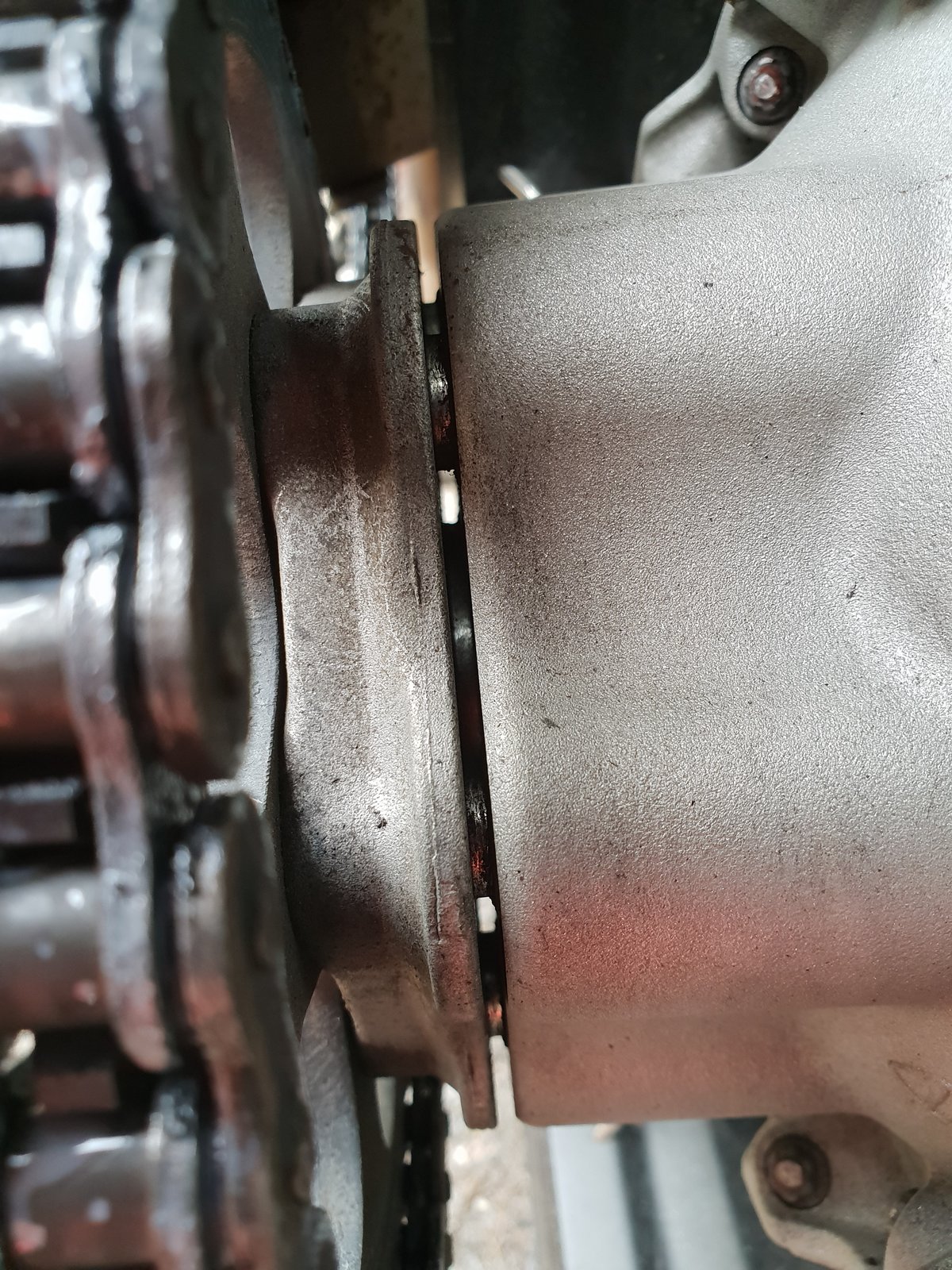

  1. I don't remember seeing this gap before. I have just washed, cleaned chain and taken for a 2 min dry off. When I lubed the chain this gap was visible.

    Is it ok?


    #1 tim jones, Jun 9, 2018
  2. Yes it’s the same on mine

    #2 Trickyricky, Jun 10, 2018
    • Useful Useful x 1
  3. In fairness to the usual standard of manufacture by those keen eyed Italian masters of their trade, it's highly plausible they managed to cock two up :thinkingface:

    God bless those little scamps :blush:

    #3 damodici, Jun 10, 2018
    • Funny Funny x 1
    • Agree Agree x 1
  4. I’ve never known a socket carrier to not go all the way in. That gap is big enough to get dirt/grit in to start eating things.

    #4 JH_1986, Jun 10, 2018
  5. #5 fight the streets fmd, Jun 10, 2018
  6. It's called character........:eyes:

    #6 damodici, Jun 10, 2018
    • Funny Funny x 1
  7. There’s a spacer sitting between the carrier bearings and wheel bearing. Doesn’t look too out of kilter tbh. Check the axle nut torque. It’s that that pulls the assembly together

    #7 nelly, Jun 10, 2018
  8. Thank you, do you know the torque setting, I think I read 90lbft somewhere

    #8 tim jones, Jun 10, 2018
  9. I’m all metric.... I think it’s 180Nm but I’m not 100%. I can check tomorrow

    #9 nelly, Jun 10, 2018
    • Useful Useful x 1
  10. 180 it is and yes the gap is still there on mine

    #10 Sotos christou, Jun 12, 2018
    • Useful Useful x 1
  11. Folks, thank you all, I'll check torque and continue enjoying.

    #11 tim jones, Jun 12, 2018
  12. Its called a Cush drive to stop vibration. Stop looking for problems & ride.

    #12 Steviegtr, Jun 14, 2018
