Key Woes

Discussion in 'Technical Help' started by chrisw, Apr 23, 2017.

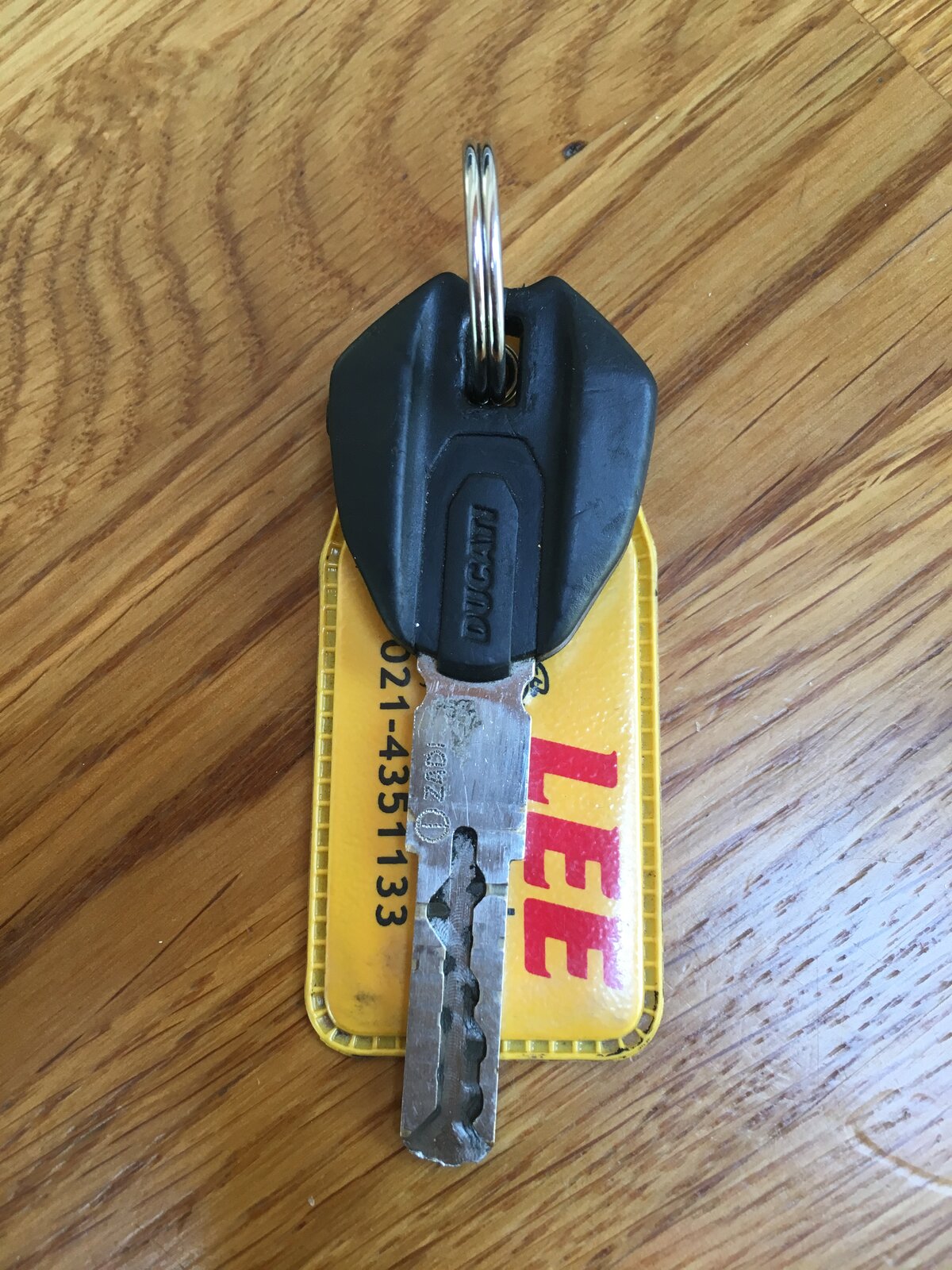

  1. If you only have one of these

    [​IMG]

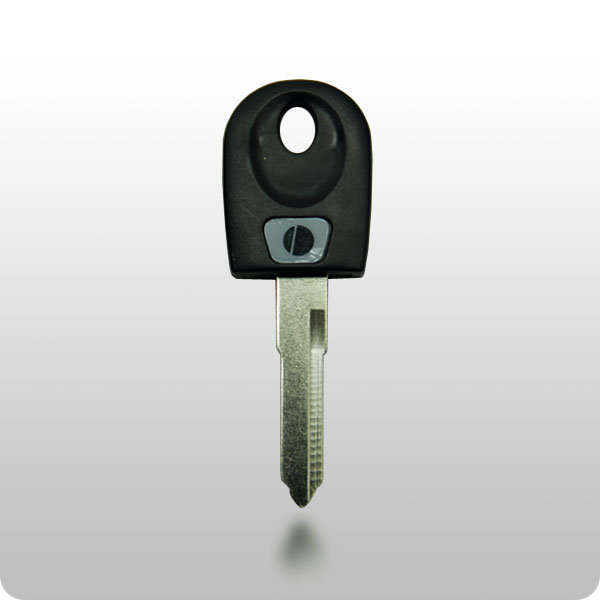

    And don't have one of these

    [​IMG]

    or

    Code Card

    [​IMG]

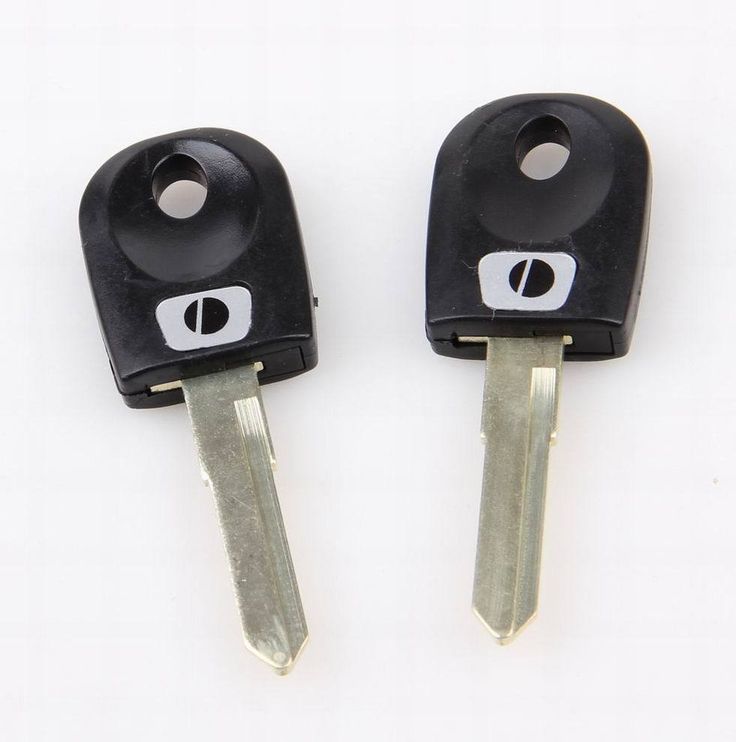

    But you really want

    [​IMG]

    PM me as I now have a solution.

    #1 chrisw, Apr 23, 2017
    Last edited: Jul 11, 2017
    • Like Like x 5
  2. At the moment this will work for chipped key bikes using the type of key in the above images

    #2 chrisw, Apr 23, 2017
  3. @chrisw can you clone these? 2009 MY. I only got the one black key when I bought the bike, no 2nd key & no code card. I don’t believe they had red keys then, just 2 black & code card.

    #3 West Cork Paul, Apr 22, 2019
  4. No. But with one key and the code card you can program a new key.

    #4 chrisw, Apr 22, 2019
  5. Hi Chris,
    Yes please to a red key :)
    As you know, I now have two black keys and a code card, so a red key to replace my ‘misplaced’ one would be perfect.
    Many thanks.

    #5 Old rider, Apr 22, 2019
  6. To create a red key would require the reading of the chip on the dash.

    #6 chrisw, Apr 22, 2019
  7. Ah, so that hasn’t changed.
    Thanks Chris.

    #7 Old rider, Apr 22, 2019
  8. Any idea where I might be able to get a replacement code card from? Ducati I guess? Although I do recall reading on here in another thread that if one opens the dash the code is printed on the PCB inside. Is that the case? Anyone know?

    #8 West Cork Paul, Apr 23, 2019
  9. No, it's not true.
    I don't think that Ducati keep/kept records of the Code Cards either, but it's always worth asking either your local friendly dealer or DUK.
    There are ways to get the code from the dash without having to pull the dash apart due to weaknesses in the security of the dash and immobiliser system, but it's not a simple process.

    #9 antonye, Apr 23, 2019
  10. Thanks. In your opinion then, or yours @chrisw, if I took the one key I have to a specialist auto key place would they be able to read the transponder and copy it?

    #10 West Cork Paul, Apr 23, 2019
  11. It can be done. A Zedbull and TPX module will program a 4D ID60 transponder. A call to an Auto Key Specialist is worth a try.

    #11 chrisw, Apr 23, 2019
    • Thanks Thanks x 1
  12. Thanks @chrisw much appreciated

    #12 West Cork Paul, Apr 23, 2019
  13. Or a 4D Magic Wand, or a CN900 Mini ;)

    #13 antonye, Apr 24, 2019
    • Thanks Thanks x 1
  14. I actually have a CN900 but it is on permanent loan to Ducati John.

    #14 chrisw, Apr 24, 2019
    • Like Like x 1
    • Funny Funny x 1
  15. I've got both now :)

    #15 antonye, Apr 25, 2019
    • Like Like x 1
