ребята помогите! не знаю где найти! нужна схема подключения для v4s у меня есть для multistrada v4 пик пик но цвета проводов другие! не могу подключить приборную панель
Translation Guys, help! I don't know where to find it! I need a connection scheme for v4s I have for multistrada v4 peak peak but the colours of the wires are different! I can't connect the dashboard. I think the OP would like a circuit diagram
I think the fella is after a wiring diagram. Can’t find one online and not sure what he wants it for, but at least I tried!
Just checked the wiring diagram (electric system diagram) that is in a workshop manual I have for a Multistrada V4 and it says it's for a Pikes Peak. The manual is a bit of hybrid and contains sections for both the V4 and V4 Pikes Peak (esp. swinging arm sections). Looking at the wiring diagram in the manual, I'd say it's not for the V4S as it doesn't show any of the accelerometers needed for the Skyhook semi-active suspension. As it's not possible to attach a PDF on posts within this forum, I've put a PDF of just the wiring diagram and key pages in a shared Google Drive.

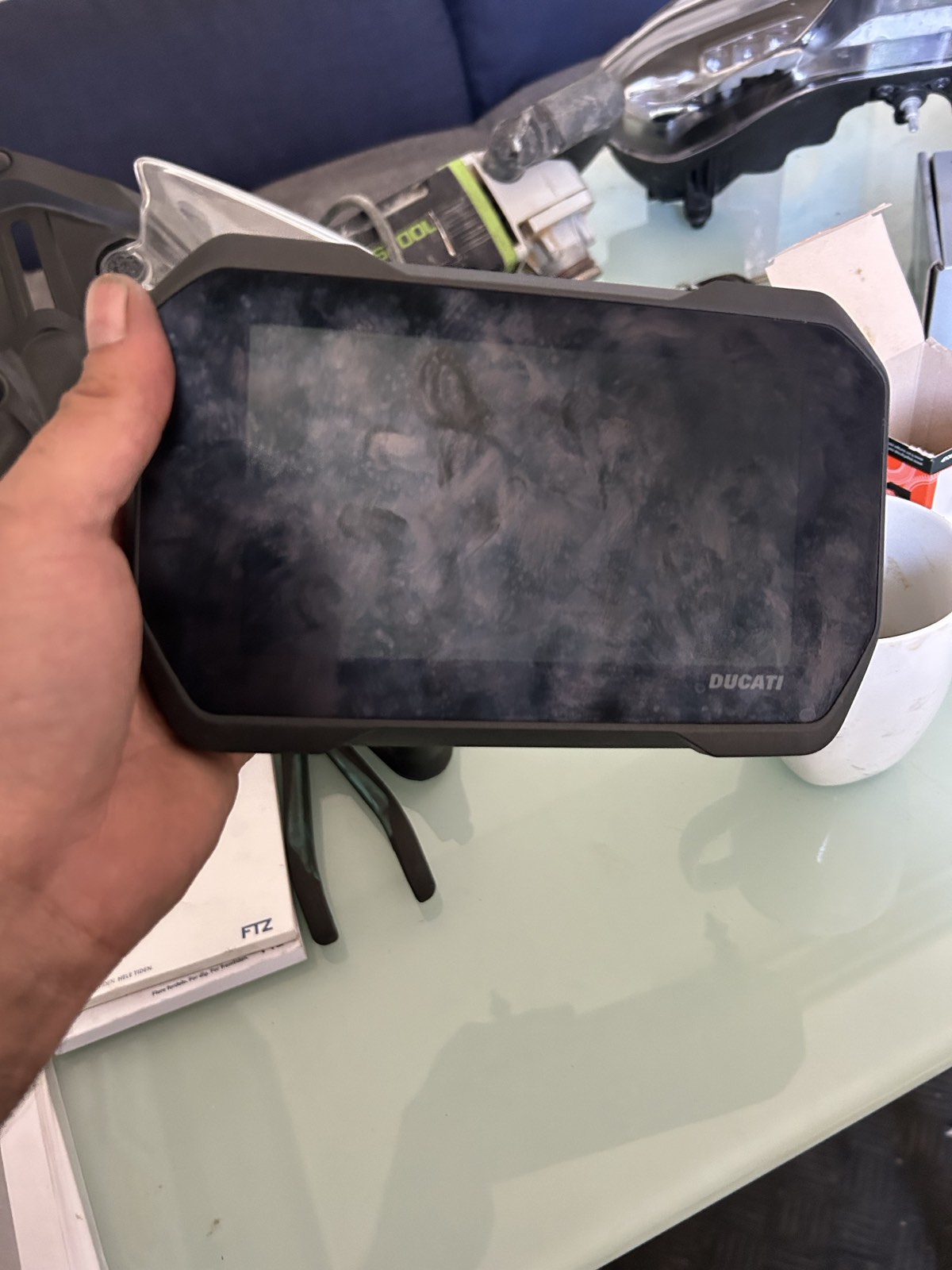

Guys, sorry for not writing in English! I can not connect the dashboard after the accident! i bought a full repair manual for a multistrada v4s but the wiring diagram in it is from a multistrada v4 pikes peak and it does not fit the colors of the wires do not match! View attachment 300325

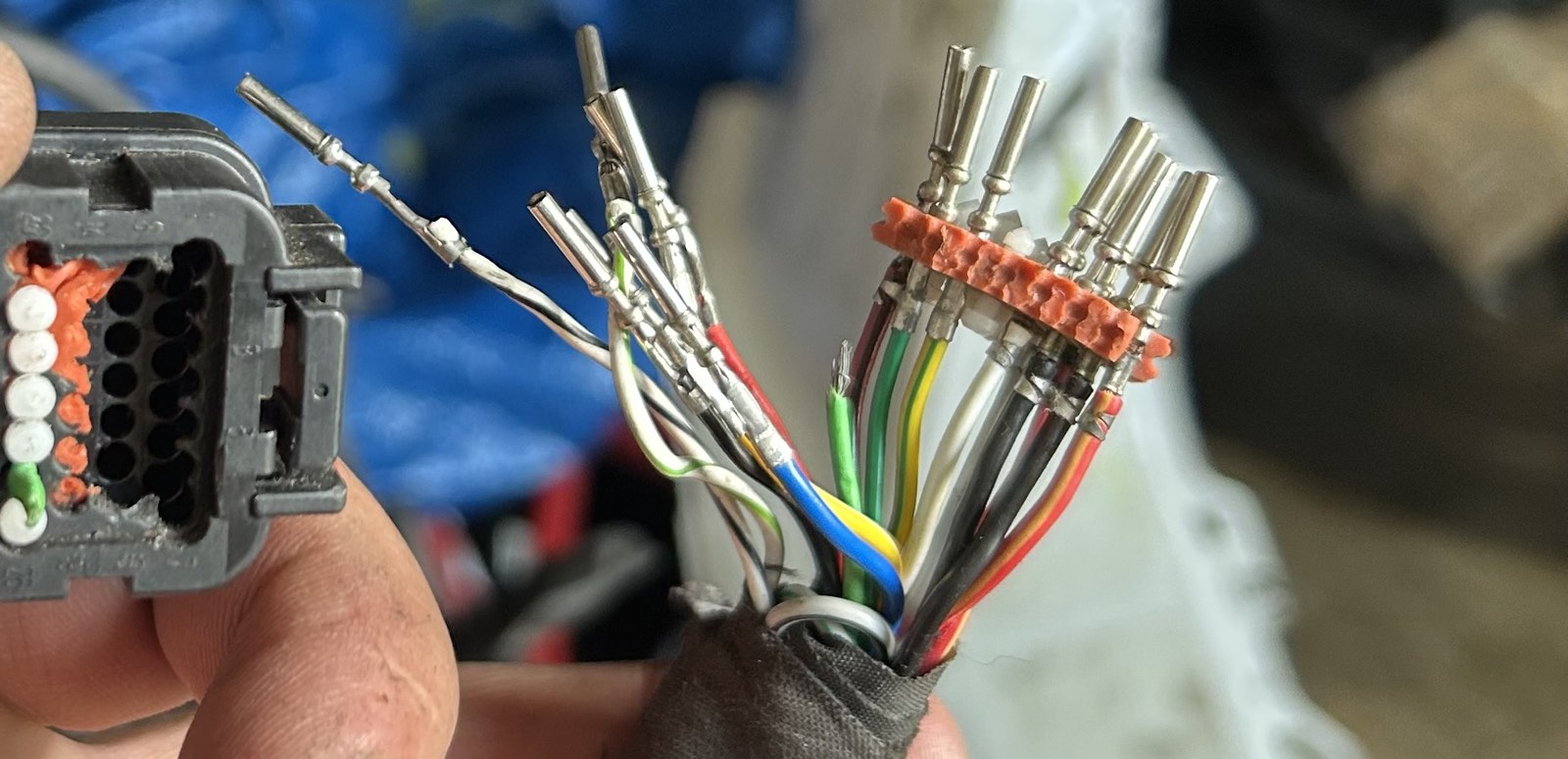

the funniest thing in this situation is that some wires remained in the rubber band and I know where they connect)))) and they match the colors with the diagram from Multistrada V4 Pikes Peak!
I found a site selling "2022 DUCATI Multistrada V4 S download service manual PDF" which was described as "This is a complete Service Repair Manual in English for 2022 DUCATI Multistrada V4 S download service manual PDF. This is the same manual that dealers and professional mechanics use to repair your BIKE. The manual has 1794 pages and covers all mechanical aspects of the model and years specified. No internal program to run, just open in Adobe Reader and go." Price $40 I understand that Ducati no longer sell workshop / service manuals, so the above "manual" looks like a download of pages from a Ducati dealer/service centre online system. I say part as there are various inconsistences as it references the Multistrada 1200 Enduro, shows a SSSA from what maybe a V4 Pikes Peak or even a Multistrada 1200/1260. It's therefore all a bit iffy but still very useful if you know what you're looking at.

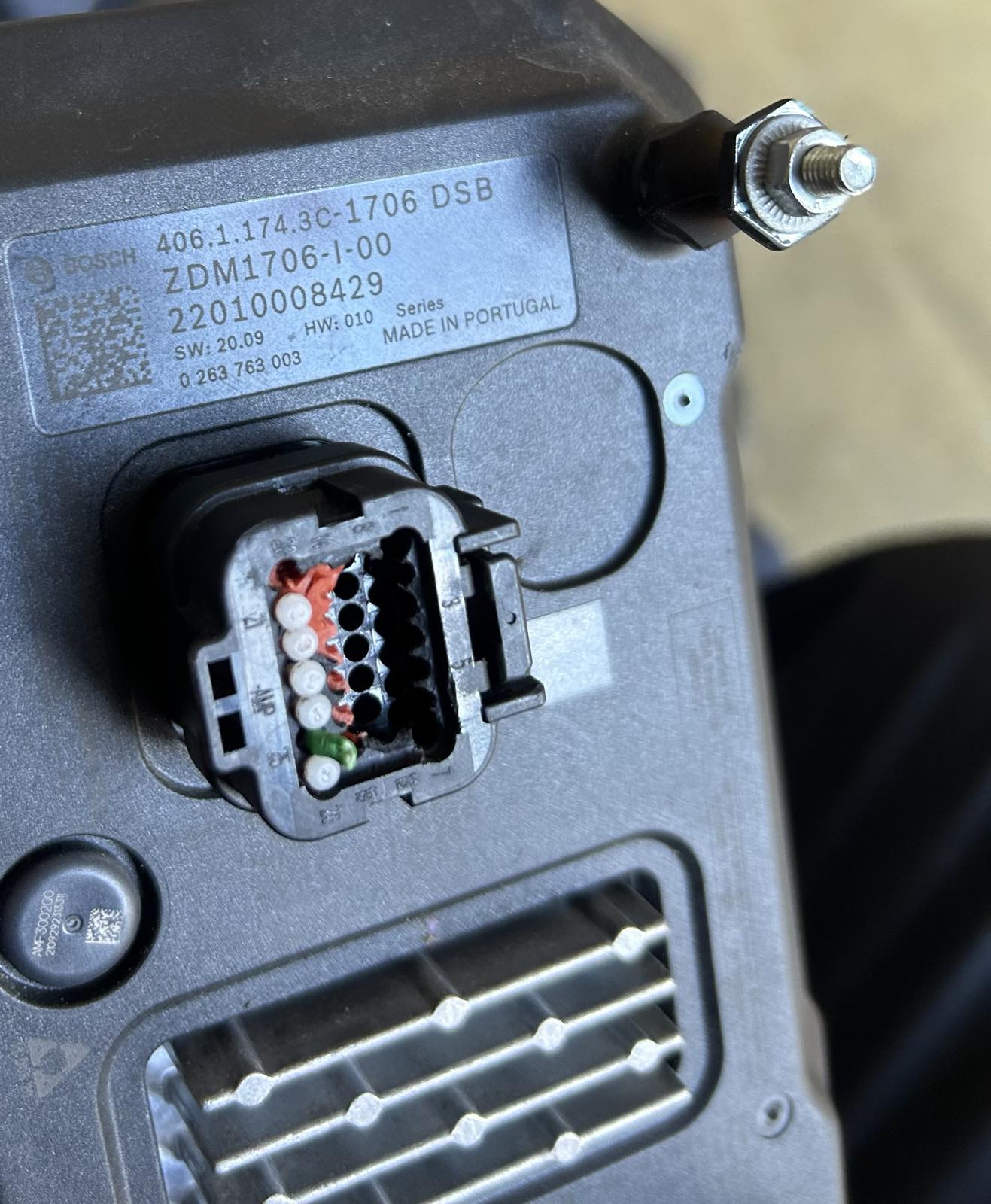

Looking at the pictures, if you manage to get the remaining terminals out, there might be enough insulation left in the terminal to tell you what colour wire belongs there. Not sure it will fully resolve your situation, but worth a shot.
Take it back, the white ones are blanks, don't they, so only one green wire to re-crimp, but middle row unknown for you. That's a pickle.

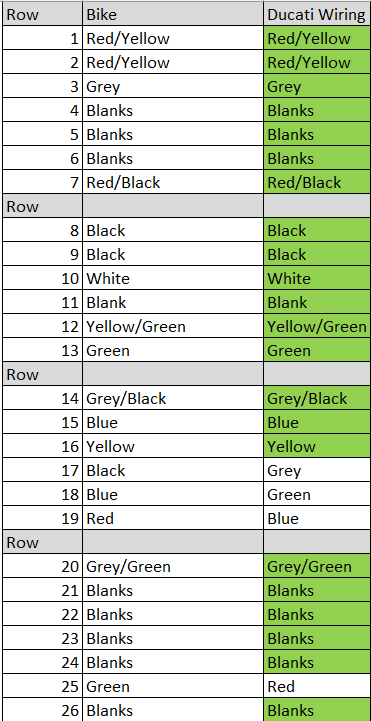

Did you get your dash wiring sorted, I have just replaced the same plug and have the pins and wire colours. The pikes wiring is a pin match, it’s the usb wires 17, 18, 19 and 25, the wire colour is the only difference and nothing in 21 This is what I have Might help someone else, I have the V4s 2022 wiring and for the instruments its the same as the pikes peak, trying to see if there was a change from 2021 to 2022.
Hi Steve can you please reupload the manual please i‘m searching it for 10 months now Would be really awesome to have it finally
