999 Mysterious Bolt...

Discussion in '749 / 999' started by gabik, May 1, 2014.

  1. Hi

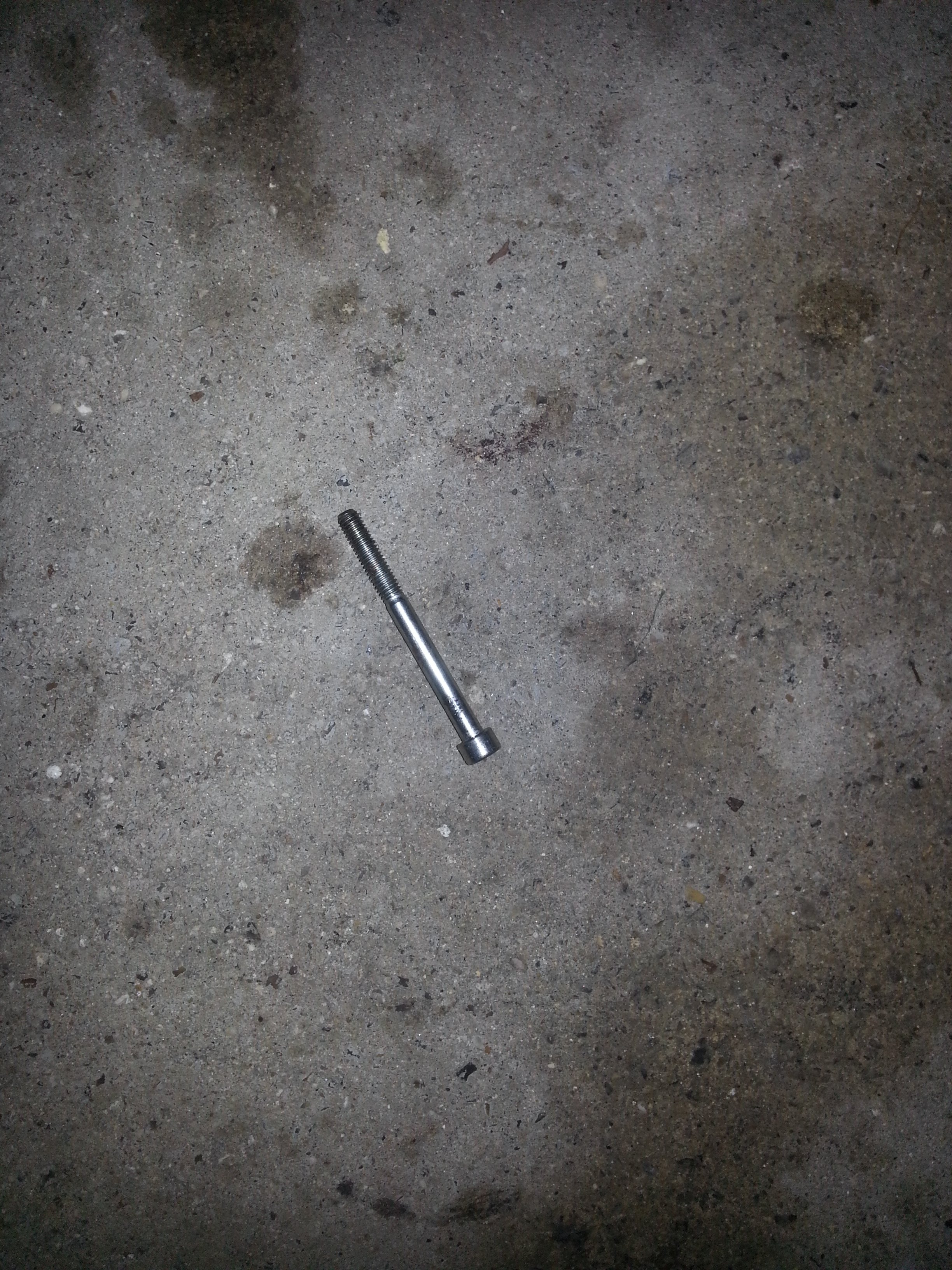

    I have had to replace starter motor in my 999s... now after i have put everything together one bolt left... it is i think m6x65
    I have taken only generator cover, pump cover and bviously clutch slave.. scratching my head if there is not something inside i did not screw back but before i open it again somebody will shine some light on me?
    Could not find it in service manual either in part manual
    Thanks


    #1 gabik, May 1, 2014
  2. I had my cover off recently and I cant recall seeing one that long.. Ohh errr Maitron

    #2 Mr C, May 1, 2014
  3. It looks like a cover bolt, have they all been put back? Or maybe slave cylinder?

    #3 bradders, May 1, 2014
  4. Oh, oh, oh, oh, oh, oh
    Mysterious bolt
    I wanna get close to you...:D

    Looks like one of the clutch cover bolts, but you didn't take that off...Even more mysterious....:Nailbiting:

    #4 Nelson, May 1, 2014
  5. no - clutch partretains untouched... i have also disassembled electrical box but tthose screws are in separate tray, good practise to take pictures but i have trusted manual too much...
    Bradders i have checked every single part of cover all bolts as manual size 20 25 and 30

    #5 gabik, May 1, 2014

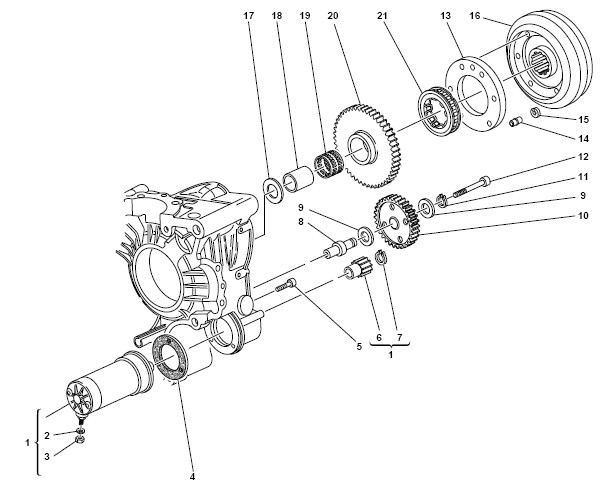

  6. Could it be No 12 in this diagram.
    Steve[​IMG]

    #6 Birdie, May 1, 2014
    • Like Like x 1
  7. He will find out when he tries it and has no drive from the starter motor

    #7 PeterT, May 1, 2014
  8. [​IMG]
    Another pic of that gear and bolt.
    Steve

    #8 Birdie, May 1, 2014
    • Like Like x 1
    • Useful Useful x 1
  9. well made me confused i do not recall taking it off but... worth opening the cover to check, thanks guys...

    #9 gabik, May 1, 2014
  10. I'm sure I have about a box full of bolts, every time i take something off 1 gets left and I cannot figure what it's from... probably bad, one day my engine will just fall out...

    #10 salmore, May 1, 2014
  11. I see left over parts as a bike weight loss bonus.

    #11 deleteduser211220, May 1, 2014
  12. I think your family has a sense of humour :)

    #12 JerryXt, May 1, 2014
  13. Birdie spot on. You are a star! Thanks

    #13 gabik, May 1, 2014
    • Like Like x 1
  14. We all like a happy ending.
    Steve

    #14 Birdie, May 1, 2014
