Ohlins Cartridge Tool Dimensions

Discussion in 'Suspension help' started by sinank, Apr 27, 2021.

  1. Hi everyone,

    Could somebody please tell me measurements of the Ohlins cartridge tool? I would like to make one myself from some tubing. I need inner/outer diameter thickness and also tooth size.

    Thanks.

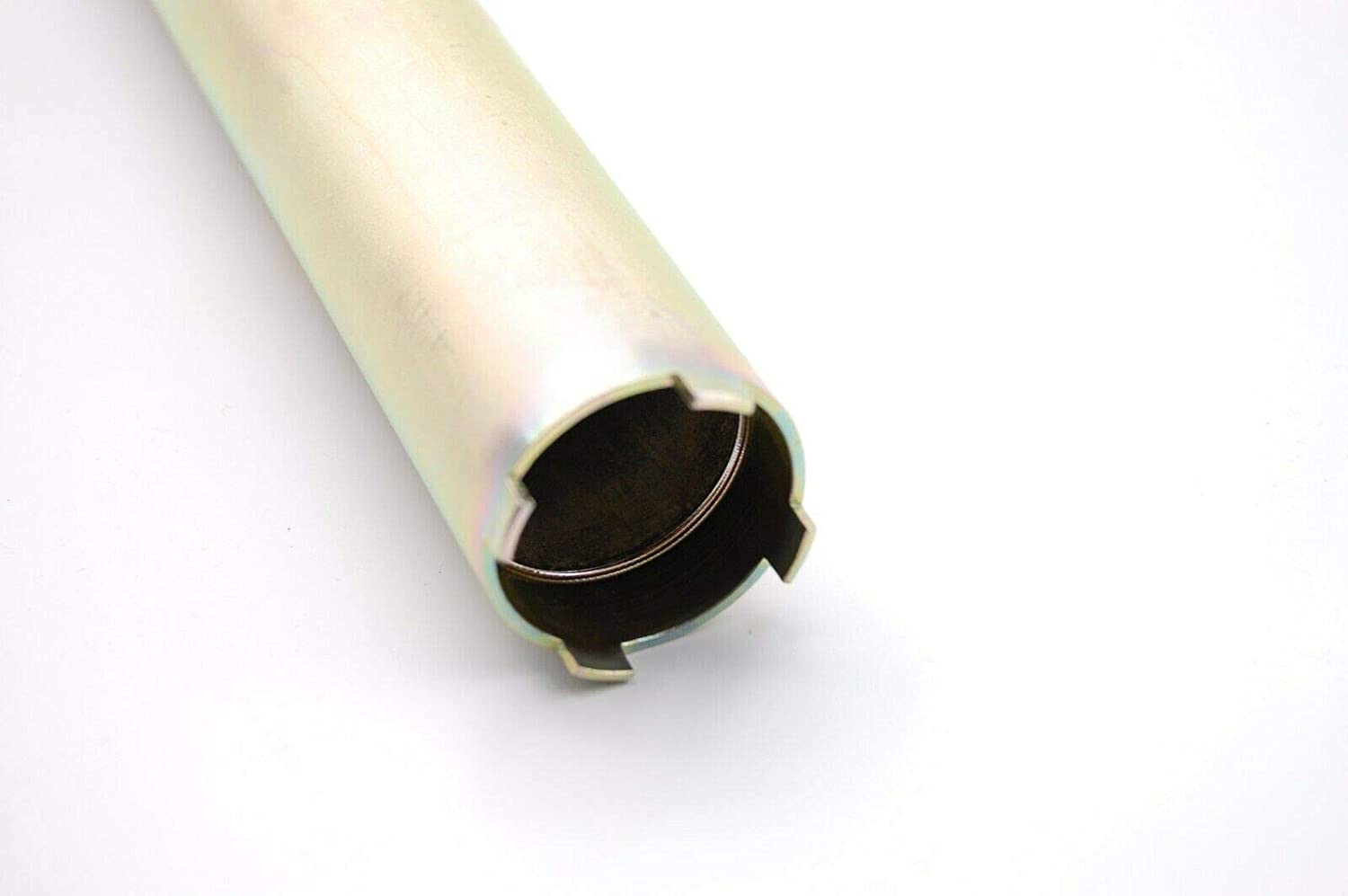

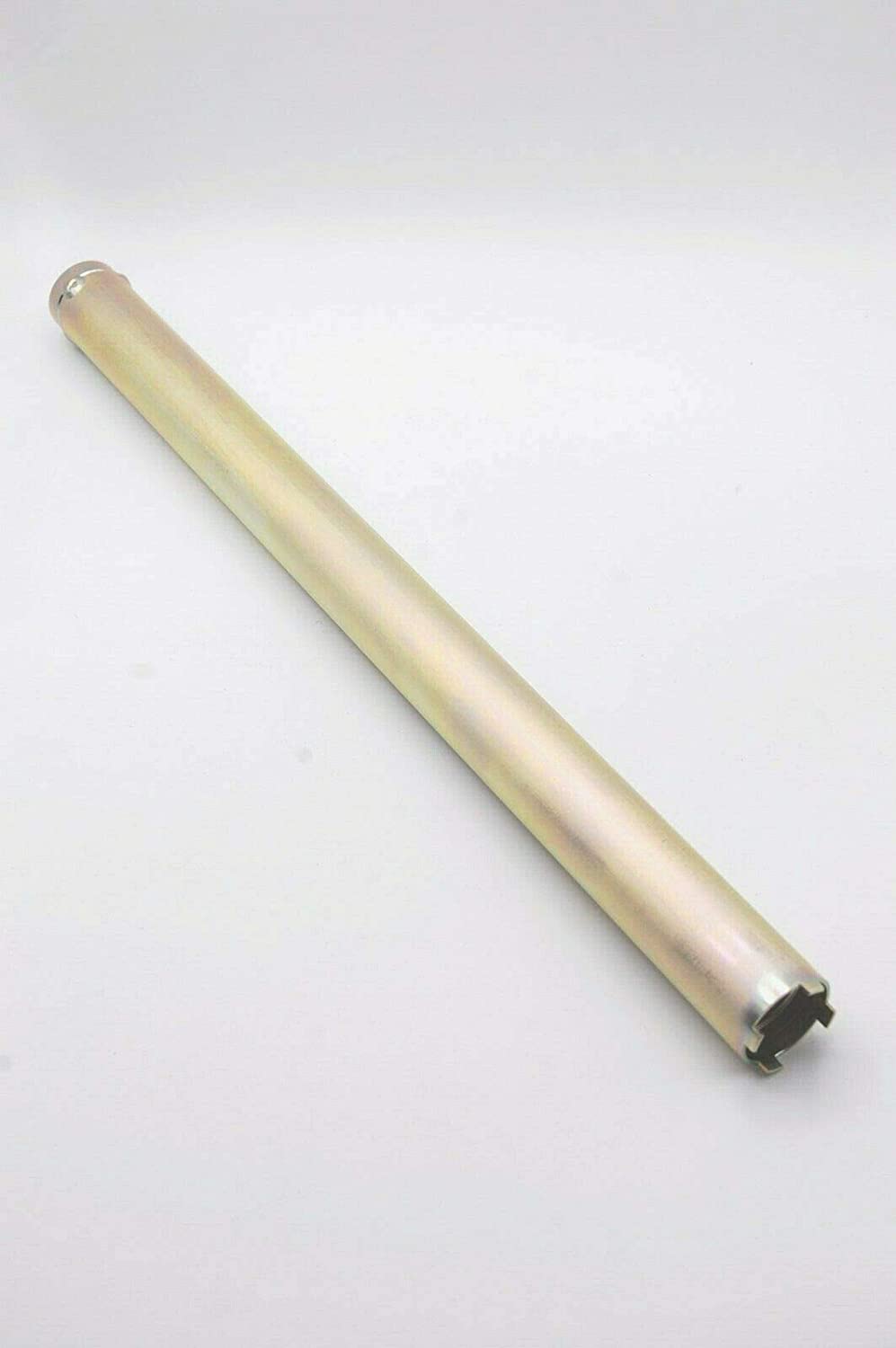

    51H9pZsLO+L._AC_SL1500_.jpg 51xtbaRqW-L._AC_SL1500_.jpg

  2. Sinank,
    Just woundered if you managed to get these dimensions, I am after the same for a mate who has Speed triple 1050R

    Cheers Gaz
