1200 Pikes Peak Rear Decals - Measurement Needed

Discussion in 'Multistrada' started by damodici, Apr 27, 2014.

  1. Its suddenly dawned on me that the decals Ive made at work will now be useless for my new paint job as i took the measurements from where they were, not where they'll have to be placed.

    The paint job will have black covering up the original area and Ive noticed that the Pikes Peaks put the 'Multistrada 1200S - Pikes peak' decals in between the two rear fairing fixtures.

    unfortunately I cant get my hands on my fairings as the painter has them and hes not going to be at work today, could somebody give me a measurement so i can rework them today? I just need the distance between both fairing fixtures

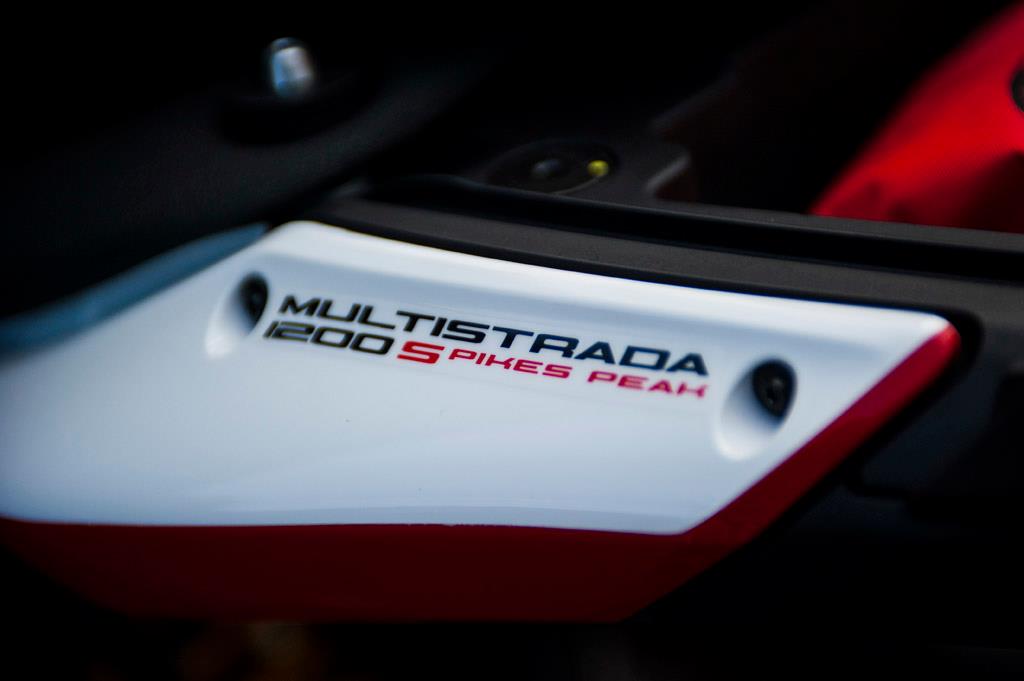

    Example below of what i mean, on a standard Multi S or S touring they're much lower below the white line you can see


  2. Actual measurement from the 1 to the k is 95mm

    • Like Like x 1
  3. Thanks very much, the stock ones are about 120mm so I was out by a fair bit :)
