Quadlock Mounts On All Models

Discussion in 'Technical Help' started by The Royal Maharaja, Jun 17, 2023.

  1. Post your pics! Where do you fit your Quadlock mounts?

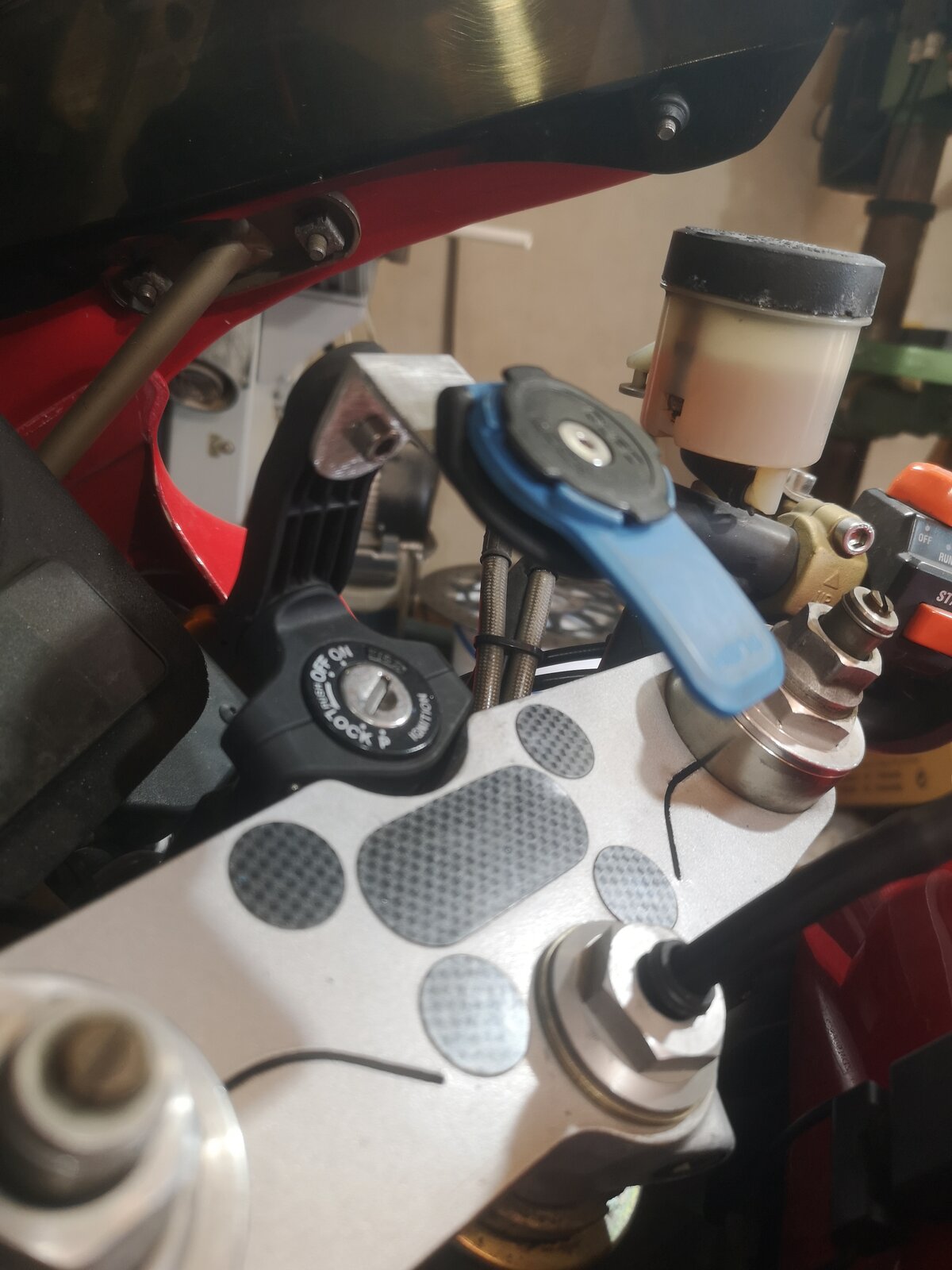

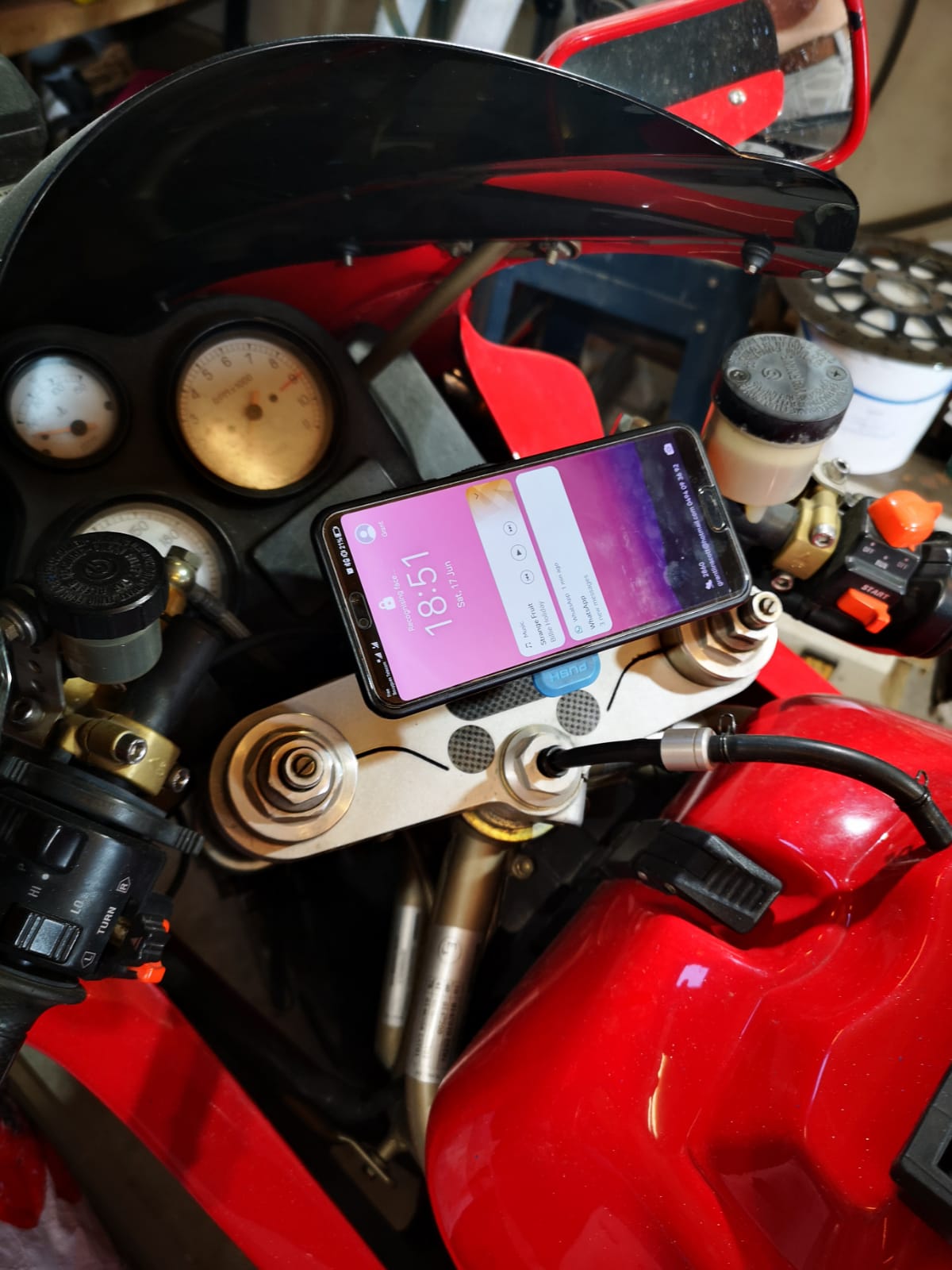

  2. Supersport carby models.

    With a small aluminium L piece...


    • Like Like x 1
  3. Cathy 900SS.


    • Like Like x 1

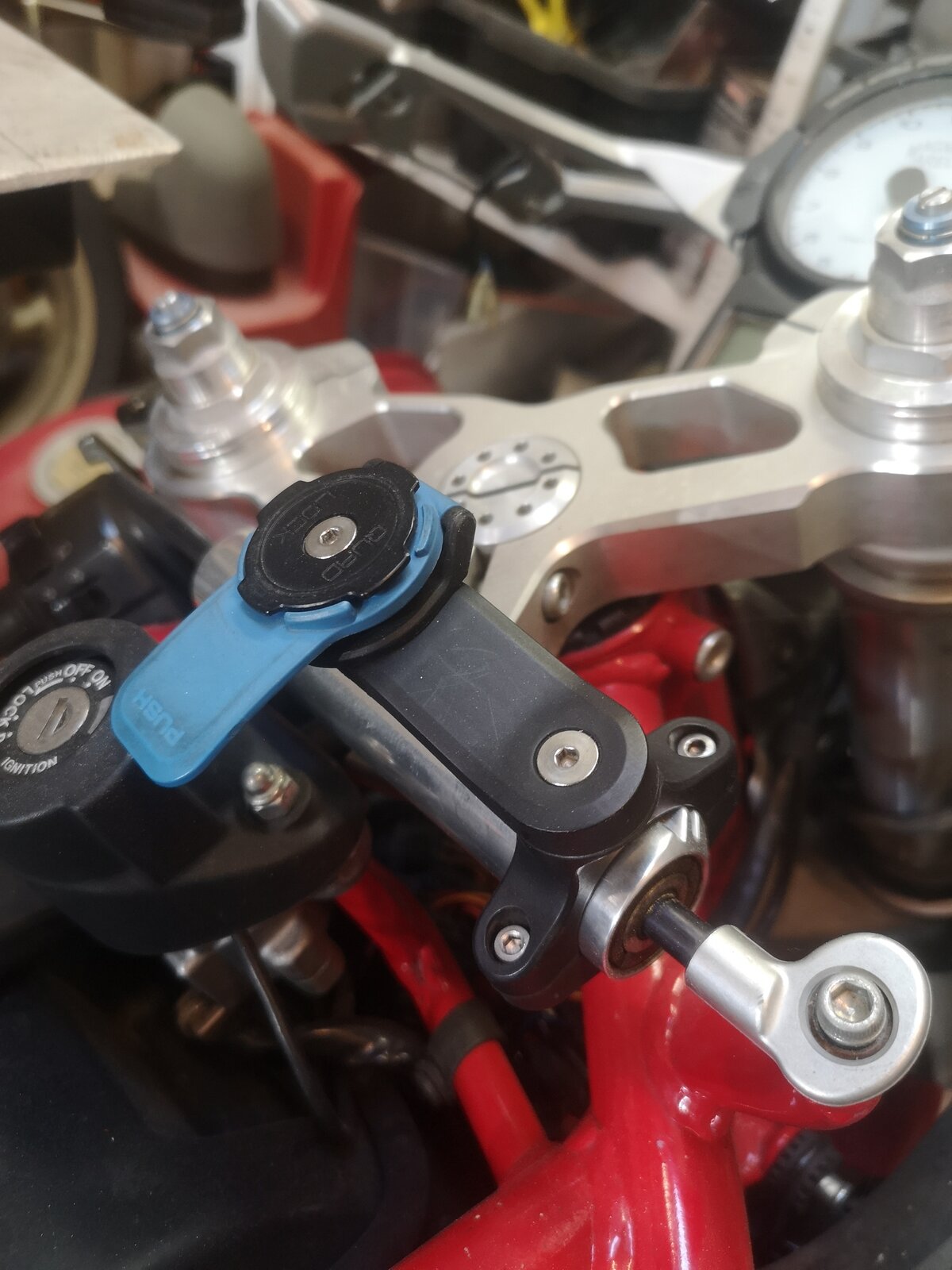

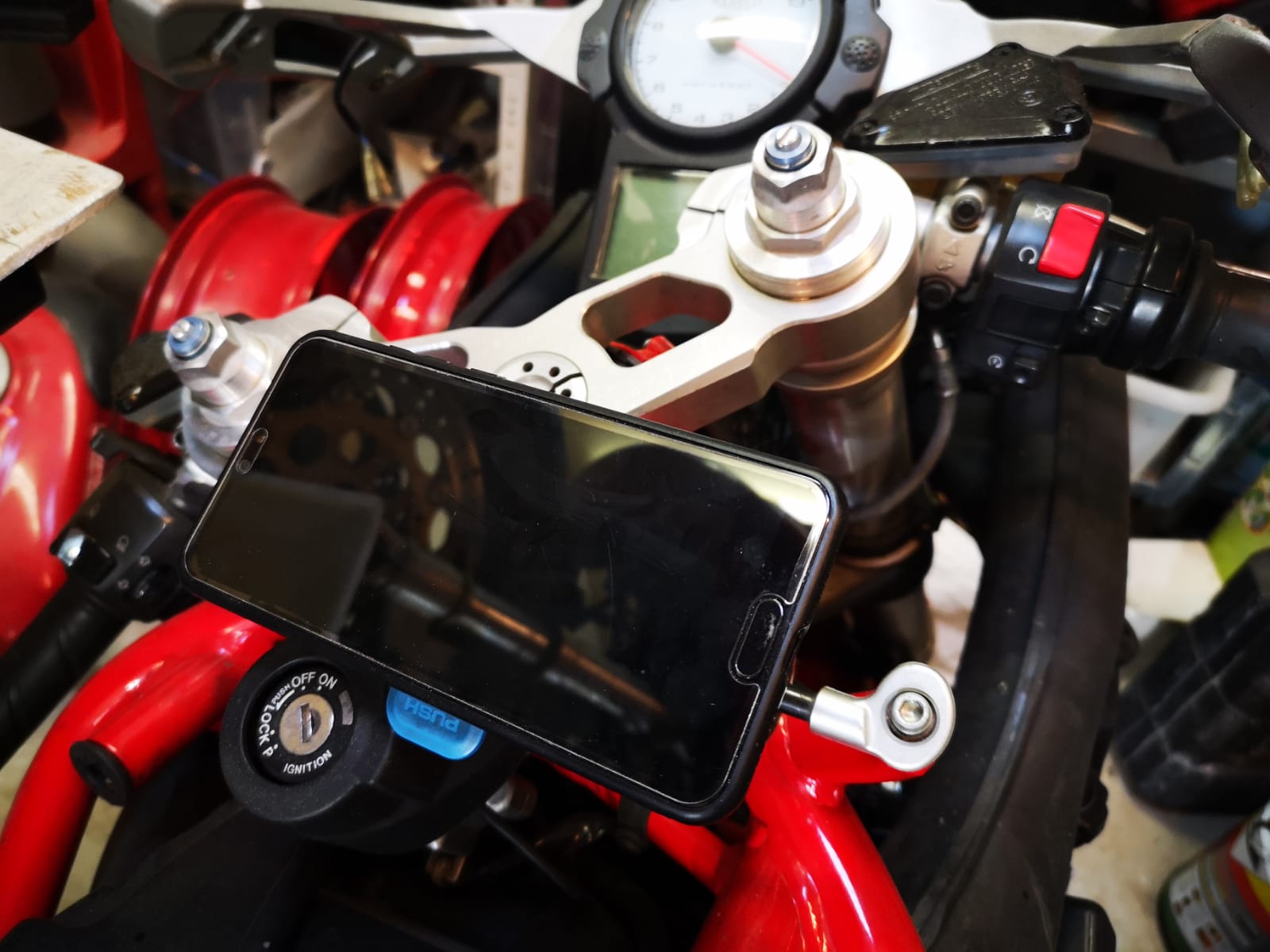

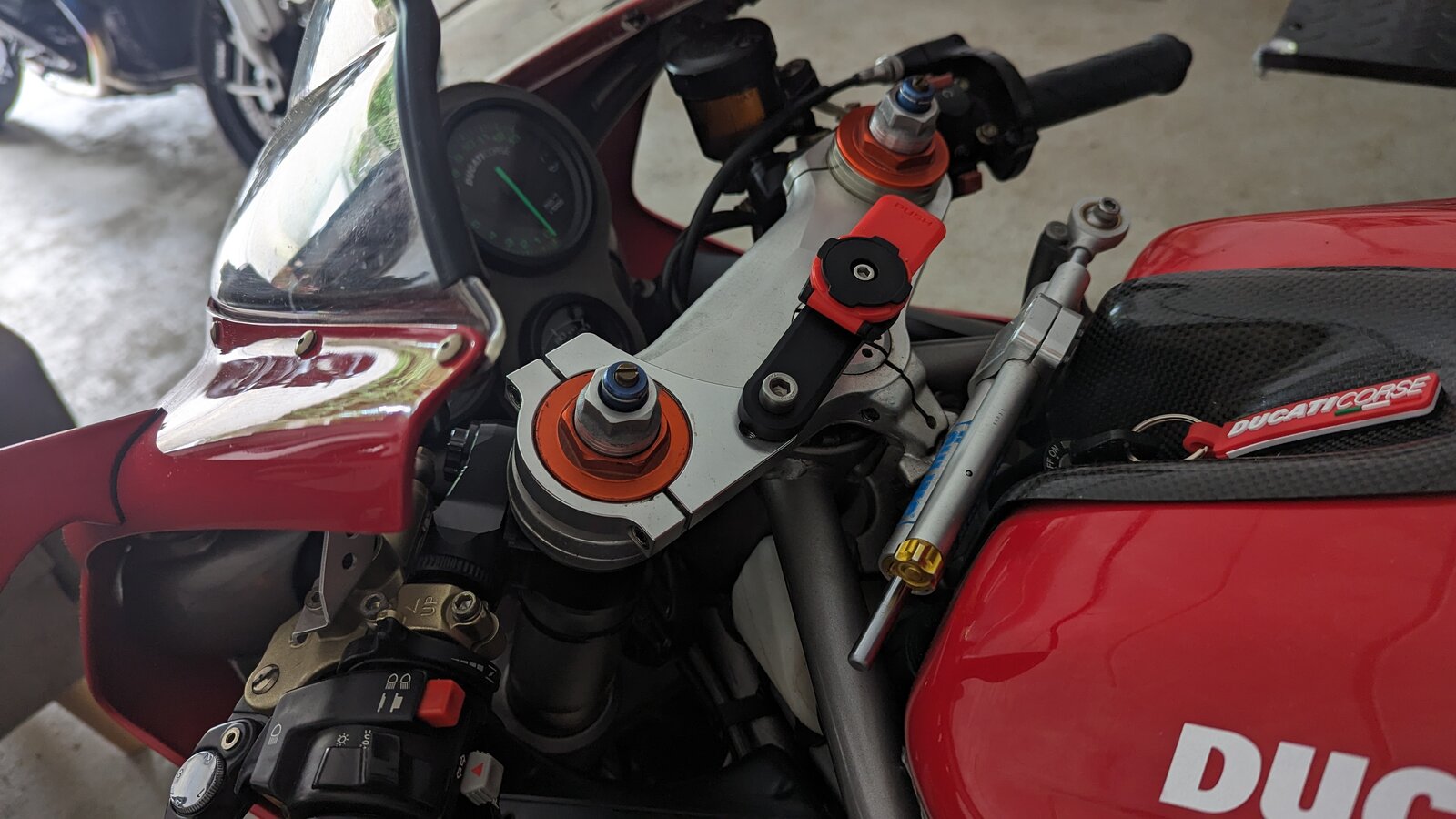

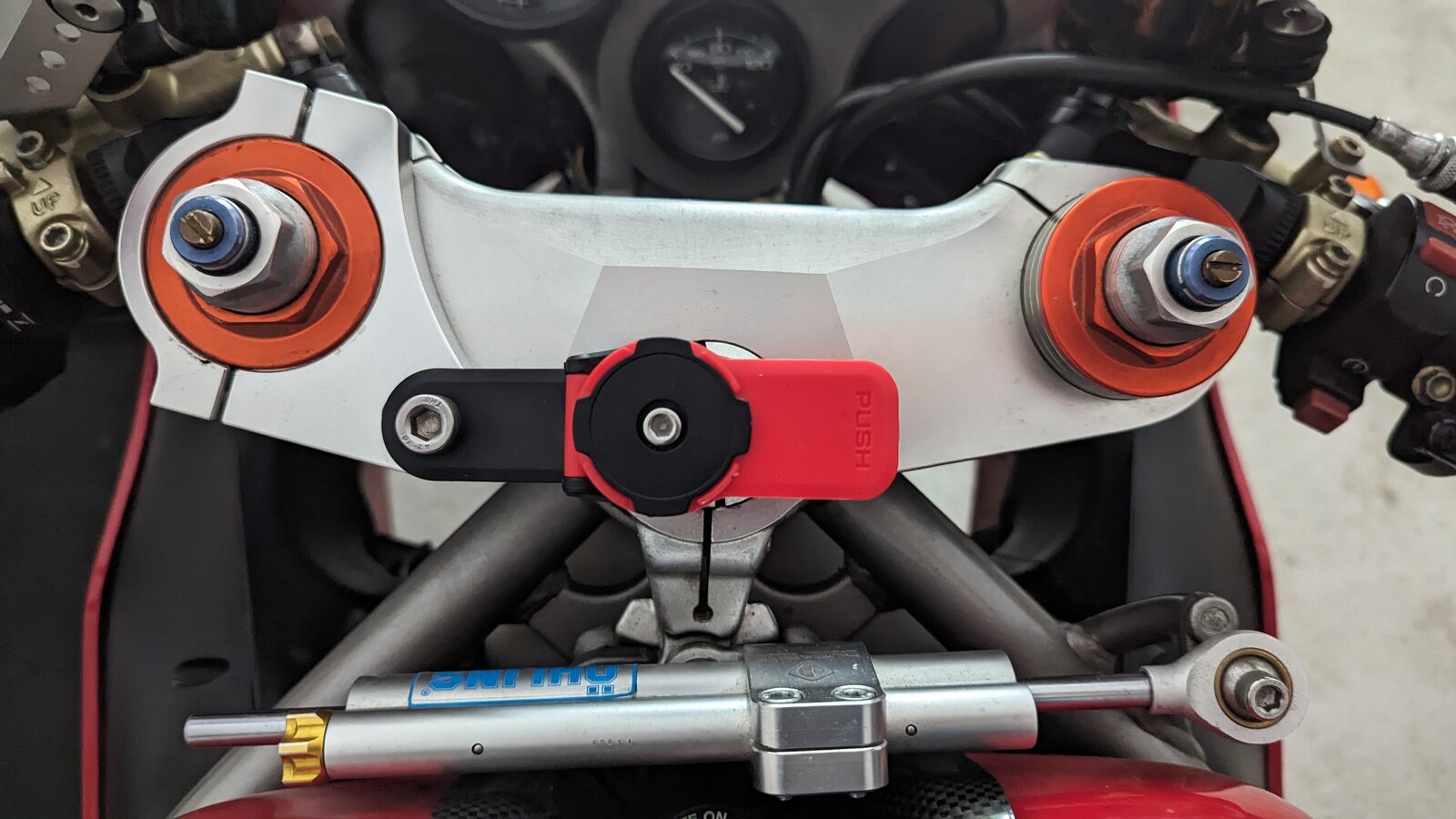

  4. 999/749

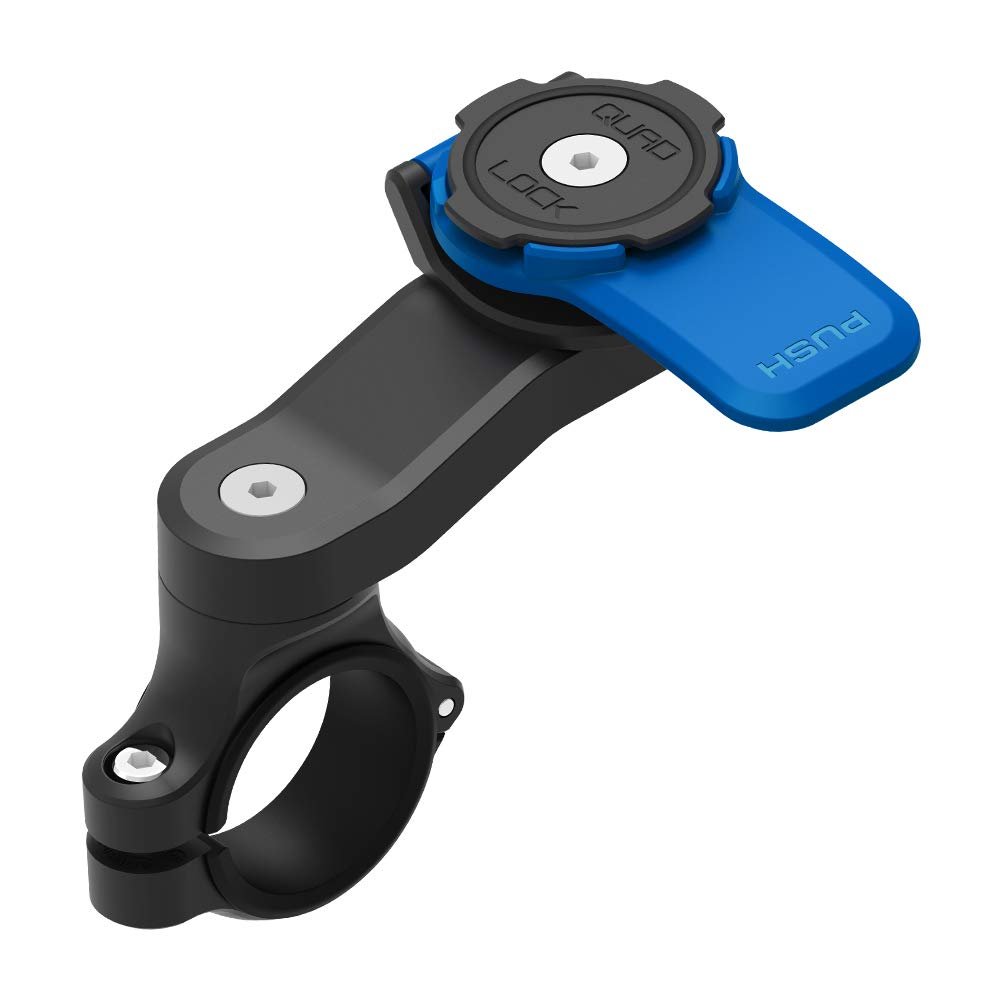

    Same Quadlock mount:

    Make sure you are all the way to the right on the damper to avoid any fouling.

  5. Anyone got one on a 748/916/996/998 ?

    • Agree Agree x 1
  6. Give me a couple of weeks and I will! Got to pick up a 996 in storage!

    • Like Like x 2
  7. I need some cheap long term storage soon if you have a recommendation?

  8. Sure, I've had a shipping container rented from blueselfstorage for the last year and a half....£150 for the month...holds a car plus two motorbikes. No idea if near you, but they are a good 100% secure solution. (Site has loads of cameras etc..)

    • Like Like x 1
    • Like Like x 3

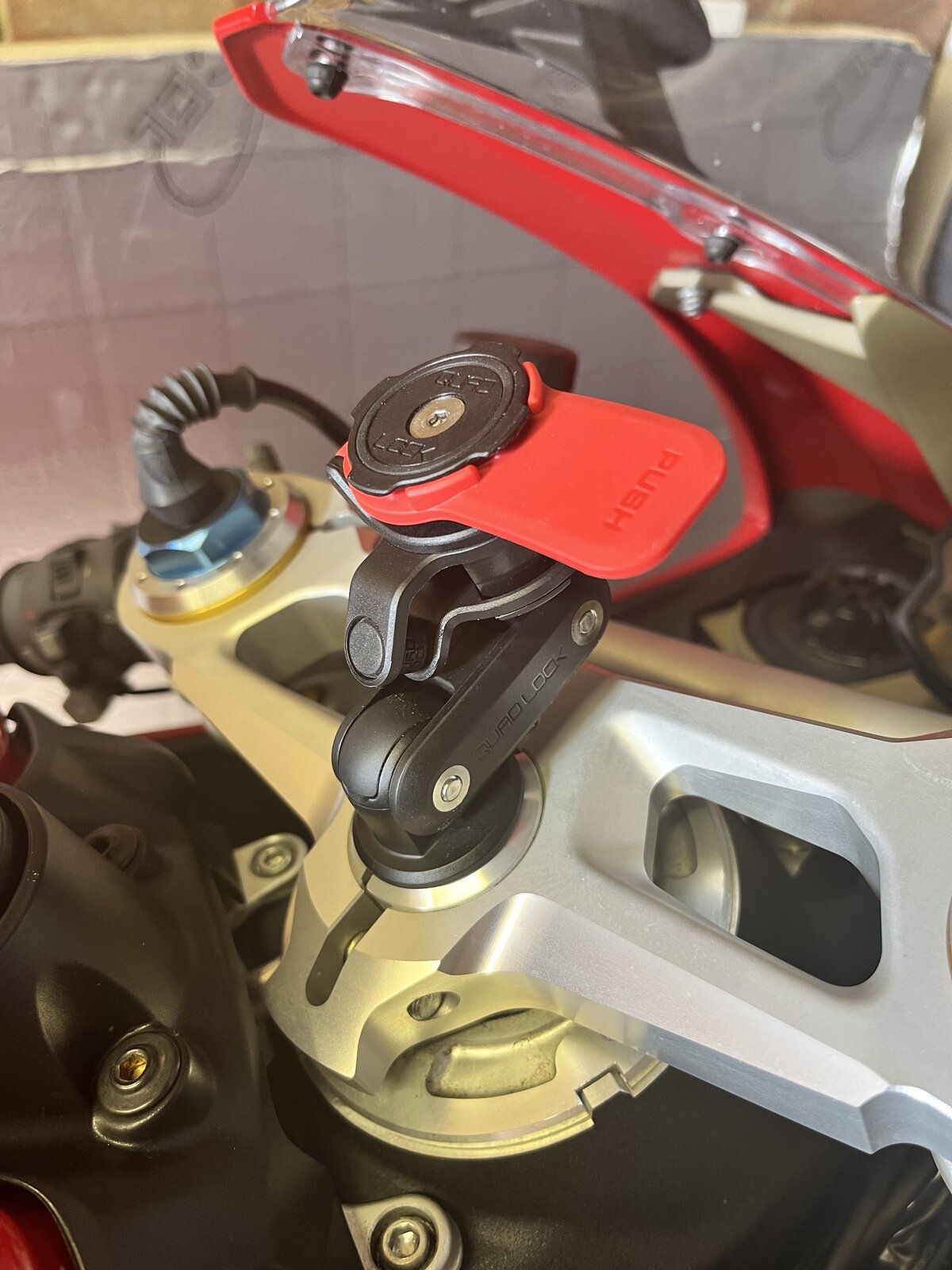

  9. Panigale 1299s > Here’s my Quad Location with the anti-vibration adapter. It is worthy to note that Quadlocks don't fit the Panigale stem and therefore they don't show as a compatible bike. A simple 3D (£10) printed tube is available on eBay which makes the mount compatible. IMG_0141.jpeg

    #10 V2FAN, Aug 6, 2023
    Last edited: Aug 6, 2023
    • Like Like x 1

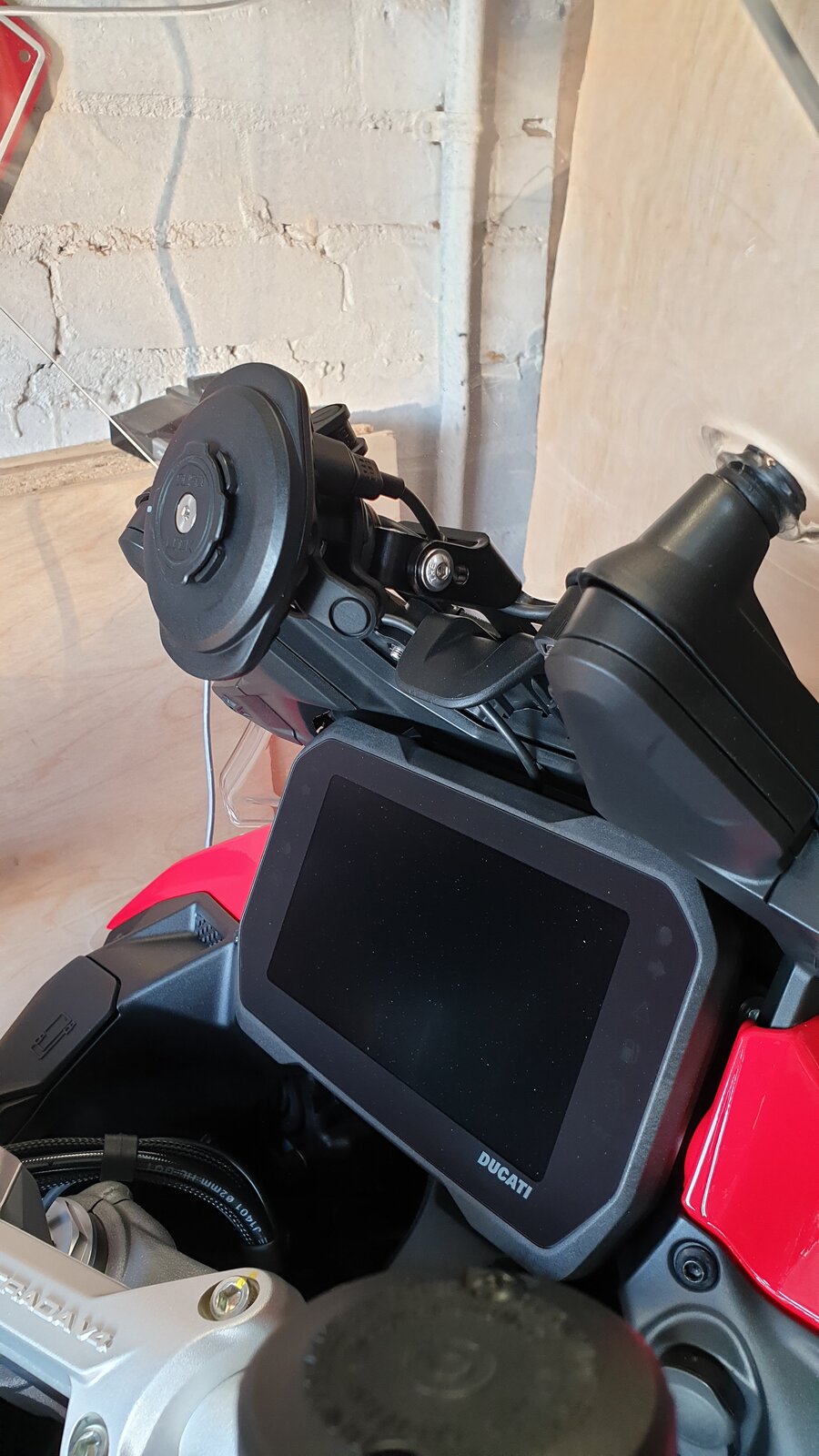

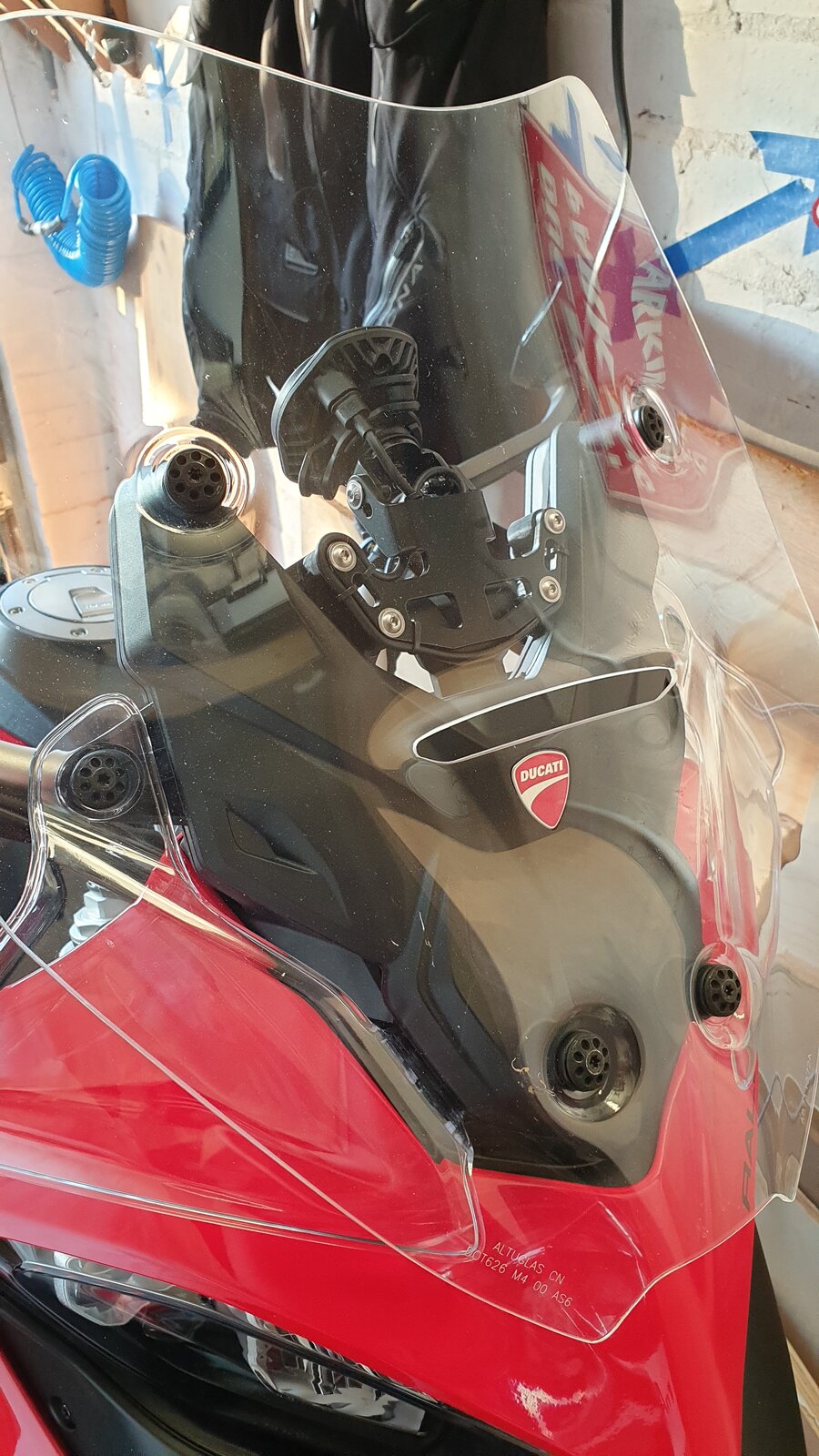

  10. I've got the Iconic Parts bracket mounted to the screen, so it raises with the screen. Wiring soldered to the sat nav connector blank leads, and set to "on", as the connector is switchable with ignition. Well pleased with it. Enough clearance for the windscreen hand adjustment. Using the phone in landscape, as it's the matching the main display.




    • Like Like x 1
  11. 01 SS

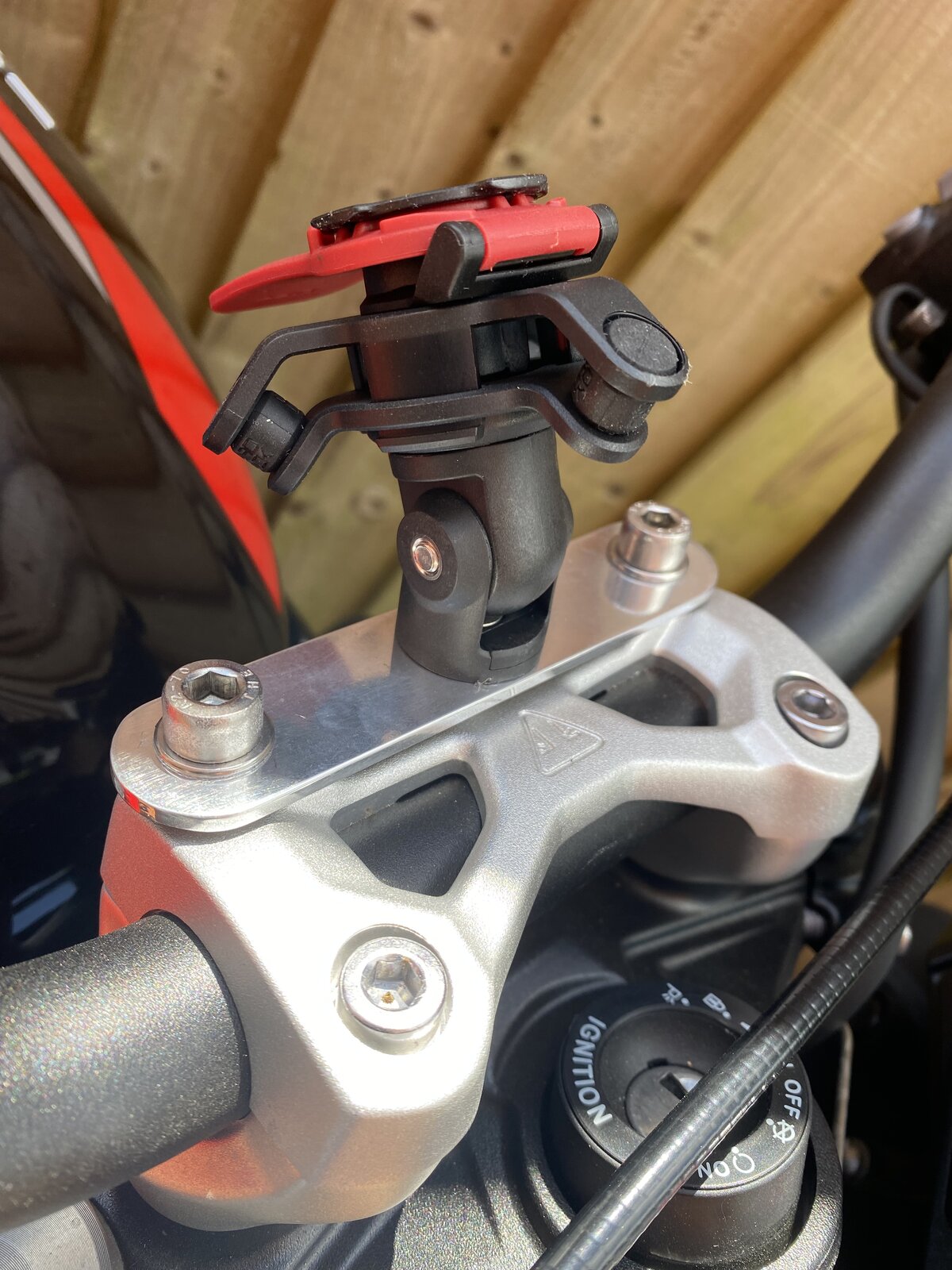

    21 Street Triple


    On the SS I have never used a vibration dampener and suffered no damage to the phone’s optics. My theory about vibration damage is that the closer the phone is mounted to the center of the top yoke the better. Mounting anything on a stalk off of the bars is chancing your luck as the stalk will amplify the vibes. With max power being delivered at only 7,500 rpm is also in the SS’s favour.

    No need for the charging pancake on the Street Triple as the bike has a USB port as standard.

    #13 Billywiztheelder, Aug 8, 2023
    Last edited: Aug 8, 2023
    • Like Like x 1

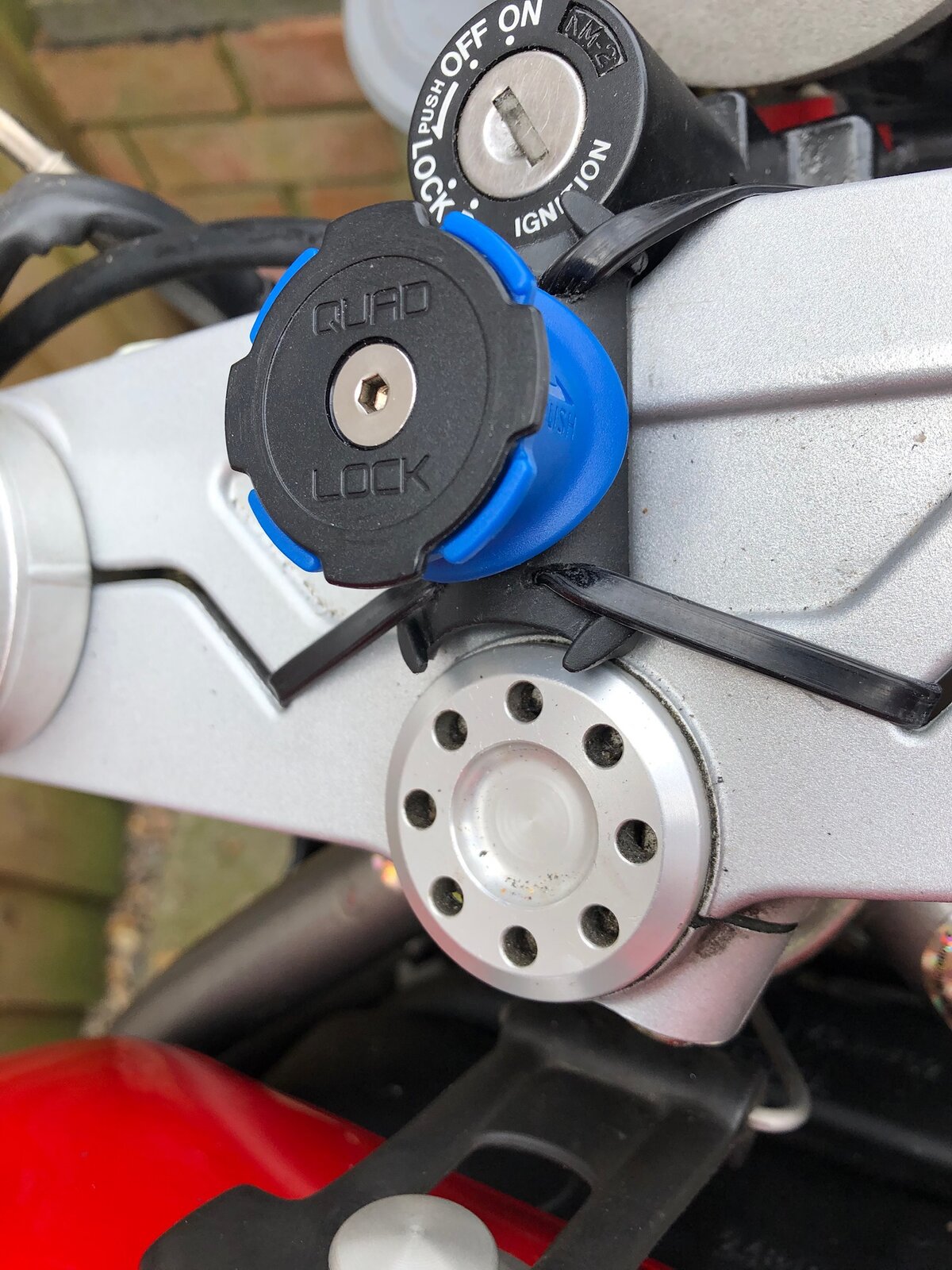

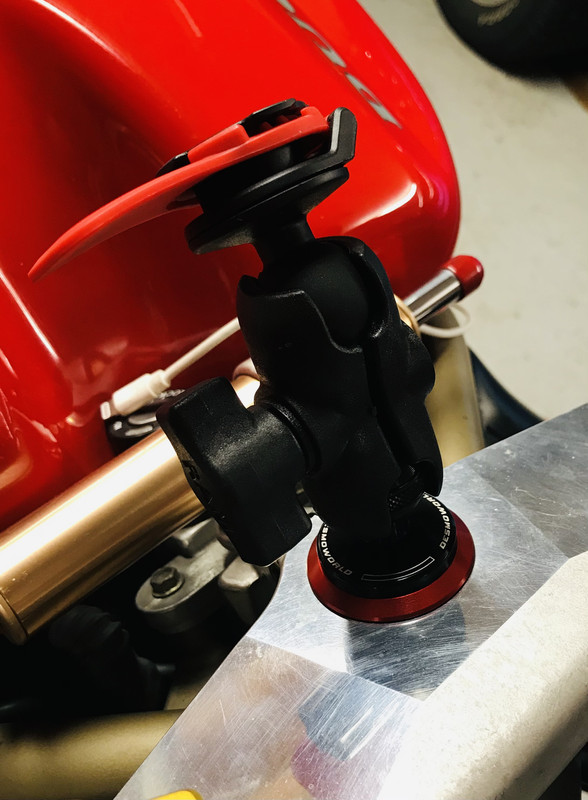

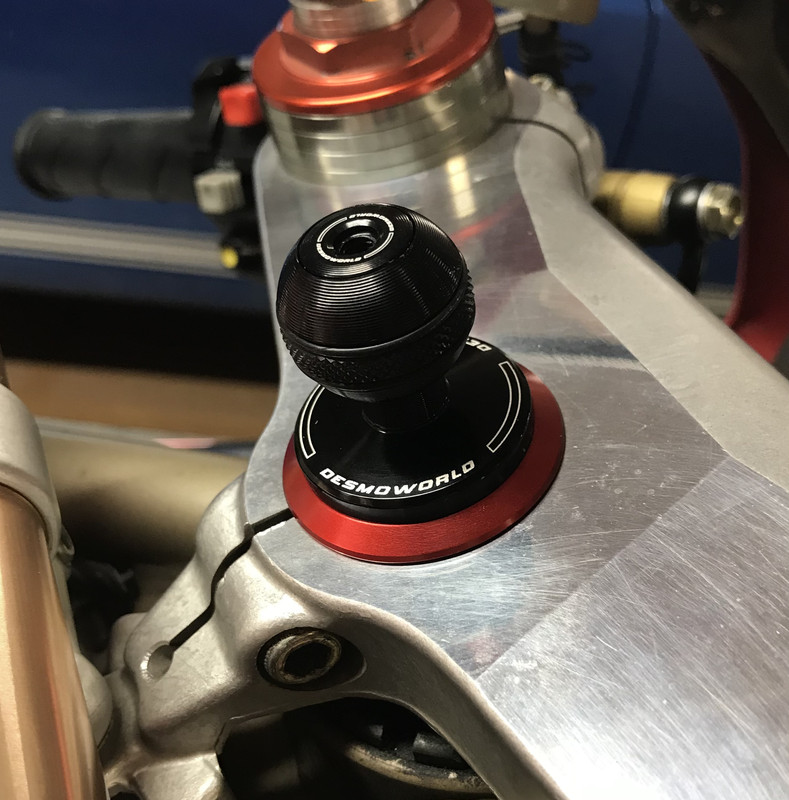

  12. 916/996/998.

    F1DDFF48-BE85-4ADC-931F-295FFD459276.jpeg D9E0D136-AC72-4595-B2B1-7C97CB16A681.jpeg B815C789-0AFB-4480-801E-3D7D1A79A257.jpeg C8937C32-35E3-4A5A-B9EC-38F8A9B5E337.jpeg

    • Like Like x 3
  13. Anyone got one on an 848?

  14. Mine fits the 1098, 748 and MV
    Bought the quadlock car vent fitment trimmed the hook down. Used a trimmed down rubber from a walking stick as a spacer and quadlock vibration damper on the top

    • Like Like x 2

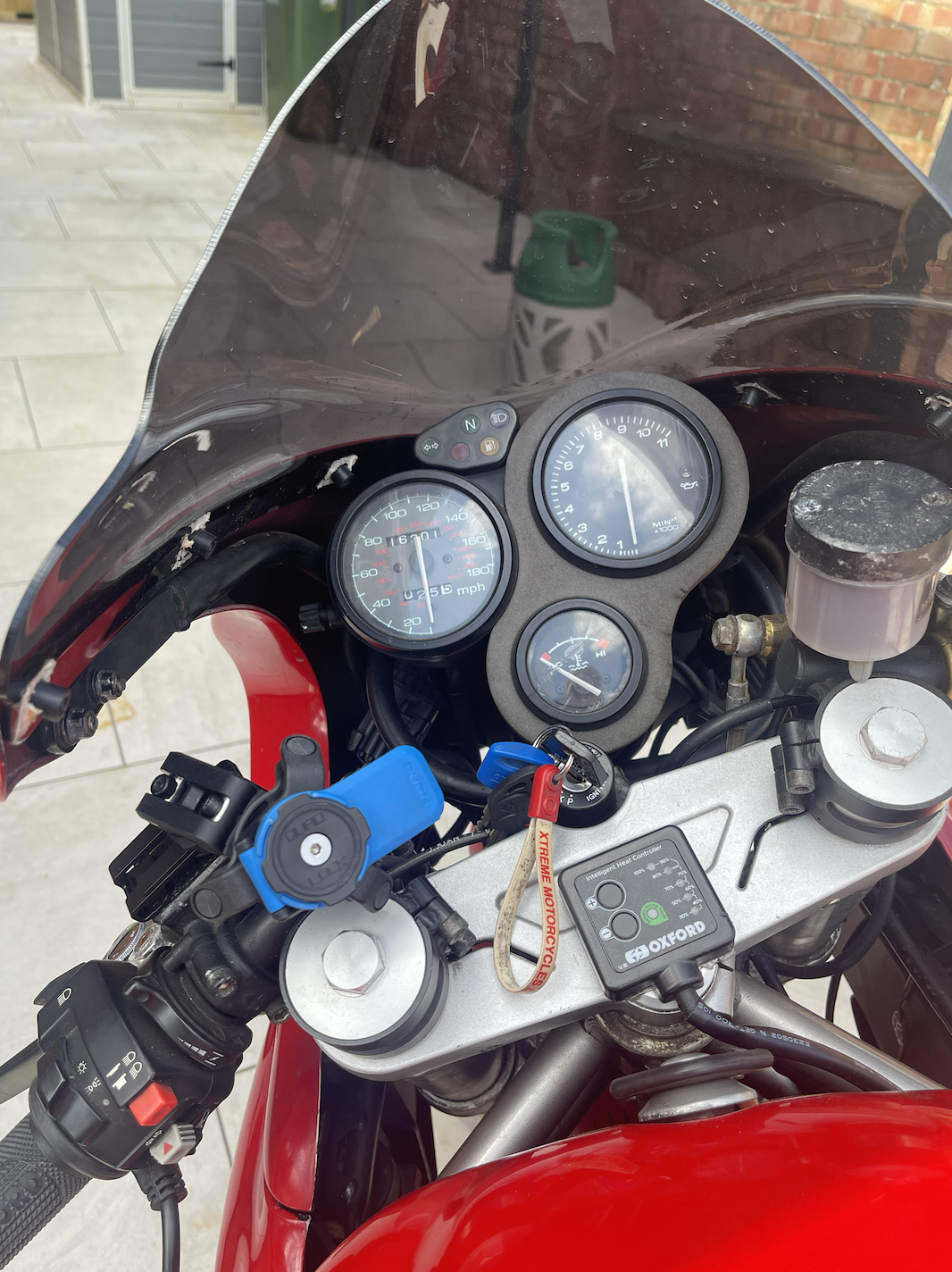

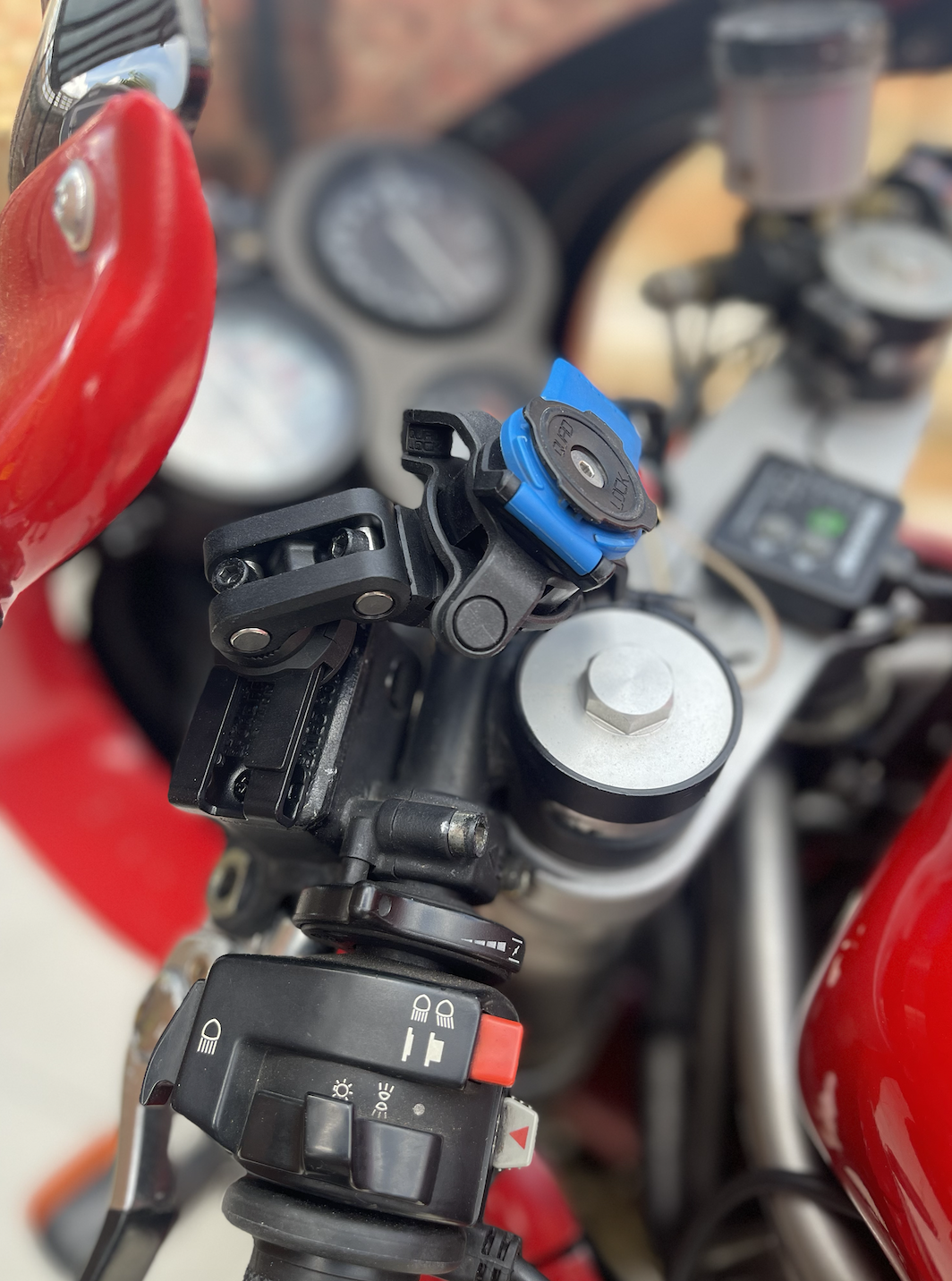

  15. Screenshot 2024-05-04 at 18.05.01.png Screenshot 2024-05-04 at 18.05.16.png Screenshot 2024-05-04 at 18.05.30.png

    • Like Like x 1
