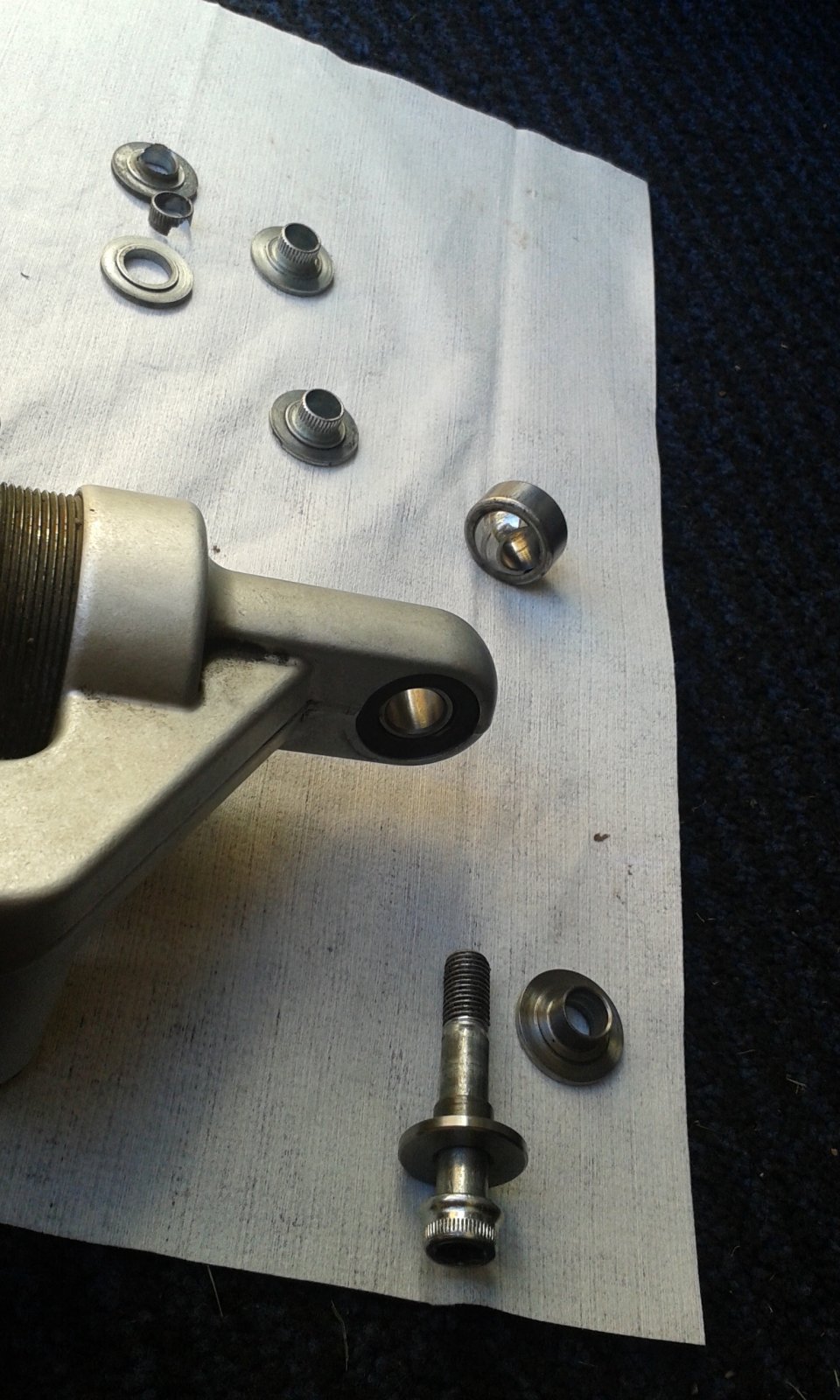

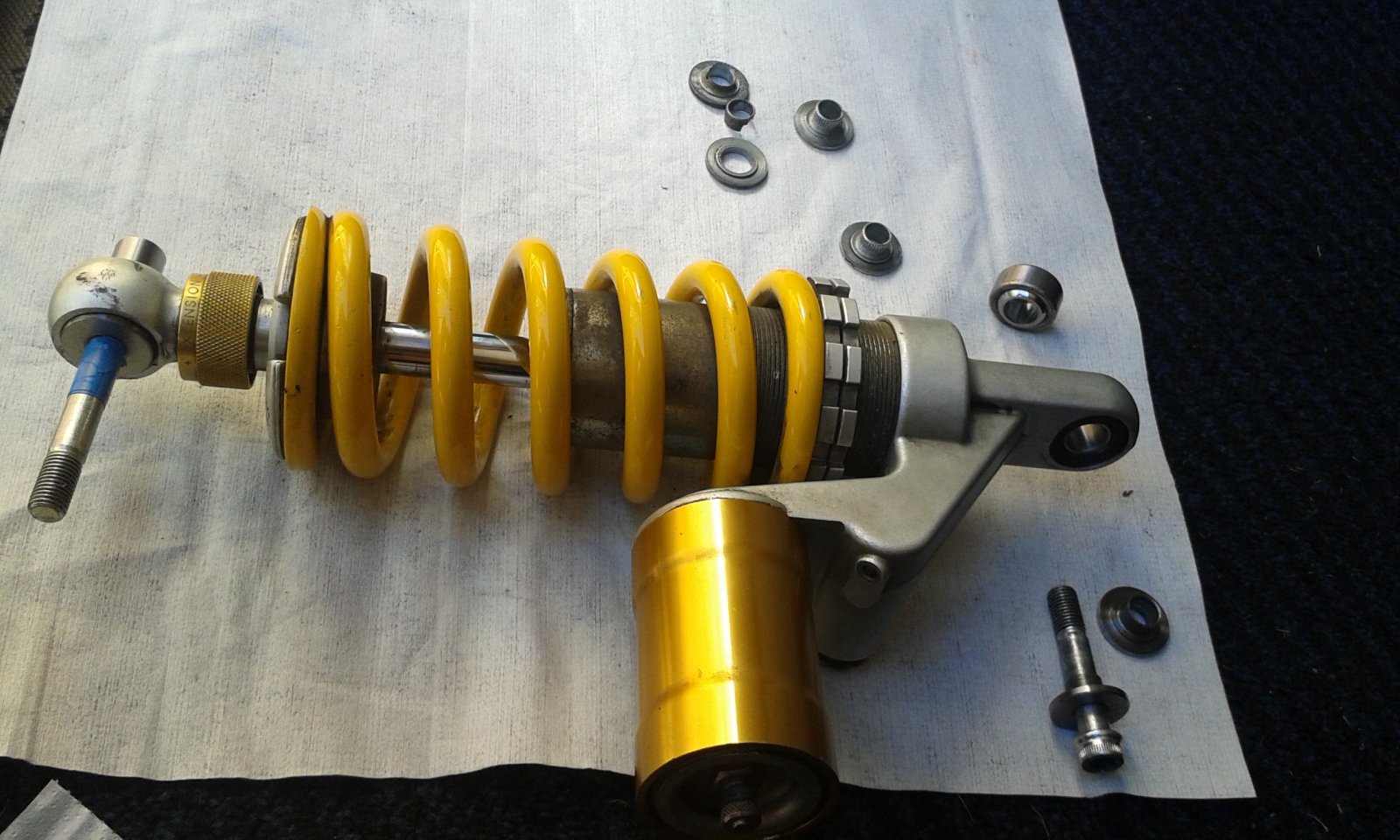

Hi Guys, I had a problem with the standard rear shock on my S4r Monster, it had excessive play in the top mount causing a massive amount of play at the axle - 10-15mm of movement, I have replaced all the top hat bushes, needle rollers & bolts to no avail, the shock is not rebuildable (but is replaceable £££) so I took it to a mate of mine who does a lot of lathe/milling work (from home) to see if he could do anything with it, turns out it was the spherical bearing that needed replacing ( with a high quality German bearing) and the top & bottom bolts are different diameters??? One is 9.7mm the other is 9.8mm so he fabricated bespoke top hat bushes (from stainless) with a H7 tolerance for a perfect fit - the result is spot on, everything fits perfectly and no play at the axle whatsoever. Check out the photos.
Meant to say in my first post this service is available to anyone - just get in touch with Big Al at AJW solutions engineering ltd, tell him Mark sent you, £90 for both ends of the shock done better than new!
