1200 Rear Sprocket Nut Size

Discussion in 'Multistrada' started by psalliss, Jun 1, 2015.

  1. Can anyone advise what size the nuts are on the rear sprocket?

    Thanks

    Phil

  2. 55mm.
    You'll need a 3\4 drive if it stuck.
    See my last post on it for details... Search" stuck"

    If you can get to Heathrow I can loosen for you then retorque.

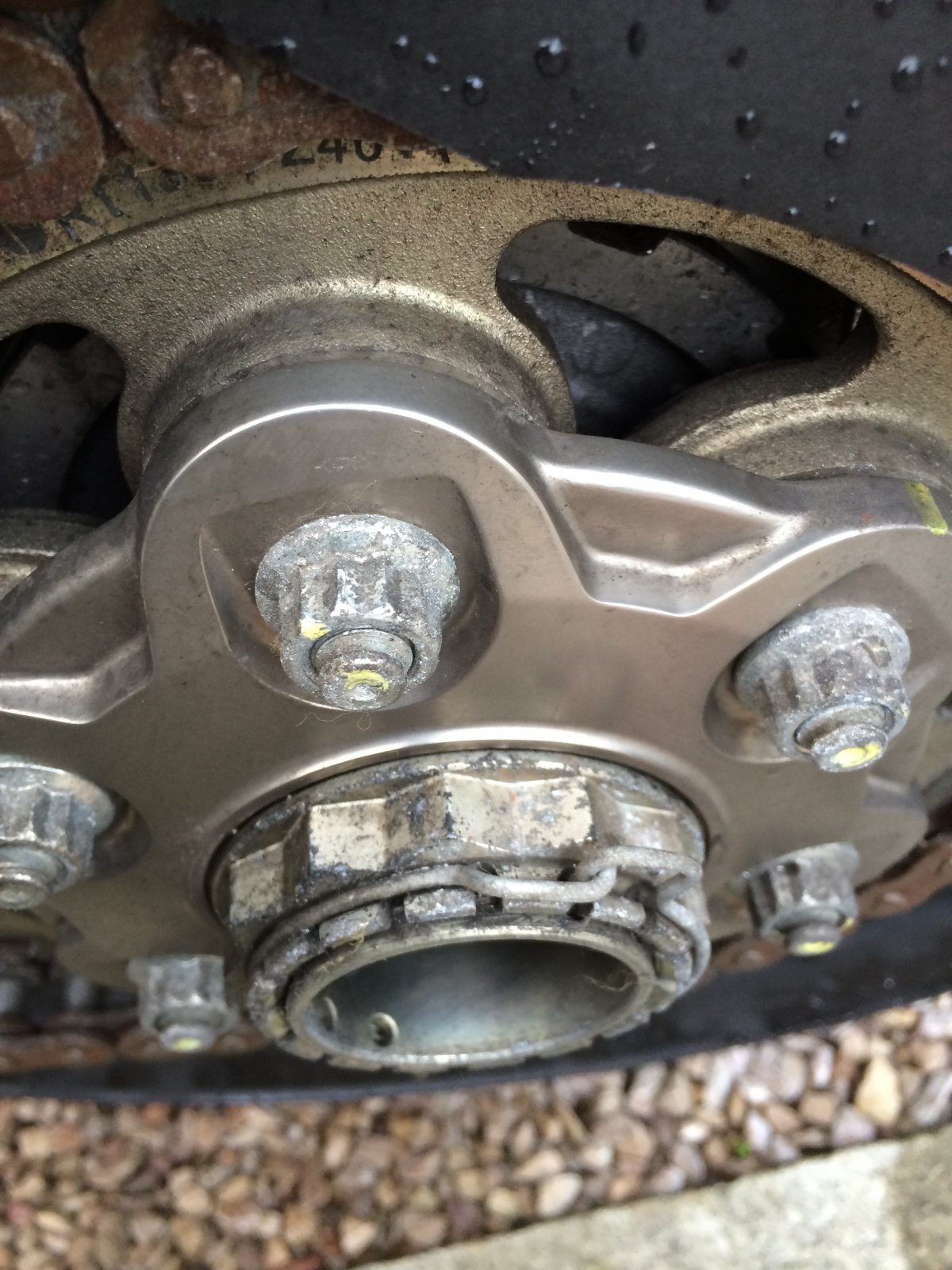

  3. Thanks it's not the wheel nut it's the ones on the sprocket. They've corroded so planning on taking them off and the wheel nuts and getting zinc coated or similar.


  4. I think they're M10 x 1.25mm

    • Disagree Disagree x 1
  5. Nuts are super fine pitch
    74810461A NUT, FLANGE M10X1. I would suggest stainless or Ti equivalent.

    • Useful Useful x 1
  6. Air con. Ha thought I was being thick. I couldn't understand what you were getting at.

    Does m10 mean they are 10mm and require a 10mm bi-hex socket to remove.?

  7. No...it means they are 10mm diameter thread, so thats a 14mm 12 point socket...make sure it's a good fit.

  8. #9 psalliss, Jun 1, 2015
    Last edited: Jun 1, 2015
  9. I'm not sure but I think these are the fine pitch of 1mm not 1.25mm please can someone else confirm?

  10. Yes , they are M10x1

    • Useful Useful x 1
  11. Well that'll teach me for guessing - instead of looking in the manual! Doh!

  12. Dude, your chain looks like the Gobi Desert!

  13. lend him some of your 'special' labs Dave.

    #14 Drinky, Jun 2, 2015
    Last edited: Jun 2, 2015
  14. Good job I know how your brain works eh Glen? you were obviously getting so excited at the thought of my special lube that you got sticky typing fingers :)

  15. Royalwkthcream tell me about it had loads of issues with corrosion on the bike. The bike is awesom but corrosion and associated breakdowns have spoilt it really.

    So to make sure I'm clear I need m10x1 which is a 1mm fine thread?

  16. I fricking hate IPads.

  17. Tell me about it. There does t seem to be that much choice. Wondering if it would be cheaper seeing how much it would cost to get them plated locally
