1200 DVT Satnav Power Source

Have at a look a the video @Dr Mark posted a while ago https://www.ducatiforum.co.uk/threads/satnav-advice.33486/page-9#post-740005



I ended up going straight to the battery on mine, didn't want to take the nose off.

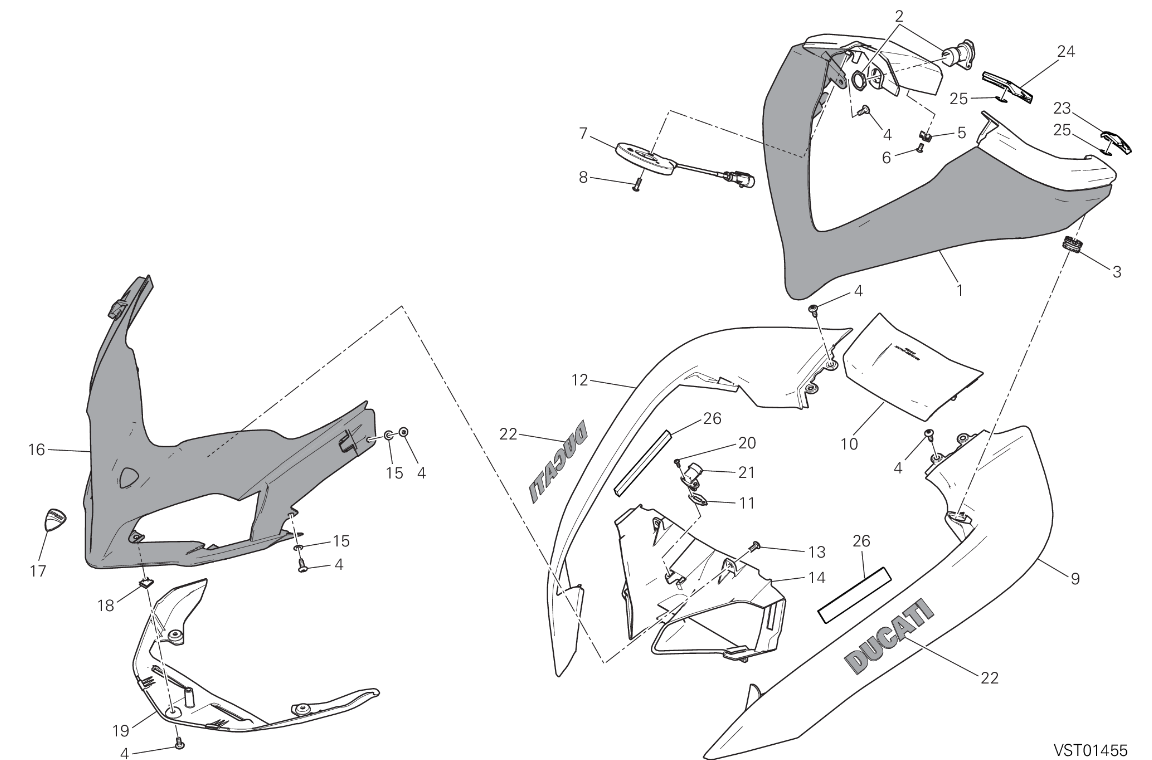

You don't need to take the nose off! Just central cover at the front of the tank [item 10] and the left hand cover [item 9]:



Hi Steve, I had the left HD fairing side off and the black cover at the top, couldn't see it. I didn't take the surround off to the ignition keys, is it there, cant remember seeing it when I swopped the plastic item out for carbon ?
1199 Panegali



This help?

https://www.ducatiforum.co.uk/threads/power-for-sat-nav-usb-etc-connector-found-hidden-jem.35804/

I believe the power is on picture 3 and the white snap connector that has a bit of extra wire attached then heat shrinked



Thanks, I'll take the cover off and have another go



It’s a bit fiddly to find but it’s there. Biggest issue I had was hiding he satnav transformer; ended up tucking it next to the Bluetooth unit

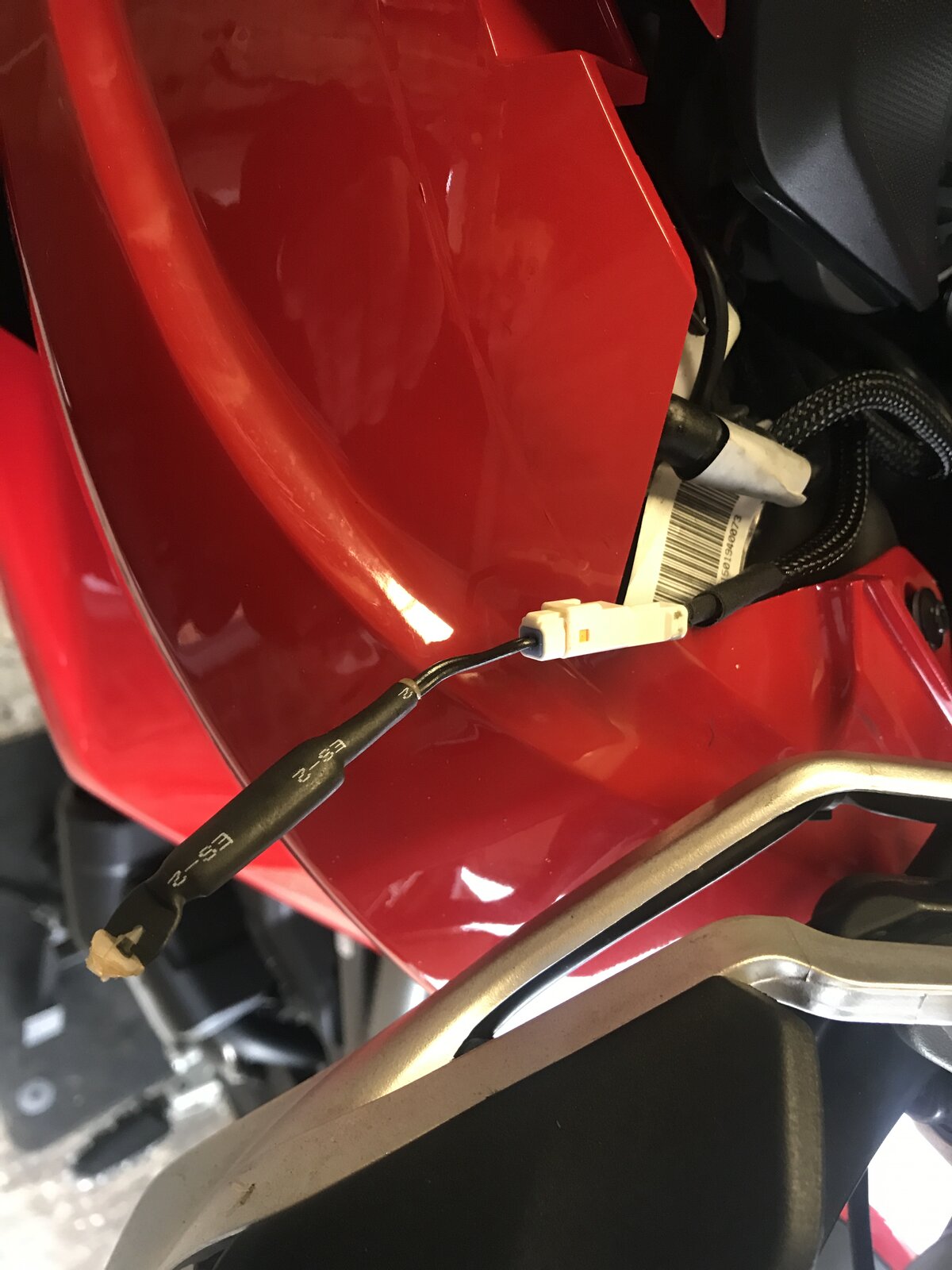

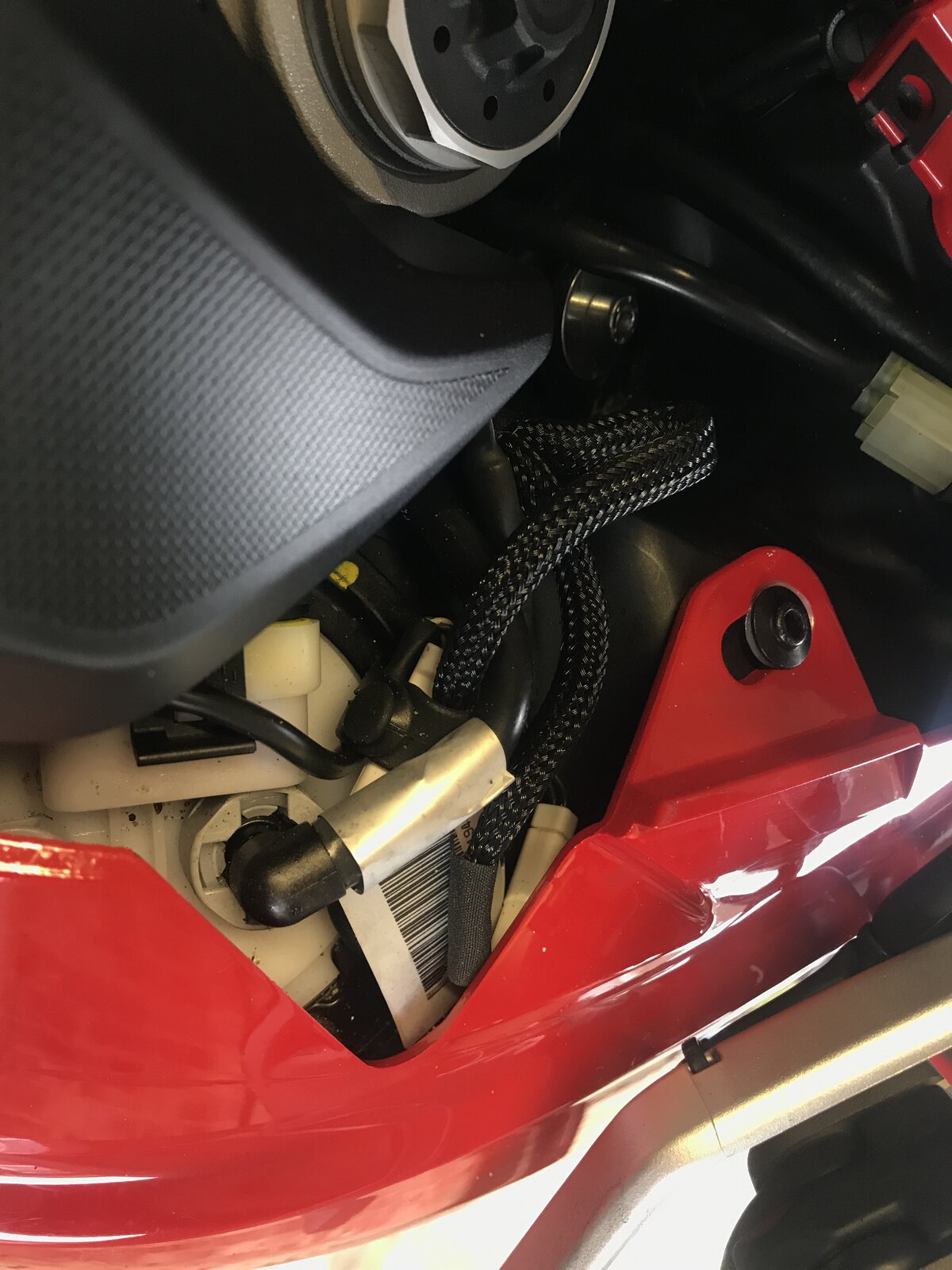

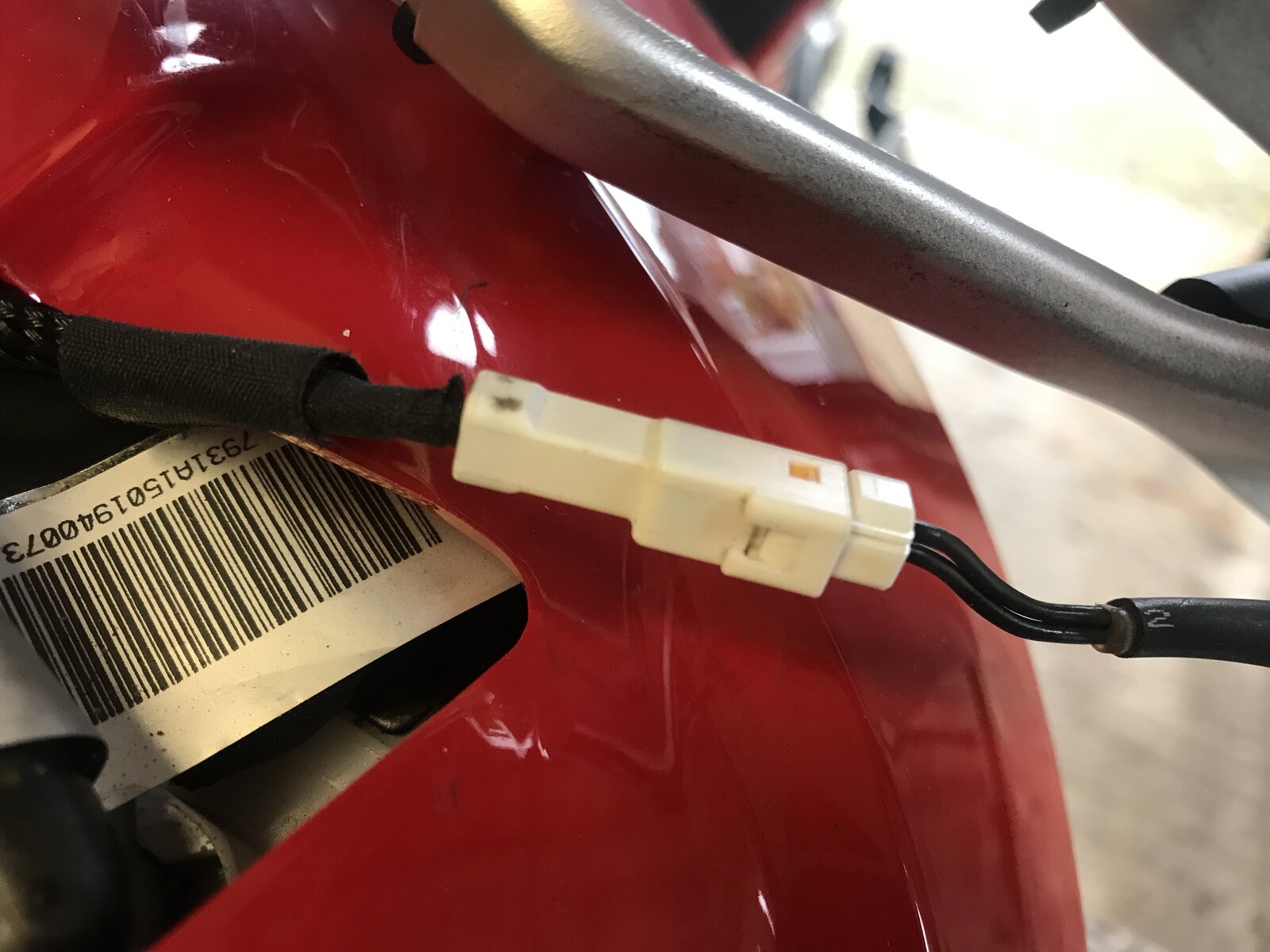

Here are a couple of pics to show where mine was located.



Hope that helps.



Mr Steve 123 is totally correct. In fact it's improved even further on the newer models, in that the connector is one of the waterproof types, simply 'plug & play'.



I bought the connector, just need to find the plug lol
