Tank Ring Grub Screws

Discussion in 'Supersport (1974-2007)' started by Jon Seddon, Oct 12, 2015.

Page 1 of 2
  1. Hi, anybody know what size the grub screws are that hold the tank ring to the tank, what length are they, M4? And are they cone or cup etc,?

    Thanks in advance

    Jon

    #1 Jon Seddon, Oct 12, 2015

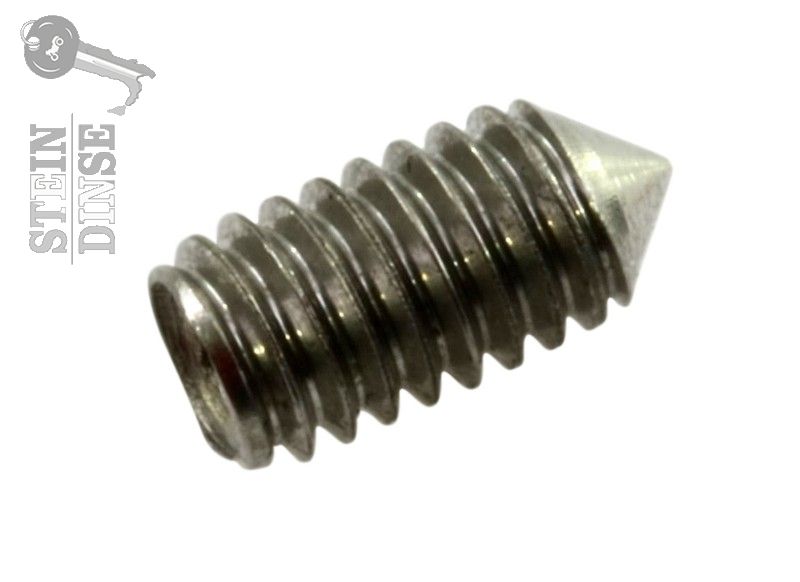

  2. this little thing 77950071a.jpg
    0.80 euro on stein dinse

    #2 johnboy, Oct 12, 2015
  3. #3 Exige, Oct 12, 2015
  4. #4 Jon Seddon, Oct 13, 2015
  5. Thanks, but does anyone know the actual size and type of grub screw

    #5 Jon Seddon, Oct 13, 2015
  6. It will cost you 0.44 euro or 0.80 euro to find out ;)
    Someone might have one lying about but the 0.80 euro one had a drawing showing the type :)

    #6 Exige, Oct 13, 2015
  7. Ta

    #7 Jon Seddon, Oct 13, 2015
  8. It costs c£15 for the pleasure, low order cost £5, postage £10

    #8 Jon Seddon, Oct 13, 2015
  9. Unless a Forum member can get one for you and post it, we have many Euro members.
    Mind you, someone will have a tank kicking about to check, but keep bumping the post as they may not see it :upyeah:

    #9 Exige, Oct 13, 2015
  10. I think it's m4 and a cone grub screw (not certain), just don't know the length. You could buy 100 for that price.

    Jon

    #10 Jon Seddon, Oct 13, 2015
  11. If the picture above is one (which I think it is) then it is a cone, if M4 then scaling the photo it looks like a thread length of 8mm and 10mm with the cone. Not sure if you would measure the overall length or just the thread when specifying though. So either 8mm or 10mm depending.

    #11 Exige, Oct 13, 2015
  12. I've just put the effers back but give me a minute and I'll take one out (if it snaps/rounds/falls in the tank mind, you're for it....)

    Mick..

    #12 Wonkier donkey, Oct 13, 2015
    • Funny Funny x 1
  13. M4, 8mm overall length, 6mm excluding the cone. Take a 2mm hex key. Make sure the ones you get have a deep recess for the key too.

    Ey thengyaw

    Mick..

    #13 Wonkier donkey, Oct 13, 2015
  14. :Writing: note to self, don't measure spurious photo's and scale from them ever again

    #14 Exige, Oct 13, 2015
  15. i'm getting déjà vu here..... Wotchit - that Elsie bloke'll skin you alive :Hilarious:

    #15 Chris, Oct 13, 2015
    • Funny Funny x 1
  16. Why not take one out and measure it?

    #16 Ghost Rider, Oct 13, 2015
  17. didnt have one to hand thought a picky would give a vague idea especially the type

    #17 johnboy, Oct 13, 2015
  18. I just did, man. Pay attention....;)

    Mick..

    #18 Wonkier donkey, Oct 13, 2015
  19. Oh OK, Sorry Sir........


    ..............I hope you get your zorsts to fit........;)

    #19 Ghost Rider, Oct 13, 2015
  20. You had to bloody remind me about that, eh....?!:Banhappy:

    #20 Wonkier donkey, Oct 13, 2015
