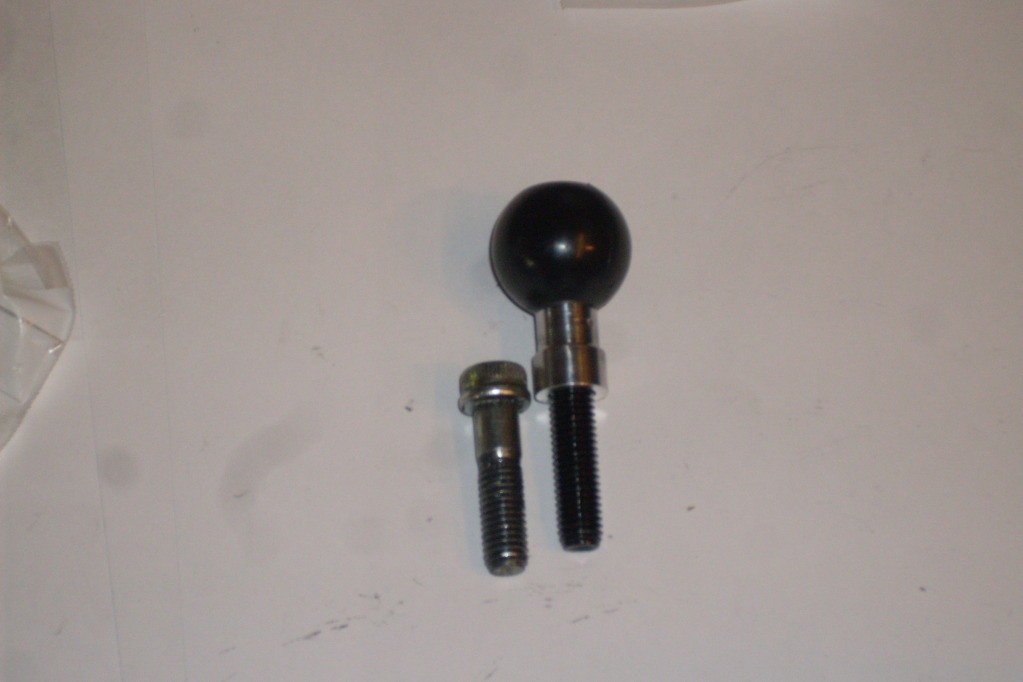

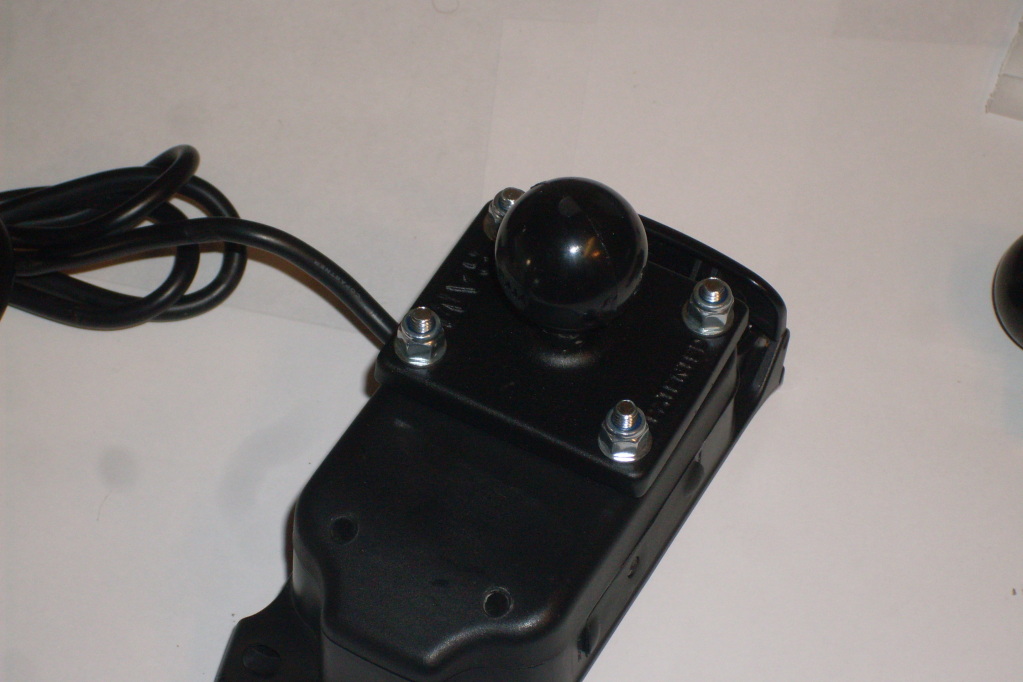

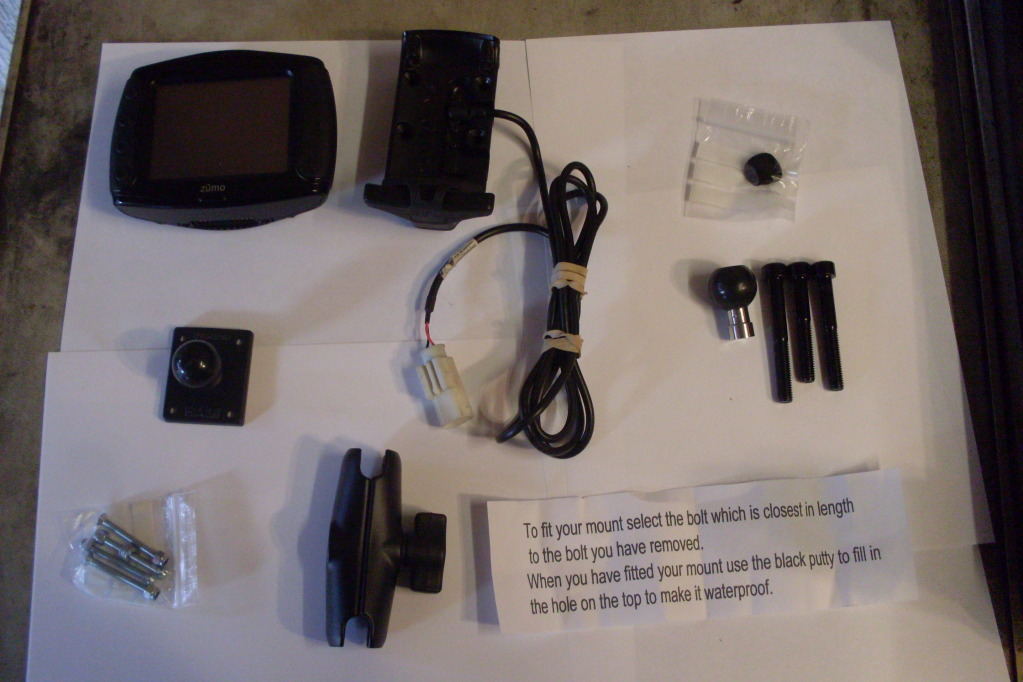

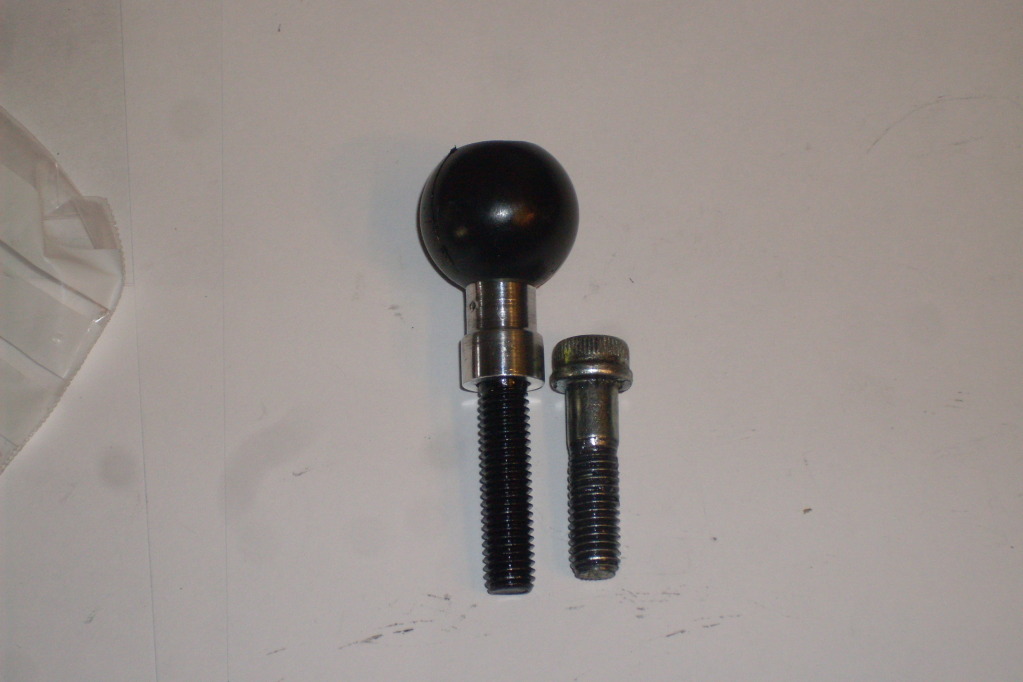

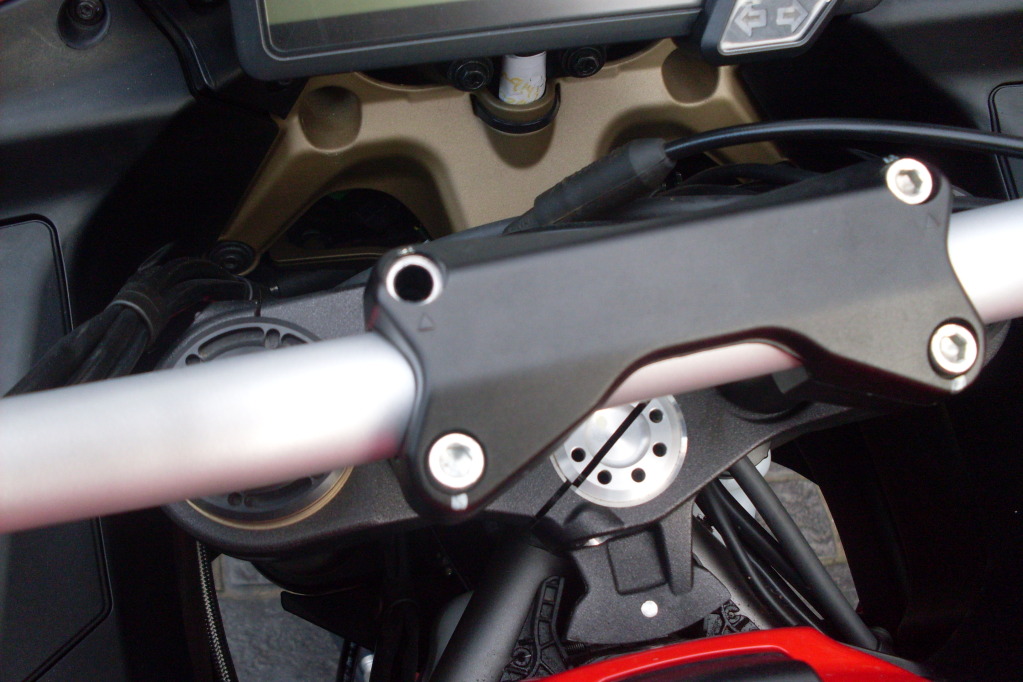

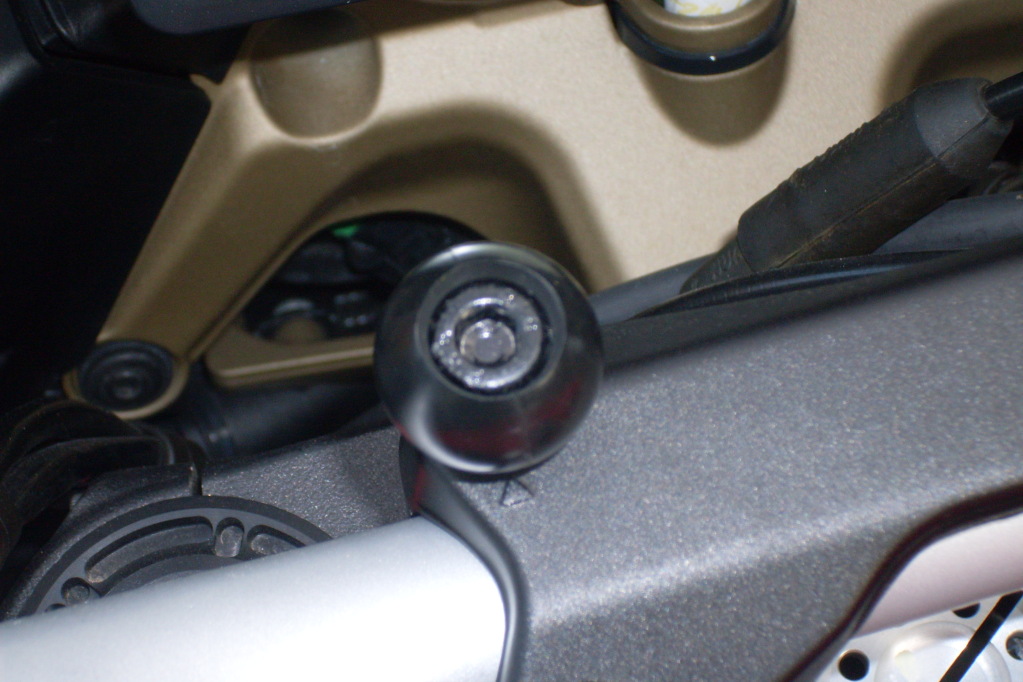

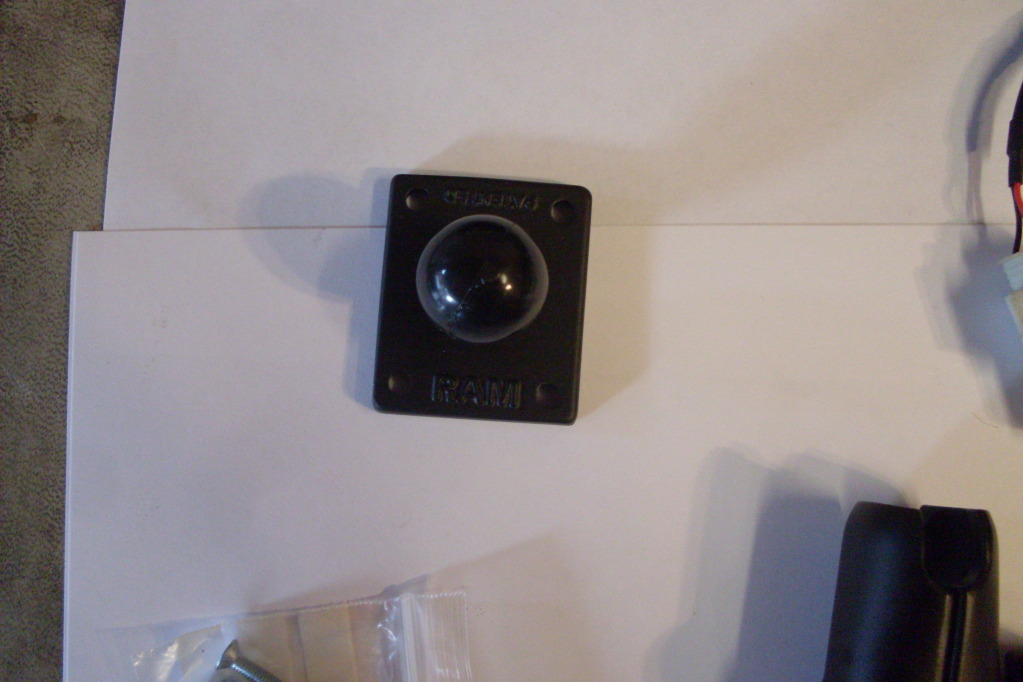

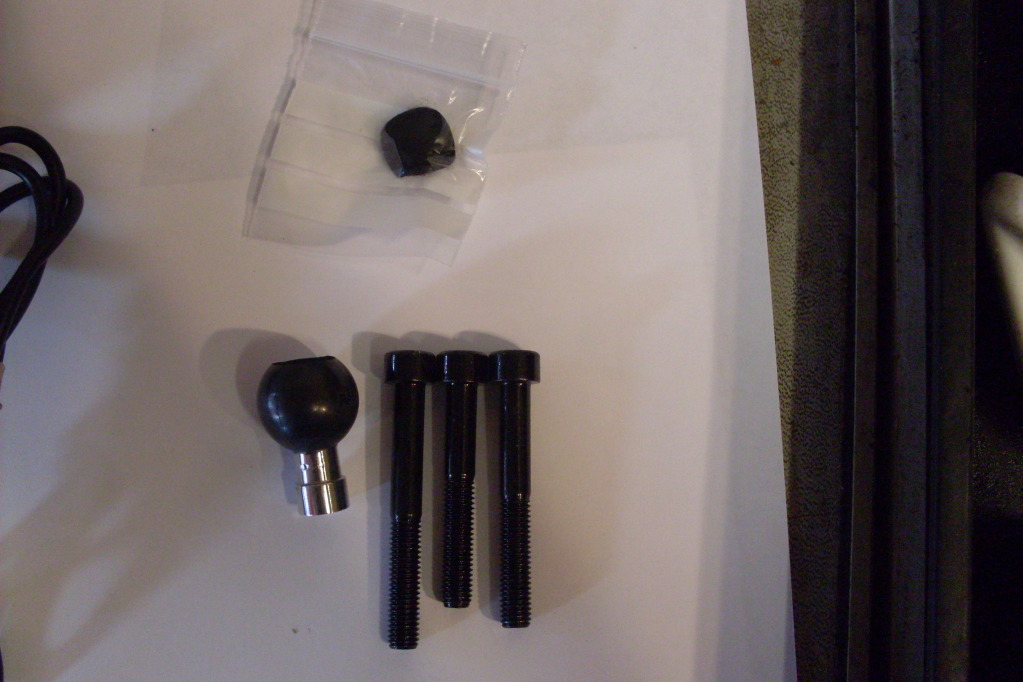

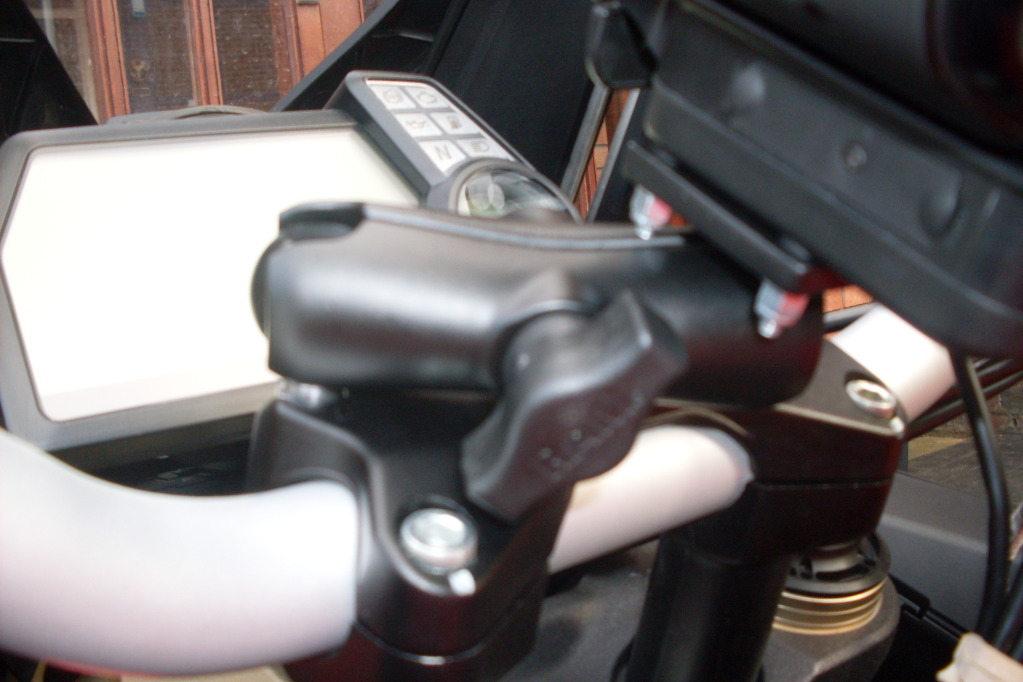

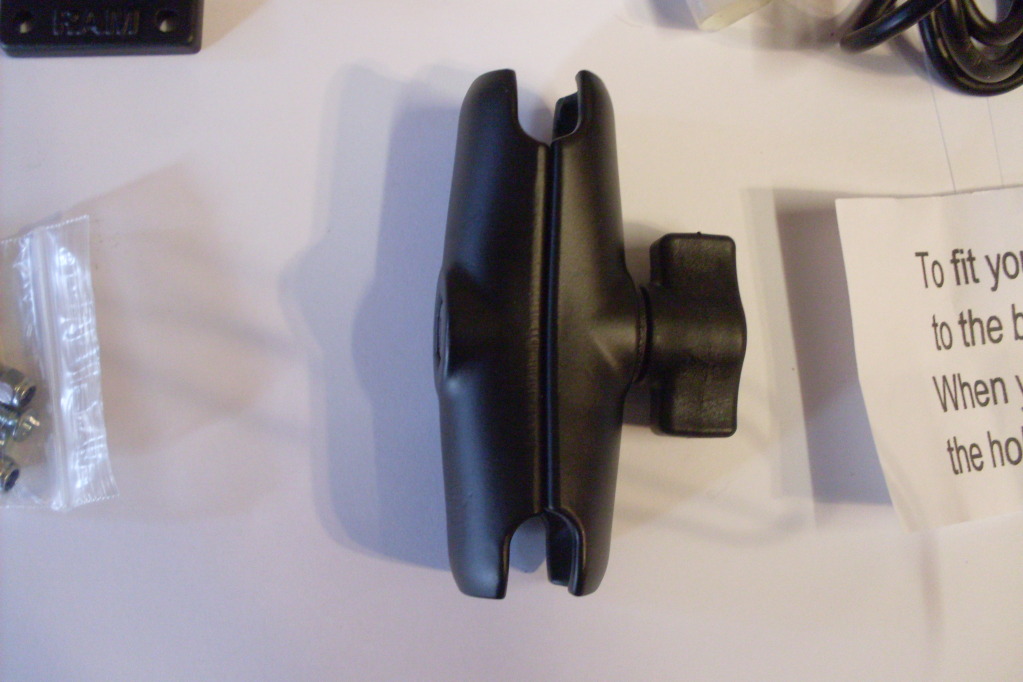

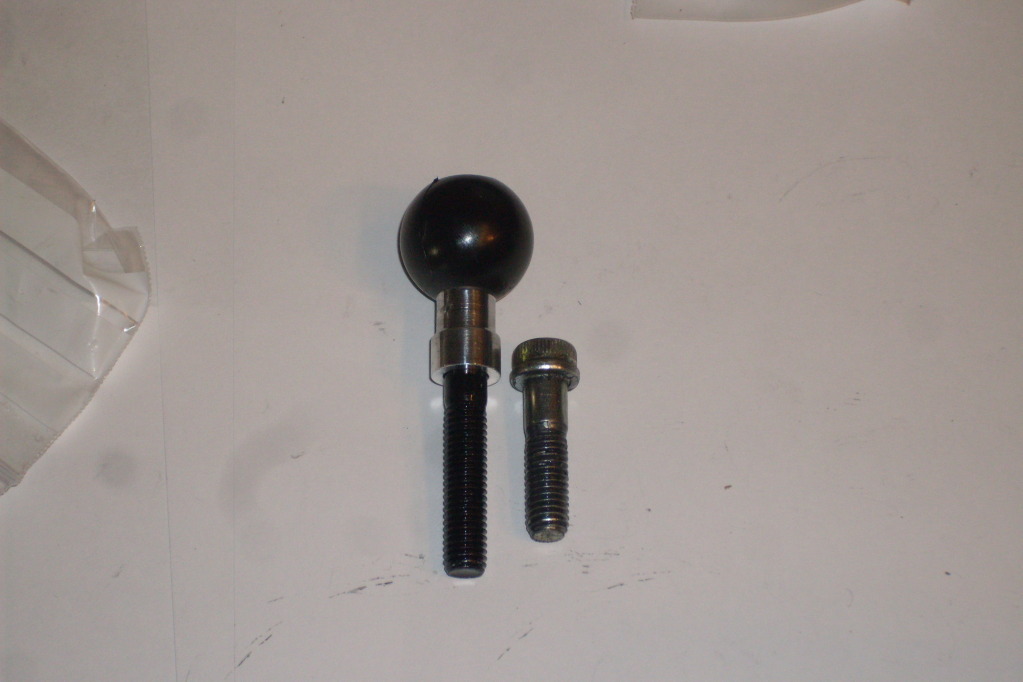

Ok So here we go like it or not! Having bought the Garmin 550 of evilbay, I needed a mount to stick it on me bike. The Garmin mounting cradle came with the sat nav so looking around I was recommended the telferizer kit. This consists of basically a handlebar mount, cradle back plate and mounting bar. This is what I had to play with. Mounting bracket Handlebar mount with three different sized bolts. cradle backplate So first thing was to mount the backplate to the cradle with the screws and nylock washers resulting in this Next stage is to select where to mount the handlebar ball mount. I chose top left and the middle sized of the three provided bolts which was perfect. The next step was to mount the handlebar ball thus followed by a test fitting,

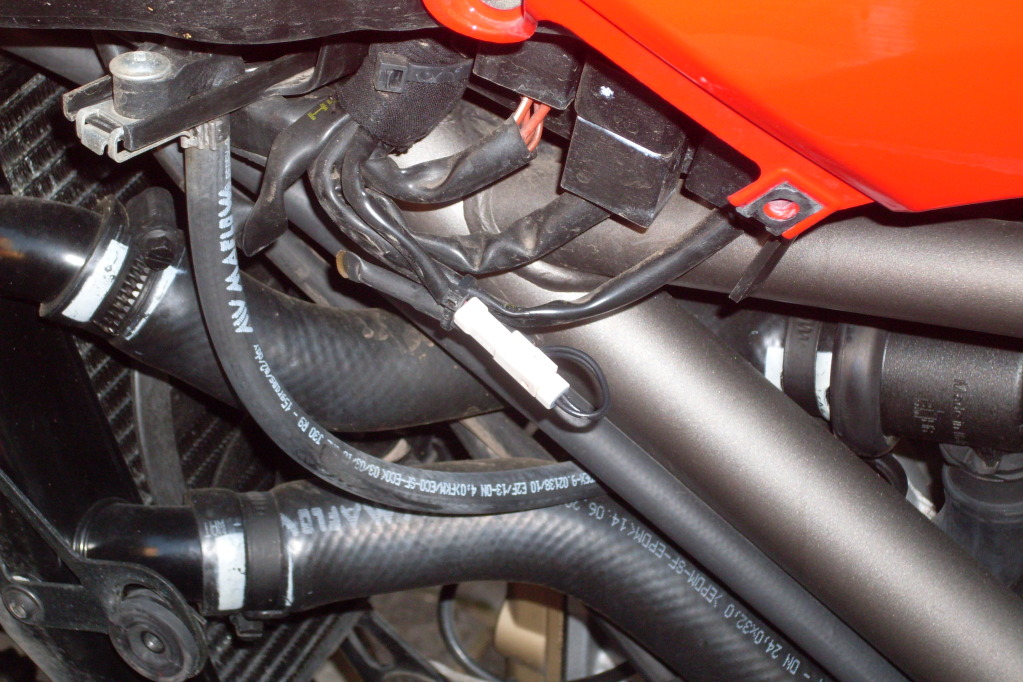

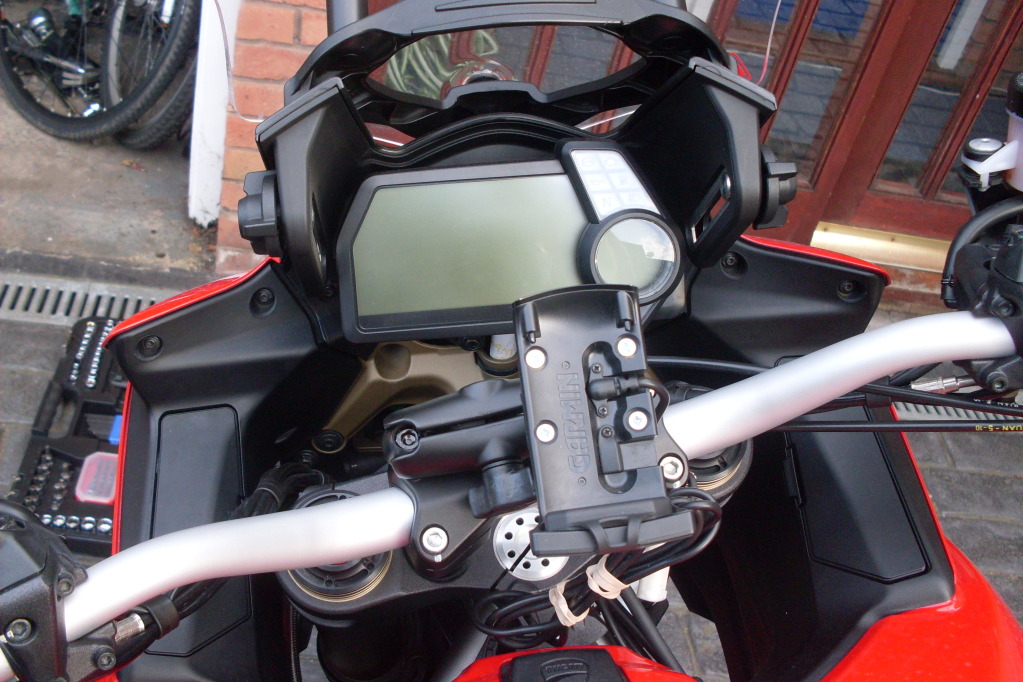

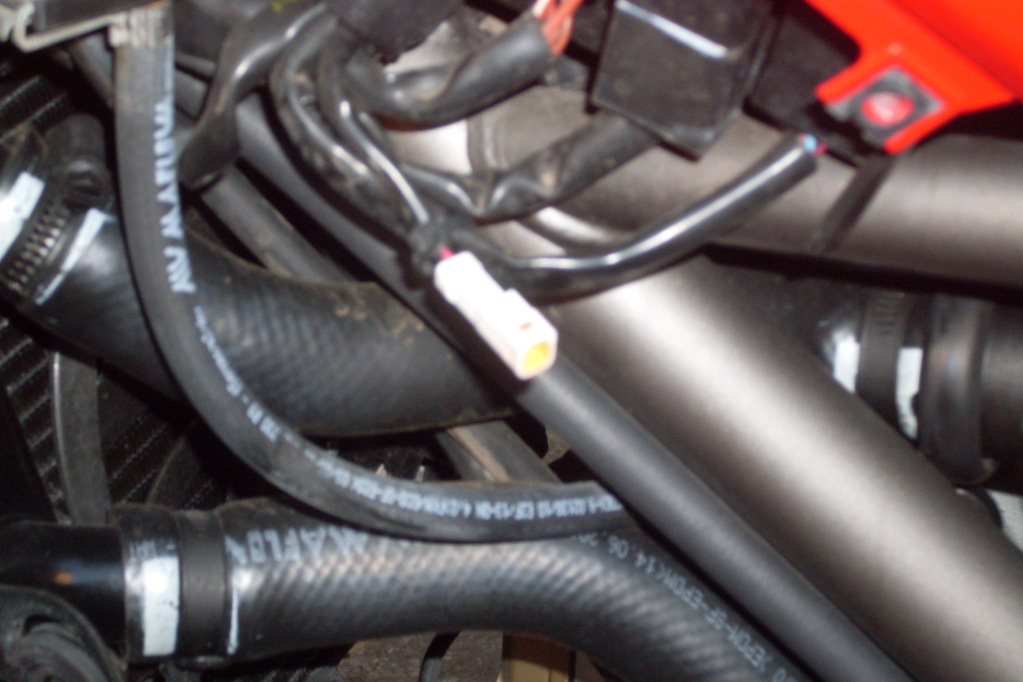

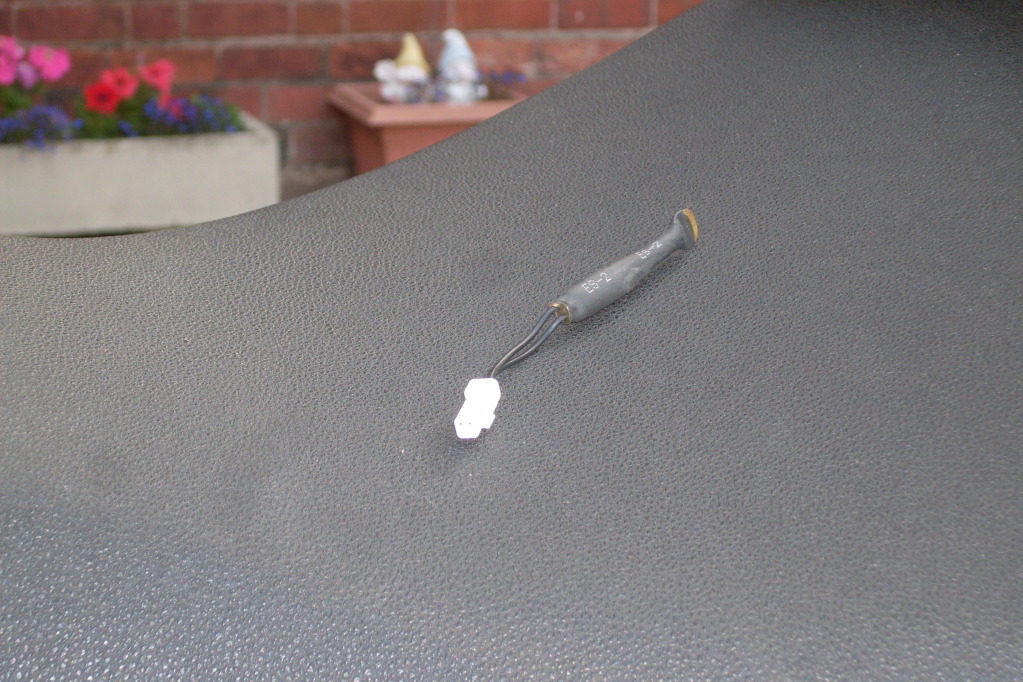

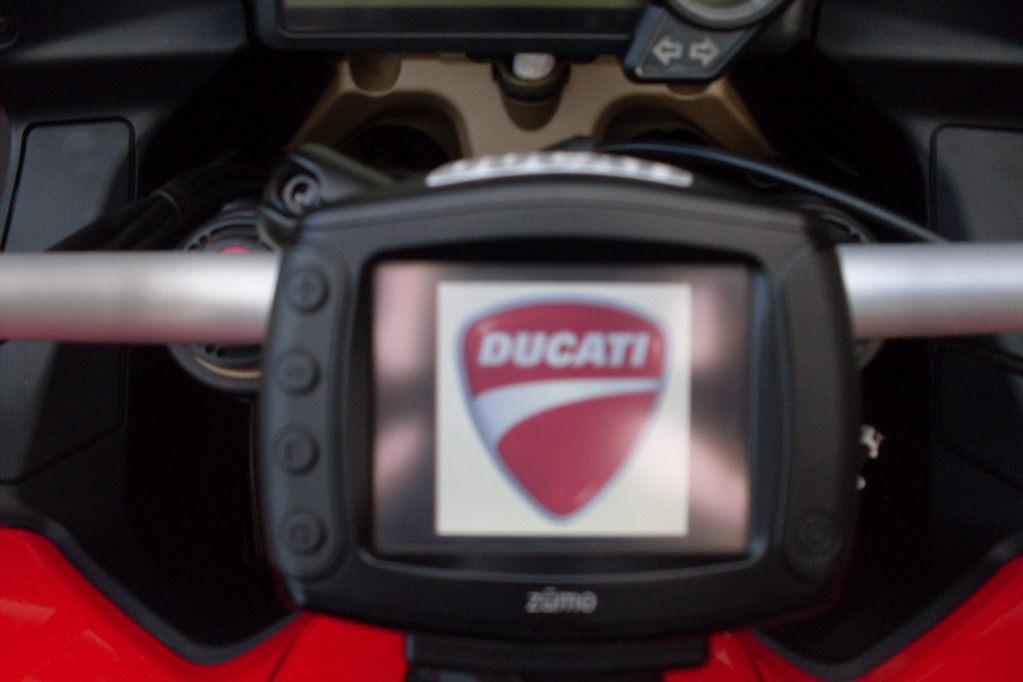

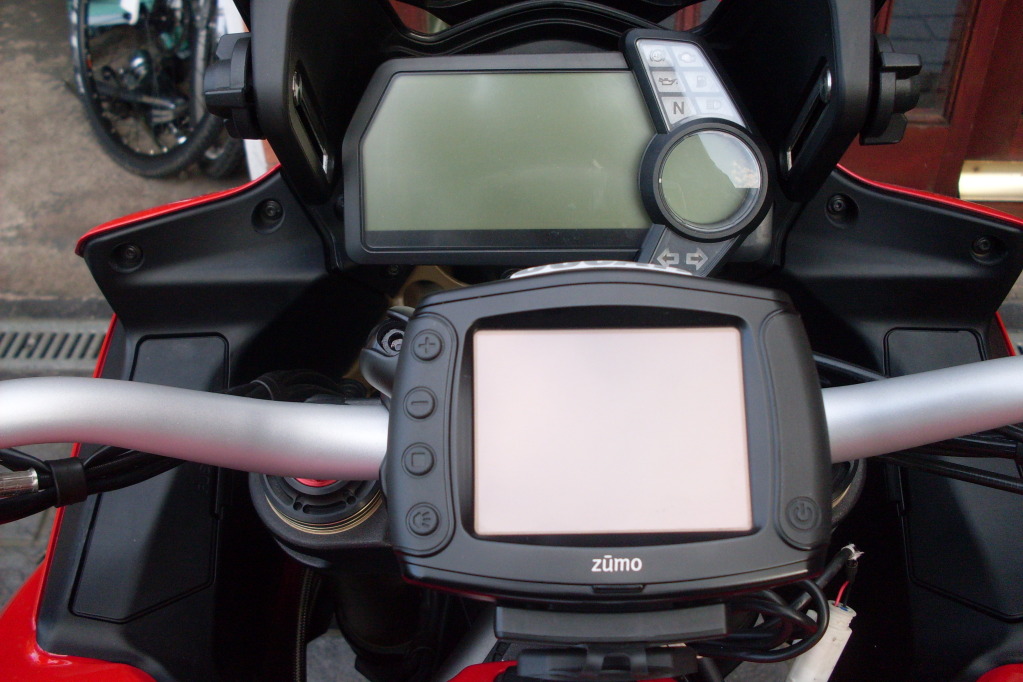

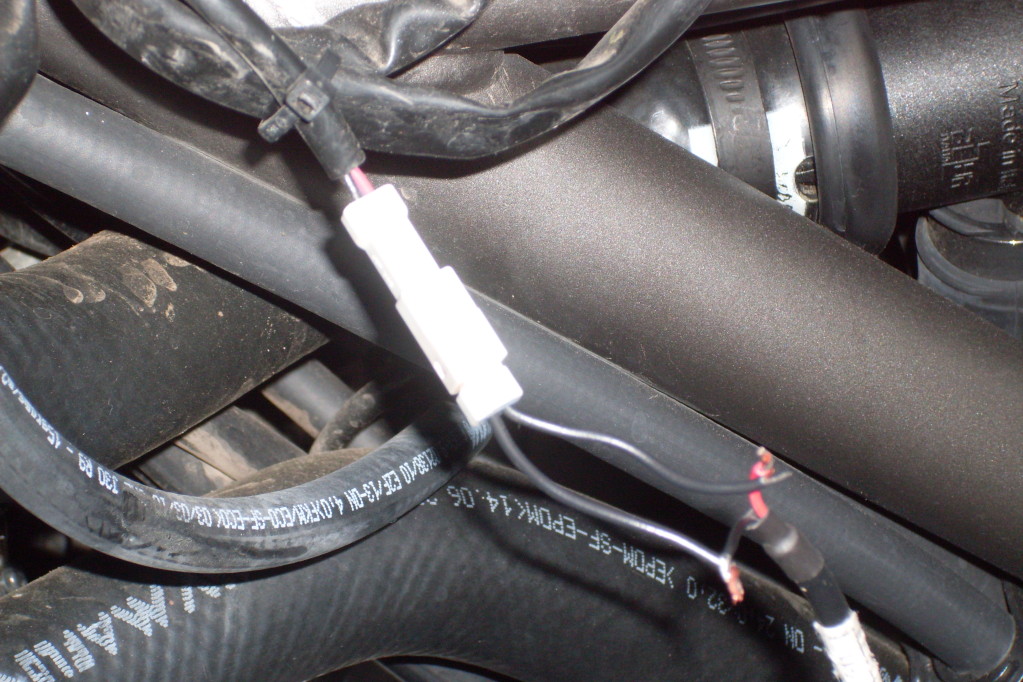

Part 2 This is effectively the fitting complete. The arm and viewing angle are adjustable at any stage so bearing this in mind, the only thing left is the "hard wiring" of the unit / cradle. Probably, most MTS 1200 owners know that Ducati in their wisdom, during the design and production stage, included a feed for on board accessories. This is NOT the 12 volt accessory sockets but a dedicated weatherproof plug. A short length of cable is supplied with this plug thus. So on reaching this point, we need to establish the positive and negative supply from the plug. Ducati, in their wisdom feed one red (positive) and one black (negative) into the plug, but two black leads out. The feeds were temporarilly connected and tested thus. Once tested the cables were permanently soldered. testing! Yay! now all that is left is to tidy the cables and final cable routing checking the run of the cable against the steering movement checking for snags and stretching. Once happy cable tie and panels back on! About 1 hours work taking time. The kit really is nice, sturdy and easy to use. It comes in at £47.00. for a full multistrada solution. Now to test it in anger!
