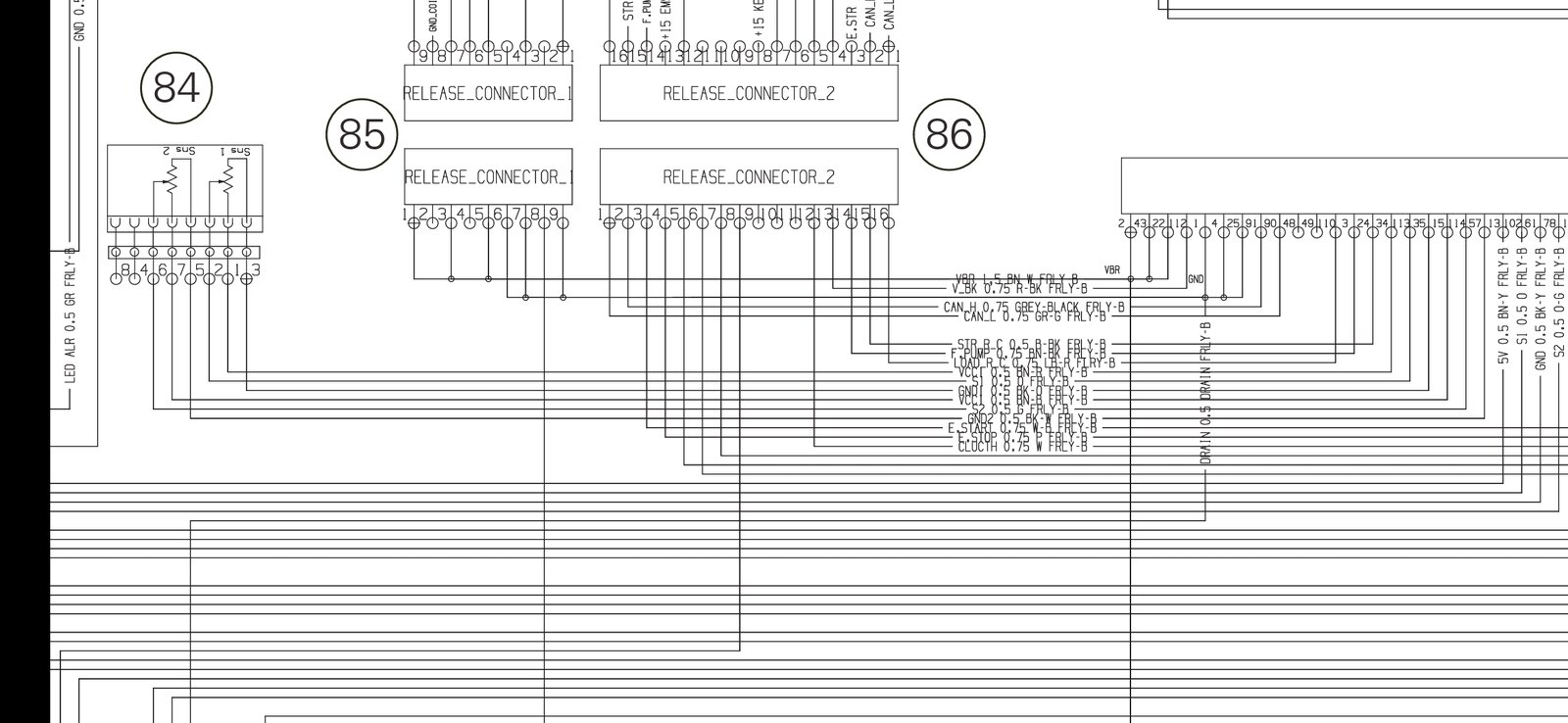

Hi all, I have a wiring diagram for the Panigale V4, which shows wire colours for the main harness side of the APS Accelerator Position Sensor (or throttle grip sensor), but not on the throttle grip side. Can anyone tell me the colours of the grip sensor wires, and which harness colour they match up to? Or a picture you can see the colours in. Thanks! APS is no. 84 in the diagram The picture in the manual doesn't really help
They never do. Are there any markings on the throttle connector to identify PIN numbers? You would then be able to match them up to the PIN numbers on the wiring diagram.
Unfortunately I don't know, I need as much info as possible. Long story, but short version is I've bought a Domino RBW throttle for the V4 (good price from motostorm at the moment), to fit to another RBW bike there is no quick throttle for.
That's a huge help, thanks! I think I just need to know which side number one is on, or any single matching loom colour, and I can match them all up.

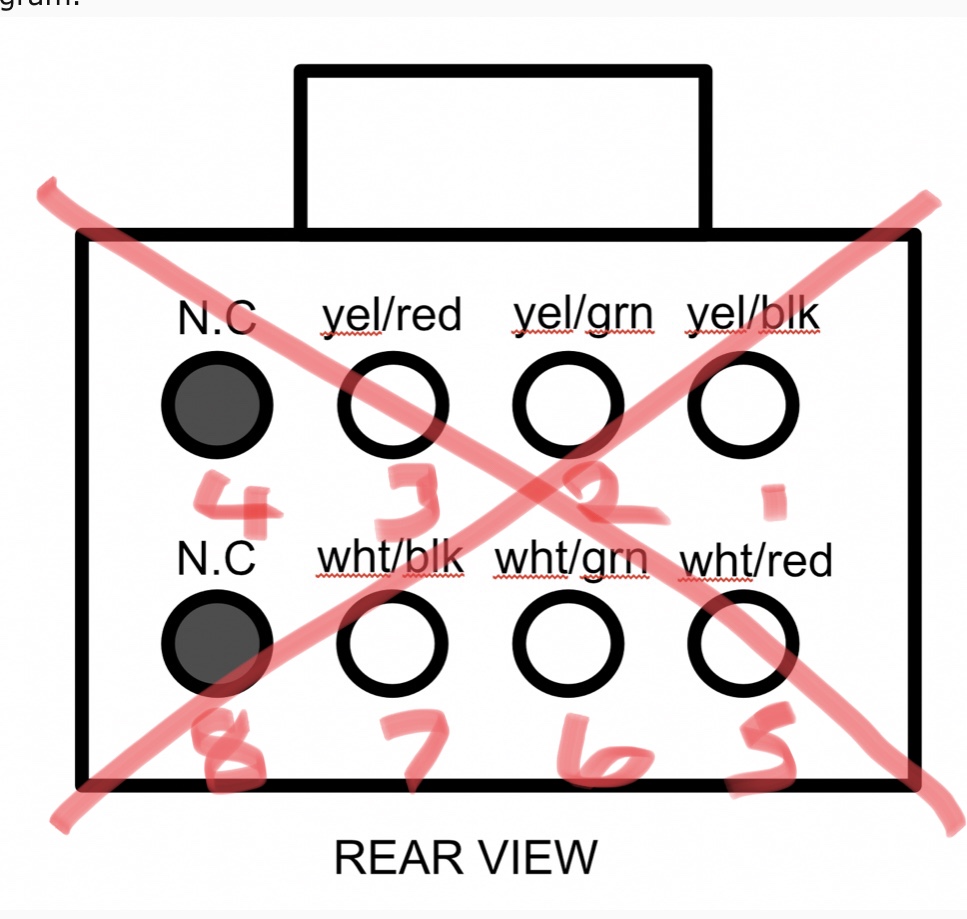

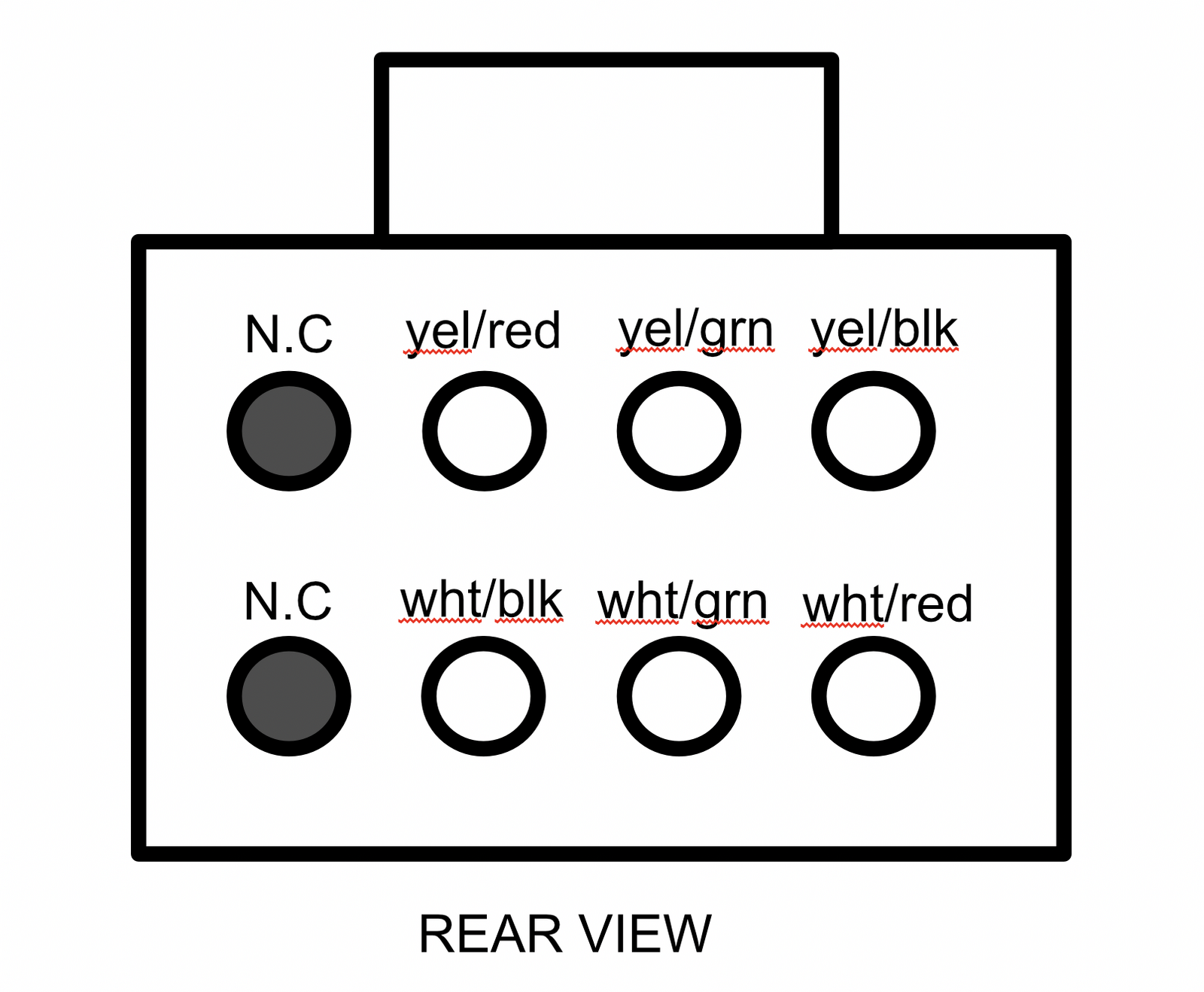

Just a quick update. When buying a connector for the loom, I noticed the numbering is the other way round.
