1200 Top Box Fixing Plate

Discussion in 'Multistrada' started by Bill Pamplin, Mar 24, 2021.

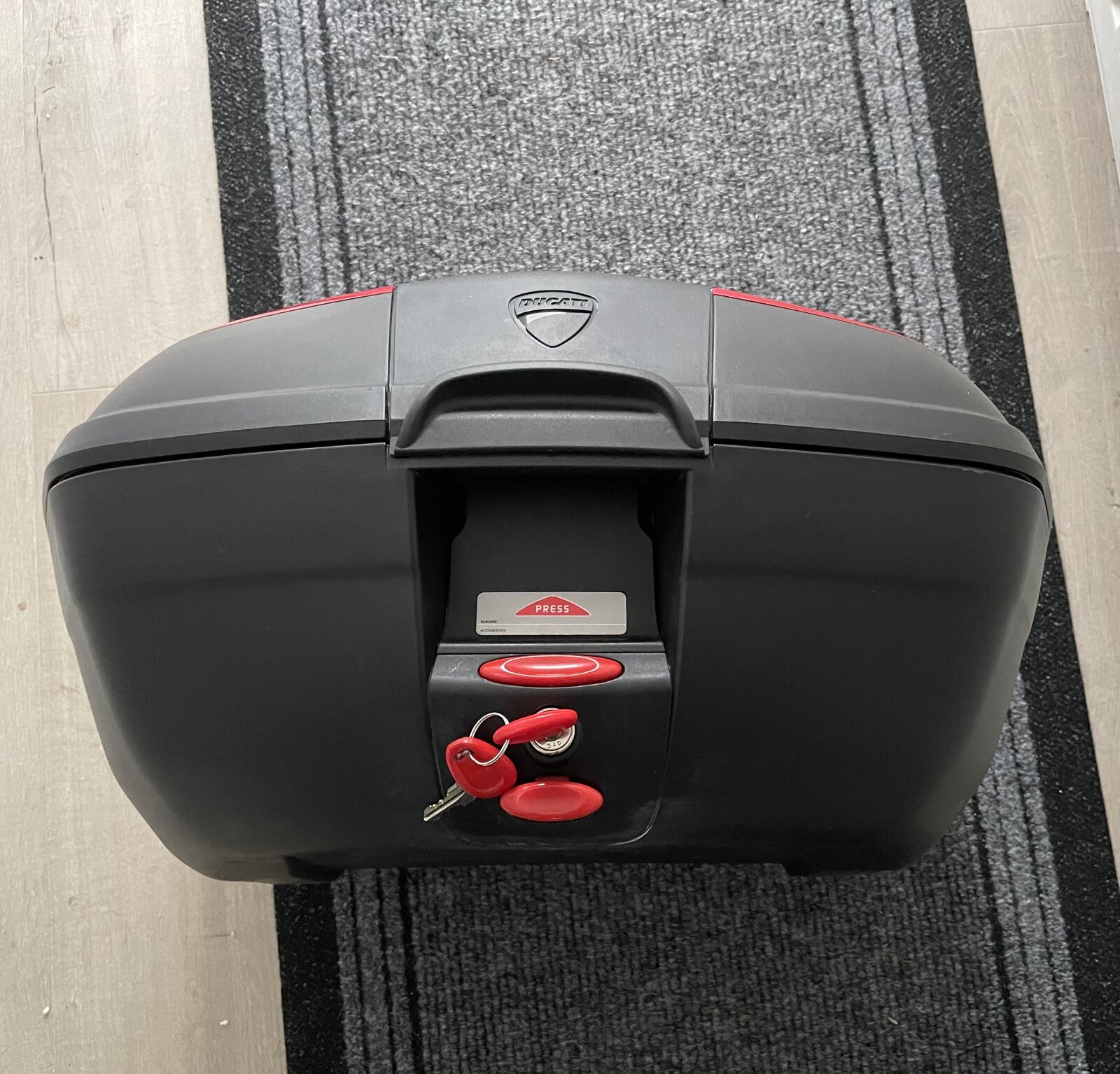

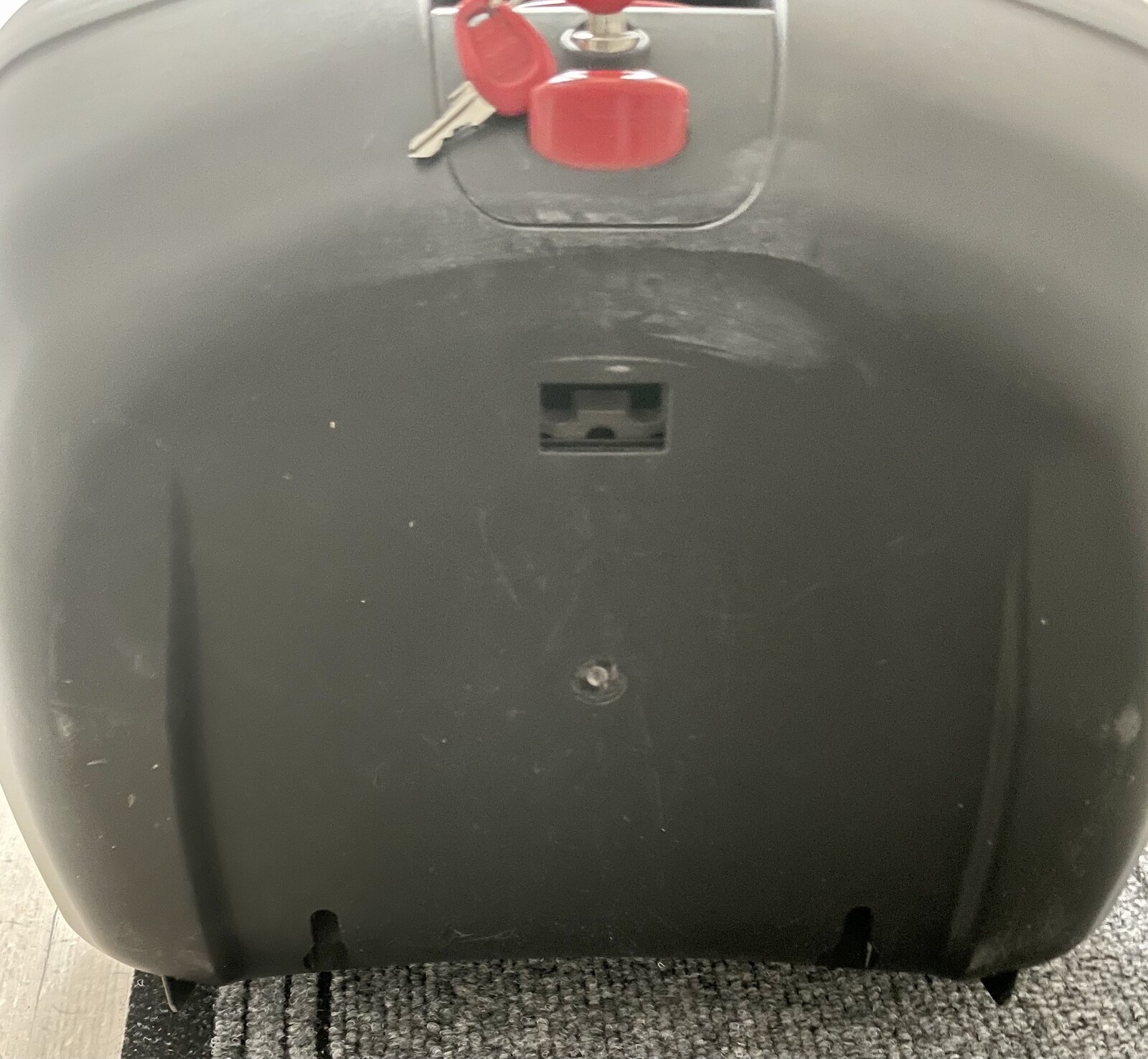

  1. Hi all i have a 2011 and just purchased a s/h oem top box but am at a loss as to where to find the correct fixing plate. Any help would be greatly received!



    #1 Bill Pamplin, Mar 24, 2021
  2. Just in case you're not aware, you'll also need the 2 supports as well as the plate.

    #2 gmoss, Mar 24, 2021
  3. Hi gmoss - no not aware so thanks! do you know if there is a part code i can search for?

    #3 Bill Pamplin, Mar 24, 2021
  4. @steveb123 might be able to advise you... (he knows all the parts!)

    #4 Twin4me, Mar 24, 2021
  5. The top case mounting plate, arms etc. were the same for the 2010-2014 models and only changed when the DVT model was introduced in 2015.

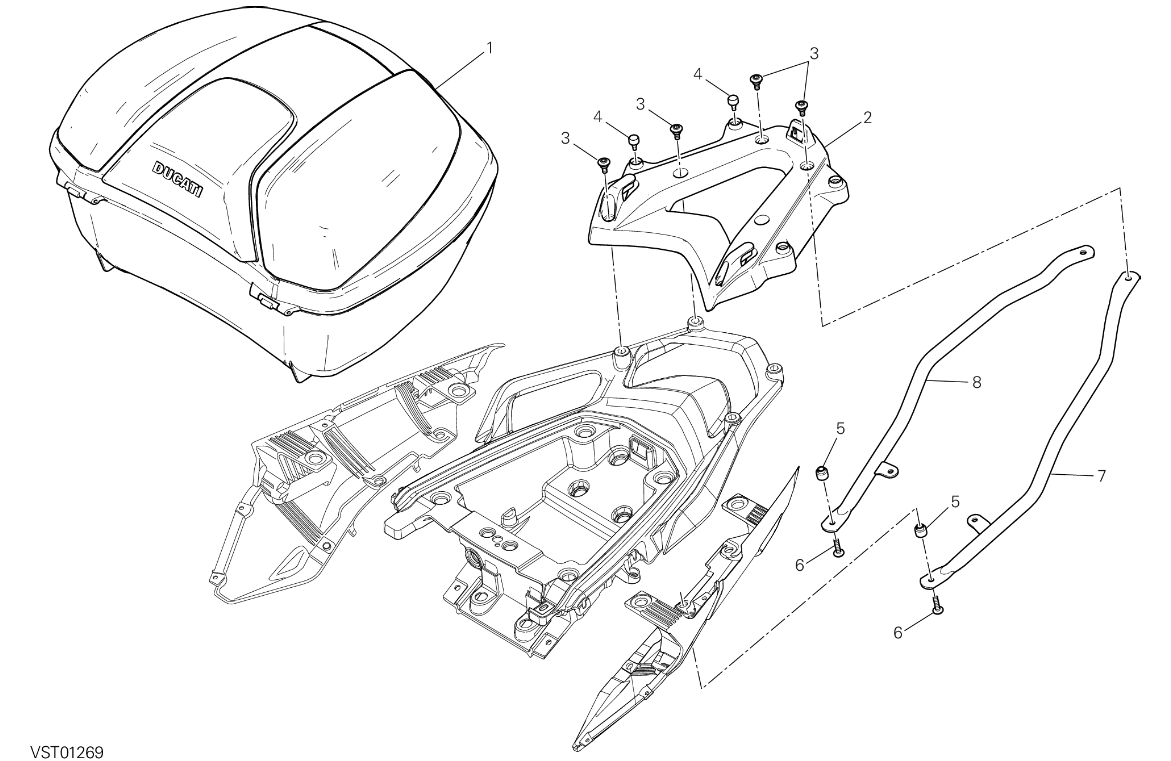

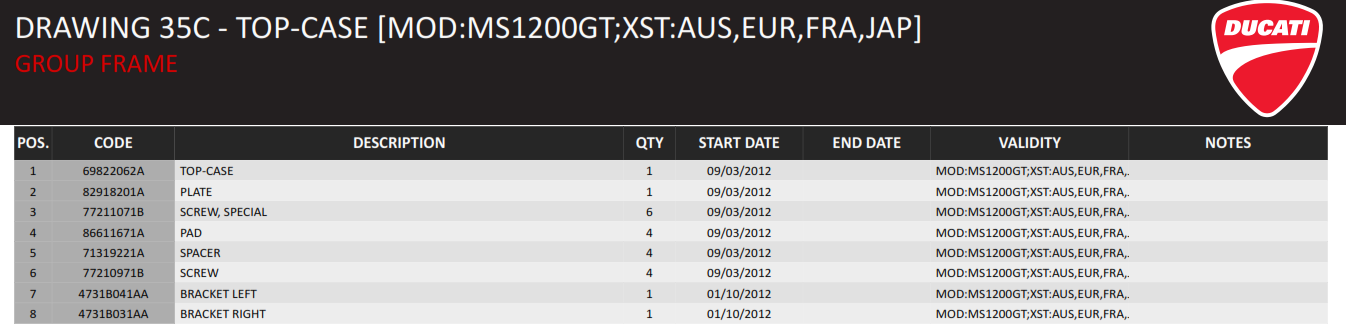

    The 2013 GT model cam standard with a top case so all the parts are listed in the parts catalogue for this bike:



    Let us know how you get on sourcing the parts.

    #5 steveb123, Mar 24, 2021

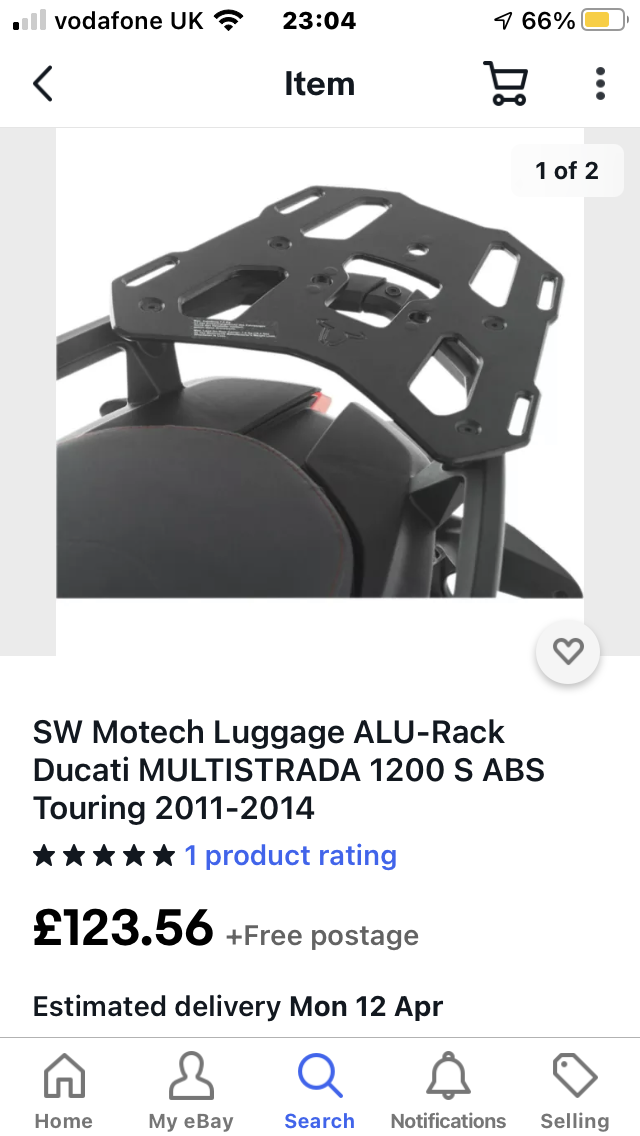

  6. 4F2E67E6-7184-4CBD-98A7-5CD0A7694ACF.png

    #6 Alan Murphy, Mar 24, 2021
  7. #7 aero, Mar 25, 2021

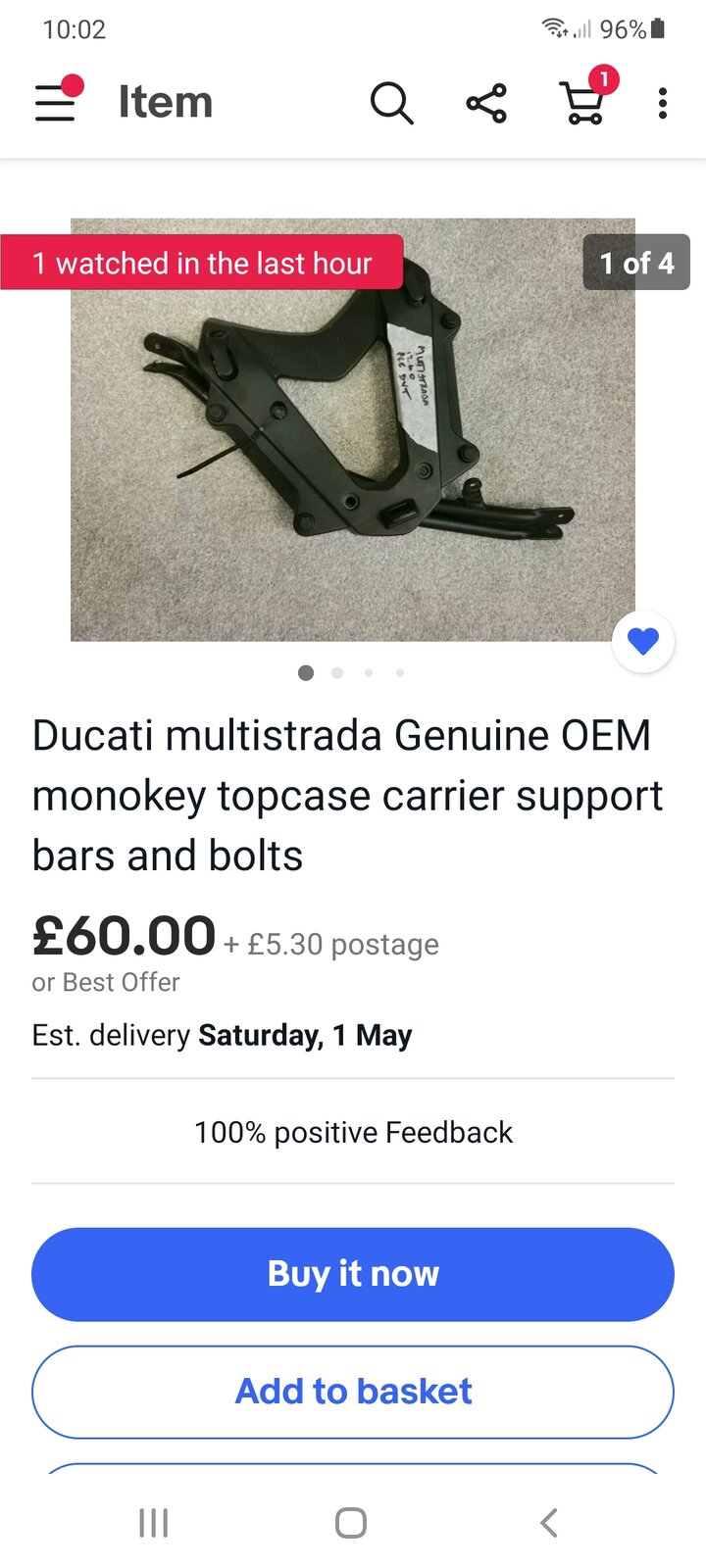

  8. There's one on eBay right now


    #8 Nickdesmo, Apr 27, 2021
    • Agree Agree x 1
  9. Beware if there are no support rails with the above. My mate broke the grab rail on his Enduro by using a 3rd party plate that didn't have any.

    #9 Bumpkin, Apr 27, 2021
