Tt900 Project

Discussion in 'Builds & Projects' started by Budspencer, Jul 17, 2023.

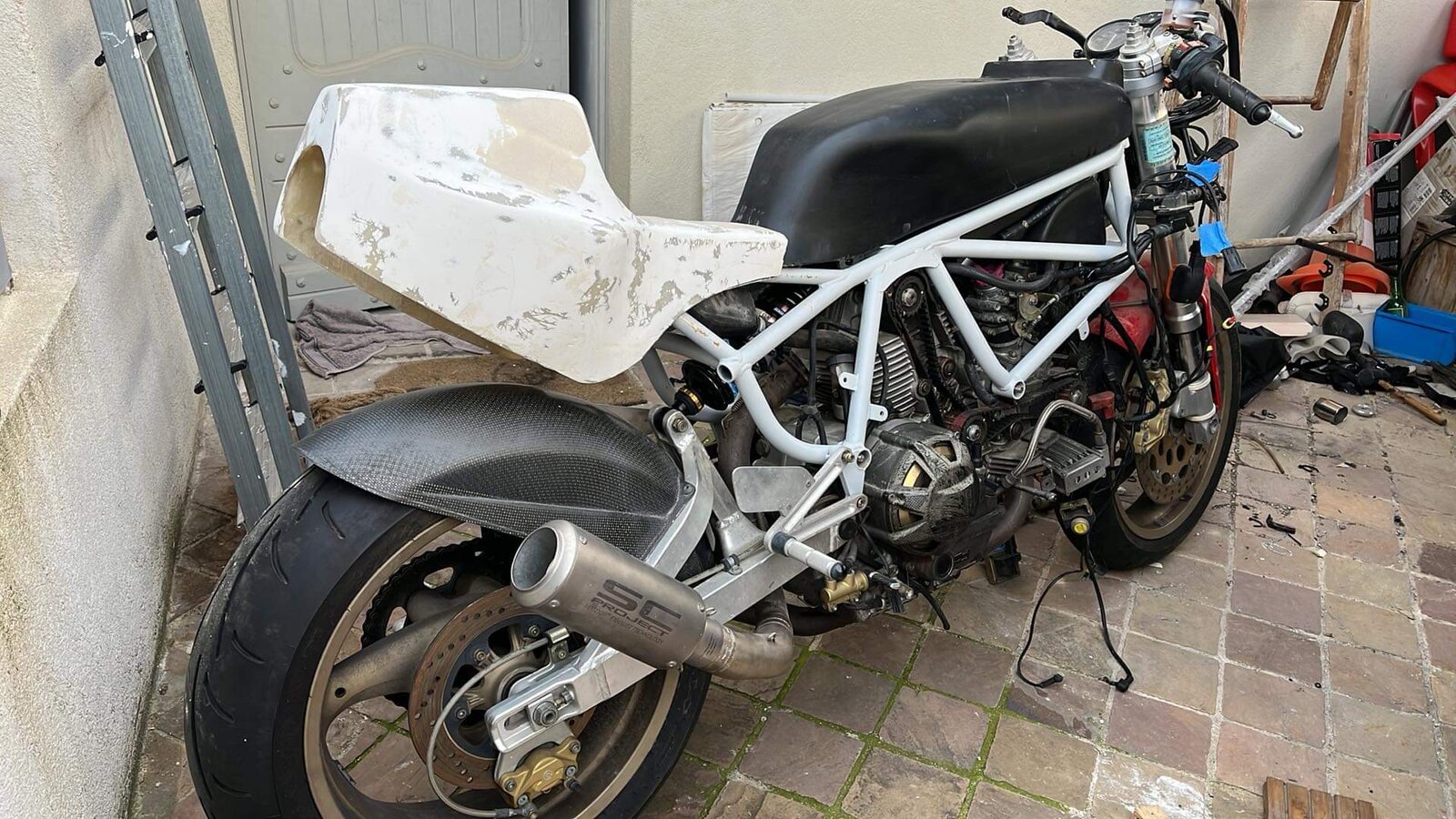

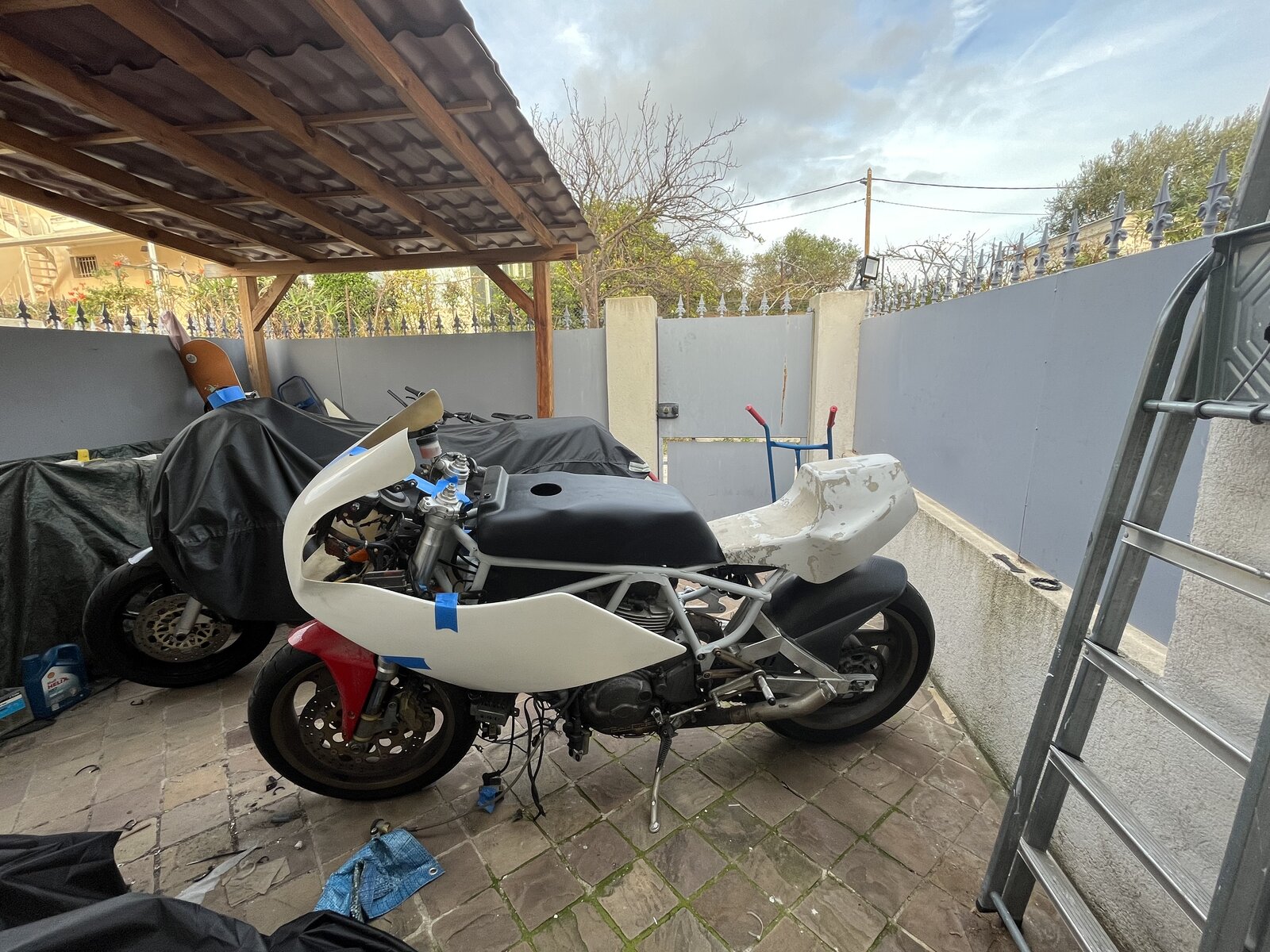

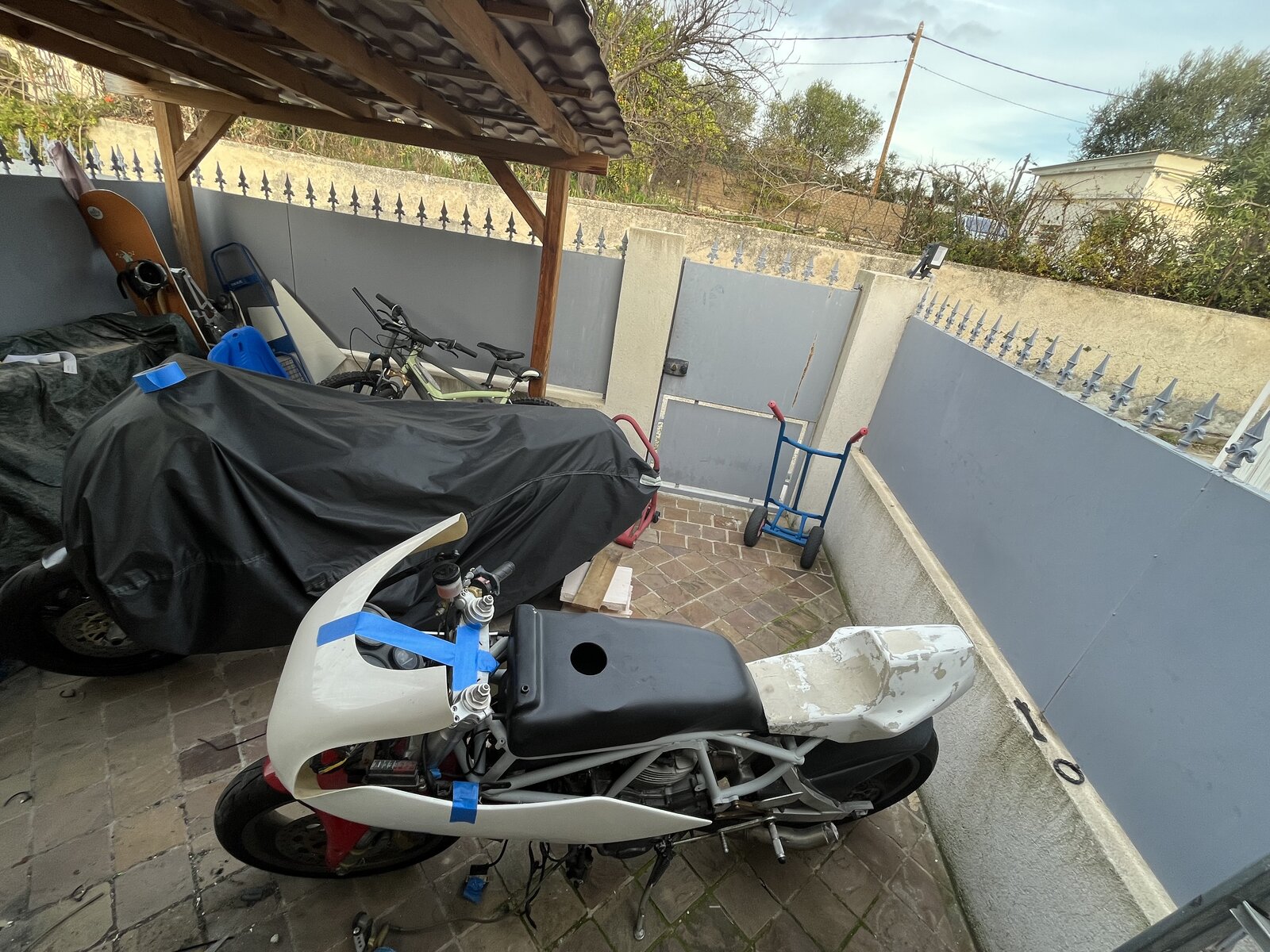

  1. Hi guys, here are some pics of the TT special I’m building.
    The donor is a 99 900ssie, as you can see remains engine, drive trains and all accessories.

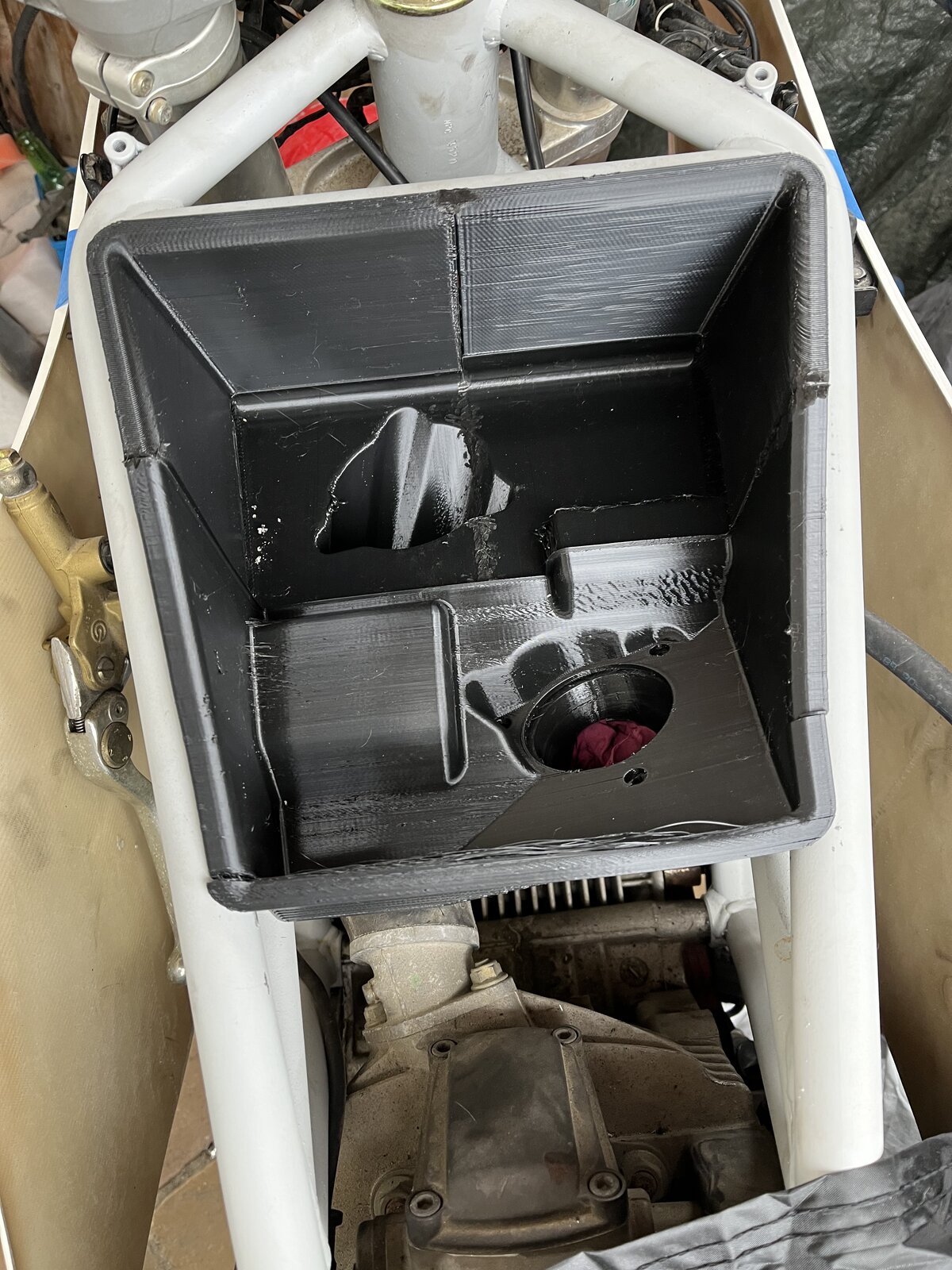

    I’ve been working on the fairing brackets and airbox last time I spent some time on it. The airbox needs quite some design iterations still. I’d like to build a couple of side ducts like the 888 racing ones, just that the intake hole will be horizontal below the headlight.








    • Like Like x 2

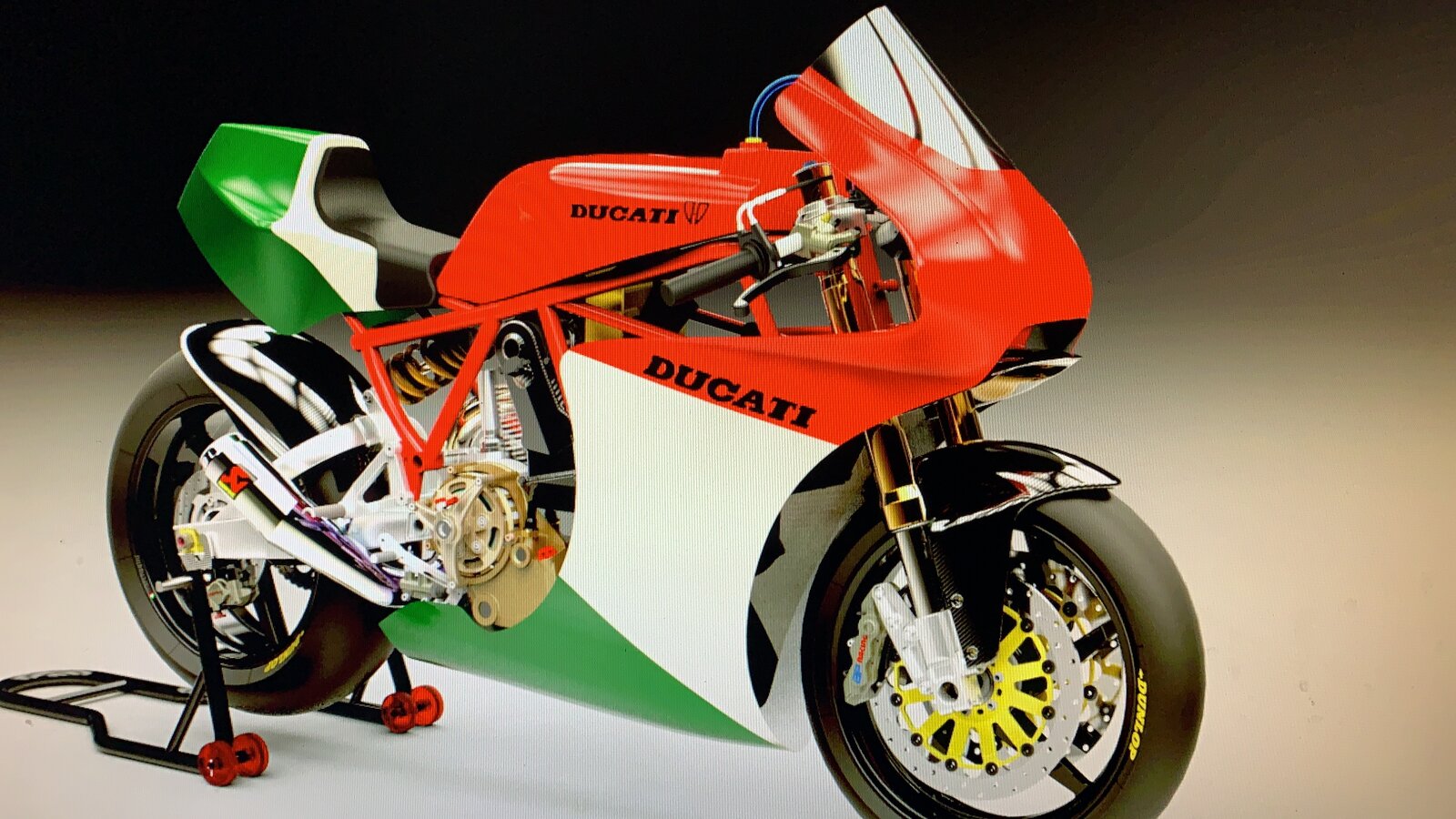

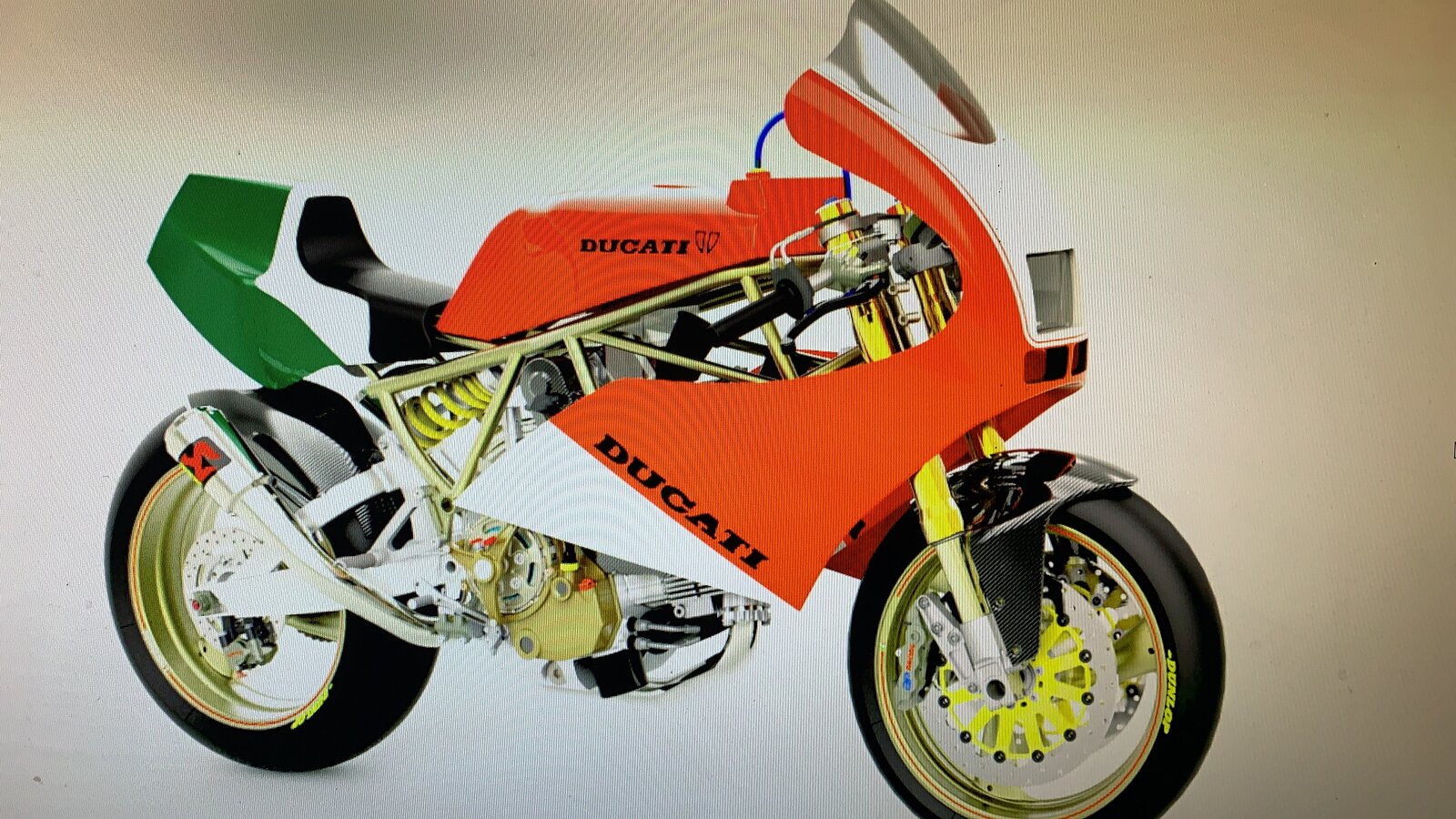

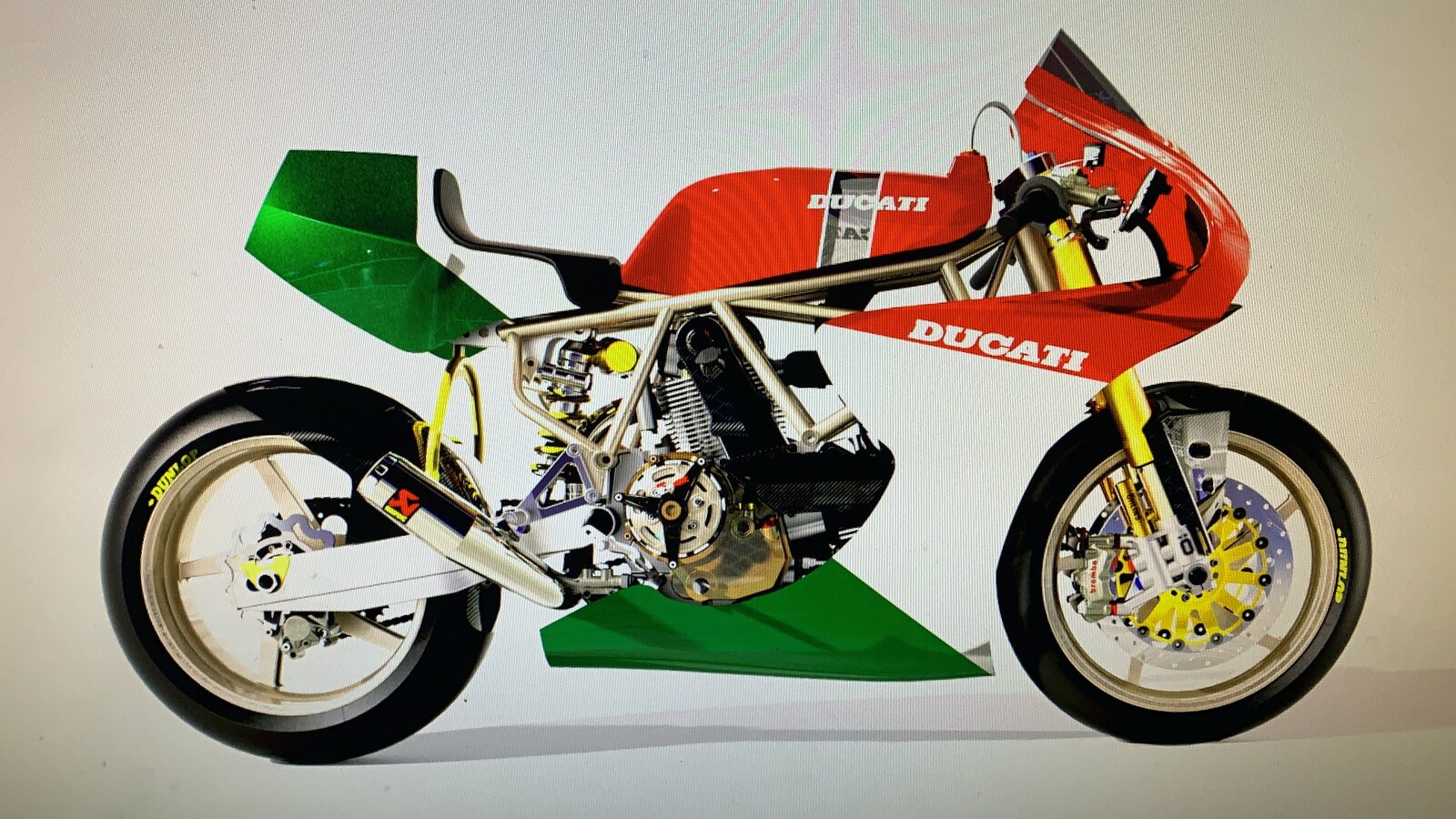

  2. Here are some pics of the design, initially with a custom fairing, and with the f1





    • Like Like x 3
  3. This looks like it's going to be a good read, 3D printing, it's the future !! ;):upyeah:

  4. Yes it’s very handy for motorcycles, and I imagine that metal 3d printing will eventually become more affordable, this will be awesome.
