1200 Usb Or Quadlock Connection At Front

Discussion in 'Multistrada' started by Chris1H, Sep 24, 2022.

  1. Hi folks. I have a wireless quadlock mount from my previous bike that I want to fit on my 2012 1200ST. Before I look for a route to wire back to the battery, does anyone know if there’s a live feed I can connect to near the bars?

    #1 Chris1H, Sep 24, 2022
  2. Behind the small, black, left hand, side cover held on by 2 screws, there is a switched live feed with a heat shrink wrapped blanking plug fitted. Andy

    #2 Android853sp, Sep 24, 2022
  3. Is there not a 12V socket near the dash?

    #3 markfireblade, Sep 24, 2022
  4. It's a 1st gen Multistrada, the dash socket is DVT on. Andy

    #4 Android853sp, Sep 24, 2022
    • Like Like x 1
  5. Ah OK

    #5 markfireblade, Sep 24, 2022
  6. Amazing thanks, will take a look

    #6 Chris1H, Sep 24, 2022
  7. @Chris1H, if you are careful, you can remove the heat shrink from the blanking plug and re-use the pig tail wires to wire in your quadlock. Andy

    #7 Android853sp, Sep 24, 2022
    • Like Like x 1

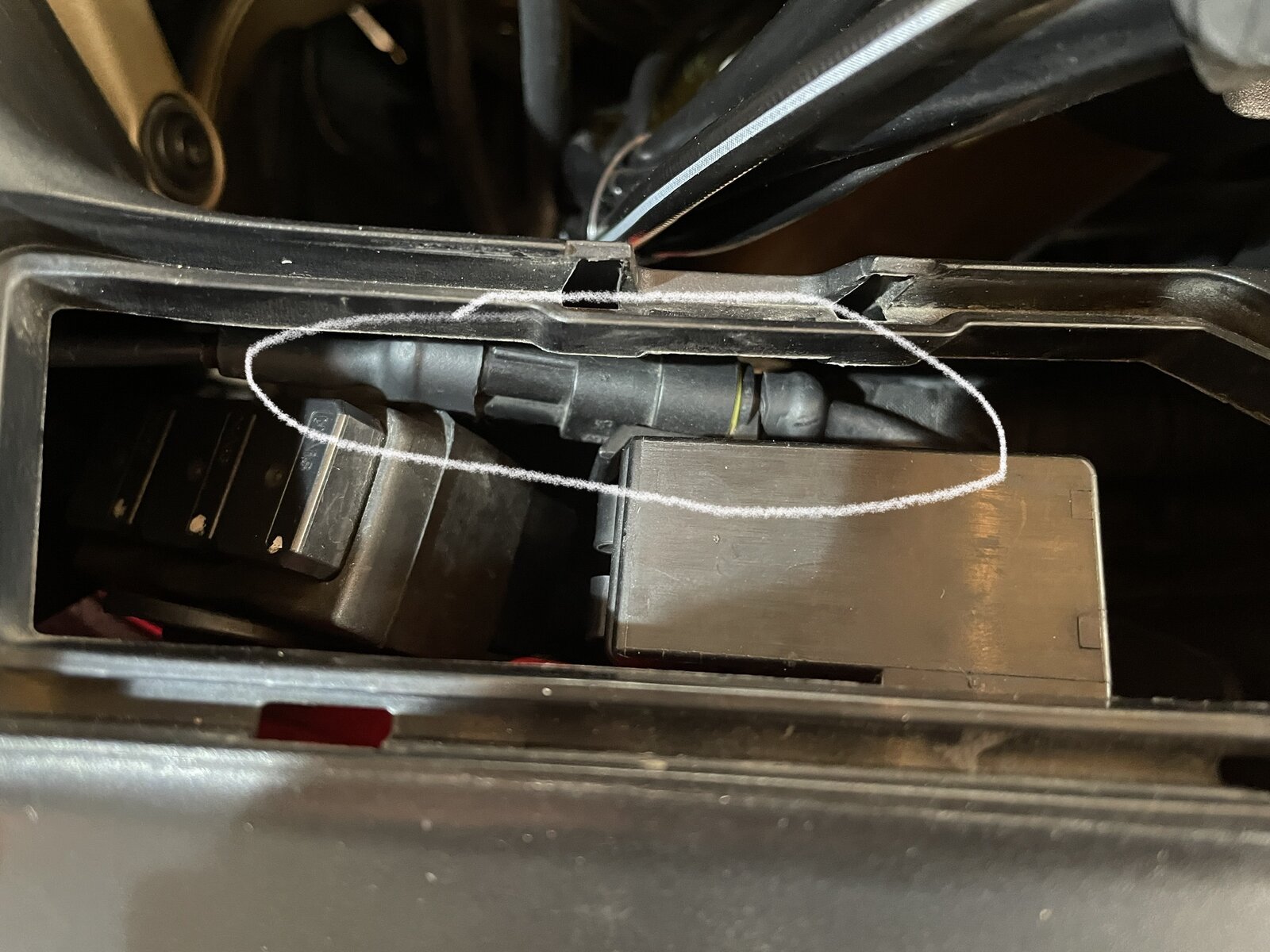

  8. This one?

    #8 Chris1H, Sep 24, 2022
  9. Can’t see a lot else in there apart from the fuse box and presumably relays?

    #9 Chris1H, Sep 24, 2022
  10. Not that one, it’s behind the small black winglet next to the side fairing. Andy

    #10 Android853sp, Sep 24, 2022
  11. Ah ok thanks. Will take a look later.

    #11 Chris1H, Sep 24, 2022

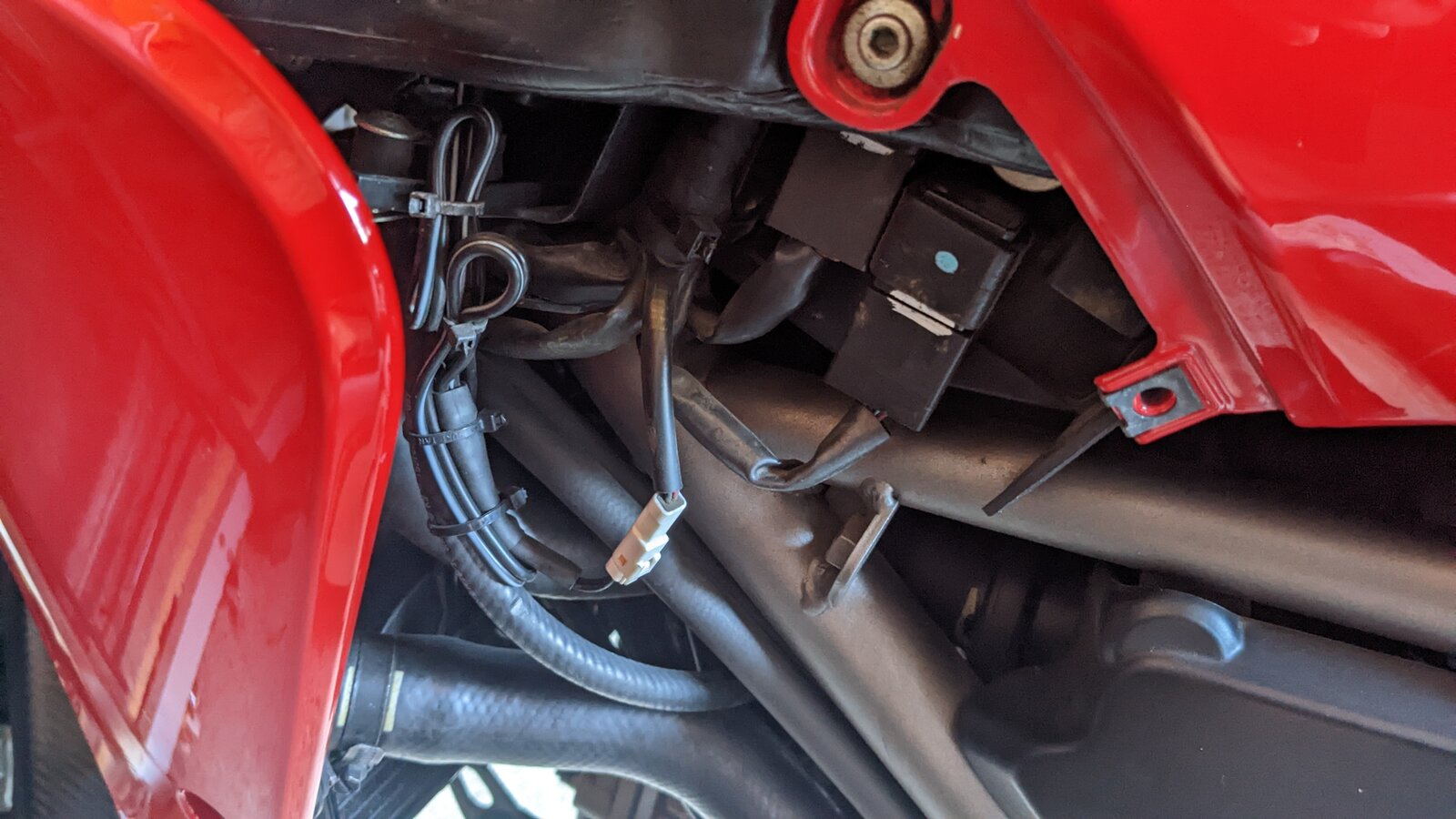

  12. PXL_20220924_095353138.jpg

    #12 Gerr, Sep 24, 2022
    • Like Like x 1
  13. Here you go ......left side of bike. ..

    #13 Gerr, Sep 24, 2022
    • Thanks Thanks x 1
  14. Thank you. Andy

    #14 Android853sp, Sep 24, 2022
    • Like Like x 1
  15. Perfect. Thanks

    #15 Chris1H, Sep 24, 2022
  16. #16 Chris1H, Sep 24, 2022
