1198 Valve Shim Replacements?

Discussion in '848 / 1098 / 1198' started by BB1000, Jan 2, 2016.

  1. When you guys do your own valve clearance checks ..... what do you do if you need new shims?
    Just order what you need and wait ( likely option )
    Or
    Buy a valve shim kit before you start ( costly )

    Going to change my belts and check the clearances in a few weeks ... :D so another question.
    OE Ducati belts?
    Exact fit belts?

    :)

  2. My opinion before buying ExactFit belts and prior to importing them: all the evidence on the internet forums from customer feedback was that although better value on price, the ExactFit belts had 6 years of building up an enviable reputation in the US. They appear in tests not only to be stronger than OEM belts but far more accurately produced: hence the name 'Exact Fit' I was more than happy to buy them and subsequently very happy to represent California Cycleworks here in the UK. Of course there are always people who say they will never trust other than OEM which does surprise me, certainly on launch several year ago this opinion could be a valid one, the scare stories do not include Exact Fit belts having been established and proven over many years.

    Since starting to import them last April I have many satisfied customers and no one unsatisfied with price, service or quality. My customers include independent Ducati Specialists.

    I also have collectors who trust their premium models with our belts including 916SP's, SPS's, 996R's, 998R's 999R's to name but a few. And even an Engineer from the Force India F1 team who values the engineering of our belts :)
    Incidentally the CCW TPS's have also gone down well, even with several main dealers and I have a prestigious customer for PF09's in Aston Martin Works.

    You can also, as you will probably have realised :Angelic: get a Forum Discount of 15% being a Forum Subscriber.

    http://ducatiforum.co.uk/threads/exact-fit-timing-belts-forum-subscriber-discount.38123/

    There will of course be other opinions and someone will hopefully be able to answer your valve shim question!

    Stu

    • Agree Agree x 1
  3. Buying shims by post can be a problem, it depends how much you trust your micrometer, after establishing what you need it's much better to go to the dealers and measure the new ones with your own micrometer to elevate any discrepancies.
    Steve

    P S I just ordered some Exact Fit belts for my 853.

    • Like Like x 1
    • Agree Agree x 1
  4. Im more than convinced by the vidoes on how good the exact fit belts are tbh ... so happy to use them :D .... just gotta wait till payday as xmas has paid its price lol
    Thanks for the info Exige, i will definitely be in touch when im ready to buy the belts
    Quite looking forward to doing this myself .... though some dealers are good, i find it hard to trust them when it comes to valve check, heard many stories of mates paying hundreds for this service and it wasnt done.... non ducati bikes.
    My nearest dealer is St Neots Ducati, im sure there are honest but have never used them.

  5. I recently did my valves & belts. I used the Exactfit belts & was really pleased with the service & quality.

    I needed 2 smaller opening shims but was able to sand the existing ones very easily.

    • Agree Agree x 1
  6. Awesome. .. i know who to ask if i need advice then :D lol cheers for the info matey

    • Like Like x 1
  7. So much to remove lol
    Anyhoo, only checked the vertical as was getting bloody cold :D got all weekend

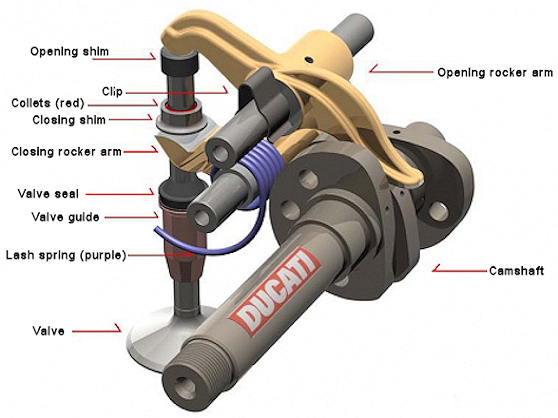

    Opening shims
    Exhaust 0.045
    Exhaust 0.06
    Inlet 0.13
    inlet 0.13
    Closing shims
    exhaust 0.19
    exhaust 0.18
    Intake 0.08
    Intake 0.13

    Looks like i got some adjusting to do :(

    #7 BB1000, Feb 13, 2016
    Last edited: Feb 13, 2016
  8. Do these not wear tighter with use?

  9. My understanding is the valves and seats will on average, over time, tend to wear. That is, closers will gain clearance, and openers will lose clearance
    bike has 8k on it
    you read they need adjustment on the first service then rarely after
    Then you read they dont need adjustment untill at least 15k

    Depends on how the bikes been treated i suppose

    #9 BB1000, Feb 13, 2016
    Last edited: Feb 13, 2016
  10. I had to do the exhaust closers on the horizontal; the rest were ok. I did mine at 9k.

    • Like Like x 1
  11. Looks like i need bigger exhaust openers on both vertical and horizontal cylinders and one smaller exhaust closer on the horizontal. .. no where seems to sell them online ... well i cant find anywhere that is.

  12. Are you able to swap any around. They sand down easily if you need them smaller.

  13. More than likely. ... and i hope, i have measured both cylinders now with belts removed, next step is to take all apart and measure the shims, still waiting for the tool in the post, should have got it last week :(
    Will do the closers first then go from there
    No rush though, weather's cold n crap lol

  14. Ah ... i been reading to do the closers first .... can't do anything until the shim measuring tool turns up anyway.

  15. You are right, closers first; mixed up.....


  16. Last winter i did a full rebuild on my 996 all my shims needed changing. I was lucky that i only needed to obtain two replacements, all the others were sorted out by swapping and grinding down to wize. My dealer is very good with regard Shims, as he just does a straight swap if i take the others in. But yes i take my micrometer with me to double check.
    So my advice would be to work out what you need and then chat to your dealer and see what arrangement they have for exchange.

    • Like Like x 1
  17. Cheers guys ... I'm happy to buy what I need and have spares for next time :D

  18. Managed to get these results, god its a pain to do lol

    Vertical
    intake opener left 0.11
    intake opener right 0.11
    Intake closer left 0.075
    Intake closer right 0.08
    Exhaust opener left 0.11
    exhaust opner right 0.11
    exhaust closer left 0.10
    exhaust closer right 0.08

    Horizontal virtually identical .... openers are easy to make upto 0.13 ... would the closers be ok at these specs? Going by ducati they would .... had the cams out a LOT lol

  19. Wow that is good ... will try but may need me buying more shims lol ... still cold n crap so no rush

    Thanks

  20. All day in the garage again .... this taking forever lol ... im sure a dealer would just change a shim to within adjustment specs, i on the other hand need all just right ... damn OCD :D

    • Like Like x 3
