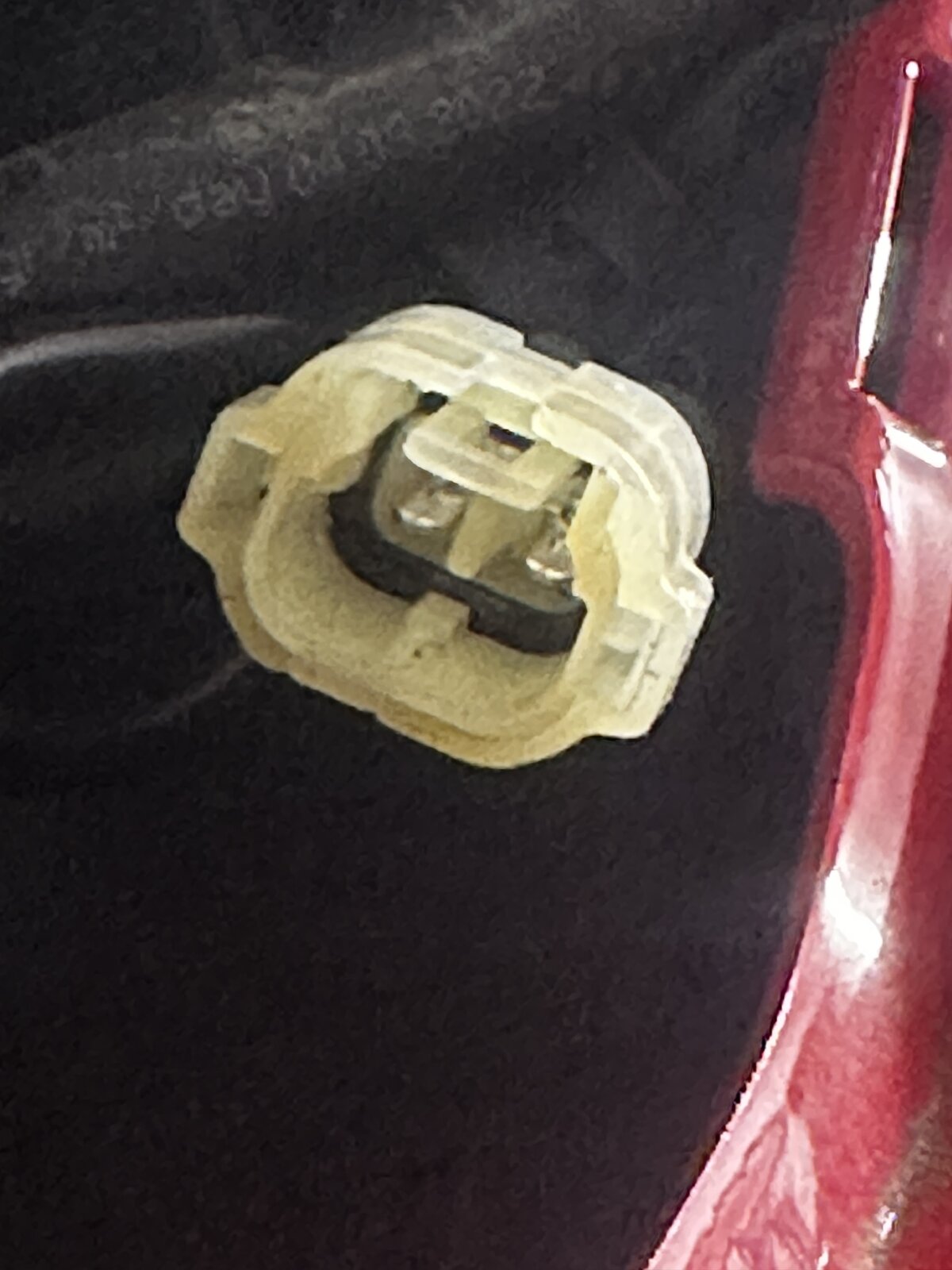

Hi all, I'm hoping someone can help me? I am looking to power an phone or USB port on the bars and I have found an auxilary connector behind the front left fairing (see attached photo). Could anyone tell me what connector I need to fit into this, preferably with some pigtail wires so I can connect them directly to the wires from the extra port. Thanks in advance!
Possibly a 2 way Sumitomo HM https://www.aliexpress.com/item/100...wewgjisfD8SxkVWhskn9O6UXumlH7Gh4aAqX2EALw_wcB
on it there will some sort of code, i'd put that into amazon or buy a pair of connectors and cut the one you have off and replace it
Worth knowing there are a number of spare connectors around the fairing. Satnav power, Keyless Fuel Cap, Fog lights, heated grips are all hanging around down there. I used the GPS connector - it will look like top one of the 2 shown below with the connectors sealed off. You can disconnect the sealed off connecters and use a connector like this one to provide power for your phone cable: https://www.ebay.co.uk/itm/165387321059?_trksid=p4375194.c101949.m162918 I tried using that connector to power my phone - but the phone drew too much current and it would cut out. Worked fine for powering my Satnav though. (Photo below is from my old V2S - the satnav power connector looks the same)
That's excellent info, thank you. I'm pretty sure I have some of those connectors in a box of goodies somewhere!
