What Is This Connector?

Discussion in 'Technical Help' started by James English, Aug 11, 2019.

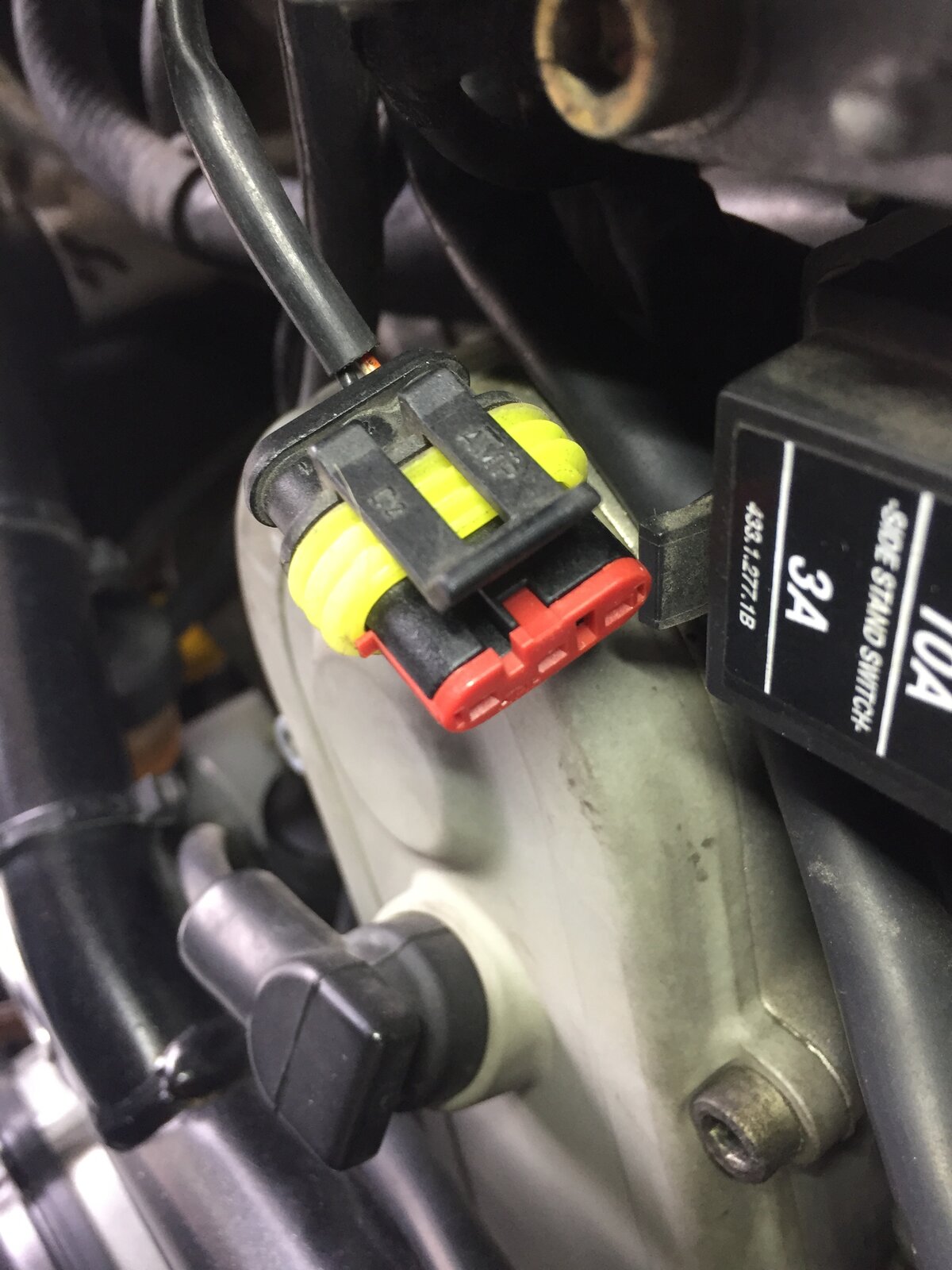

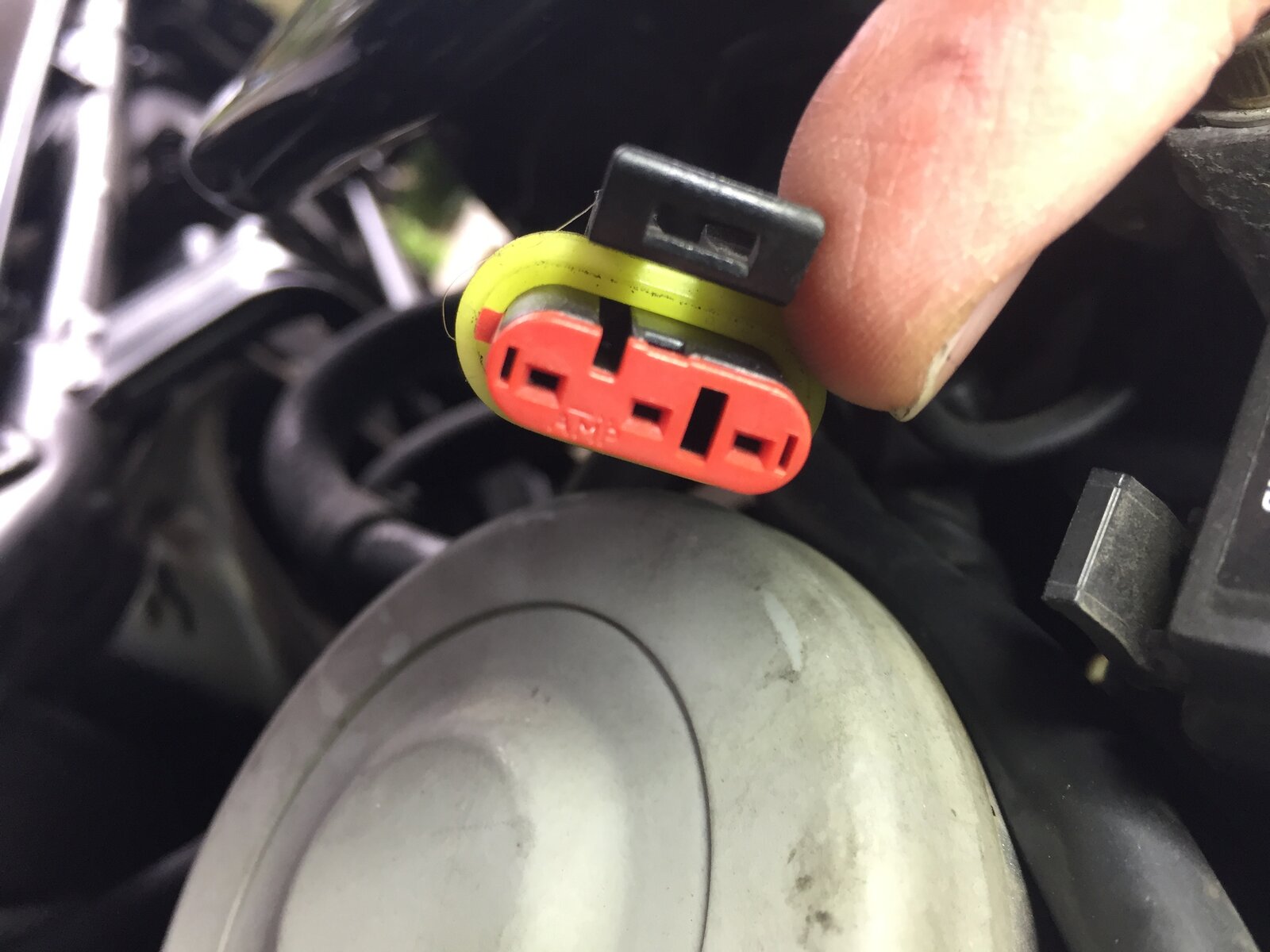

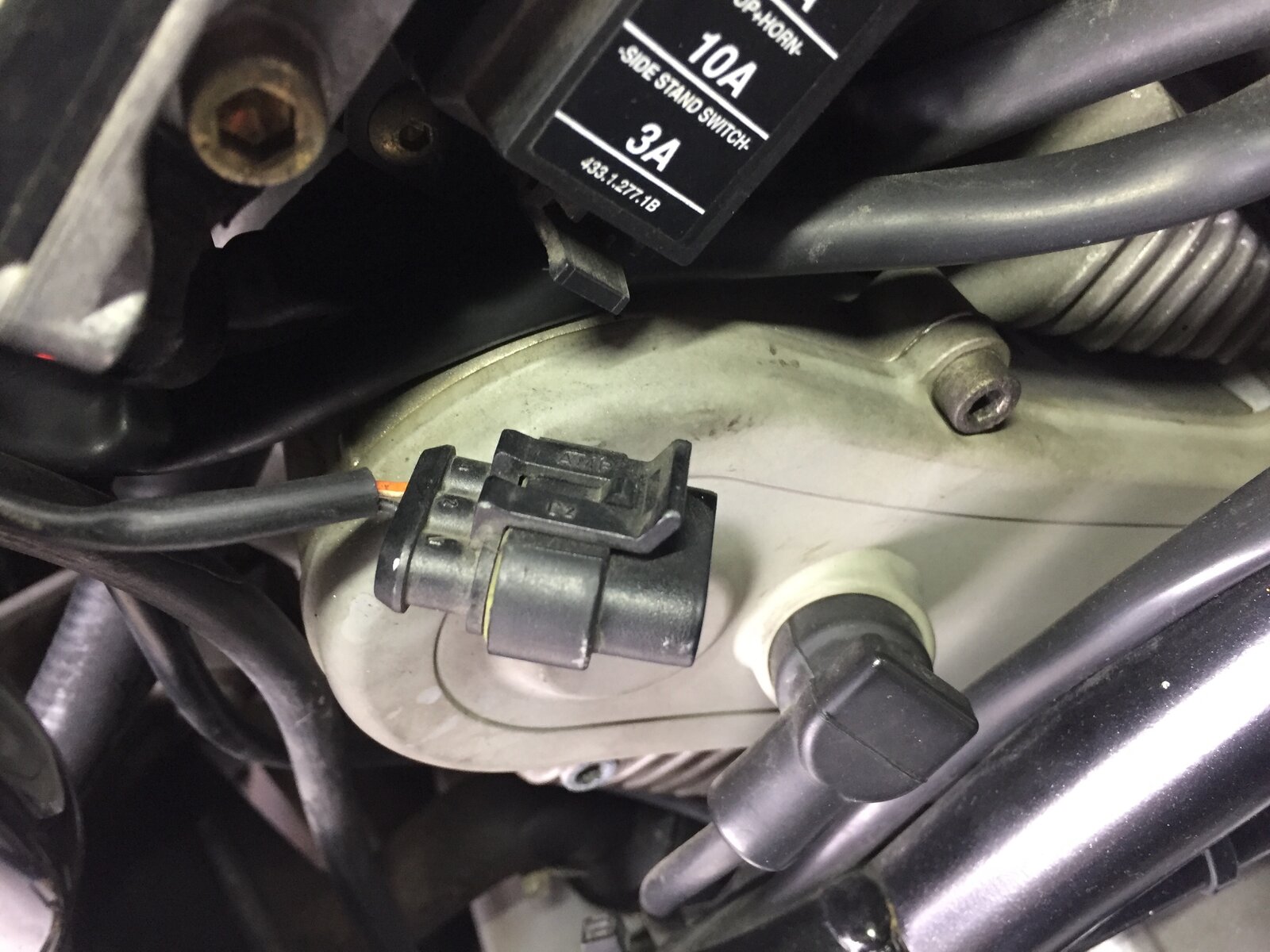

  1. Hey there. I have a 2005 Ducati Monster 1000ds. I was looking over the battery and noticed this connector nearby (pictured). I'm wondering if it's a connector to the battery for a trickle charger or is it a just a standard power connector? No experience with this so appreciate any help.




    #1 James English, Aug 11, 2019
  2. #2 johnny, Aug 11, 2019
    • Like Like x 1
    • Agree Agree x 1
    • Useful Useful x 1
  3. Diagnostics

    #3 Bridgland, Aug 11, 2019
    • Like Like x 2
    • Agree Agree x 2
  4. Agree with the other replies, looks the same as the diagnostics connector on mt 1198S.

    #4 AndrewS, Aug 11, 2019
    • Like Like x 1
  5. Those Tyco Superseals are some good kit .

    In most applications they are connected to their "other half" , but it wouldn't be connected to anything if it is the diagnostic port .

    The black cap should completely cover that yellow " concertina " seal .
    That's the feature that makes them so darned good for keeping water out .

    So yes , I'd say diagnostic connector :)

    #5 oldtech, Aug 11, 2019
    Last edited: Aug 11, 2019
    • Like Like x 1
  6. Ok diagnostic connector it is. Good to know thanks guys.

    #6 James English, Aug 11, 2019
