916 Wiring Plug Help

Discussion in '748 / 916 / 996 / 998' started by Davyd, Feb 22, 2023.

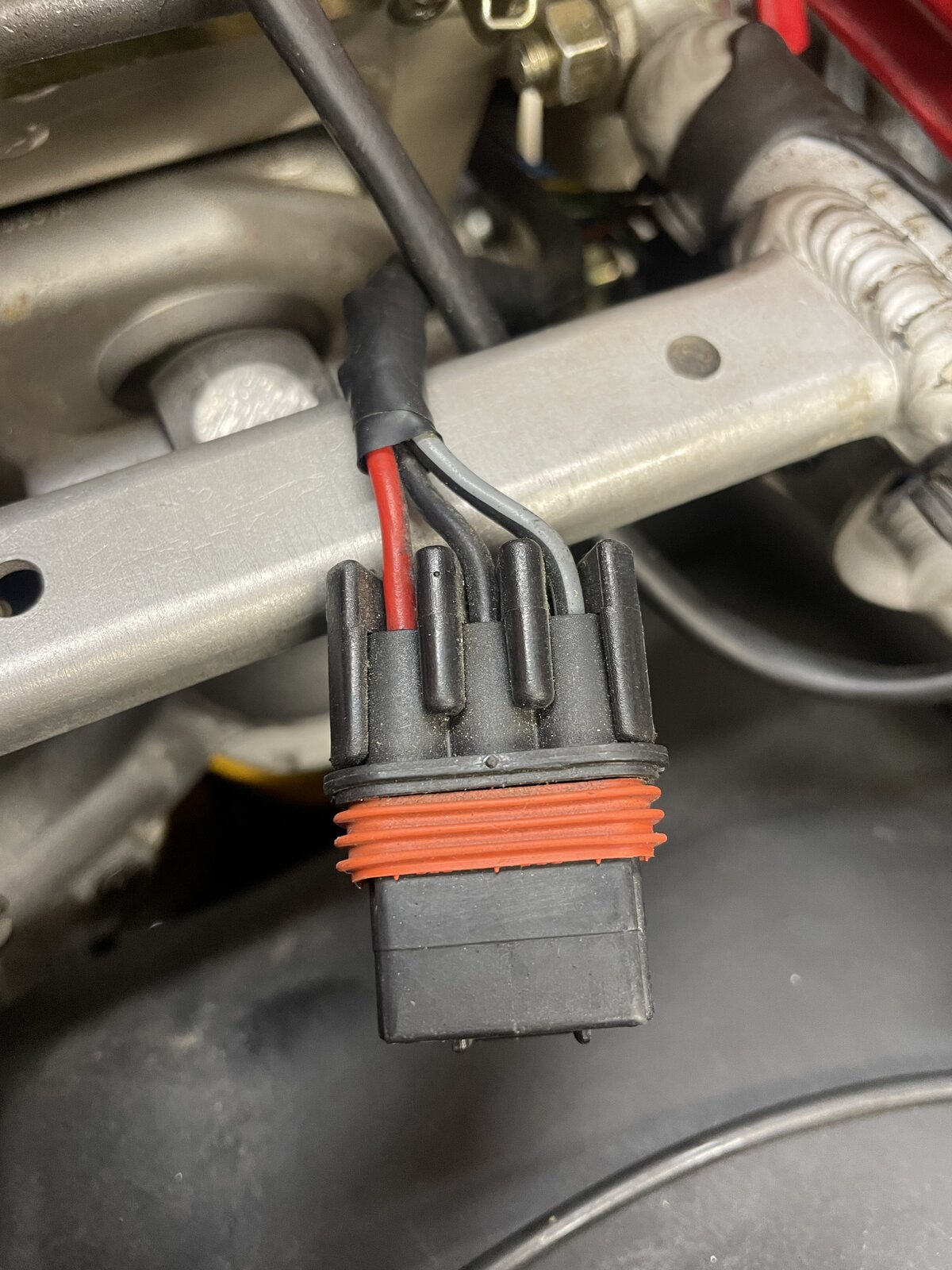

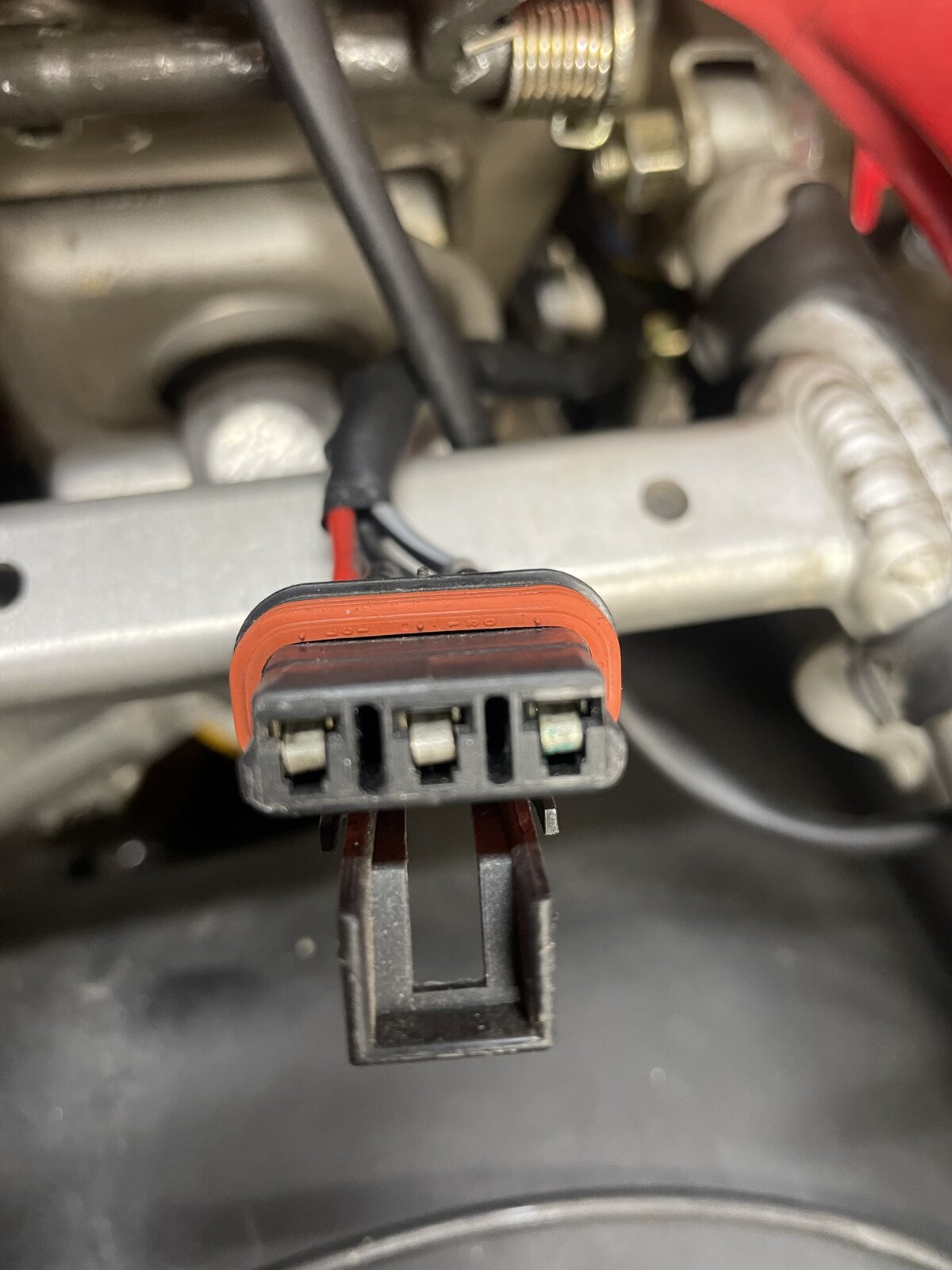

  1. Can any of you guys help identify this plug and it’s use. F2868834-B8B4-4E08-A69D-B347BD4EA390.jpeg D2A9DE98-83DC-4998-9066-CAF7E97BCC4F.jpeg

    #1 Davyd, Feb 22, 2023
  2. Diagnostic connector?

    #2 Coda, Feb 22, 2023
  3. Rear light connector?

    #3 RickyX, Feb 23, 2023
  4. Isn't that more of a rounded connector?

    #4 cookster, Feb 23, 2023
    • Agree Agree x 1
  5. My immediate thought was rear light.
    A wider view would give us more of a chance.

    #5 Expat Jack, Feb 23, 2023

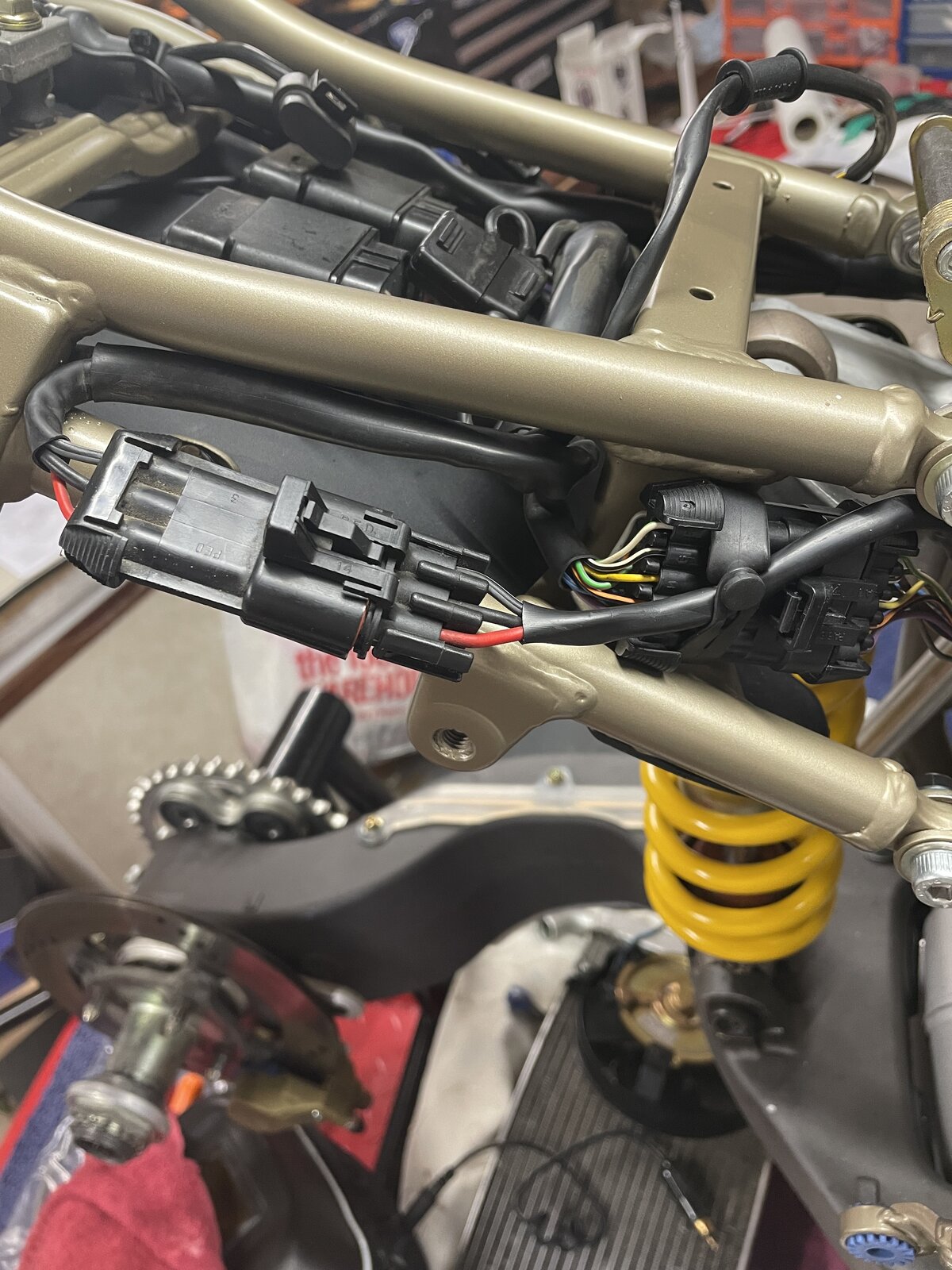

  6. A975EEA1-0E14-4645-BA0D-0A490E800596.jpeg Connects one loom to the other loom :upyeah:

    #6 Pete433, Feb 23, 2023
    • Like Like x 1
    • Funny Funny x 1
    • Agree Agree x 1
    • Useful Useful x 1
  7. 5F0D6F59-9D98-4DF6-83C3-37CC5070FA2C.jpeg

    Yep.
    The connector in the red circle should be for the rear lights (plate, turn indicators, brake, etc.) and the one in the white circle would be for diag.

    #7 Guillaume69, Feb 23, 2023
  8. That type of connector is normally for the TPS and also for stick coils on later bikes

    #8 chrisw, Feb 23, 2023
    Last edited: Feb 23, 2023
    • Like Like x 1

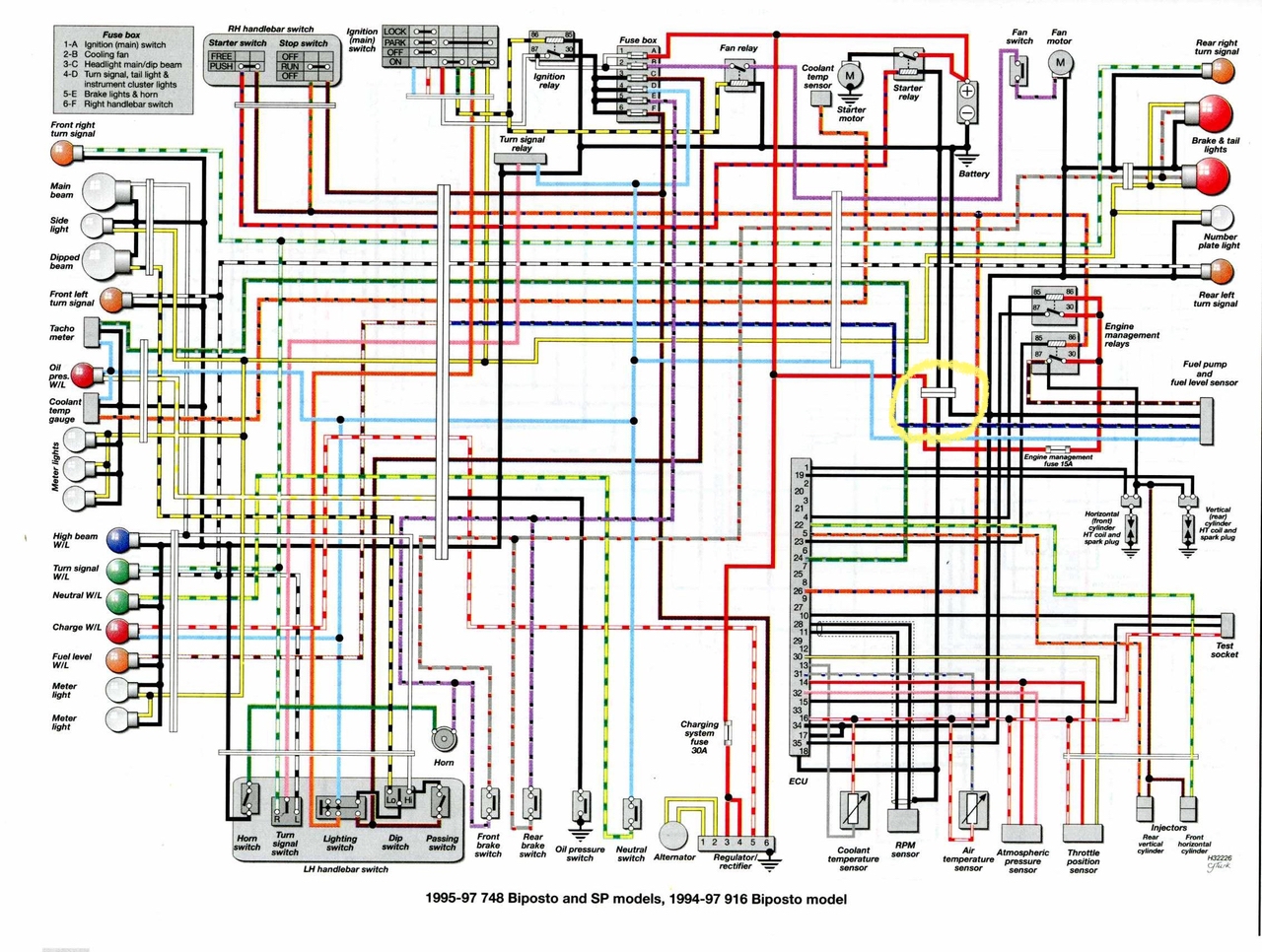

  9. Is it not the circled in yellow connector, about 3 o’clock in the diagram


    #9 West Cork Paul, Feb 23, 2023
  10. Everything works at it should even though this plug isn’t connected. I’ll take a few more pics tonight maybe give you guys a better idea. Thanks.

    #10 Davyd, Feb 23, 2023
    • Like Like x 1
  11. Is your fuel pump priming?

    #11 Coda, Feb 23, 2023
  12. Yes as I say everything is working I’ve no issues with anything.

    #12 Davyd, Feb 23, 2023
    • Like Like x 1
  13. Now that’s a new mystery… :D

    #13 Guillaume69, Feb 23, 2023
    • Agree Agree x 1
  14. It’s that connector in pete433 pic. Connecting one loom to the other.. so I can just cap it off

    #14 Davyd, Feb 23, 2023
  15. What’s the other end connected to, the socket end?

    #15 Pete433, Feb 23, 2023
  16. I can’t see a free/spare end it could connect to.

    #16 Davyd, Feb 23, 2023
