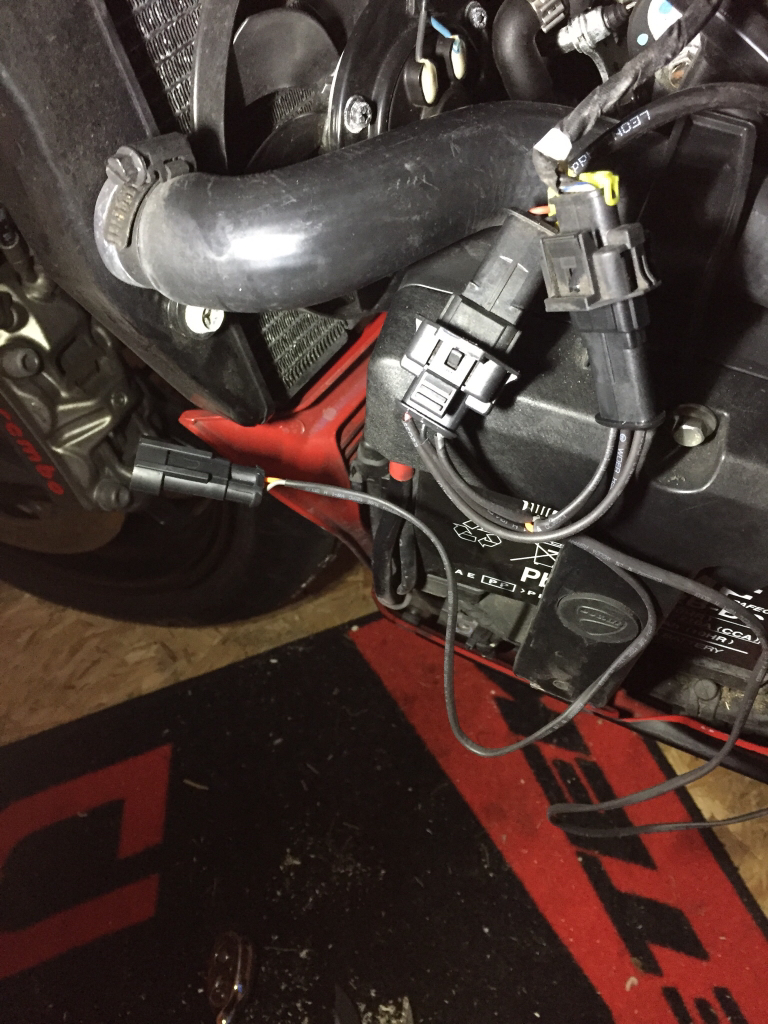

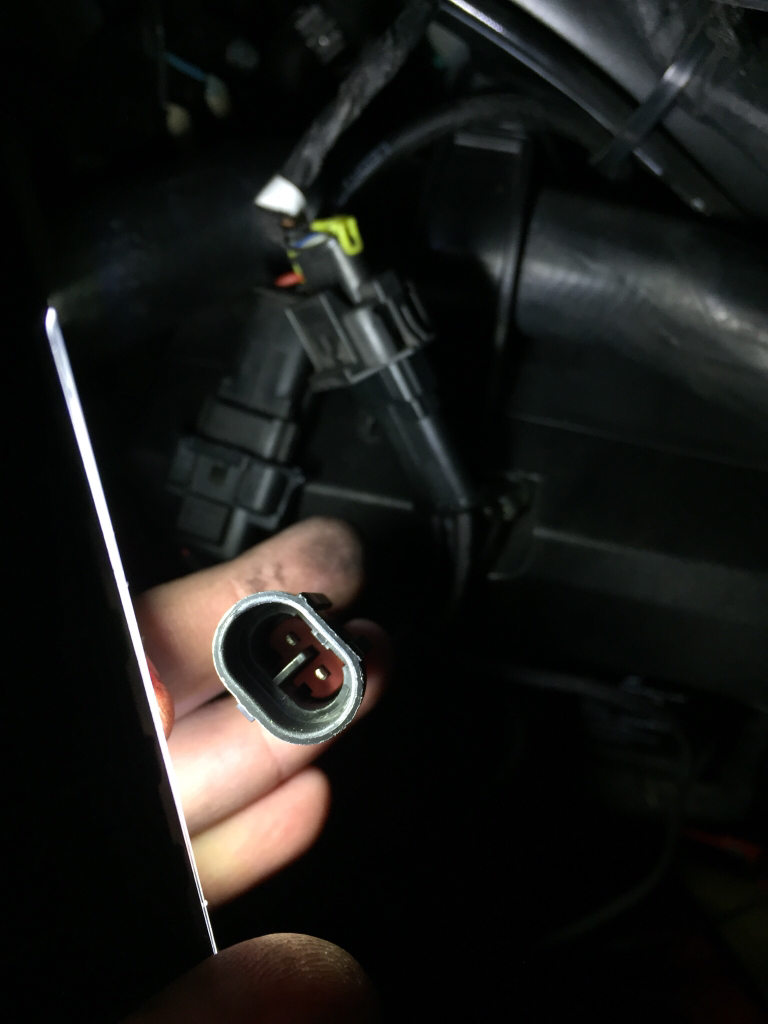

Hi all Currently fitting my HM Plus SS quickshifter to my 848 as I type And plugged in the new loom tired to start it up just to check it's correct and it won't fire up Plugged the OEM loom back in and fires up 1 question I have is what is this extra lead I have at one end??? Does it matter if this is on the rear cylinder or front ? Can't see where else it plugs into Cheers for a quick response Sent from my iPhone using Tapatalk
Not grounded yet no I haven't put on the strain gauge etc Literally just plugged into the coil plugs to test it was ok before fitting the rest Sent from my iPhone using Tapatalk
Yeah... Everything needs to be connected.... And yes, get a good ground! Sent from my SM-P900 using Tapatalk
Yeah I realised not long after posting ....'bangs head off the wall' Sent from my iPhone using Tapatalk
Ok got it all plugged in the LCD control only shows part of the countdown then stops for the set up mode 5.4..... then nothing I have earthed it to the negative on my battery ? Any ideas ? Sent from my iPhone using Tapatalk
It's the Plus SS with a black box mate ? It should count down from 5.4.3.2.1 then go into set up mode But it's getting to 4 then just going to blank screen again Something is telling me the earth isn't good Sent from my iPhone using Tapatalk
Sounds like it works the same as mine... Give me a min I'll just pop in the garage and check.... Try taking a cable from your earth point straight to the battery... While in checking... Sent from my SM-P900 using Tapatalk
I have a very vague memory that mines does the same run down, I checked with HM and it's a peculiarity of the way Ducati's power up. IIRC Put the bike on a paddock stand and try putting it through the gears without the clutch.
Mine only counts down when I hold my finger down on the button and switch the ignition on... But it is on a z1ooo.... Sent from my SM-G935F using Tapatalk
The spark plugs are only live for few seconds when turn ignition on. You need to keep little button pressed on unit and start bike. Plugs are live again and will count down to 0 and let go to enter set up mode
Cheers Jase will give it a try tonight Thanks for your help will post how I get on Sent from my iPhone using Tapatalk
