1199 Superleggera Rr - Project 1201 Koen

Discussion in 'Builds & Projects' started by mygreenalien, Dec 16, 2013.

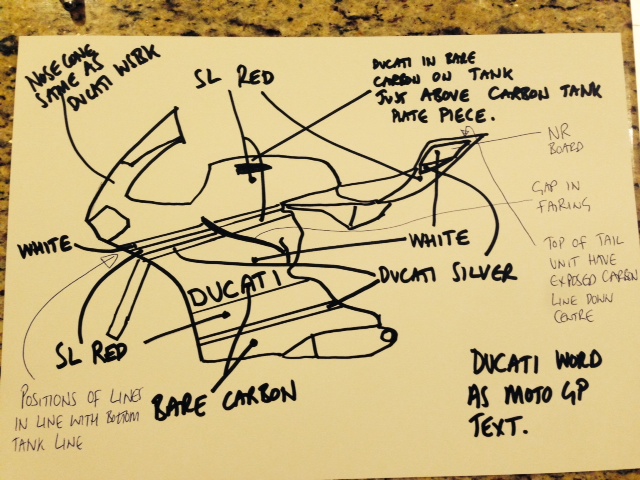

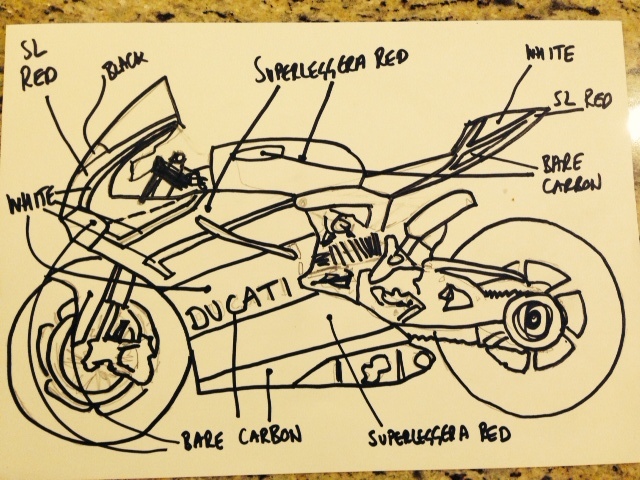

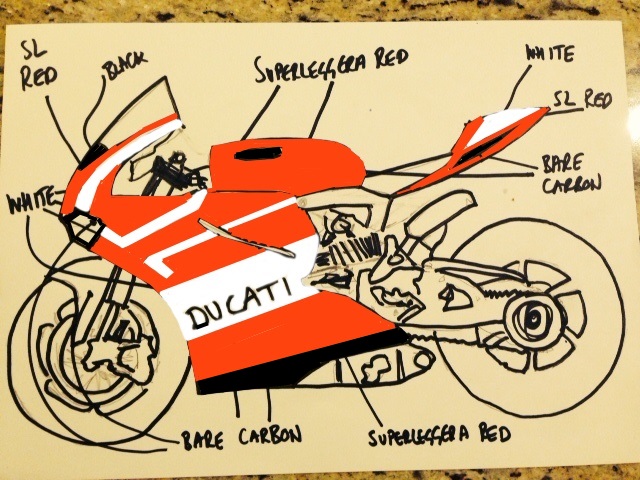

  1. Paint design now being looked at - initial sketches attached, no doubt tweaking will be done:



    • Like Like x 1
  2. RD do a great Martini paint job ;)

  3. In my Best (lol) Painting skills......


    #123 imbloodyskintagain, Jul 21, 2014
    Last edited: Jul 21, 2014
    • Like Like x 1
  4. Looks like my TD kit based up the GP13 strangely by Rage Designs

    • Agree Agree x 1

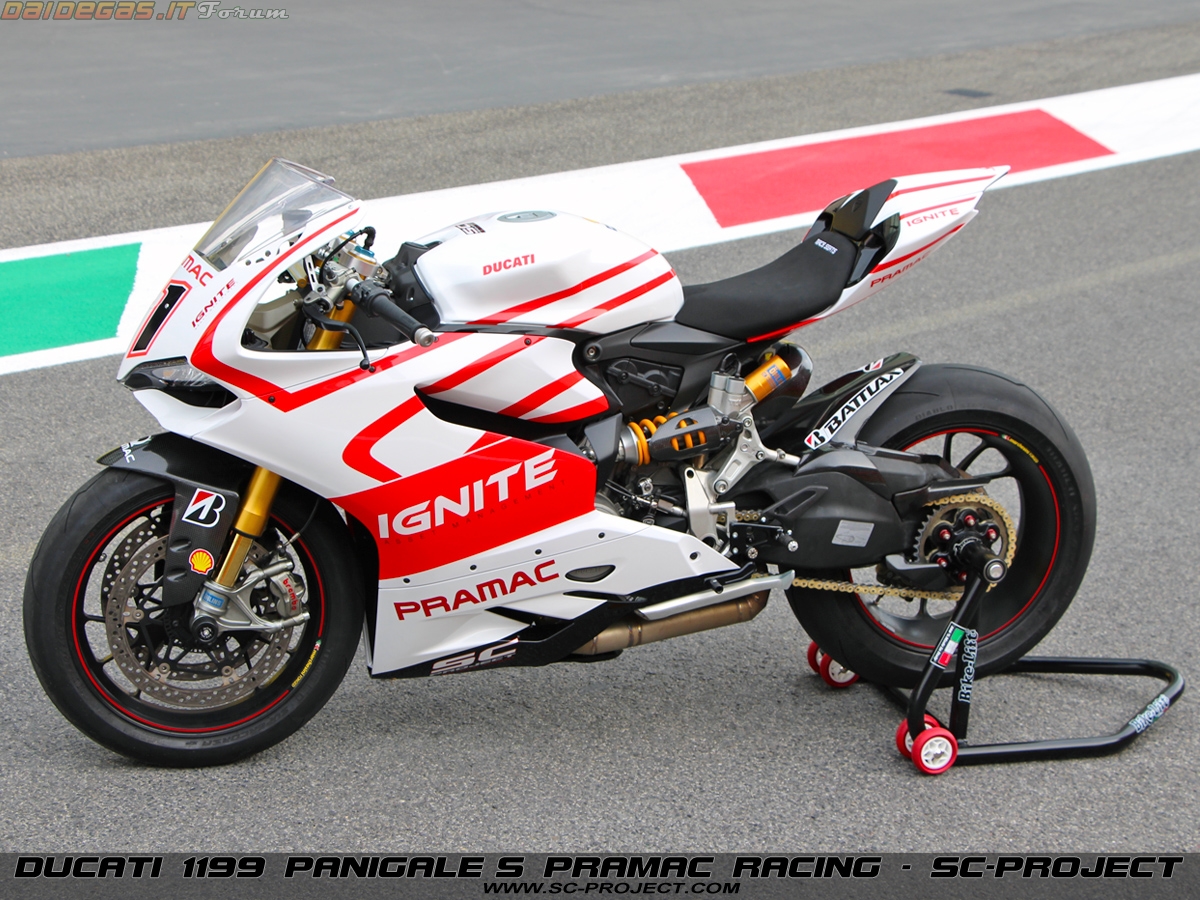

  5. Here is "Pramac" Negative version of the same paint scheme.


    #125 imbloodyskintagain, Jul 21, 2014
    Last edited: Jul 21, 2014
    • Like Like x 7
  6. Now that Pramac bike I like!

  7. ^ i'm impressed!!

    • Like Like x 1
  8. Funny exh on that one.

    • Agree Agree x 1

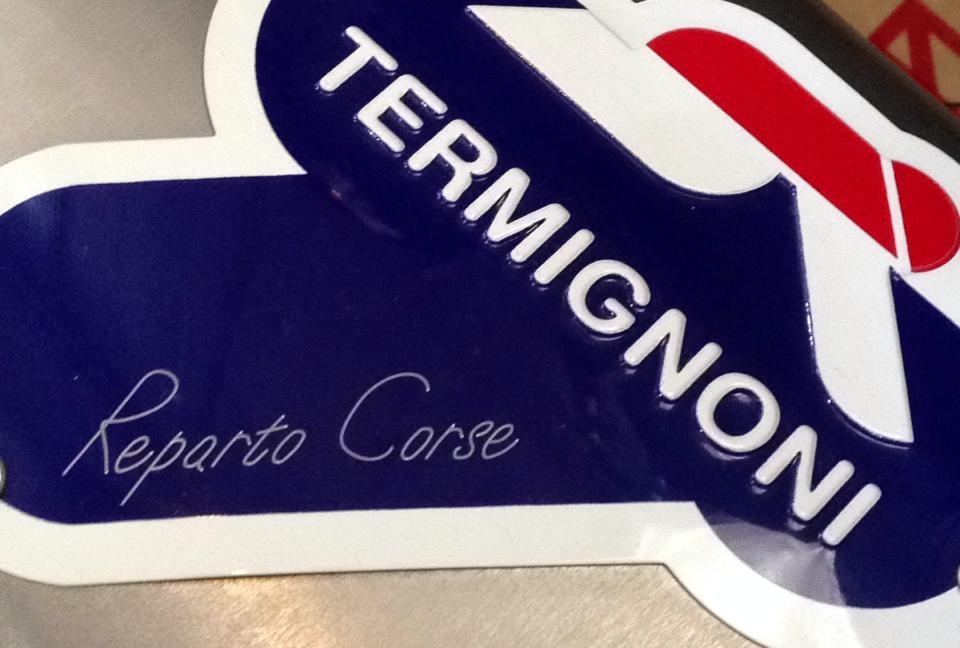

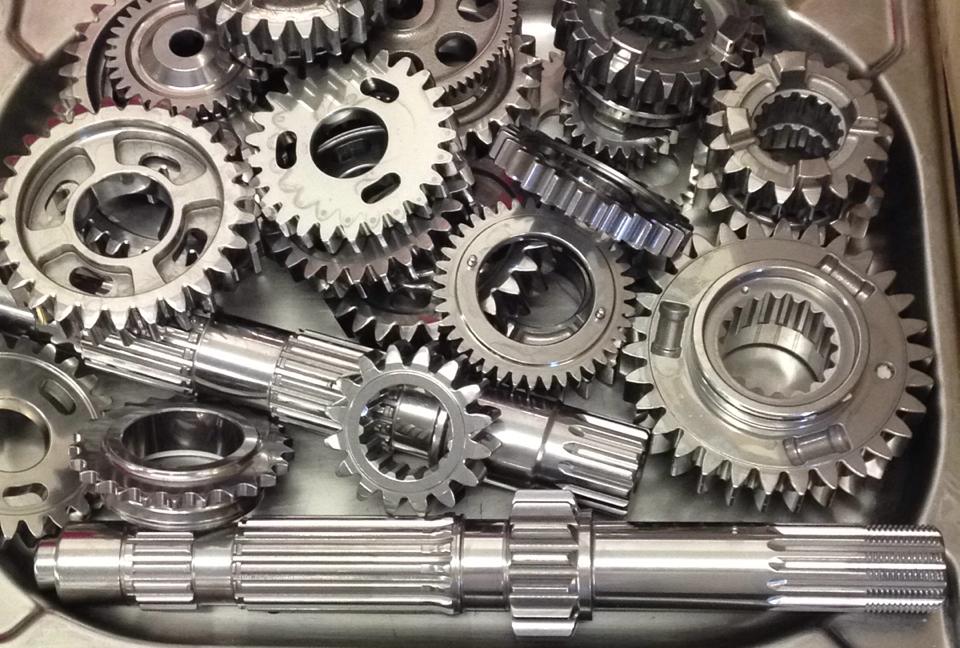

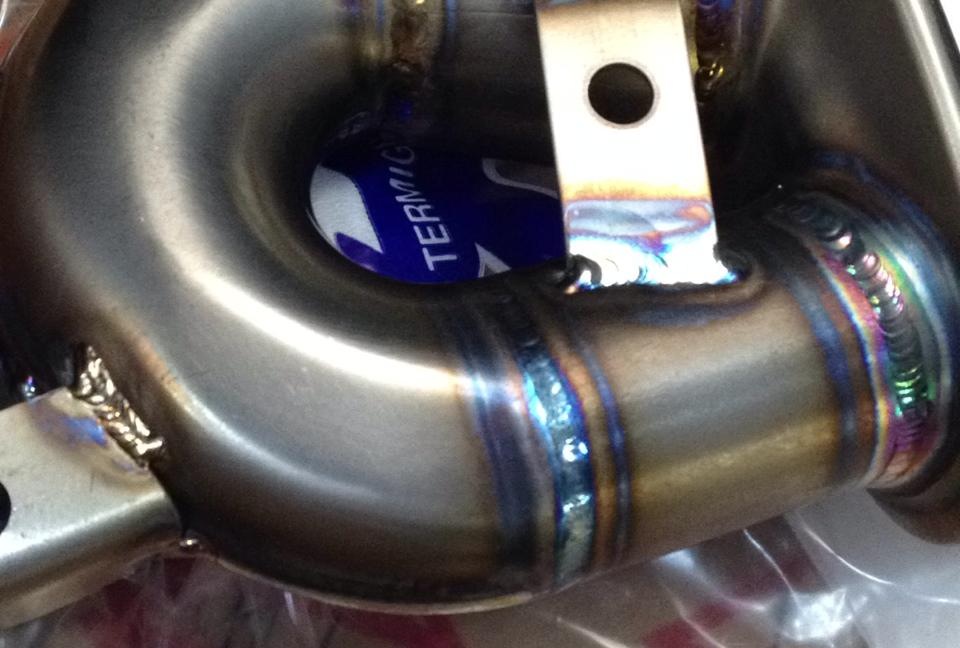

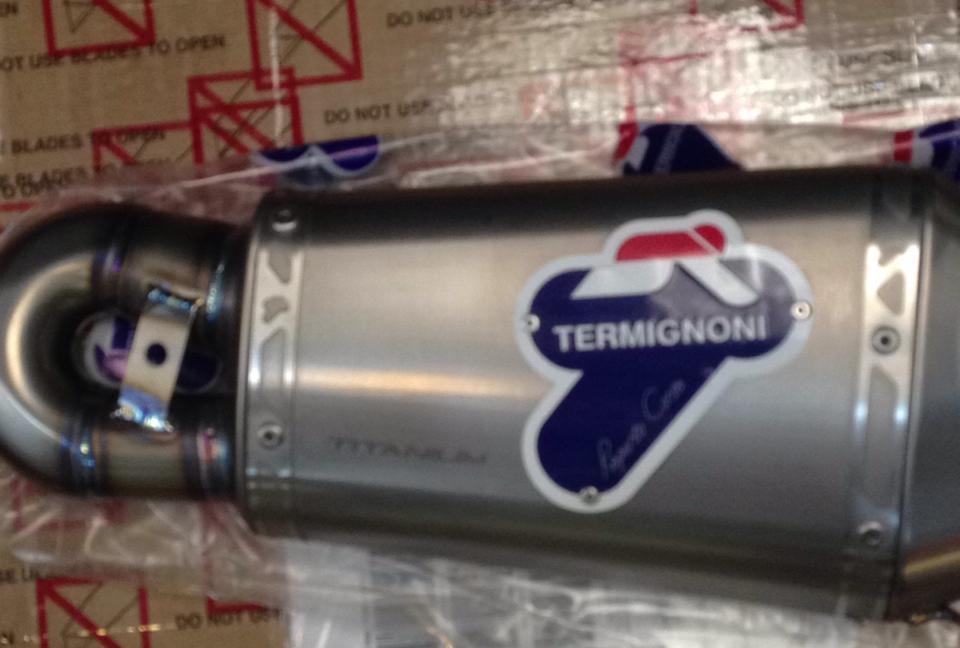

  9. So more parts arrived today - pukka titanium end cans from Termignoni race department - "Reparto Corse" and note the titanium pipe; and the timing and cam gears all super finished.





  10. That'll open up the running clearances on the mating parts..

  11. I thought the super leg come with full akro ? why go to termi ?

  12. ^ because the term system is the pukka factory race version and power output - top end and midrange - are significantly better.

  13. So the paint scheme options are getting better:

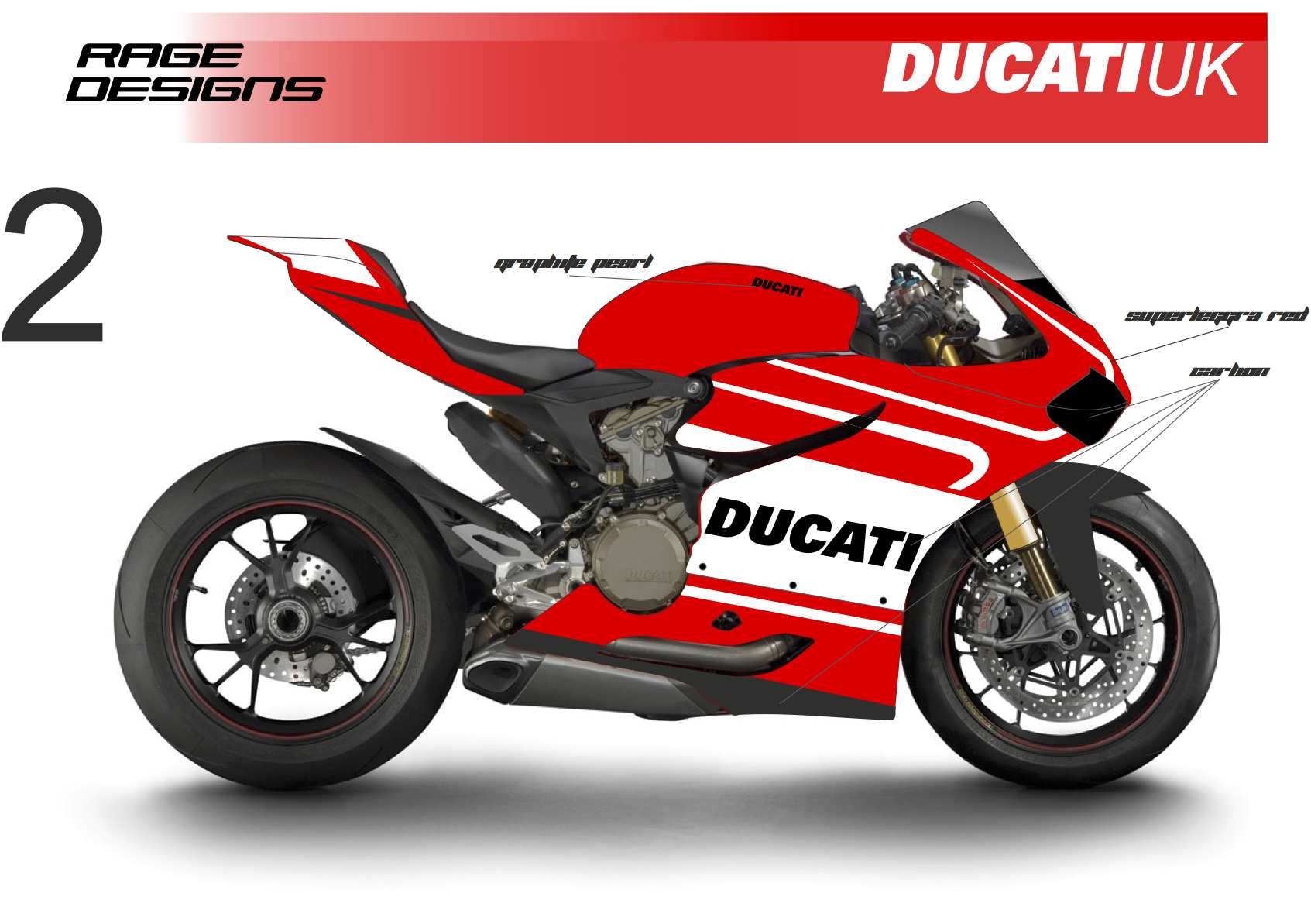

    CARL P SUPERLEG 2.jpg

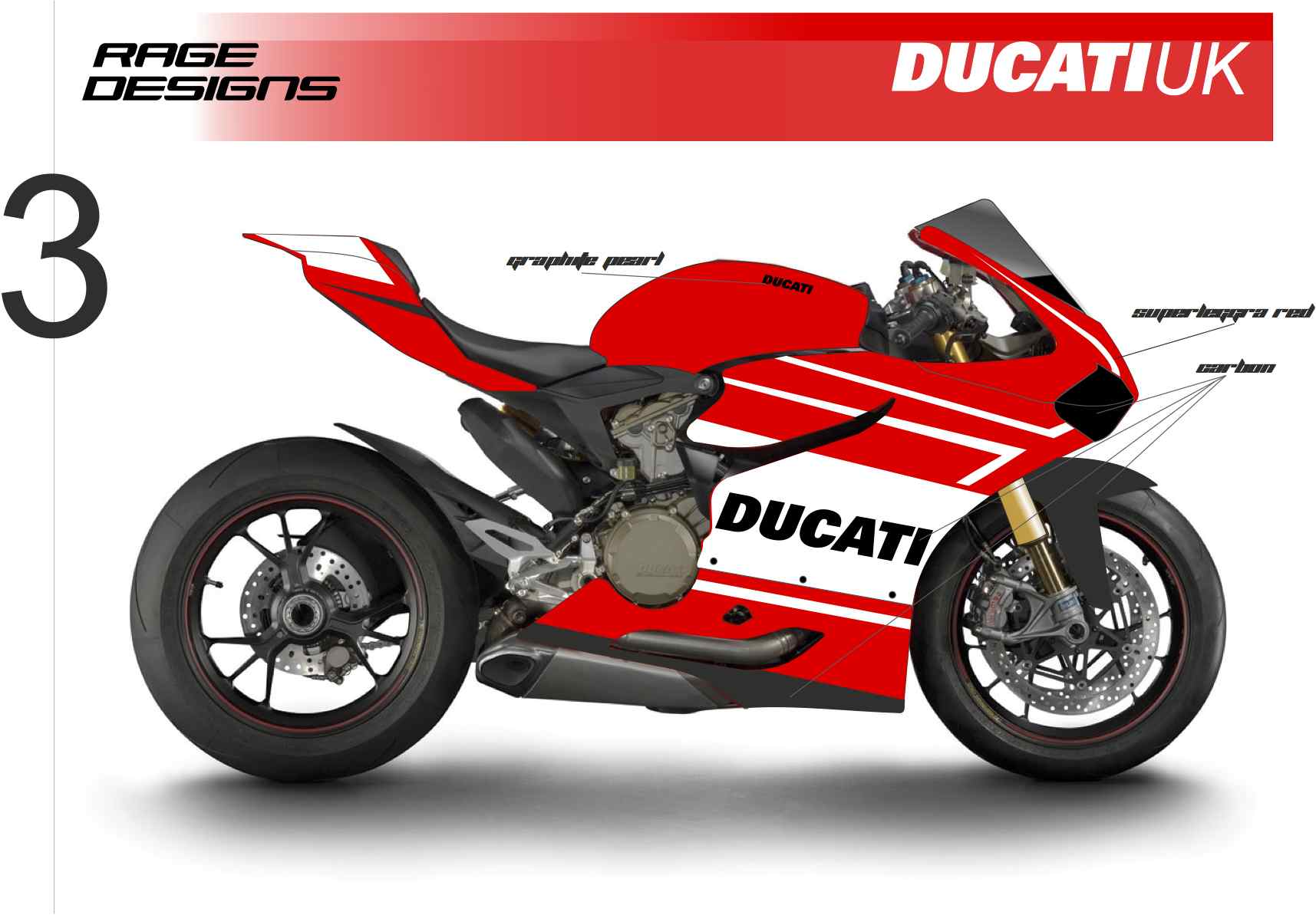

    CARL P SUPERLEG 3.jpg

  14. Prefer the curves on 2

    • Agree Agree x 1
  15. me too(2) - curves seem to flow better with the outline/shape of the bike.

  16. [​IMG]

    Freaks shitter

  17. Cool T Shirt?

    [​IMG]

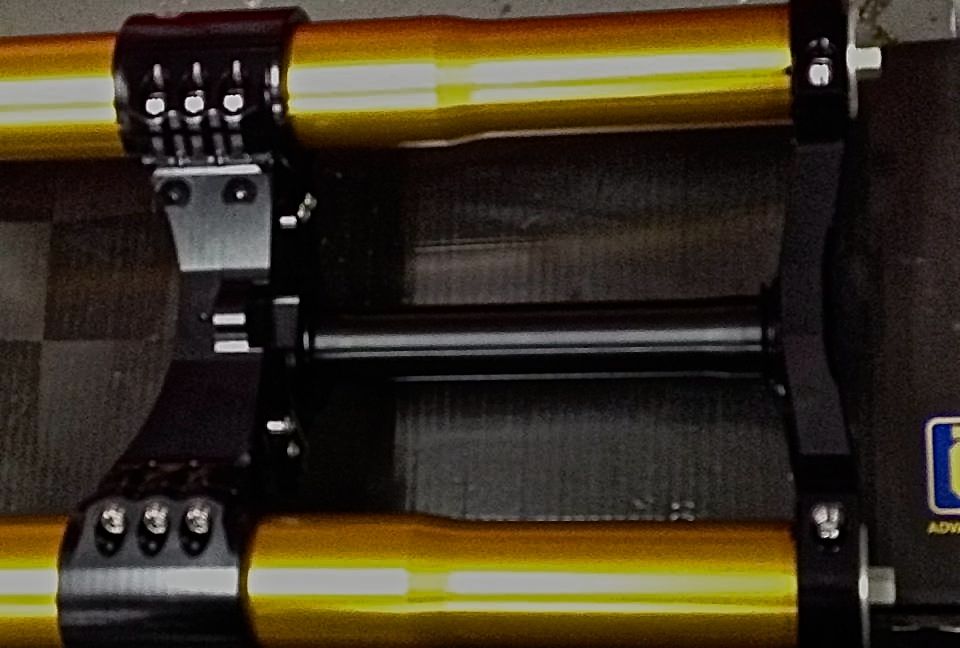

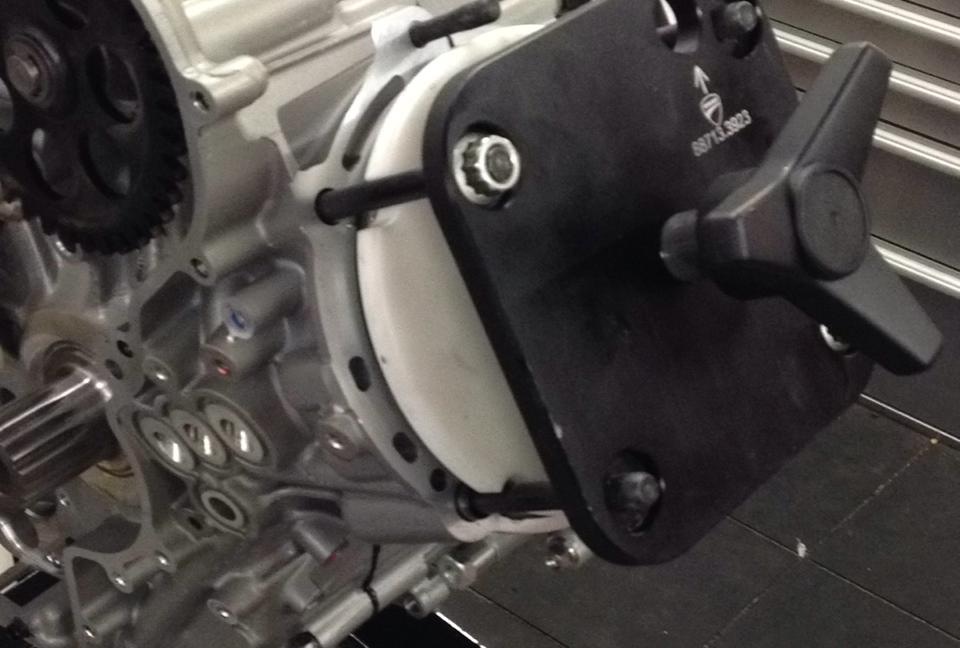

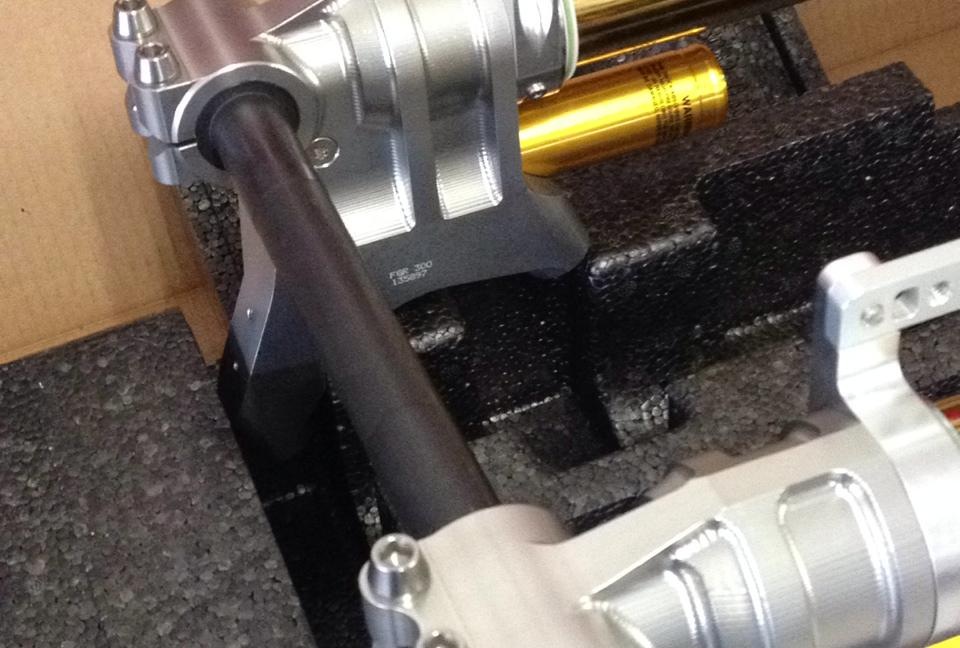

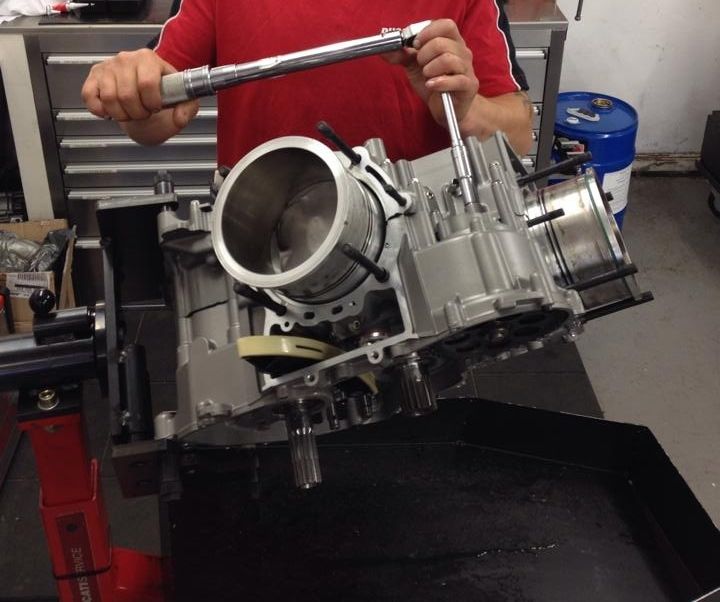

  18. So work continues on the project. Bottom of end of engine being done - cases closed and piston liners being closed. Still can't get over size of those cylinders! Front end also being measured up to check everything fits - the fitting of RS parts to the stock wheels speed sensor and sensor discs not simple.






    • Like Like x 4
  19. Ive seen buckets smaller than those pistons.

  20.
